Tekon WSM101 Installation Manual

Wireless serial module
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

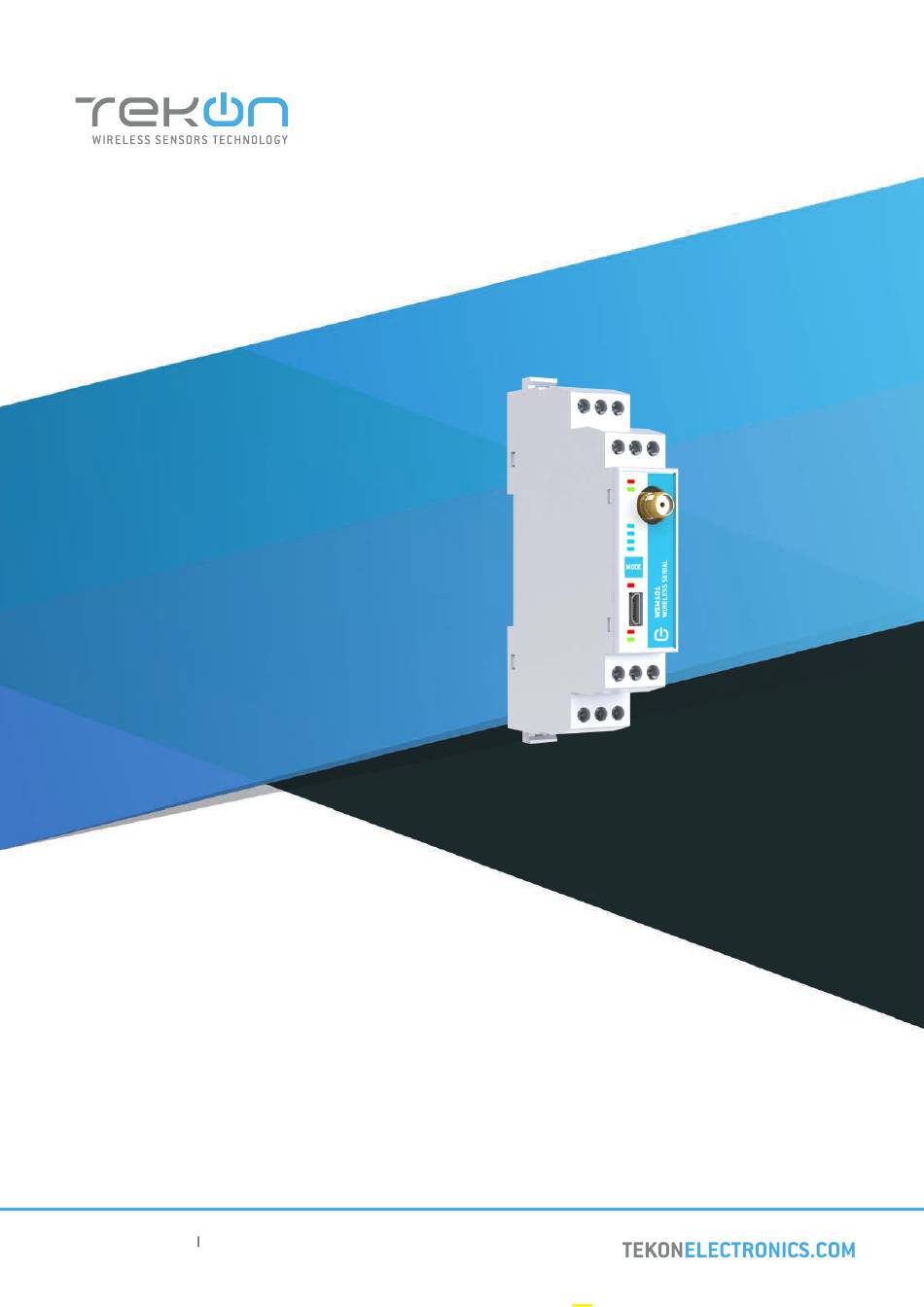

WSM101
WIRELESS
SERIAL
MODULE
INSTALLATION GUIDE
TEKON ELECTRONICS AVEIRO, PORTUGAL
TEKON ELECTRONICS AVEIRO, PORTUGAL
P.:
M.:
P.:
+351 234 303 320
+351 234 303 320
M.:
+351 933 033 250
+351 933 033 250
E.:
E.:
sales@tekonelectronics.com
sales@tekonelectronics.com
IG_DINR_WSM101_E02A

Advertisement

loading
Need help?

Need help?

Do you have a question about the WSM101 and is the answer not in the manual?

Questions and answers

Related Manuals for Tekon WSM101

Summary of Contents for Tekon WSM101

  • Page 1 WSM101 WIRELESS SERIAL MODULE INSTALLATION GUIDE IG_DINR_WSM101_E02A TEKON ELECTRONICS AVEIRO, PORTUGAL TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 234 303 320 +351 933 033 250 +351 933 033 250 sales@tekonelectronics.com sales@tekonelectronics.com...
  • Page 2 DUOS WIRELESS SYSTEM INSTALLATION GUIDE WSM101 WIRELESS SERIAL INSTALLATION GUIDE Table of contents step CONFIGURE WSM101 DEVICE Pages 3 to 8...
  • Page 3 WSM101 WIRELESS SERIAL INSTALLATION GUIDE step CONFIGURE WSM101 DEVICE DOWNLOAD AND INSTALL “TEKON CONFIGURATOR” FREE SOFTWARE FROM TEKON ELECTRONICS WEBSITE Connect the WSM101 to the Micro-USB cable. Connect the Micro-USB cable to the computer. Open Tekon Configurator Software...
  • Page 4 WSM101 WIRELESS SERIAL INSTALLATION GUIDE step CONFIGURE WSM101 DEVICE Open the PLUS WSM101 device page. You can enter the device’s page in the following ways: 1st option: Click on “SMART TRANSMITTERS” in the left menu and then click on the device.
  • Page 5 INSTALLATION GUIDE step CONFIGURE WSM101 DEVICE Load the “Port COM” corresponding to the WSM101 NOTE: If the USB cable has already been connected before opening the device page, “Port COM” will appear in the list, otherwise you need to click on the “...
  • Page 6 WSM101 WIRELESS SERIAL INSTALLATION GUIDE step CONFIGURE WSM101 DEVICE Click on the “Connect” button ( ) to enter Configuration Mode. The software will connect to the device. NOTE: If the software is unable to connect to the device, the status is displayed. If it hasn’t...
  • Page 7 WSM101 WIRELESS SERIAL INSTALLATION GUIDE step CONFIGURE WSM101 DEVICE When the software connects to the device, the “Connected” message will be displayed. Tekon Configurator will recognize the default configuration. To set a gateway profile, choose the device profile Gateway.
  • Page 8 WSM101 WIRELESS SERIAL INSTALLATION GUIDE step CONFIGURE WSM101 DEVICE Choose the Wireless Channel, Wireless Network ID, Baudrate (bps), Parity and Stopbits. Click on “WRITE DEVICE” to save the changes. If the changes to the device have been written, the following symbol will appear ( If not, the following symbol will appear ( ),try again and check that the device is connected correctly.
  • Page 9 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Avenida Europa, 460 Quinta do Simão TEKON ELECTRONICS 3800-230 Aveiro a brand of Bresimar Automação S.A. PORTUGAL Quinta do Simão P.: +351 234 303 320 3800-230 Aveiro M.: +351 933 033 250 PORTUGAL E.: sales@tekonelectronics.com...
