PLUS WIRELESS SYSTEM
INSTALLATION GUIDE
TEKON ELECTRONICS AVEIRO, PORTUGAL
TEKON ELECTRONICS AVEIRO, PORTUGAL
P.:
M.:
P.:
+351 234 303 320
+351 234 303 320
M.:
+351 933 033 250
+351 933 033 250
E.:
E.:
sales@tekonelectronics.com
sales@tekonelectronics.com
IG.PLUS.ENG.V01.1.2018
Advertisement
Related Manuals for Tekon PLUS TWP4AI
Summary of Contents for Tekon PLUS TWP4AI

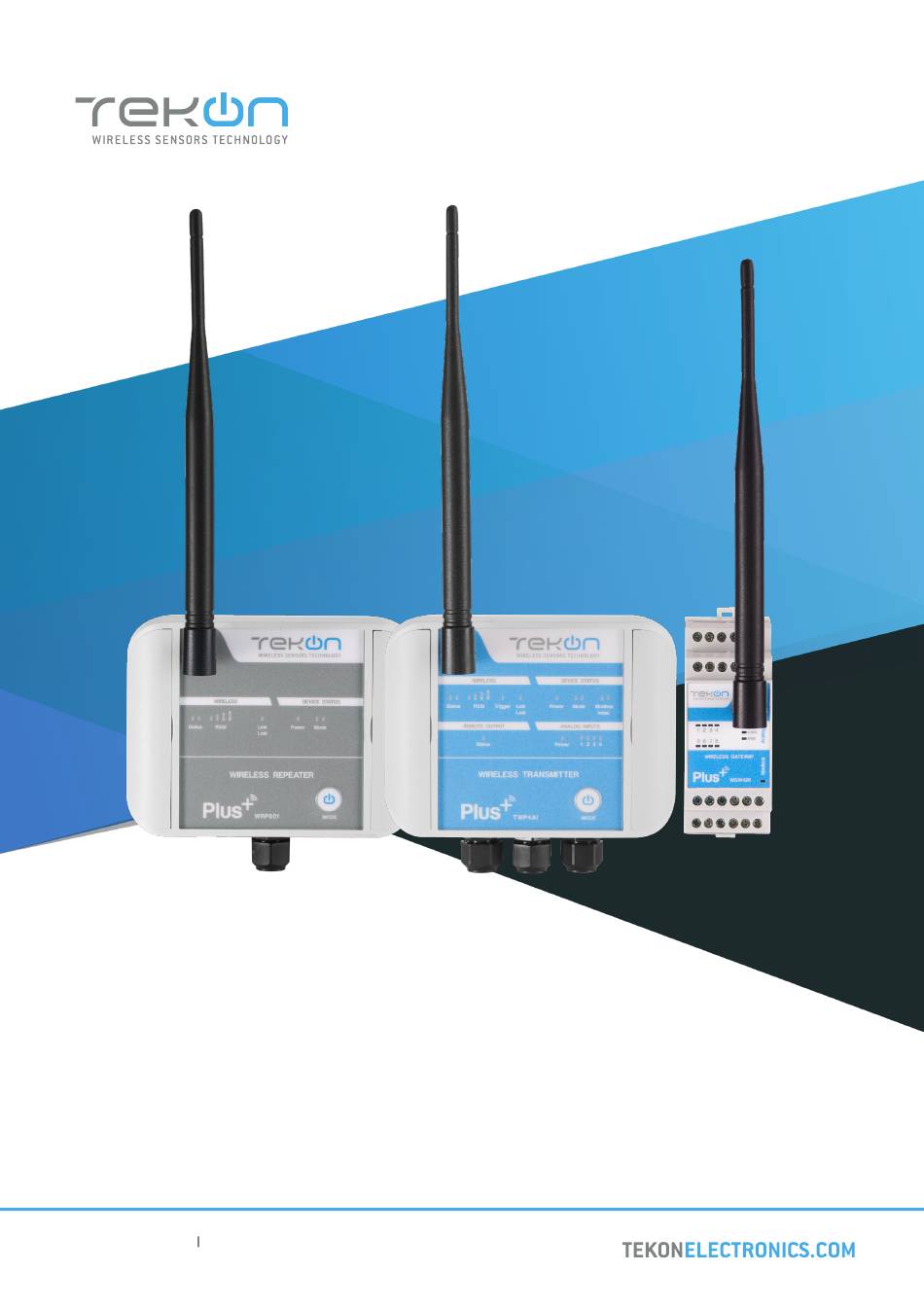

- Page 1 PLUS WIRELESS SYSTEM INSTALLATION GUIDE IG.PLUS.ENG.V01.1.2018 TEKON ELECTRONICS AVEIRO, PORTUGAL TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 234 303 320 +351 933 033 250 +351 933 033 250 sales@tekonelectronics.com sales@tekonelectronics.com...
- Page 2 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS WIRELESS SYSTEM INSTALLATION GUIDE Table of contents step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Pages 4 to 12 step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Pages 13 to 19 step TWP4AI TRANSMITTER ANALOG INPUT CONFIGURATION Pages 20 to 23 step TWP4AI TRANSMITTER DIGITAL INPUT CONFIGURATION Pages 24 to 26...
- Page 3 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS WIRELESS SYSTEM INSTALLATION GUIDE Table of contents step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION Pages 27 to 32 LINK LOST OUTPUT Page 28 REMOTE CONTROL OUTPUT Page 30 EXTERNAL POWER CONTROL OUTPUT Page 31 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION Pages 33 to 35 step...
-
Page 4: Wgw420 Plus Wireless Gateway Configuration
step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION... - Page 5 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION TEKON CONFIGURATOR SOFTWARE is only compatible with the Microsoft® Windows® Operating System. Connect the antenna to the Gateway. Wiring Connect the power supply and then the RS485-USB cable to the Gateway.
- Page 6 Green LEDs permanently on Red LEDs permanently on WIRELESS GATEWA Y 10 Seconds to enter configuration mode Normal mode Open Tekon Configurator Software and select PLUS >> Gateway >> Configuration Tekon Configurator software is free of charge and available at www.tekonelectronics.com...
- Page 7 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Select serial port corresponding to WGW420 PLUS Wireless Gateway Click on the Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft ® Windows® operating system.
- Page 8 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Perform a power cycle on the Gateway. NOTE: After power up, you have 10 seconds to enter configuration mode by clicking on Connect button ( (while green LEDs are permanently on). In this mode, you can manage device parameters: Modbus Address, Modbus Baudrate, Modbus Parity, Wireless Network ID and Wireless Channel.
- Page 9 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION The status string at the bottom of the software window provides feedback on ongoing operations. You can also verify configuration mode activation by checking LEDs on the gateway. Green LEDs performing scan animation WIRELESS GATEWA Y Configuration mode...
- Page 10 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Take note of device configuration data available, namely: Modbus Address, Modbus Baudrate, Modbus Parity, Wireless Network ID Wireless Channel. NOTE: The wireless network connection between devices is ensured by setting the same Wireless Network ID and Wireless Channel parameters.
- Page 11 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Modbus Communication Select Modbus tab of the Gateway and set the previously saved configurations. Ensure that Port name, Baudrate, Parity Modbus Address fields are the same as those obtained in configuration mode.
- Page 12 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION NOTE: See WGW420 Datasheet to access LED indication information - page 4. Red LEDs permanently on LED flashes on each wireless communication WIRELESS GATEWA Y...
-
Page 13: Twp4Ai Plus Wireless Transmitter Configuration
step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION... - Page 14 TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Loosen the 4 screws of the case and open it. Connect a micro USB cable to the computer and then to TWP4AI PLUS Wireless Transmitter. Open a new window of Tekon Configurator Software and select PLUS >> Transmitter menu.
- Page 15 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft® Windows® operating system.
- Page 16 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Configuration Mode ) button. LEDs permanently LEDs alternating ANALOG WIRELESS TRANSMITTER...
- Page 17 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Configure Wireless Network ID Wireless Channel previously obtained from Gateway. The wireless connection between both devices is ensured by setting the same Wireless Network ID Wireless Channel parameters. Gateway Modbus Index will define the modbus registers window used to store information sent by the transmitter.
- Page 18 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Configuration Mode ) button to exit setup and resume normal operating mode. permanently LEDs alternating LEDs flashing until wireless connection is established ANALOG WIRELESS TRANSMITTER permanently When connected to the Gateway...
- Page 19 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION After clicking on Disconnect button, the device will permanently attempt to connect to a wireless network. If there is no communication, the Status LED flashes slowly and the Mode LED flashes quickly. When there’s a successful connection directly to a wireless network, both status LEDs alternate quickly - during 1 minute if the transmitter is operating as end device or permanently if operating as repeater.
-
Page 20: Twp4Ai Transmitter Analog Input Configuration
step TWP4AI TRANSMITTER ANALOG INPUT CONFIGURATION... - Page 21 Each analog input can be configured independently, as current input [0..20mA] or voltage input [0..10V] To enter in Configuration Mode follow steps 01 to 05 of PLUS Wireless Transmitter Configuration. Tekon Configurator Software select PLUS >> Transmitter >> Analog Inputs...
- Page 22 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI TRANSMITTER ANALOG INPUT CONFIGURATION The status string at the bottom of the software window provides feedback on ongoing operations. Wiring Wire the device according to the diagram below. +24VDC (GND) (GND) Analog Input 3 (GND) Analog Input 1 I (mA)
- Page 23 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI TRANSMITTER ANALOG INPUT CONFIGURATION Validate configuration by clicking on Read button. NOTE: Configuration and Operation validated. Measured value of current and voltage depend on the setup. In this example 12mA (12000uA) and 5V (5000 mV) are being injected.
-
Page 24: Twp4Ai Transmitter Digital Input Configuration
step TWP4AI TRANSMITTER DIGITAL INPUT CONFIGURATION... - Page 25 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI TRANSMITTER DIGITAL INPUT CONFIGURATION NOTE: Sink type Digital Input. To enter in Configuration Mode follow steps 01 to 05 of PLUS Wireless Transmitter Configuration. Tekon Configurator Software select PLUS >> Transmitter >> Digital Inputs menu.
- Page 26 TWP4AI TRANSMITTER DIGITAL INPUT CONFIGURATION Select Operation Mode Rising E dge and click on Write button. Validate functionality and click on Disconnect button. Wait for the device to connect to the Gateway and observe data in Tekon Configurator window.
- Page 27 step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION...
- Page 28 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION To enter in Configuration Mode follow steps 01 to 05 of PLUS Wireless Transmitter Configuration. Tekon Configurator Software select PLUS >> Transmitter >> Digital Outputs menu Link Lost Output...
- Page 29 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 03.1 Select cycle number, start-up state link lost state and click on Write button. 03.2 Exit configuration mode and verify setup by checking LEDs indicators.. permanently Red LED flashing until wireless connection is established...
- Page 30 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION Remote Control Output Digital output remotely controlled by Gateway modbus protocol. 04.1 Define Start-up state Link lost state. Click on Write button. 04.2 Exit configuration mode and verify setup by checking LEDs indicators. permanently on Red LED flashing until wireless...
- Page 31 TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 04.3 Using the Tekon Configurator you can change the State of Remote Output by setting the modbus register on the gateway. The Gateway will send the information in the next time the transmitter performs a communication.
- Page 32 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 05.1 Define Warm up time and click on the Write button. 05.2 Exit configuration mode and verify setup by checking LEDs indicators. permanently on Red LED flashing until wireless connection is established LEDs permanently...
- Page 33 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION...
- Page 34 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step GATEWAY ANALOG OUTPUTS Follow steps 06 and 07 of the PLUS Wireless Gateway Configuration. Tekon Configurator Software select PLUS >> Gateway >> Analog Outputs menu Considering the transmitter configuration with GTW Modbus Index=1, there is a Gateway Modbus Address Window corresponding to Modbus address window [0-19].
- Page 35 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step GATEWAY ANALOG OUTPUTS Link Analog Output Index 1 (Gateway) to Analog Input 1 (Transmitter) and configure MB Add Link according to the previous step. Set minimum and maximum values and click on Write 4000 (4mA) 20000 (20mA) NOTE: Output index 1 is linked to modbus address [9], according to mapping table of step 03.
- Page 36 step WRP001 PLUS WIRELESS REPEATER CONFIGURATION...
- Page 37 CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Loosen the 4 screws of the case and oppen it. Connect a micro USB cable to the computer and then to WRP001 PLUS Wireless Repeater. Open a new window of Tekon Configurator Software and select PLUS >> Repeater menu.
- Page 38 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click on Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft® Windows® operating system.
- Page 39 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click on Configuration Mode ) button. permanently LEDs flashing until wireless connection is established ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER permanently...
- Page 40 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Configure Wireless Network ID Wireless Channel previously obtained from Gateway. Click on Write button to update Transmitter settings. Click on Configuration Mode ) button to exit setup and resume normal operating mode.
- Page 41 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER permanently LEDs flashing until wireless connection is established permanently ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER Connection to the Gateway established Connection to the Gateway not established...
- Page 42 step SITE SURVEY MODE...
- Page 43 PLUS WIRELESS SYSTEM INSTALLATION GUIDE step SITE SURVEY MODE Refers to following devices: THP4AI Transmitter WRP001 Repeater. Site survey mode is a tool that allows a quick wireless signal strength evaluation at the site of installation. It doesn’t require additional equipment or software. Press and hold Mode ( ) button untill Status LEDs are permanently on and Mode LEDs flash.
- Page 44 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Quinta do Simão 3800-230 Aveiro PORTUGAL Sales P.: +351 234 303 320 M.: +351 933 033 250 E.: sales@tekonelectronics.com Technical Support E.: support@tekonelectronics.com...
