Tekon PLUS TWP-4AI4DI1UT Installation Manual

Hide thumbs Also See for PLUS TWP-4AI4DI1UT:

Advertisement

Quick Links

Download this manual
PLUS TWP-4AI4DI1UT
INSTALLATION GUIDE
TEKON ELECTRONICS AVEIRO, PORTUGAL
TEKON ELECTRONICS AVEIRO, PORTUGAL
P.:
M.:
P.:
+351 234 303 320
+351 234 303 320
M.:
+351 933 033 250
+351 933 033 250
E.:
E.:
sales@tekonelectronics.com
sales@tekonelectronics.com
IG_PLUS_TWP-4AI4DI1UT_E02A

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLUS TWP-4AI4DI1UT and is the answer not in the manual?

Questions and answers

Related Manuals for Tekon PLUS TWP-4AI4DI1UT

Summary of Contents for Tekon PLUS TWP-4AI4DI1UT

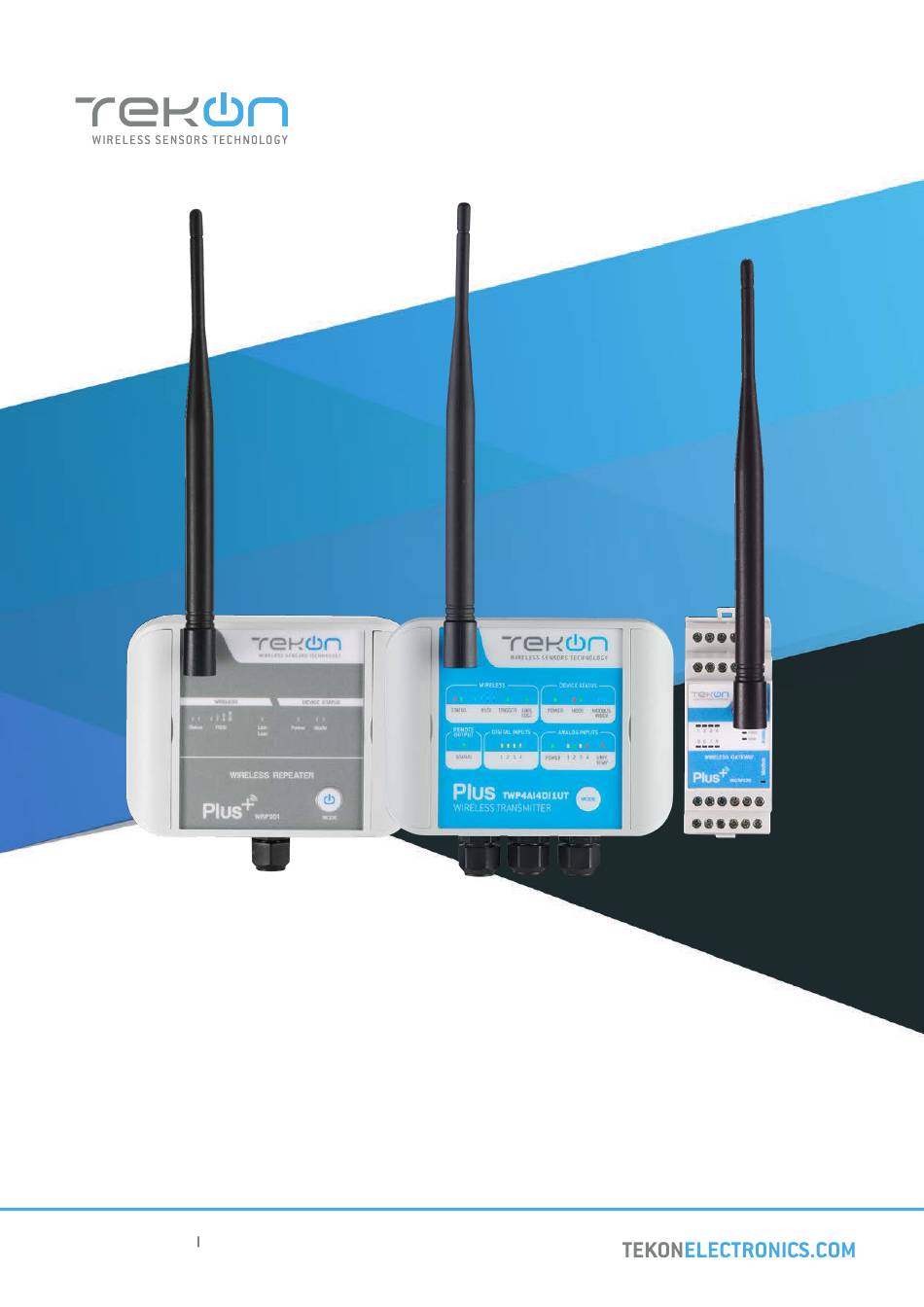

  • Page 1 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE IG_PLUS_TWP-4AI4DI1UT_E02A TEKON ELECTRONICS AVEIRO, PORTUGAL TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 234 303 320 +351 933 033 250 +351 933 033 250 sales@tekonelectronics.com sales@tekonelectronics.com...
  • Page 2 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS TWP-4AI4DI1UT INSTALLATION GUIDE Table of contents step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Pages 4 to 13 step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Pages 14 to 21 step TWP-4AI4DI1UT TRANSMITTER ANALOG INPUTS CONFIGURATION Pages 22 to 25...

  • Page 3: Site Survey

    DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS TWP-4AI4DI1UT INSTALLATION GUIDE Table of contents step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION Pages 35 to 40 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION Pages 41 to 43 step WRP001 PLUS WIRELESS REPEATER CONFIGURATION Pages 44 to 51...
  • Page 4 step step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION WGW420 PLUS WIRELESS GATEWAY CONFIGURATION...
  • Page 5 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION TEKON CONFIGURATOR SOFTWARE is only compatible with the Microsoft® Windows® Operating System. Connect the antenna to the Gateway. Wiring Connect the power supply and then the RS485-USB cable to the Gateway.
  • Page 6 Check device connection state by LED indication. Green LEDs permanently on Red LEDs permanently on WIRELESS GATEWA Y 10 Seconds to enter configuration mode Normal mode Open Tekon Configurator Software Tekon Configurator software is free of charge and available at www.tekonelectronics.com...
  • Page 7 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Open the WGW420 PLUS Wireless Gateway device page. You can enter the device’s page in the following ways: 1st option: Click on “SMART TRANSMITTERS” in the left menu and then click on the WGW420 device.
  • Page 8 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Load the “Port COM” corresponding to the WGW420 Wireless Gateway. NOTE: If the USB cable has already been connected before opening the device page, “Port COM” will appear in the list, otherwise you need to click on the “...
  • Page 9 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Perform a power cycle on the Gateway. NOTE: After power up, you have 10 seconds to enter configuration mode by clicking on Connect button ( (while green LEDs are permanently on).
  • Page 10 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION The software will connect to the device. NOTE: If the software is unable to connect to the device, the status is displayed. If it hasn’t connected, go back to the previous steps and check the port COM.
  • Page 11 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Take note of device configuration data available, namely: Modbus Address, Modbus Baudrate, Modbus Parity, Wireless Network ID Wireless Channel. NOTE: The wireless network connection between devices is ensured by setting the same Wireless Network ID and Wireless Channel parameters.
  • Page 12 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Modbus Communication Select modbus mode in the checkbox below the Connect button. Ensure that Port name, Baudrate, Parity Modbus Address fields are the same as those obtained in configuration mode.
  • Page 13 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Click on connect and check that the status is “Connected”. Red LEDs permanently on LED flashes on each wireless communication WIRELESS GATEWA Y NOTE: See WGW420 Datasheet to access LED indication information - page 4.
  • Page 14 step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION...
  • Page 15 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Loosen the 4 screws of the case and open it. (Example image) Connect a micro USB cable to the computer and then to TWP-4AI4DI1UT PLUS Wireless Transmitter. (Example image) Open...
  • Page 16 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Open the TWP-4AI4DI1UT PLUS Wireless Transmitter device page. You can enter the device’s page in the following ways: 1st option: Click on “SMART TRANSMITTERS” in the left menu and then click on the TWP-1UT.
  • Page 17 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION 04 05 Load the “Port COM” corresponding to the TWP-4AI4DI1UT PLUS Wireless Transmitter. NOTE: If the USB cable has already been connected before opening the device page, “Port COM” will appear in the list,...
  • Page 18 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Click on the “Connect” button ( ) to enter Configuration Mode. LEDs permanently LEDs alternating...
  • Page 19 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION The software will connect to the device. NOTE: If the software is unable to connect to the device, the status is displayed. If it hasn’t connected, go back to the previous steps and check the port COM.
  • Page 20 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Configure Wireless Network ID Wireless Channel previously obtained from Gateway. The wireless connection between both devices is ensured by setting the same Wireless Network ID Wireless Channel parameters. Gateway Modbus Index will define the modbus registers window used to store information sent by the transmitter.
  • Page 21 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Click on the button ( ) to exit configuration mode and return the device to normal operating mode. After clicking on Disconnect button, the device will permanently attempt to connect to a wireless network.
  • Page 22 step TWP-4AI4DI1UT TRANSMITTER ANALOG INPUT CONFIGURATION...
  • Page 23 To enter in Configuration Mode follow steps 01 to 10 of TWP-4AI4DI1UT PLUS Wireless Transmitter Configuration. In the Tekon Configurator Software, click on “Analog Inputs” to open the sensor settings. As an example, select the Current option under Mode and click on “Write...
  • Page 24 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER ANALOG INPUTS CONFIGURATION Wait for the software to write the new setting to the device. Wait for the status to change to If the writing of the device is not completed, you will .
  • Page 25 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER ANALOG INPUTS CONFIGURATION Validate configuration by clicking on Read Values button. 4.99 NOTE: Configuration and Operation validated. Measured value of current and voltage depend on the setup. In this example 12mA (12000uA) are being...
  • Page 26 step TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION...
  • Page 27 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION NOTE: Sink type Digital Input. Configuration of Digital Input Trigger. To enter in Configuration Mode follow steps 01 to 10 of TWP-4AI4DI1UT PLUS Wireless Transmitter Configuration Tekon Configurator Software select...
  • Page 28 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION Select Operation Mode Raising E dge and click on Write Device button. Wait for the software to write the new setting to the device. The status of should change to If the writing of the device is not completed, you will see .
  • Page 29 TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION Validate functionality and click on Disconnect button. Wait for the device to connect to the Gateway and observe data in Tekon Configurator window. Click on the checkbox Enable DI Trigger Communication to enable the digital inputs configuration.
  • Page 30 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION Select the Event Trigger for each connected digital input and click on Write Device button Wait for the software to write the new setting to the device. The status of should change to...
  • Page 31 Validate functionality and click on Disconnect button. Wait for the device to connect to the Gateway and observe data in Tekon Configurator window. Trigger an event on your digital inputs and observe an earlier communication and the state of each Digital Input. High...
  • Page 32 step TWP-4AI4DI1UT TRANSM. UNIV. TEMPERATURE INPUT CONFIGURATION...
  • Page 33 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER UNIVERSAL TEMPERATURE INPUT CONFIGURATION To enter in Configuration Mode follow steps 01 to 10 of TWP-4AI4DI1UT PLUS Wireless Transmitter Configuration Tekon Configurator Software select SENSOR INPUT Select the Sensor Type connected to the transmitter universal temperature input and click on Write button.
  • Page 34 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER UNIVERSAL TEMPERATURE INPUT CONFIGURATION You can check the Sensor Temperature. 30.2 Click on Read Values button to update the temperature readings and wait for the read success message. Wait for the software to read the values from the device.
  • Page 35 step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION...
  • Page 36 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION To enter in Configuration Mode follow steps 01 to 10 of TWP-4AI4DI1UT PLUS Wireless Transmitter Configuration Tekon Configurator Software select Digital Outputs menu. Link Lost Output Output that outputs wireless connection state of the device.
  • Page 37 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 03.1 Select number of cycles start state communication lost state and click on Write Device button. Wait for the software to write the new setting to the device. Wait for the...
  • Page 38 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION Remote Control Output Digital output remotely controlled by Gateway modbus protocol. 04.1 Define start state Communication lost state. Click on Write Device button. Wait for the software to write the new setting to the device.
  • Page 39 TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 04.3 Using the Tekon Configurator you can change the State of Remote Output by setting the modbus register on the gateway. The Gateway will send the information in the next time the transmitter performs a communication.
  • Page 40 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 05.1 Define Warm up time and click on the Write Device button. Wait for the software to write the new setting to the device. Wait for the status to change to...
  • Page 41 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION...
  • Page 42 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step GATEWAY ANALOG OUTPUTS Follow steps 01 and 14 of the WGW420 PLUS GATEWAY configuration. Tekon Configurator Software select Modbus Mode >> Analog Outputs menu Considering the transmitter configuration with Modbus Adress=1, there is a Gateway Modbus Address Window corresponding to Modbus address window [0-19].
  • Page 43 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step GATEWAY ANALOG OUTPUTS Link the “Output Index” (Gateway) to Temperature Input 1 (Transmitter) and configure the “Modbus Address Link” according to the previous step. Set the minimum and maximum values and click on “Send Data”.
  • Page 44 step WRP001 PLUS WIRELESS REPEATER CONFIGURATION...
  • Page 45 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Loosen the 4 screws of the case and oppen it. Connect a micro USB cable to the computer and then to WRP001 PLUS Wireless Repeater. Open the WRP001 PLUS Wireless Repeater device page. There are two different ways to get to the device page.
  • Page 46 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER 2nd option: Enter the name of the device in the “Search Device” field on the home page and select. Load the “Port COM” corresponding to the WRP001 PLUS Wireless Repeater.
  • Page 47 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Select Port Com Click on Configuration Mode ) button. You can check device’s serial port name in “Device Manager” on Microsoft® Windows® operating system.
  • Page 48 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER permanently LEDs flashing until wireless connection is established ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER permanently The software will connect to the device. NOTE: If the software is unable to connect to the device, the status is displayed.
  • Page 49 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER When the software connects to the device, the “Connected” message will be displayed. Configure the “Wireless Network ID” and “Wireless Channel” previously obtained from the Gateway. Click on the “WRITE...
  • Page 50 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Wait for the software to write the new setting to the device. Wait for the status to change to If the writing of the device is not completed, you will see .
  • Page 51 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER permanently LEDs flashing until wireless connection is established permanently ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER Connection to the Gateway established Connection to the Gateway not established...

  • Page 52: Site Survey Mode

    step SITE SURVEY MODE...
  • Page 53 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step SITE SURVEY MODE Refers to following devices: TWP4AI Transmitter, TWP-4AI4DI1UT Transmitter, WRP001 Repeater TWPH-1UT Transmitter. Site survey mode is a tool that allows a quick wireless signal strength evaluation at the site of installation. It doesn’t require additional equipment or software.
  • Page 54 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Avenida Europa, 460 Quinta do Simão 3800-230 Aveiro PORTUGAL Sales P.: +351 234 303 320 M.: +351 933 033 250 E.: sales@tekonelectronics.com Technical Support E.: support@tekonelectronics.com...
