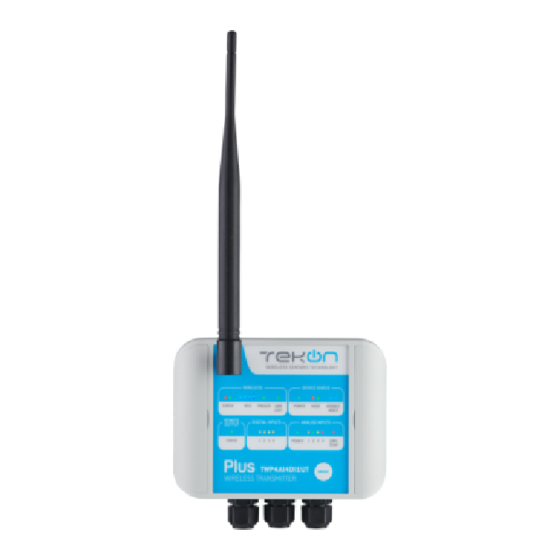

PLUS TWP-4AI4DI1UT
INSTALLATION GUIDE
TEKON ELECTRONICS AVEIRO, PORTUGAL
TEKON ELECTRONICS AVEIRO, PORTUGAL
P.:
M.:
P.:
+351 234 303 320
+351 234 303 320
M.:
+351 933 033 250
+351 933 033 250
E.:
E.:
sales@tekonelectronics.com
sales@tekonelectronics.com
IG_PLUS_TWP-4AI4DI1UT_E01A

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLUS TWP-4AI4DI1UT and is the answer not in the manual?

Questions and answers

Related Manuals for Tekon PLUS TWP-4AI4DI1UT

Summary of Contents for Tekon PLUS TWP-4AI4DI1UT

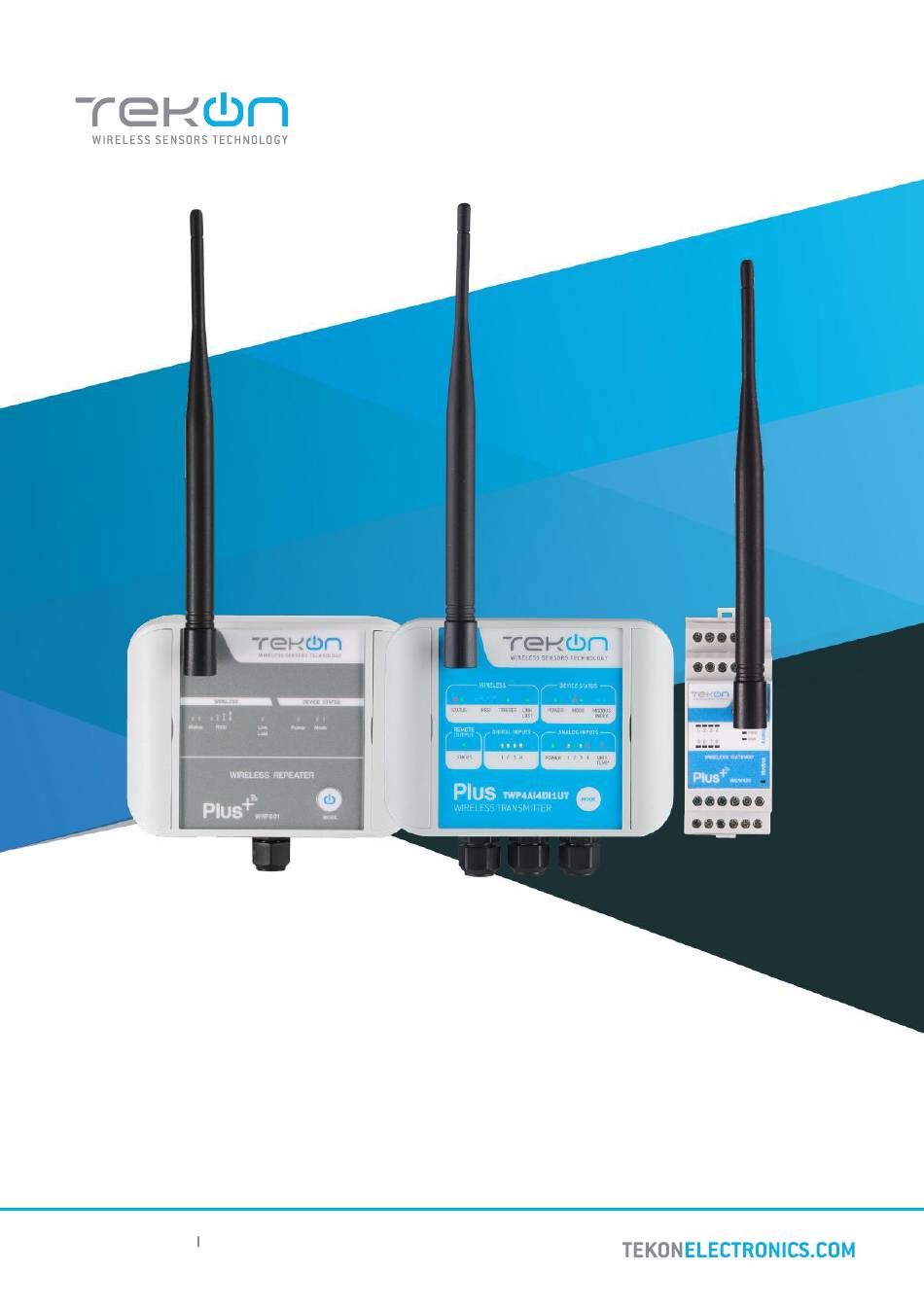

  • Page 1 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE IG_PLUS_TWP-4AI4DI1UT_E01A TEKON ELECTRONICS AVEIRO, PORTUGAL TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 234 303 320 +351 933 033 250 +351 933 033 250 sales@tekonelectronics.com sales@tekonelectronics.com...
  • Page 2 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS TWP-4AI4DI1UT INSTALLATION GUIDE Table of contents step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Pages 4 to 12 step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Pages 13 to 19 step TWP-4AI4DI1UT TRANSMITTER ANALOG INPUTS CONFIGURATION Pages 20 to 23...
  • Page 3 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS TWP-4AI4DI1UT INSTALLATION GUIDE Table of contents step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION Pages 33 to 38 LINK LOST OUTPUT Page 34 REMOTE CONTROL OUTPUT Page 36 EXTERNAL POWER CONTROL OUTPUT Page 37 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION...
  • Page 4 step step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION WGW420 PLUS WIRELESS GATEWAY CONFIGURATION...
  • Page 5 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION TEKON CONFIGURATOR SOFTWARE is only compatible with the Microsoft® Windows® Operating System. Connect the antenna to the Gateway. Wiring Connect the power supply and then the RS485-USB cable to the Gateway.
  • Page 6 Green LEDs permanently on Red LEDs permanently on WIRELESS GATEWA Y 10 Seconds to enter configuration mode Normal mode Open Tekon Configurator Software and select PLUS >> Gateway >> Configuration Tekon Configurator software is free of charge and available at www.tekonelectronics.com...
  • Page 7 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Select serial port corresponding to WGW420 PLUS Wireless Gateway Click on the Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft ® Windows® operating system.
  • Page 8 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Perform a power cycle on the Gateway. NOTE: After power up, you have 10 seconds to enter configuration mode by clicking on Connect button ( (while green LEDs are permanently on).
  • Page 9 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION The status string at the bottom of the software window provides feedback on ongoing operations. You can also verify configuration mode activation by checking LEDs on the gateway. Green LEDs performing...
  • Page 10 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Take note of device configuration data available, namely: Modbus Address, Modbus Baudrate, Modbus Parity, Wireless Network ID Wireless Channel. NOTE: The wireless network connection between devices is ensured by setting the same Wireless Network ID and Wireless Channel parameters.
  • Page 11 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Modbus Communication Select Modbus tab of the Gateway and set the previously saved configurations. Ensure that Port name, Baudrate, Parity Modbus Address fields are the same as those obtained in configuration mode.
  • Page 12 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION NOTE: See WGW420 Datasheet to access LED indication information - page 4. Red LEDs permanently on LED flashes on each wireless communication WIRELESS GATEWA Y...
  • Page 13 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step SITE SURVEY MODE step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION...
  • Page 14 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Loosen the 4 screws of the case and open it. (Example image) Connect a micro USB cable to the computer and then to TWP-4AI4DI1UT PLUS Wireless Transmitter. (Example image) Open a new window of...
  • Page 15 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft® Windows® operating system.
  • Page 16 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Configuration Mode ) button. LEDs permanently LEDs alternating...
  • Page 17 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Configure Wireless Network ID Wireless Channel previously obtained from Gateway. The wireless connection between both devices is ensured by setting the same Wireless Network ID Wireless Channel parameters. Gateway Modbus Index will define the modbus registers window used to store information sent by the transmitter.
  • Page 18 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Configuration Mode ) button to exit setup and resume normal operating mode. permanently on LEDs alternating LEDs flashing until wireless connection is established permanently When connected to the Gateway...
  • Page 19 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT PLUS WIRELESS TRANSMITTER CONFIGURATION After clicking on Disconnect button, the device will permanently attempt to connect to a wireless network. If there is no communication, the Status LED flashes slowly and the Mode LED flashes quickly.
  • Page 20 step TWP-4AI4DI1UT TRANSMITTER ANALOG INPUT CONFIGURATION...
  • Page 21 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER ANALOG INPUTS CONFIGURATION NOTE: By default, analog inputs are switched OFF for power optimization. Each analog input can be configured independently, as current input [0..20mA] or voltage input [0..10V] To enter in Configuration Mode...
  • Page 22 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER ANALOG INPUTS CONFIGURATION The status string at the bottom of the software window provides feedback on ongoing operations. Wiring Wire the device according to the diagram below. +24VDC (GND) (GND) Analog Input 3...
  • Page 23 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER ANALOG INPUTS CONFIGURATION Validate configuration by clicking on Read button. NOTE: Configuration and Operation validated. Measured value of current and voltage depend on the setup. In this example 12mA (12000uA) and 5V (5000 mV) are being injected.
  • Page 24 step TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION...
  • Page 25 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION NOTE: Sink type Digital Input. Configuration of Digital Input Trigger. To enter in Configuration Mode follow steps 01 to 06 of TWP-4AI4DI1UT PLUS Wireless Transmitter Configuration Tekon Configurator Software select PLUS >>...
  • Page 26 TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION Select Operation Mode Raising E dge and click on Write button. Validate functionality and click on Disconnect button. Wait for the device to connect to the Gateway and observe data in Tekon Configurator window.
  • Page 27 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION NOTE: Digital Inputs configuration Tekon Configurator Software select PLUS >> Transmitter >> Digital Inputs menu. Click on the checkbox Enable DI Trigger Communication to enable the digital inputs configuration.
  • Page 28 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER DIGITAL INPUTS CONFIGURATION Select the Event Trigger for each connected digital input and click on Write button Change the digital input state and click on Read to check the state of the digital inputs.
  • Page 29 Validate functionality and click on Disconnect button. Wait for the device to connect to the Gateway and observe data in Tekon Configurator window. Trigger an event on your digital inputs and observe an earlier communication and the state of each Digital Input.
  • Page 30 step TWP-4AI4DI1UT TRANSM. UNIV. TEMPERATURE INPUT CONFIGURATION...
  • Page 31 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER UNIVERSAL TEMPERATURE INPUT CONFIGURATION To enter in Configuration Mode follow steps 01 to 06 of TWP-4AI4DI1UT PLUS Wireless Transmitter Configuration Tekon Configurator Software select PLUS >> Transmitter >> Sensor Input menu. Select the...
  • Page 32 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER UNIVERSAL TEMPERATURE INPUT CONFIGURATION You can check the Sensor Temperature Internal Temperature from the transmitter. Click on Read button to update the temperature readings and wait for the read success message. NOTE: If the readed value is “65535”, please check the presence of temperature probe and its connection.
  • Page 33 step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION...
  • Page 34 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION To enter in Configuration Mode follow steps 01 to 06 of TWP-4AI4DI1UT PLUS Wireless Transmitter Configuration Tekon Configurator Software select PLUS >> Transmitter >> Digital Outputs menu Link Lost Output...
  • Page 35 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 03.1 Select cycle number, start-up state link lost state and click on Write button. 03.2 Exit configuration mode and verify setup by checking LEDs indicators.. permanently Red LED flashing until wireless...
  • Page 36 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION Remote Control Output Digital output remotely controlled by Gateway modbus protocol. 04.1 Define Start-up state Link lost state. Click on Write button. 04.2 Exit configuration mode and verify setup by checking LEDs indicators.
  • Page 37 TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 04.3 Using the Tekon Configurator you can change the State of Remote Output by setting the modbus register on the gateway. The Gateway will send the information in the next time the transmitter performs a communication.
  • Page 38 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step TWP-4AI4DI1UT TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 05.1 Define Warm up time and click on the Write button. 05.2 Exit configuration mode and verify setup by checking LEDs indicators. permanently on Red LED flashing until wireless connection is...
  • Page 39 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION...
  • Page 40 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step GATEWAY ANALOG OUTPUTS Follow steps 06 and 07 of the PLUS Wireless Gateway Configuration. Tekon Configurator Software select PLUS >> Gateway >> Analog Outputs menu Considering the transmitter configuration with GTW Modbus Index=1, there is a Gateway Modbus Address Window corresponding to Modbus address window [0-19].
  • Page 41 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step GATEWAY ANALOG OUTPUTS Link Analog Output Index 1 (Gateway) to Analog Input 1 (Transmitter) and configure MB Add Link according to the previous step. Set minimum and maximum values and click on Write 4000 (4mA)
  • Page 42 step WRP001 PLUS WIRELESS REPEATER CONFIGURATION...
  • Page 43 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Loosen the 4 screws of the case and oppen it. Connect a micro USB cable to the computer and then to WRP001 PLUS Wireless Repeater. Open a new window of...
  • Page 44 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click on Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft® Windows® operating system.
  • Page 45 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click on Configuration Mode ) button. permanently LEDs flashing until wireless connection is established ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER permanently...
  • Page 46 PLUS TWP-4AI4DI1UT INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Configure Wireless Network ID Wireless Channel previously obtained from Gateway. Click on Write button to update Transmitter settings. Click on Configuration Mode ) button to exit setup and resume normal operating mode.
  • Page 47 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER permanently LEDs flashing until wireless connection is established permanently ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER Connection to the Gateway established Connection to the Gateway not established...
  • Page 48 step SITE SURVEY MODE...
  • Page 49 INSTALLATION GUIDE PLUS TWP-4AI4DI1UT step SITE SURVEY MODE Refers to following devices: TWP4AI Transmitter, TWP-4AI4DI1UT Transmitter, WRP001 Repeater TWPH-1UT Transmitter. Site survey mode is a tool that allows a quick wireless signal strength evaluation at the site of installation. It doesn’t require additional equipment or software.
  • Page 50 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Avenida Europa, 460 Quinta do Simão 3800-230 Aveiro PORTUGAL Sales P.: +351 234 303 320 M.: +351 933 033 250 E.: sales@tekonelectronics.com Technical Support E.: support@tekonelectronics.com...
