Tekon PLUS TWP-4AI Installation Manual

Hide thumbs Also See for PLUS TWP-4AI:

Installation manual (44 pages)

Product manual (59 pages)

page of 44

/ 44
Bookmarks

Quick Links

Download this manual

PLUS TWP-4AI

INSTALLATION GUIDE

TEKON ELECTRONICS AVEIRO, PORTUGAL

P.:

M.:

P.:

+351 234 303 320

M.:

+351 933 033 250

E.:

sales@tekonelectronics.com

IG_PLUS_TWP-4AI_E01A

Need help?

Do you have a question about the PLUS TWP-4AI and is the answer not in the manual?

Questions and answers

Summary of Contents for Tekon PLUS TWP-4AI

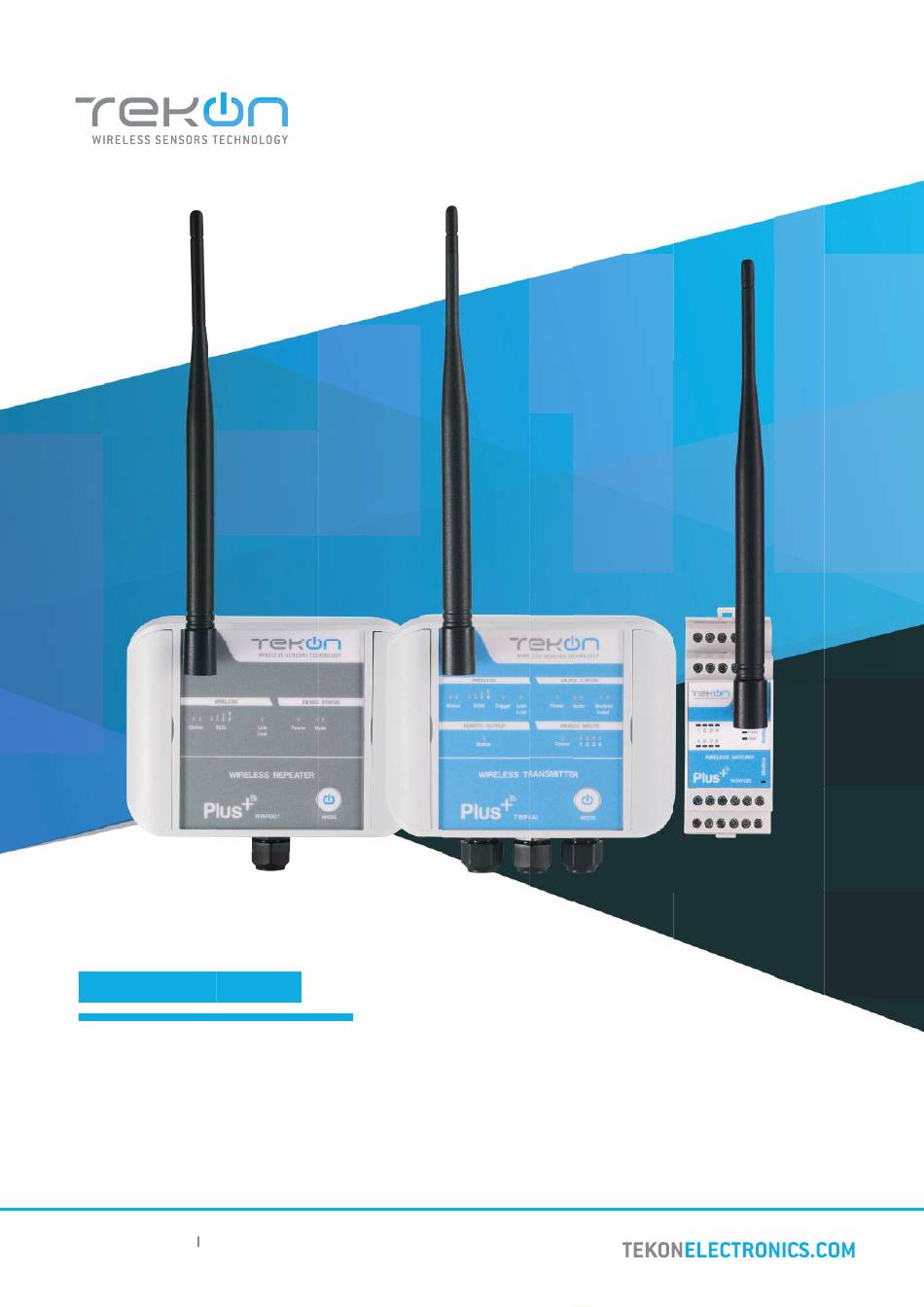

Page 1 PLUS TWP-4AI PLUS TWP-4AI PLUS TWP-4AI PLUS TWP-4AI INSTALLATION GUIDE INSTALLATION GUIDE INSTALLATION GUIDE IG_PLUS_TWP-4AI_E01A TEKON ELECTRONICS AVEIRO, PORTUGAL TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 234 303 320 +351 933 033 250 +351 933 033 250 sales@tekonelectronics.com sales@tekonelectronics.com...
Page 2 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS TWP-4AI WIRELESS SYSTEM INSTALLATION GUIDE Table of contents step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Pages 4 to 12 step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Pages 13 to 19 step TWP4AI TRANSMITTER ANALOG INPUT CONFIGURATION...
Page 3 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS TWP-4AI WIRELESS SYSTEM INSTALLATION GUIDE Table of contents LINK LOST OUTPUT Page 28 REMOTE CONTROL OUTPUT Page 30 EXTERNAL POWER CONTROL OUTPUT Page 31 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION Pages 33 to 35...
Page 4 step step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION WGW420 PLUS WIRELESS GATEWAY CONFIGURATION...
Page 5 INSTALLATION GUIDE PLUS TWP-4AI step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION TEKON CONFIGURATOR SOFTWARE is only compatible with the Microsoft® Windows® Operating System. Connect the antenna to the Gateway. Wiring Connect the power supply and then the RS485-USB cable to the Gateway.
Page 6 Green LEDs permanently on Red LEDs permanently on WIRELESS GATEWA Y 10 Seconds to enter configuration mode Normal mode Open Tekon Configurator Software and select PLUS >> Gateway >> Configuration Tekon Configurator software is free of charge and available at www.tekonelectronics.com...
Page 7 INSTALLATION GUIDE PLUS TWP-4AI step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Select serial port corresponding to WGW420 PLUS Wireless Gateway Click on the Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft ® Windows® operating system.
Page 8 PLUS TWP-4AI INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Perform a power cycle on the Gateway. NOTE: After power up, you have 10 seconds to enter confi guration mode by clicking on Connect button ( (while green LEDs are permanently on).
Page 9 INSTALLATION GUIDE PLUS TWP-4AI step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION The status string at the bottom of the software window provides feedback on ongoing operations. You can also verify configuration mode activation by checking LEDs on the gateway. Green LEDs performing...
Page 10 PLUS TWP-4AI INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Take note of device confi guration data available, namely: Modbus Address, Modbus Baudrate, Modbus Parity, Wireless Network ID Wireless Channel. NOTE: The wireless network connection between devices is ensured by setting the same Wireless Network ID and Wireless Channel parameters.
Page 11 INSTALLATION GUIDE PLUS TWP-4AI step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Modbus Communication Select Modbus tab of the Gateway and set the previously saved confi gurations. Ensure that Port name, Baudrate, Parity Modbus Address fi elds are the same as those obtained in confi guration mode.
Page 12 PLUS TWP-4AI INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION NOTE: See WGW420 Datasheet to access LED indication information - page 4. Red LEDs permanently on LED flashes on each wireless communication WIRELESS GATEWA Y...
Page 13 step TWP-4AI PLUS WIRELESS TRANSMITTER CONFIGURATION...
Page 14 PLUS TWP-4AI INSTALLATION GUIDE step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Loosen the 4 screws of the case and open it. Connect a micro USB cable to the computer and then to TWP4AI PLUS Wireless Transmitter. Open a new window of...
Page 15 INSTALLATION GUIDE PLUS TWP-4AI step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft® Windows® operating system.
Page 16 PLUS TWP-4AI INSTALLATION GUIDE step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Confi guration Mode ) button. LEDs permanently LEDs alternating ANALOG WIRELESS TRANSMITTER...
Page 17 INSTALLATION GUIDE PLUS TWP-4AI step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Configure Wireless Network ID Wireless Channel previously obtained from Gateway. The wireless connection between both devices is ensured by setting the same Wireless Network ID Wireless Channel parameters. Gateway Modbus Index will define the modbus registers window used to store information sent by the transmitter.
Page 18 PLUS TWP-4AI INSTALLATION GUIDE step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Confi guration Mode ) button to exit setup and resume normal operating mode. permanently on LEDs alternating LEDs fl ashing until wireless connection is established ANALOG WIRELESS TRANSMITTER...
Page 19 INSTALLATION GUIDE PLUS TWP-4AI step TWP4AI PLUS WIRELESS TRANSMITTER CONFIGURATION After clicking on Disconnect button, the device will permanently attempt to connect to a wireless network. If there is no communication, the Status LED flashes slowly and the Mode LED flashes quickly.
Page 20 step TWP-4AI TRANSMITTER ANALOG INPUTS CONFIGURATION...
Page 21 INSTALLATION GUIDE PLUS TWP-4AI step TWP4AI TRANSMITTER ANALOG INPUTS CONFIGURATION NOTE: By default, analog inputs are switched OFF for power optimization. Each analog input can be configured independently, as current input [0..20mA] or voltage input [0..10V] To enter in Configuration Mode...
Page 22 PLUS TWP-4AI INSTALLATION GUIDE step TWP4AI TRANSMITTER ANALOG INPUTS CONFIGURATION The status string at the bottom of the software window provides feedback on ongoing operations. Wiring Wire the device according to the diagram below. +24VDC (GND) (GND) Analog Input 3...
Page 23 INSTALLATION GUIDE PLUS TWP-4AI step TWP4AI TRANSMITTER ANALOG INPUTS CONFIGURATION Validate configuration by clicking on Read button. NOTE: Configuration and Operation validated. Measured value of current and voltage depend on the setup. In this example 12mA (12000uA) and 5V (5000 mV) are being injected.
Page 24 step TWP-4AI TRANSMITTER DIGITAL INPUT CONFIGURATION...
Page 25 INSTALLATION GUIDE PLUS TWP-4AI step TWP4AI TRANSMITTER DIGITAL INPUT CONFIGURATION NOTE: Sink type Digital Input. To enter in Configuration Mode follow steps 01 to 05 of TWP4AI PLUS Wireless Transmitter Configuration. Tekon Configurator Software select PLUS >> Transmitter >> Digital Inputs...
Page 26 TWP4AI TRANSMITTER DIGITAL INPUT CONFIGURATION Select Operation Mode Rising E dge and click on Write button. Validate functionality and click on Disconnect button. Wait for the device to connect to the Gateway and observe data in Tekon Configurator window.
Page 27 step TWP-4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION...
Page 28 INSTALLATION GUIDE step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION To enter in Confi guration Mode follow steps 01 to 05 of TWP4AI PLUS Wireless Transmitter Confi guration. Tekon Confi gurator Software select PLUS >> Transmitter >> Digital Outputs menu Link Lost Output...
Page 29 INSTALLATION GUIDE PLUS TWP-4AI step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 03.1 Select cycle number, start-up state link lost state and click on Write button. 03.2 Exit confi guration mode and verify setup by checking LEDs indicators.. permanently Red LED fl ashing...
Page 30 PLUS TWP-4AI INSTALLATION GUIDE step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION Remote Control Output Digital output remotely controlled by Gateway modbus protocol. 04.1 Defi ne Start-up state Link lost state. Click on Write button. 04.2 Exit confi guration mode and verify setup by checking LEDs indicators.
Page 31 TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 04.3 Using the Tekon Confi gurator you can change the State of Remote Output by setting the modbus register on the gateway. The Gateway will send the information in the next time the transmitter performs a communication.
Page 32 PLUS TWP-4AI INSTALLATION GUIDE step TWP4AI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION 05.1 Define Warm up time and click on the Write button. 05.2 Exit configuration mode and verify setup by checking LEDs indicators. permanently on Red LED flashing until wireless connection is...
Page 33 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION...
Page 34 PLUS TWP-4AI INSTALLATION GUIDE step GATEWAY ANALOG OUTPUTS Follow steps 06 and 07 of the PLUS Wireless Gateway Confi guration. Tekon Confi gurator Software select PLUS >> Gateway >> Analog Outputs menu Considering the transmitter confi guration with GTW Modbus Index=1, there is a Gateway Modbus Address Window corresponding to Modbus address window [0-19].
Page 35 INSTALLATION GUIDE PLUS TWP-4AI step GATEWAY ANALOG OUTPUTS Link Analog Output Index 1 (Gateway) to Analog Input 1 (Transmitter) and confi gure MB Add Link according to the previous step. Set minimum and maximum values and click on Write 4000 (4mA)
Page 36 step WRP001 PLUS WIRELESS REPEATER CONFIGURATION...
Page 37 INSTALLATION GUIDE PLUS TWP-4AI step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Loosen the 4 screws of the case and oppen it. Connect a micro USB cable to the computer and then to WRP001 PLUS Wireless Repeater. Open a new window of...
Page 38 PLUS TWP-4AI INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click on Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft® Windows® operating system.
Page 39 INSTALLATION GUIDE PLUS TWP-4AI step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click on Confi guration Mode ) button. ) button. permanently LEDs fl ashing until wireless connection is established ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER permanently...
Page 40 PLUS TWP-4AI INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Confi gure Wireless Network ID Wireless Channel previously obtained from Gateway. Click on Write button to update Transmitter settings. Click on Confi guration Mode ) button to exit setup and resume normal operating mode.
Page 41 INSTALLATION GUIDE PLUS TWP-4AI step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER permanently LEDs flashing until wireless connection is established permanently ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER Connection to the Gateway established Connection to the Gateway not established...
Page 42 step SITE SURVEY MODE...
Page 43 INSTALLATION GUIDE PLUS TWP-4AI WIRELESS SYSTEM step SITE SURVEY MODE Refers to following devices: TWP4AI Transmitter, TWP-4AI4DI1UT Transmitter, WRP001 Repeater TWPH-1UT Transmitter. Site survey mode is a tool that allows a quick wireless signal strength evaluation at the site of installation. It doesn’t require additional equipment or software.
Page 44 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Avenida Europa, 460 Quinta do Simão 3800-230 Aveiro PORTUGAL Sales P.: +351 234 303 320 M.: +351 933 033 250 E.: sales@tekonelectronics.com Technical Support E.: support@tekonelectronics.com...
