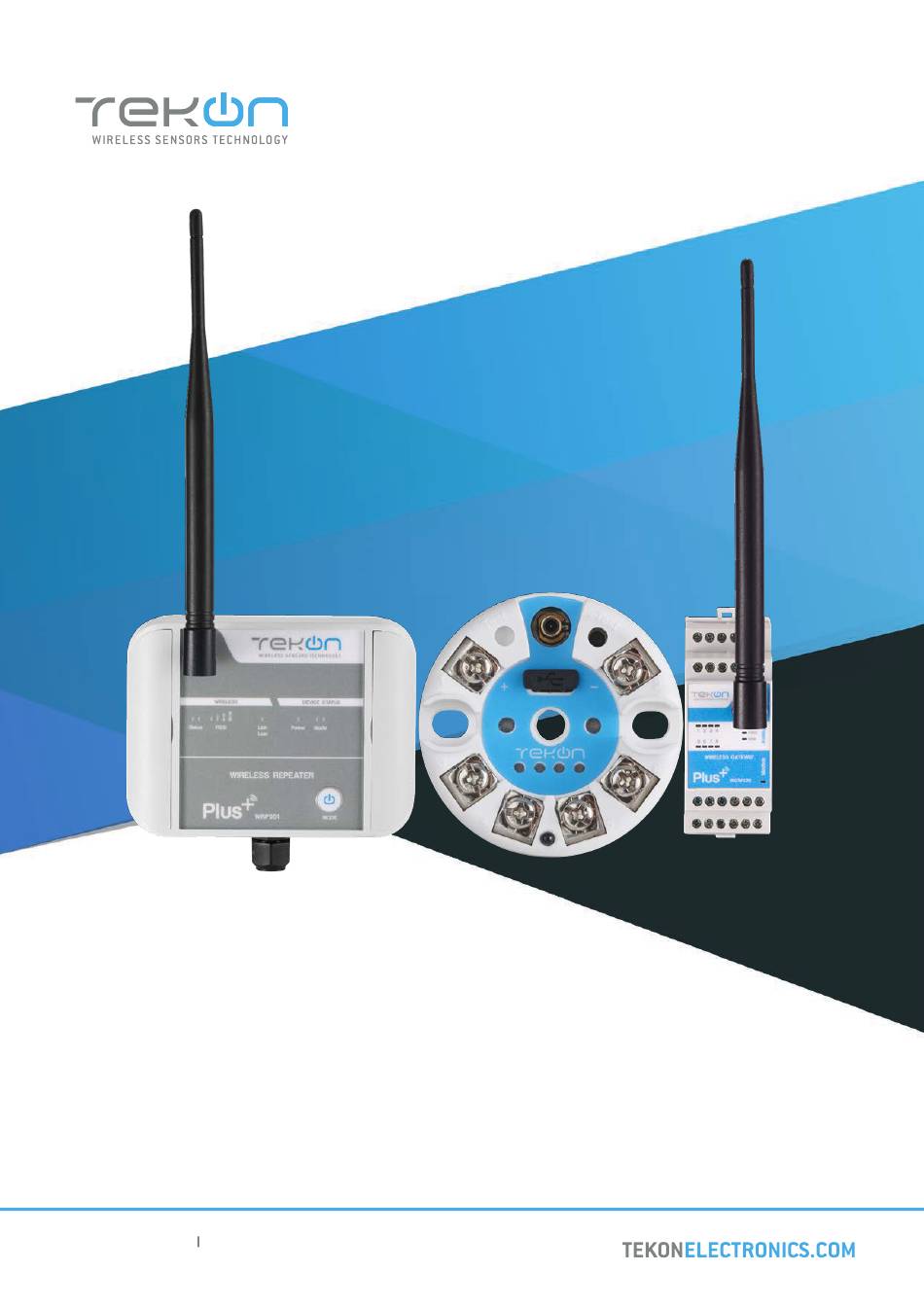

- Page 1 PLUS TWPH-1UT INSTALLATION GUIDE IG_PLUS_TWPH-1UT_E02A TEKON ELECTRONICS AVEIRO, PORTUGAL TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 234 303 320 +351 933 033 250 +351 933 033 250 sales@tekonelectronics.com sales@tekonelectronics.com...
-
Page 2: Table Of Contents
DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS TWPH-1UT INSTALLATION GUIDE Table of contents step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Pages 3 to 14 step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION Pages 15 to 23 step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION Pages 24 to 27... -
Page 3: Wgw420 Plus Wireless Gateway Configuration
step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION... - Page 4 PLUS TWPH-1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION TEKON CONFIGURATOR SOFTWARE is only compatible with the Microsoft® Windows® Operating System. Connect the antenna to the Gateway. Wiring Connect the power supply and then the RS485-USB cable to the Gateway.
- Page 5 INSTALLATION GUIDE PLUS TWPH-1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Check device connection state by LED indication. Green LEDs permanently on Red LEDs permanently on WIRELESS GATEWA Y 10 Seconds to enter configuration mode Normal mode Open Tekon Configurator Software...
- Page 6 PLUS TWPH-1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Open the WGW420 PLUS Wireless Gateway device page. You can enter the device’s page in the following ways: 1st option: Click on “SMART TRANSMITTERS” in the left menu and then click on the WGW420 device.
- Page 7 INSTALLATION GUIDE PLUS TWPH-1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Load the “Port COM” corresponding to the WGW420 PLUS Wireless Gateway. NOTE: If the USB cable has already been connected before opening the device page, “Port COM” will appear in the list, otherwise you need to click on the “...
- Page 8 PLUS TWPH-1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Perform a power cycle on the Gateway. NOTE: After power up, you have 10 seconds to enter configuration mode by clicking on Connect button ( (while green LEDs are permanently on).
- Page 9 INSTALLATION GUIDE PLUS TWPH-1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION The software will connect to the device. NOTE: If the software is unable to connect to the device, the status is displayed. If it hasn’t connected, go back to the previous steps and check the port COM.
- Page 10 PLUS TWPH-1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION When the software connects to the device, the “Connected” message will be displayed. You can also verify configuration mode activation by checking LEDs on the gateway. Green LEDs performing scan animation...
- Page 11 INSTALLATION GUIDE PLUS TWPH-1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Configure the device fields and write by clicking on the “WRITE DEVICE” button. NOTE: The “WRITE DEVICE” button will only be active when there is a change to one of the editable fields, if there is no change it will be disabled.
- Page 12 PLUS TWPH-1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Click on the button ( ) to exit configuration mode and return the device to normal operating mode.
- Page 13 INSTALLATION GUIDE PLUS TWPH-1UT step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Modbus Communication Select modbus mode in the checkbox below the Connect button. Ensure that Port name, Baudrate, Parity Modbus Address fields are the same as those obtained in configuration mode.
- Page 14 PLUS TWPH-1UT INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Click on connect and check that the status is “Connected”. Red LEDs permanently on LED flashes on each wireless communication WIRELESS GATEWA Y NOTE: See WGW420 Datasheet to access LED indication information - page 4.
-
Page 15: Site Survey Mode
INSTALLATION GUIDE PLUS WIRELESS SYSTEM step SITE SURVEY MODE step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION... - Page 16 PLUS TWPH-1UT INSTALLATION GUIDE step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION Connect the antenna and sensor connectors to the TWPH-1UT PLUS Wireless Transmitter.. Connect the micro USB cable to the computer and then to TWPH-1UT PLUS Wireless Transmitter. Open Tekon Configurator Software...
- Page 17 INSTALLATION GUIDE PLUS TWPH-1UT step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION Open the TWPH-1UT PLUS Wireless Transmitter device page. You can enter the device’s page in the following ways: 1st option: Click on “SMART TRANSMITTERS” in the left menu and then click on the TWP-1UT.
- Page 18 PLUS TWPH-1UT INSTALLATION GUIDE step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION 04 05 Load the “Port COM” corresponding to the TWPH-1UT PLUS Wireless Transmitter. NOTE: If the USB cable has already been connected before opening the device page, “Port COM” will appear in the list,...
- Page 19 INSTALLATION GUIDE PLUS TWPH-1UT step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION Click on the “Connect” button ( ) to enter Configuration Mode. When the TWPH-1UT Transmitter is in Configuration Mode, all LEDs are active but with different behaviours. LED permanently on...
- Page 20 PLUS TWPH-1UT INSTALLATION GUIDE step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION The software will connect to the device. NOTE: If the software is unable to connect to the device, the status is displayed. If it hasn’t connected, go back to the previous steps and check the port COM.
- Page 21 INSTALLATION GUIDE PLUS TWPH-1UT step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION Configure Wireless Network ID Wireless Channel previously obtained from Gateway. The wireless connection between both devices is ensured by setting the same Wireless Network ID Wireless Channel parameters. Gateway Modbus Index will define the modbus registers window used to store information sent by the transmitter.
- Page 22 PLUS TWPH-1UT INSTALLATION GUIDE step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION Click on “SENSOR INPUT” Select the sensor type you will use.
- Page 23 INSTALLATION GUIDE PLUS TWPH-1UT step TWPH-1UT PLUS WIRELESS TEMPERATURE TRANSMITTER CONFIGURATION Click on Write Device button to update the Transmitter settings. Click on Read Values button to read the sensor and internal temperature. Click on the button ( ) to exit configuration mode and return the device to normal operating mode.
-
Page 24: Wgw420 Gateway Analog Outputs Configuration
step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION... - Page 25 INSTALLATION GUIDE PLUS TWPH-1UT step GATEWAY ANALOG OUTPUTS Follow steps 01 and 14 of the PLUS Wireless Gateway Configuration. Tekon Configurator Software select MODBUS MODE >> ANALOG OUTPUTS Click the ( ) button and wait for the device to connect.
- Page 26 PLUS TWPH-1UT INSTALLATION GUIDE step GATEWAY ANALOG OUTPUTS Considering the transmitter configuration with Modbus Address=1, there is a Gateway Modbus Address Window corresponding to Modbus address window [0-19]. MB Add HOLDING REGISTERS - TRANSMITTERS DATA Description Address Serial Number (Transmitter Modbus Index-1) x 20+0...
- Page 27 INSTALLATION GUIDE PLUS TWPH-1UT step GATEWAY ANALOG OUTPUTS Link the “Output Index” (Gateway) to Temperature Input 1 (Transmitter) and configure the “Modbus Address Link” according to the previous step. Set the minimum and maximum values and click on “Send Data”.
-
Page 28: Wrp001 Plus Wireless Repeater Configuration
step WRP001 PLUS WIRELESS REPEATER CONFIGURATION... - Page 29 INSTALLATION GUIDE PLUS TWPH-1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Loosen the 4 screws of the case and oppen it. Connect a micro USB cable to the computer and then to WRP001 PLUS Wireless Repeater. Open the WRP001 PLUS Wireless Repeater device page.
- Page 30 PLUS TWPH-1UT INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER 2nd option: Type the name of the device in the “Search Device” field on the home page and select. Load the “Port COM” corresponding to the WRP001 PLUS Wireless Repeater.
- Page 31 INSTALLATION GUIDE PLUS TWPH-1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft ® Windows® operating system.
- Page 32 PLUS TWPH-1UT INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click on Connect ) button. permanently LEDs flashing until wireless connection is established ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER permanently...
- Page 33 INSTALLATION GUIDE PLUS TWPH-1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER The software will connect to the device. NOTE: If the software is unable to connect to the device, the status is displayed. If it hasn’t connected, go back to the previous steps and check the port COM.
- Page 34 PLUS TWPH-1UT INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Configure the “Wireless Network ID” and “Wireless Channel” previously obtained from the Gateway. Click on the “WRITE DEVICE” button to update the transmitter settings. Wait for the software to write the new setting to the device. Wait for the status to change to If not, the symbol ( ) will appear: try again and check that the device is connected correctly.
- Page 35 INSTALLATION GUIDE PLUS TWPH-1UT step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click to exit the configuration and return to normal operating mode. permanently LEDs flashing until wireless connection is established permanently ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER Connection to the Gateway...
-
Page 36: Site Survey
step SITE SURVEY MODE... - Page 37 INSTALLATION GUIDE PLUS TWPH-1UT step SITE SURVEY MODE Refers to following devices: TWP4AI Transmitter, TWP-4AI4DI1UT Transmitter, WRP001 Repeater TWPH-1UT Transmitter. Site survey mode is a tool that allows a quick wireless signal strength evaluation at the site of installation. It doesn’t require additional equipment or software.
- Page 38 PLUS TWPH-1UT INSTALLATION GUIDE step SITE SURVEY MODE Press and hold operations button for 3 seconds. Red and green LEDs will stay on. Blue LEDs indicate the signal strength. Operations button LED permanently on LED flashing RSSI communication level MEDIUM...
- Page 39 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Avenida Europa, 460 Quinta do Simão 3800-230 Aveiro PORTUGAL Sales P.: +351 234 303 320 M.: +351 933 033 250 E.: sales@tekonelectronics.com Technical Support E.: support@tekonelectronics.com...
