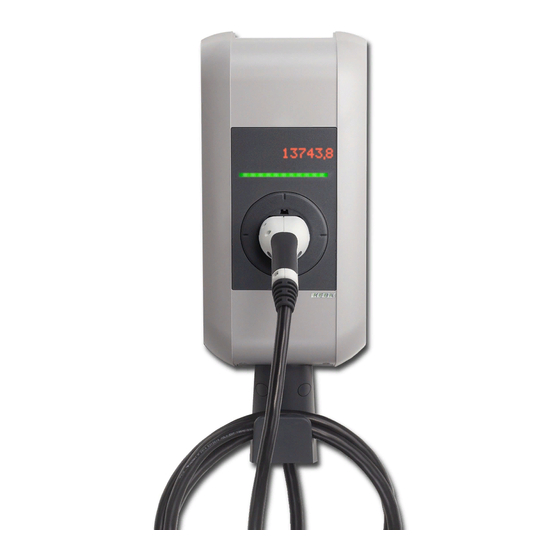

Keba KeContact KC-P30 Translation Of The Original Instructions
  1. Manuals
  2. Brands
  3. Keba Manuals
  4. Battery Charger
  5. KeContact KC-P30 Series
  6. Translation of the original instructions

Keba KeContact KC-P30 Translation Of The Original Instructions

Calibratable measurement device for electrical energy
Hide thumbs Also See for KeContact KC-P30:
Table of Contents

Advertisement

Quick Links

Download this manual
KeContact
KC-P30 Charging Station
Calibratable measurement device for electrical
energy in accordance with § 46 of the German
Measures and Verification Act (REA No. 6.8)
V 1.03
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KeContact KC-P30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Keba KeContact KC-P30

Summary of Contents for Keba KeContact KC-P30

  • Page 1 KeContact KC-P30 Charging Station Calibratable measurement device for electrical energy in accordance with § 46 of the German Measures and Verification Act (REA No. 6.8) V 1.03 Translation of the original instructions...
  • Page 2 Specifications are subject to change due to further technical developments. Details presented may be subject to correction. All rights reserved. Gewerbepark Urfahr, 4041 Linz, Austria, Phone: +43 732 7090-0, KEBA AG Headquarters: Fax: +43 732 7309-10, keba@keba.com For information about our subsidiaries please look at www.keba.com.

  • Page 3: Table Of Contents

    Generation of log data records ................ Remote transmission of data records .............. Using the device......................Triggering the display of relevant data............. Billing ....................... Resuming charging after a power failure ............Verification of measurement data using the transparency and display software ......................V1.03 © KEBA...
  • Page 4 Functional tests, including accuracy checks ........6.2.3 Billing control ..................Testing in test mode..................6.3.1 Test mode ..................6.3.2 Schematic measurement setup ............6.3.3 Activate/deactivate test mode ............Applying the calibration stamp and seal ............Disposal ........................V1.03 © KEBA...

  • Page 5: Introduction

    Caution means that damage to property can occur if the corresponding safety mea- sures are not taken. V1.03 © KEBA...

  • Page 6: Purpose Of The Document

    Notes on this document The manual is part of the product. It is to be retained over the entire life cycle of the product and should be forwarded to any subsequent owners or users of the product. V1.03 © KEBA...

  • Page 7: Contents Of The Document

    Configuration of the charging station Further documentation Designation Target group ● End customer Operating Instructions ● Electricians Installation manual ● Electricians ● End customer P30 configuration manual x-series ● Electricians Manuals and additional information are available on our website: www.keba.com/emobility-downloads V1.03 © KEBA...

  • Page 8: Description Of The Device

    ... Connection panel ... Front part ... Terminal cover ... Connection panel cover ... Housing cover Type plate The variants with conformity assessment procedures in accordance with MessEV are specially marked as such on the type plate. V1.03 © KEBA...

  • Page 9: Overview Of Variants

    EN 50470-1, -3 ... CE marking ... Public key information ... Production site ... Production date Overview of variants The type and features of the charging station can be determined by the product designation on the type plate. V1.03 © KEBA...
  • Page 10 WLAN, 4G x-series 3G x-series 4G Switching element Contactor 3-phase Energy meter Calibratable measurement device for electrical energy in accordance with § 46 of the German Measures and Verification Act (REA No. 6.8) Authorization None RFID V1.03 © KEBA...

  • Page 11: Access Concept

    Meter seal The meter seal is located on the lower right screw of the front part with the housing cover removed. The meter seal has the following number on it: 3002 2073 V1.03 © KEBA...

  • Page 12: Display

    The variants with conformity assessment procedures in accordance with MessEV feature an LED dot matrix display. For the validity of the calibration of the charging station, a correct display and sufficient readability are re- quired. Fig. 2-3: Display V1.03 © KEBA...

  • Page 13: Brightness Sensor

    The pulse LED is located on the front of the charging station on the right be- low the LED bar. In test mode, the pulses of the pulse LED indicate a con- clusion about the transmitted energy. V1.03 © KEBA...

  • Page 14: Active Power Meter

    Resetting to "0" happens when starting the next charging session. 2.9.1 Measurement principle The measurement of the transmitted energy takes place by means of pas- sive transducers on all phases to be contacted. V1.03 © KEBA...

  • Page 15: Backstop

    These data records cannot be transmitted to an OCPP backend, but they can be read out remotely via the web interface (see 4.4 Remote transmis- sion of data records). V1.03 © KEBA...

  • Page 16: Requirements

    Agency, the user of this product must also register the PK specified on the charging device for the charge points in its registration form! Without this registration, it is not possible to operate the charging device in com- pliance with calibration law. V1.03 © KEBA...
  • Page 17 (2) Users of measured values shall ensure, within their means, that the mea- surement device fulfills the legal requirements and have the person using the measurement device confirm that they fulfill their obligations. (3) Users of measured values shall V1.03 © KEBA...
  • Page 18 EMSP, by providing suitable means of identification in the case of a justi- fied requirement message for the purpose of performing calibrations, ex- aminations and usage monitoring measures. V1.03 © KEBA...

  • Page 19: Additional Requirements For The Operator

    ● No openly accessible connection points (power connection and network) ● No openly accessible network cables ● Protection of network distributors Digital ● Deactivate WLAN after installation ● Use of VPN/APN ● Use of PIN-protected SIM cards V1.03 © KEBA...
  • Page 20 Information relevant for calibration law is displayed by the charging station with a special label (ME). Additional informative texts must not confuse cus- tomers or suggest functions that are not supported by the device. ● No rating/pricing possible in the device ● Time-based rating not possible V1.03 © KEBA...

  • Page 21: Auxiliary Device

    The dimensioning of the memory permits the storage of data records for 10 years, at 5 charging sessions per day. A measurement data record contains the following information: OCMF |     "FV":"1.0",     "GI":"KEBA_KCP30",     "GS":"1234";     "GV":"2.8.3",     "PG":"T108",     "IS":true,     "IL":"HEARSAY",     "IF":["RFID-PLAIN", "OCPP_NONE", "IS015118_NONE", "PLMN_NONE"],     "IT":"IS014443",     "ID":"DD34EE8F", V1.03 © KEBA...
  • Page 22 Actual identification of the charging RFID UID, OCPP transaction ID, commis- session sioning mode or test mode. RD: Start register values (top block) + End register values (bottom block) Time stamp for calculating the Date:Time, synchronization state charging duration V1.03 © KEBA...
  • Page 23 The time stamp on the measured values comes from a clock in the charging station that is not certified in accordance with German measurement and calibration law. Therefore, these times shall not be used for rating the mea- sured values. V1.03 © KEBA...

  • Page 24: Generation Of Log Data Records

    In addition to a measurement data record, a log data record can also be generated and signed. Log data records are permanently stored in the mea- surement capsule. A log data record contains the following information: OCMF|     "FV":"1.0",     "GI":"KEBA_KCP30",     "GS"::"1234",     "GV:"1.0",     "PG":"L43", V1.03 © KEBA...
  • Page 25 At the beginning, this is specified in increments of 10 (e.g. 10%, 20%, 30%); from memory usage of 90%, it is specified in increments of one (90%, 91%, 92%) Start of commissioning mode or test mode Counter overflow Restart due to an update V1.03 © KEBA...

  • Page 26: Remote Transmission Of Data Records

    In this process, a "transactionData" field with four "sampledValues" is sent in "StopTransaction.req". Two of those are raw values and two are signed. Sending four values guarantees compatibility with the different backends. Signed "sampledValue" elements have the following structure: V1.03 © KEBA...
  • Page 27 = "Transaction.Begin | Transaction.End" format = "SignedData" Forwarding data records to customers Forwarding data records to customers is the job of the charge point operator and is not within the scope of influence of the charging station manufacturer. V1.03 © KEBA...

  • Page 28: Using The Device

    Only specifically marked information on the display and the information from the signed measurement data records may be used for billing. Pricing is not possible on the device. Information relevant for billing ● User/Transaction ID V1.03 © KEBA...

  • Page 29: Resuming Charging After A Power Failure

    The charge point operator then uses the signed measurement data record to create the bill. Both the signed measurement data and the public key, in a format that is compatible with the transparency and display software, must be provided on the bill or in a customer portal. V1.03 © KEBA...
  • Page 30 − Public key of the corresponding charging station 4) After entering the necessary data, the check can be started. 5) After this check is complete, it must be checked whether the results of the signature verification match the information on the bill. V1.03 © KEBA...
  • Page 31 KC-P30 Charging Station Using the device V1.03 © KEBA...

  • Page 32: Calibrating The Device

    Billing control 6.2.1 Condition inspection The charging station must be tested for agreement with the type examination certificate: ● Physical structure of the charging station ● Meter and auxiliary module used ● Type plate inscriptions ● Stamps/seals V1.03 © KEBA...

  • Page 33: Functional Tests, Including Accuracy Checks

    100 times between the start and end of the measurement and at least 500 Wh of energy are transmitted. The remote display, in compliance with calibration law, must be checked as follows: V1.03 © KEBA...

  • Page 34: Billing Control

    With a special testing device, the energy trans- mitted by the charging station can be compared with the light pulses of the pulse LED. This comparison allows conclusions to be drawn about the accuracy of the energy detection and energy display. V1.03 © KEBA...
  • Page 35 If energy = 0: off (only charging dura- Active power meter (en- tion is displayed) ergy meter) If energy > 0: on (energy is displayed) Generation of measurement data records x ... State not known in case of error V1.03 © KEBA...

  • Page 36: Schematic Measurement Setup

    Test mode is activated and deactivated in the charging station connection panel. To access the connection panel, the housing cover and the connec- tion panel cover must be removed. For a description of how to remove the covers, see "Operating Instructions". V1.03 © KEBA...
  • Page 37 1) Switch off the supply voltage of the charging station. 2) Remove the jumper from the pin strip X6. 3) Set the DIP switch for commissioning mode DSW2.8 to OFF. 4) Set the DIP switches for the charging current back to the original value. V1.03 © KEBA...

  • Page 38: Applying The Calibration Stamp And Seal

    (manufacturer seal), it must be applied on one of the positions marked be- low. The calibration seal must be applied on the left or right bottom corner between the front part and the lower unit with the housing cover re- moved. V1.03 © KEBA...
  • Page 39 KC-P30 Charging Station Calibrating the device Fig. 6-7: Positions of the calibration seal ... Front part ... Lower unit ... Calibration seal V1.03 © KEBA...

  • Page 40: Disposal

    For non-existent data, replacement values must not be created for billing purposes. V1.03 © KEBA...
