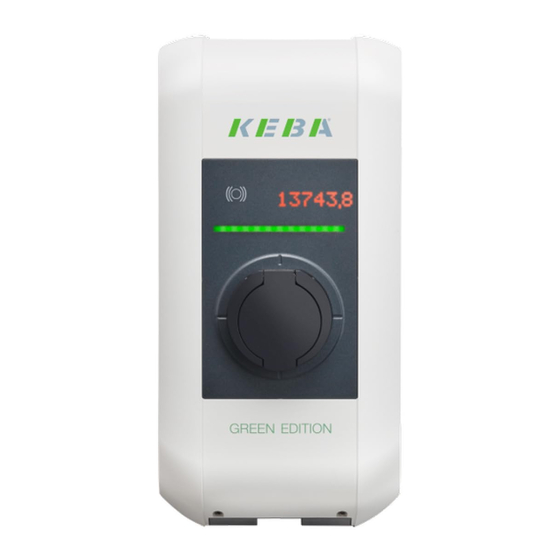

Keba KeContact KC-P30 x Series Configuration Manual
Hide thumbs
Also See for KeContact KC-P30 x Series:
- Operating instructions manual (22 pages) ,
- Installation manual (62 pages)
Subscribe to Our Youtube Channel
Related Manuals for Keba KeContact KC-P30 x Series
Summary of Contents for Keba KeContact KC-P30 x Series
- Page 1 KeContact KC-P30 x-series Charging Station Configuration manual V 4.14 Translation of the original instructions...
- Page 2 Specifications are subject to change due to further technical developments. Details presented may be subject to correction. All rights reserved. Reindlstraße 51, 4040 Linz, Austria, www.keba.com/emobility KEBA Energy Automation GmbH +43 732 7090-0, +43 732 7309-10, kecontact@keba.com For information about KEBA and our subsidiaries please look at www.keba.com.
-
Page 3: Table Of Contents
Main menu ....................... User menu ....................... Functions ........................Load management in the local charging network ..........RFID authorization ................... OCPP backend ....................Smart Home Interface..................Integration of external meters ................Maintenance........................ Diagnosis and troubleshooting................. Software update....................Configuration manual V4.14 © KEBA... -
Page 4: Introduction
This symbol reminds you of the possible consequences of touching electro- statically sensitive components. Information Identifies practical tips and useful information. No information that warns about potentially dangerous or harmful functions is contained. Configuration manual V4.14 © KEBA... -
Page 5: Purpose Of The Document
● the setting options on the charging station. Warranty Only general maintenance work that is expressly permitted by KEBA may be performed. Any other tampering to the device will result in a loss of the war- ranty claim. WARNING! -
Page 6: Notes On This Document
Configuration of the advanced features of P30 x-series 1.5.2 Not contained in this document ● Commissioning and deinstallation of the charging station ● Operating behavior of the charging station ● Operation of the charging station Configuration manual V4.14 © KEBA... -
Page 7: Further Documentation
Manuals and additional information are available on our website: www.keba.com/emobility-downloads Designation Target group ● End customer P30 operating instructions ● Electricians P30 installation manual ● Electricians UDP Programmer's Guide ● Programmer ● End customer ● Electricians ● Service technicians Configuration manual V4.14 © KEBA... -
Page 8: System Overview
(master charging station) provides and how to set up a master/client net- work. Network interfaces The P30 x-series provides the following network interfaces (e.g. for connec- tion to an OCPP backend, etc.): ● ● WLAN (optional) ● WLAN access point (optional) ● Mobile communications (optional) Configuration manual V4.14 © KEBA... - Page 9 2.1.2 WLAN (optional) P30 x-series can be connected to a router via the integrated WLAN inter- face. If the router is connected to the Internet, a connection to an OCPP backend can be made. Configuration manual V4.14 © KEBA...
- Page 10 Only a charging station that is operated as a single charging station can be connected to the router via WLAN. A charging station that is part of a charging network (master/client network) must always be connected to the router via LAN. Configuration manual V4.14 © KEBA...
- Page 11 Certain device variants have a mobile network module. P30 x-series with mobile network can connect to an OCPP backend over the cellular network. The mobile communications provider may charge additional fees (depending on the tariff) for running data transmissions..P30 x-series ... OCPP backend Configuration manual V4.14 © KEBA...
-
Page 12: Design Of A Local Charging Network (Master/Client)
| blue | blue | - The OCPP backend is not reachable or missing. Communication between master and client charging stations is not possible. - | blue | blue | - The OCPP backend is not reachable. Configuration manual V4.14 © KEBA... - Page 13 The connection of the charging station to the router/switch is made via LAN. Fig. 2-4: Connection via router or switch ... Router/Switch ... P30 x-series (master) ... P30 c-series (client) Configuration manual V4.14 © KEBA...
- Page 14 Transfer of the software update Within the network (Bootps) Transfer of the software update Within the network (Bootps) Transfer of the software update Within the network (Bootps) Transfer of the software update Within the network (Bootps) Configuration manual V4.14 © KEBA...
-
Page 15: Configuration
The DIP switches are located under the connection panel cover. The follow- ing figure shows only the affected DIP switches, others are not shown. The following setting must be made on the DIP switch DSW2: Configuration manual V4.14 © KEBA... -
Page 16: Enabling The Dhcp Server
● "Allow USB config": Enables the import of the configuration. This setting must be activated in the charging station to which the configuration is transferred. Configuration manual V4.14 © KEBA... - Page 17 The configuration file was saved on the USB stick in the directory as a file. To use the file to configure other charging stations, the file *.conf name and parts of the content must be adapted. Configuration manual V4.14 © KEBA...
- Page 18 The configuration may need to be adapted manually. Each of the settings listed can be adapted by editing the value to the right of the equal sign "=". Example of a possible adaptation to the configuration Original configuration Adapted configuration true false AuthorizationEnabled= AuthorizationEnabled= Configuration manual V4.14 © KEBA...
- Page 19 Invalid settings are not applied. 3.4.4 Import configuration To load the configuration into another P30 x-series, the USB stick must be plugged in to the desired charging station. The configuration will be imported automatically and adopted after a restart. Configuration manual V4.14 © KEBA...
-
Page 20: Web Interface
For security reasons, change the password after the initial login. In doing so, observe the password guidelines, refer to 4.2 User menu. Fig. 4-5: Configuration label After successful login, the start page of the web interface opens. Configuration manual V4.14 © KEBA... -
Page 21: Main Menu
● Configuration 4.1.1 Status The page is divided into the following areas: Overview Here, basic information about all charging stations in the charging network is displayed (such as serial number, IP address, operating state, etc.). Configuration manual V4.14 © KEBA... - Page 22 *.csv 4.1.4 Charging Network The configuration of the charging network is carried out in this area. The area offers the following options: ● Charging Preferences ● Operating Mode Configuration manual V4.14 © KEBA...
- Page 23 The connection type (1-phase or 3-phase) of the charging station is selected here. For a 1-phase connection, the power cable wire that is used can also be selected. For a charging network, the connection type of the client charg- ing stations can also be selected. Configuration manual V4.14 © KEBA...
- Page 24 Factory Data Reset The "Reset" button resets the configuration of the charging station to the fac- tory settings and all stored data (charging sessions, taught-in RFID cards, web interface password, etc.) is deleted. Configuration manual V4.14 © KEBA...
- Page 25 The DIP switch settings are independent of the web interface configuration and cannot be overwritten by software. The area offers the following options: ● Device ● Network connection ● Routing ● Proxy ● OCPP ● OCPP Certificates ● External TCP meter ● Display text Configuration manual V4.14 © KEBA...
- Page 26 The displayed configuration options vary depending on the selected transmission type. If a connection to the KEBA eMobility Portal is established via the KEBA eMobility App, no settings need to be made here. If the settings are changed on the WebUI, those in the KEBA eMobility App are overwritten.
-
Page 27: User Menu
In this area, changes to the following user settings can be made: Username and password The web interface username and the corresponding password can be changed here. The following rules apply for assigning the password: ● At least 10 characters long Configuration manual V4.14 © KEBA... - Page 28 If you forget the web interface password, you can reset it using the displayed recovery key. The recovery key can also be found on the configuration label. Information The recovery key absolutely must be kept in a safe place for the entire life of the product! Configuration manual V4.14 © KEBA...
-
Page 29: Functions
5.1.3 Current limiting The current limiting for the charging station can be regulated in various ways. ● Setting by means of DIP switches locally on each charging station ● Assignment by the master Configuration manual V4.14 © KEBA... -
Page 30: Rfid Authorization
The authorization modes described below are available in the web interface if the authorization function has been activated. Online authorization mode This defines which storage location an authorization request is to be com- pared to. Configuration manual V4.14 © KEBA... - Page 31 Authorization necessary, either with RFID (every 3 seconds) card or by an external input. Illuminated orange The RFID card is invalid. (once) Acoustic signals Signal Description Single tone RFID card has been read. Configuration manual V4.14 © KEBA...
- Page 32 A successful teach-in process is confirmed by a rising tone sequence. Managing RFID cards in the web interface RFID cards can be managed via the configuration in the web interface. The following functions are available: ● Teaching-in, editing or deleting an RFID card Configuration manual V4.14 © KEBA...
- Page 33 5.2.5 Start charging process with RFID authorization To start a charging process with RFID authorization, proceed as follows: 1) Plug the vehicle into the charging station. Configuration manual V4.14 © KEBA...
-
Page 34: Ocpp Backend
For a connection via VPN, the IP address of the VPN must be specified in the configuration (web interface) for the downlink. ● In the case of a mobile communications connection, it may be necessary for the required ports to be activated by the cellular service provider. Configuration manual V4.14 © KEBA... - Page 35 The following table provides an overview of the supported messages. Message OCPP 1.5 OCPP 1.6 Authorize BootNotification ChangeAvailability ChangeConfiguration ClearCache DataTransfer GetConfiguration Heartbeat MeterValues RemoteStartTransaction RemoteStopTransaction Reset StartTransaction StatusNotification StopTransaction UnlockConnector GetDiagnostics DiagnosticsStatusNotification FirmwareStatusNotification UpdateFirmware Configuration manual V4.14 © KEBA...
-
Page 36: Smart Home Interface
The following graphic shows the schematic structure of the system. Fig. 5-7: Modbus TCP system overview ... Public power grid ... Pre-meter circuit breaker (high-ca- pacity fuse, line circuit breaker, etc.) ... Electricity meter of the network op- ... Post-meter circuit breaker erator Configuration manual V4.14 © KEBA... - Page 37 2. 5.5.2 Supported meters The following counters can be read out from the charging station with the help of a Janitza ProData 2 datalogger. Manufacturer Model B23 312-100 B-control EM300 Herholdt ECSEM113 Janitza B23 312-10J Configuration manual V4.14 © KEBA...
- Page 38 If "0" is entered or if the field remains empty, the charging processes are in- terrupted in the event that the connection to the external meter is interrupted. Configuration manual V4.14 © KEBA...
-
Page 39: Maintenance
A software update for a charging network must be performed at the master charging station (P30 x-series). The master charging station relays the new firmware to the connected client charging stations (c-series) via the software update. Configuration manual V4.14 © KEBA... - Page 40 4) Create a new directory on the USB stick with the name " ". 5) Copy the downloaded file into the " " directory. *.keb 6) Connect the USB stick to the USB interface of the charging station. The update starts automatically. Configuration manual V4.14 © KEBA...
- Page 41 To perform the software update an FTP link is required. The information downloaded from our website along with the software update contains the FTP link. For details on using the FTP link, see the OCPP backend manual. Configuration manual V4.14 © KEBA...
