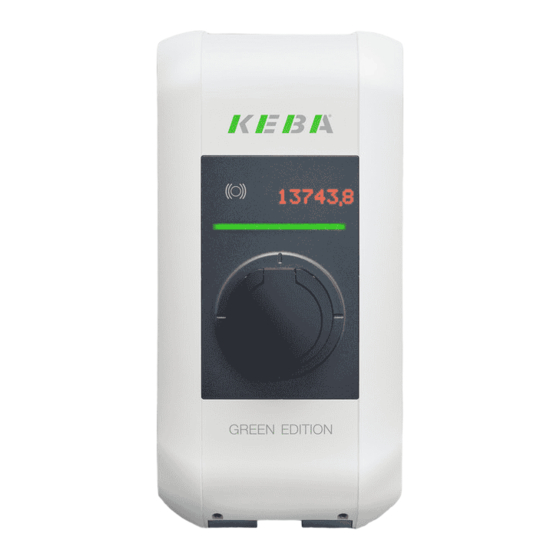

Keba KeContact P30 e Series Firmware Update Instructions
Charging wallbox
Hide thumbs
Also See for KeContact P30 e Series:
- Translation of the original instructions (28 pages)
Related Manuals for Keba KeContact P30 e Series
Summary of Contents for Keba KeContact P30 e Series
- Page 1 KeContact e-series, b-series, c-series Firmware Update Instructions V 1.02 Translation of the original instructions...
- Page 2 Specifications are subject to change due to further technical developments. Details presented may be subject to correction. All rights reserved. KEBA AG Headquarters Gewerbepark Urfahr, 4041 Linz, Austria +43 732 7090-0, kecontact@keba.com, www.keba.com/emobility For information about our subsidiaries please look at www.keba.com.
-
Page 3: Table Of Contents
Determining the firmware version ................Update via Ethernet....................Connect to the network ..................Perform update ....................Update via USB......................Remove covers ....................Perform update ....................Mount covers ....................Correcting update errors ................... Perform Deep Firmware Update ..............Firmware Update Instructions V1.02 © KEBA... -
Page 4: Introduction
Purpose of the document This document describes how to perform a firmware update at P30 e-series, b-series and c-series. The firmware update can be installed on the charging station either via Ethernet or USB. Firmware Update Instructions V1.02 © KEBA... -
Page 5: Requirements
Warranty Only general maintenance work that is expressly permitted by KEBA may be performed. Any other tampering to the device will result in a loss of the war- ranty claim. -
Page 6: Further Documentation
Introduction ● Operating behavior of the charging station ● Operation of the charging station ● Configuration of the charging station Further documentation Manuals and additional information are available on our website: www.keba.com/emobility-downloads Firmware Update Instructions V1.02 © KEBA... -
Page 7: Determining The Firmware Version
To calculate the subversion, the significance of the LED segment must first be multiplied by the significance of the color. The obtained results must then be summed. Example: => firmware version 3.09 Determining the major version Colors Major version blue/orange Firmware Update Instructions V1.02 © KEBA... - Page 8 Determining the subversion LED segment Color Blue Orange Orange Blue Significance of the LED segment Significance of the color Result (LED segment x color) Subversion 8 + 0 + 0 + 1 = 09 Firmware Update Instructions V1.02 © KEBA...
-
Page 9: Update Via Ethernet
3) Follow the instructions in the command prompt. 4) The program searches for the connected charging stations for approx. 40 seconds and displays found MAC addresses, IP addresses and infor- mation on the firmware version. Firmware Update Instructions V1.02 © KEBA... - Page 10 The command prompt can be closed by pressing any key. 7) Check the firmware version of the charging station, see 2 Determining the firmware version. 8) Check that the charging station is functioning properly. Firmware Update Instructions V1.02 © KEBA...
-
Page 11: Update Via Usb
1. 2) Lift the housing cover at bottom max. 1 cm and then push upwards 2. 3) Unscrew the four screws of the connection panel cover and remove the connection panel cover upwards. Firmware Update Instructions V1.02 © KEBA... -
Page 12: Perform Update
Install update Prepare USB stick An empty USB stick formatted with FAT32 is required. Proceed as follows to prepare the USB stick 1) Download the latest firmware from the KEBA website: www.keba.com/emobility-downloads 2) Extract the file KEBA_P30_USB_xxx.zip 3) Copy the update files directly into the root directory of the USB stick (do not use folders). -
Page 13: Mount Covers
2) Hook in the housing cover at the top and close it at the bottom 2. The housing cover must glide into the guides without considerable resistance. The housing cover must be correctly seated in the housing guide on all sides. Firmware Update Instructions V1.02 © KEBA... - Page 14 Update via USB 3) Fix the housing cover with 2 screws at the bottom. 4) Check that the charging station is functioning properly. Firmware Update Instructions V1.02 © KEBA...
-
Page 15: Correcting Update Errors
Install update Prepare USB stick An empty USB stick formatted with FAT32 is required. Proceed as follows to prepare the USB stick 1) Download the latest firmware from the KEBA website: www.keba.com/emobility-downloads 2) Extract the file KEBA_P30_USB_xxx.zip 3) Copy the update files directly into the root directory of the USB stick (do not use folders). - Page 16 9) Restart the charging station: To do this, press the service button until the first beep (approx. 1 second). The deep firmware update has been performed. Finally, the removed covers must be remounted, see 4.3 Mount covers. Firmware Update Instructions V1.02 © KEBA...
