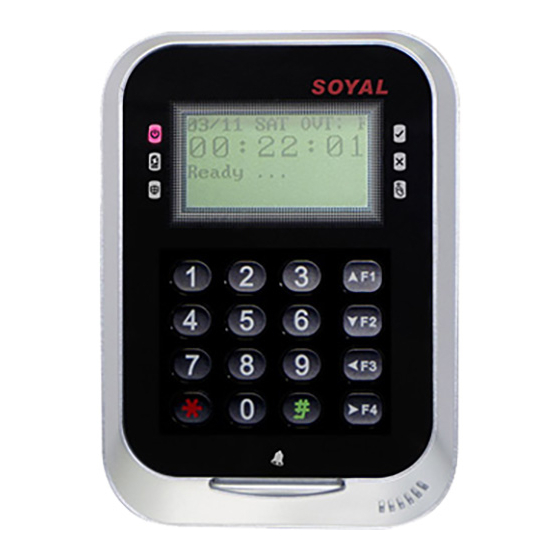

Soyal AR-837 E User Manual

SOYAL
ACCESS CONTROL SYSTEM

Contents

AR-837 (EF):Fingerprint
1 Products
Or
DO MT
AR-837 (E):Vein
1 Products 2 User Guide

Installation

A-1.Surface A-2.Embedded
Mounted
或
Notice
1.Tubing: The communication wires and power line should NOT be bound in the same conduit or tubing.
2.Wire selection: Use AWG 22-24 Shielded Twist Pair to avoid star wiring, CAT 5 cable for TCP/IP connection
3.Power supply: Don't equip reader and lock with the same power supply. The power for reader may be unstable when the lock is activating, that may cause a
malfunction in the reader.
The standard installation: Door relay and lock use the same power supply, and reader should use another independent power supply.

Connector Table (1)

Cable: CN4
P1
Wire Application Wire Color
Lock Relay 1 Blue White (N.O.)DC24V1Amp
2 Purple White (N.C.)DC24V1Amp
Lock Relay COM 3 White
Door Contact 4 Orange
Exit Switch 5 Purple
Alarm Relay 6 Gray
Power 7 Thick Red
8 Thick Black DC 0V
Cable: CN5
P2
Wire Application Wire Color
Beeper 1 Pink
2 Yellow
LED
3 Brown
Door Output 4 Blue White
5 Thin Green Wiegand DAT: 0 Input
Wiegand
6 Thin Blue
WG Door Contact 7 Orange
WG Exit Switch 8 Purple
Cable: P4 CN6
Wire Application Wire Color
1 Thick Green RS-485(B-)
RS-485 for Lift
Controller
2 Thick Blue RS-485(A+)
837E-EF-140217.indd 1
®
2 User Guide 3 Terminal Cables
3 Terminal Cables
P1
P4
B.
1
Description
(COM)DC24V1Amp
Negative Trigger Input
Negative Trigger Input
N.O./N.C. Optional (by jumper)
DC 12V
Description
Beeper Output 5V/100mA, Low
Red LED Output 5V/20mA, Max
Green LED Output 5V/20mA, Max
Transistor Output Max. 12V/100mA
(Open Collector Active Low)
Wiegand DAT: 1 Input
Negative Trigger Input
Negative Trigger Input
Description
AR-837 (E) / (EF)
4
P1 P2
P7
P4 P5 P6
4 Tools
P2
Water proof Strip
P5 P6 P7
A-1.Surface Mounted: Use a screwdriver to screw the mounting plate
to the wall. A-2.Embedded: To dig a hole for 837(E):85mmx113mm /
837(EF):128mmx109mm; and then, use a screwdriver to screw the
mounting plate to the wall.
Pull cable ends through the access hole in the mounting plate.
Attach AR-837(E) or AR-837 (EF) to the mounting plate and install
screws (supplied) into the holes at the bottom with the allen key.
2
Apply power. LED (green) will light up with one beep.
Cable: CN3
P5
Wire Application Wire
Anti-Tamper Switch 1
2
3
Cable: P6 CN8
Wire Application Wire
Reserved 1
Security trigger signal 2
Arming 3
Duress 4
Cable: 7 CN13 P7
Wire Application Wire
1
Door Bell
2
Tools 5 Optional
AR-837i
(TCP/IP Module)
Screws
AR-WG-HID
(HID RF Module)
Water proof Strip
AR-MDL-721V
(Voice Module)
5 Optional
AR-837i
(TCP/IP Module)
Screws
AR-WG-HID
(HID RF Module)
AR-MDL-721V
(Voice Module)
P3
P4
1 2
2
1
CN7 CN6
3
P2
8
4
8
5 P1
7
CN5
6
7
6 CN4
7
6
8
5
9
5
4
10
4
3
P6
3
4
2
3 2
CN8
1
2
1
1
P5
3 2 1
CN3
P7
2 1
CN13
Color Description
Red N.C.
Orange COM
Yellow N.O.
Color Description
Red --
Purple Security trigger signal Output
Red White Arming Output
Yellow White Duress Output
Color Description
Transistor Output Max. 12V/100mA
Black White
(Open Collector Active Low)
Black DC 0V
2014/12/17 下午 04:05:16
V140217
