Soyal AR-881-EF9DO Manual

SOYAL
ACCESS CONTROL SYSTEM

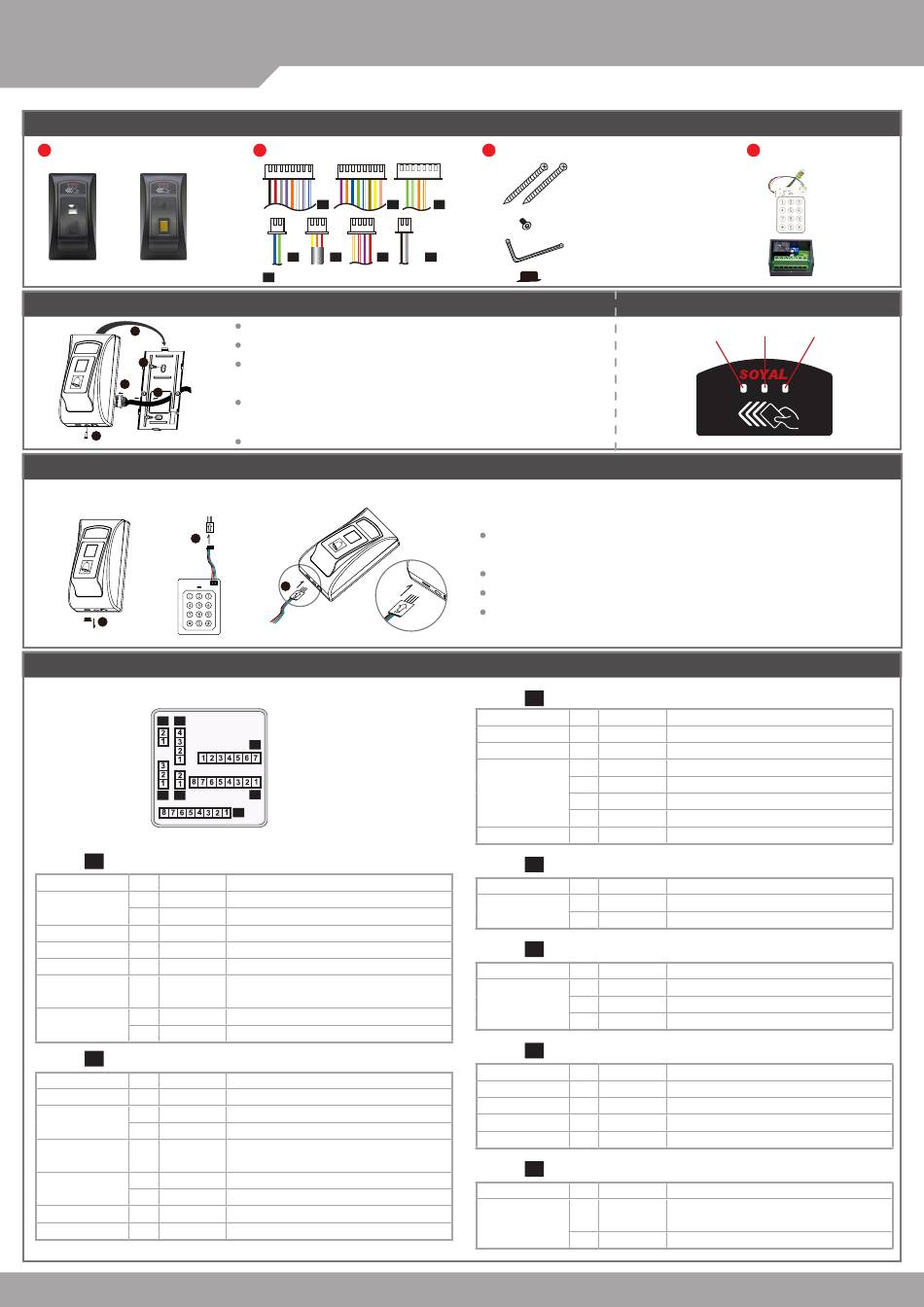

Contents
1 Product

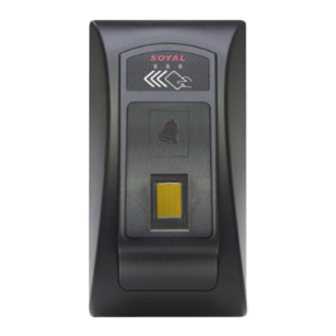

AR-881-EF9DO AR-881(EF-MT)
Installation
4
2
3
1
5
External WG keyboard
※ If you want to program system on controller directly, please order WG keyboard then install it according to the following pattern.
1
Connector Table
P4 P6
P5 P7
Cable: P1
Wire Application Wire Color
1 Blue White (N.O.)DC24V1Amp
Lock Relay
2 Purple White (N.C.)DC24V1Amp
3 White
Common-COM-Point
Door Contact 4 Orange
Exit Switch 5 Purple
Alarm Relay 6 Gray
7 Thick Red DC 12V
Power
8 Thick Black DC 0V
Cable: P2
Wire Application Wire Color
Beeper 1 Pink
2 Yellow
LED
3 Brown
Door Output 4 Blue White
5 Thin Green Wiegand DAT: 0 Input
Wiegand
6 Thin Blue Wiegand DAT: 1 Input
WG Door Contact 7 Orange
WG Exit Switch 8 Purple
®
2 Terminal Cables
P1
P4 P5
P7 only provide to the controller that have doorbell function.
※
Pull the cables from the square hole of the mounting plate.
Use a screwdriver to screw the base onto the wall.
Connect the terminal cables to the body and attach the body to
the mounting plate.
Assemble the covers with the Allen key and screws
(accessories supplied).
Turn on the power and LED will light and beep will sound.
2
3
P3
P2
P1
Description
(COM)DC24V1Amp
Negative Trigger Input
Negative Trigger Input
Transistor Output Max. 12V/100mA
(Open Collector Active Low)
Description
Beeper Output 5V/100mA, Low
Red LED Output 5V/20mA, Max
Green LED Output 5V/20mA, Max
Transistor Output Max. 12V/100mA
(Open Collector Active Low)
Negative Trigger Input
Negative Trigger Input
AR-881-EF9DO
3 Tools
P2 P3
P6 P7
※
Remove the Protection plug that in the bottom left.
(※ Do not lose protection plug or it will affect the protection level.)
WG Keyboard cable will be connected to the pin board.
WG Keyboard connected to the controller from the bottom left of the hole.
When you finish programming system, please put protection plug back
to the controller.
Cable: P3
Wire Application Wire
TCP/IP Output
Cable: P4
Wire Application Wire
RS-485 for Lift
Controller
Cable: P5
Wire Application Wire
Anti-Tamper
Switch
Cable: P6
Wire Application Wire
Power
Security trigger signal
Arming
Duress
Cable: P7
(For the controller that doorbell function.)
Wire Application Wire
Doorbell
4
Flat Head Cap Philips
Tapping Screw: 4x20
Security Torx: M3x10
Security Torx Wrenches
Protection Plug
Front Panel & Indicator
Error Processing
Color Description
1 --- ---
2 --- ---
3 Orange White Net - TX+
4 Orange Net - TX-
5 Green White Net - RX+
6 Gerrn Net - RX-
7 --- ---
Color Description
1 Thick Green RS-485(B-)
2 Thick Blue RS-485(A+)
Color Description
1 Red N.C.
2 Orange COM
3 Yellow N.O.
Color Description
1 Red DC 12V Output
2 Purple Security trigger signal Output
3 Red White Arming Output
4 Yellow White Duress Output
Color Description
Transistor Output Max. 12V/100mA
1 Black White
(Open Collector Active Low)
2 Black GND
V200422
Optional
WG
keyboard
AR-721RB
Digital Relay
OK
