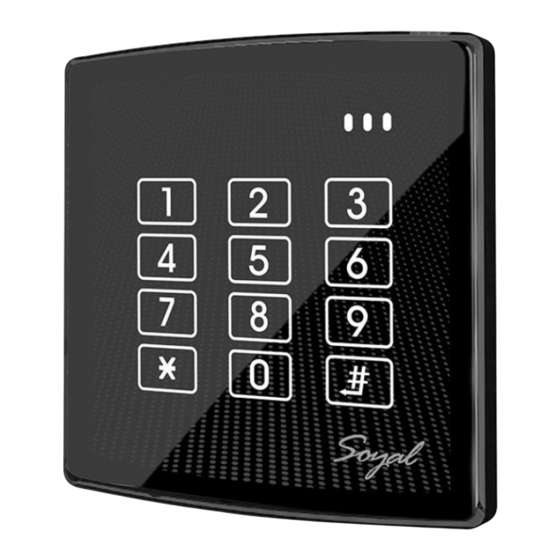

AR-888-H: Flush-Mount Backlight Multi-Function Controller - LED Ring (Green/Red Only)
1
Product (US/EU)
AR-888-K/U: Flush Mount Illuminated Access Reader - LED Ring (Green/Red Only)
Product (US/EU)
1
AR-888-K
AR-888-U
Connector Table
AR-888 (H)
CN12
CN2
CN5
CN4
CN1
CN12
(default)
AR-888 (K/U)
125kHz
CN2
8
7
CN1
CN5
AR-888 (K/U)
CN12
13.56MHz
CN2
8
7
CN4
CN1
CN5
SET2 (Format)
SET1(Format)
®
(Note: AR-888-U in this manual is intended only for AR-888-UB and AR-888-UD)
2
Terminal Cables
CN1
CN2
CN4
RS-485
WG-Input
Terminal Cables
2
125KHz
CN1
CN5
CN12
CN2
Duress
WG-LED
Cable :
CN1
888-H
Wire Application Pin
Color
1
Blue White (N.O.) DC24V1Amp
Lock Relay
2
Purple White (N.C.) DC24V1Amp
Common-COM-Point
3
White
Door Sensor
4
Orange
Exit Switch
5
Purple
Alarm Relay
6
Gray
7
Thick Red
Power
8
Thick Black DC Power 0V
Cable :
CN2
Wire Application
Pin
Color
1
Thin Blue
Wiegand
2
Thin Green
Beeper
3
Pink
4
Brown
LED
5
Yellow
Cable :
CN4
Wire Application
Pin Color 888-H Description
1
Green RS-485(B-)
RS-485 Port
2
Blue
Cable :
CN5
888-H
Wire Application
Pin
Color Description
1
Black GND.
2
White Duress
3-PIN Connector
3
Purple Arming/ Security trigger signal
Cable :
CN12
Wire Application
Pin Color 888-H Description
GND.
1
Black GND.
2
Brown GLED Input (Active High)
LED
3
Yellow RLED Input (Active High)
Tamper
4 Orange Tamper Switch(Active Low)
AR-888 (K/U)
125kHz WG/ABA/RS232 Format
(By order or changable by shorted on PCB)
Format
WG
RST/Bits
WG 26
Open
Open
WG 34(default)
Open
Short
ABA-8
Short
Short
ABA-10
Short
Open
AR-888(H/K/U)
3
Tools
Bottom Cover
CN12
CN5
Duress
13.56MHz
or
CN1
CN5
CN2
CN4
Duress
WG-LED
RS-485
Description
(COM) DC24V1Amp
Negative Trigger Input
Negative Trigger Input
Low output; Max 12V/100mA
(Open Collector)
DC Power 12V
888-H Description
Wiegand DAT:1 Input
Wiegand DAT:0 Input
Beeper Output 5V/100mA, Low
LED Green Output 5V/20mA, Max LED Green Output 5V/20mA, Max
LED Red Output 5V/20mA, Max
RS-485(A+)
AR-888 (K/U)
13.56MHz WG/ABA Format
(Change by wires connection)
Format
SET 1
SET 2
Note
WG 26
Open
Open
HEX
WG 34
Open
To GND
HEX
ABA-10 To GND
Open
BCD10
ABA-5-5 To GND To GND
BCD
- 1 -
4
X2
X1
Flat Head Hex
Allen key
Socket Screw:
2MM
M3x8
48*15MM
Tools
3
X2
Bottom
Flat Head Hex
Allen key
Socket Screw:
Cover
2MM
M3x8
CN12
48*15MM
Cable :
CN1
888-K/U
125kHz
Wire Application Pin
Color
Description
1
2
3
4
Orange
Output Selection
5
Purple
Card Present
6
Gray
7
Thick Red DC Power 12V DC Power 12V
Power
8
Thick Black DC Power 0V DC Power 0V
888-K/U (125kHz , 13.56MHz) Description
Beeper Output 5V/100mA, Low
LED Red Output 5V/20mA, Max
888-K/U (13.56MHz) Description
RS-485(B-)
RS-485(A+)
888-K/U (125kHz , 13.56MHz)
Wire Application
Pin
Color
GND.
1
Black
2
White
WG Output
3
Purple
888-K/U (125kHz , 13.56MHz) Description
GND.
GLED Input (Active High)
RLED Input (Active High)
Tamper Switch(Active Low)
V221012
Easy Install Kit
(By Order)
A.
MPLA-888XA18/19 (US / EU)
Easy Install Kit
4
(By Order)
X1
A.
MPLA-888XA18/19 (US / EU)
13.56MHz
Description
SET2
SET1
Reading card
Active Low
Cable :
CN5
Description
GND.
WG 0 Output
WG 1 Output
www.soyal.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Soyal AR-888-U
Summary of Contents for Soyal AR-888-U

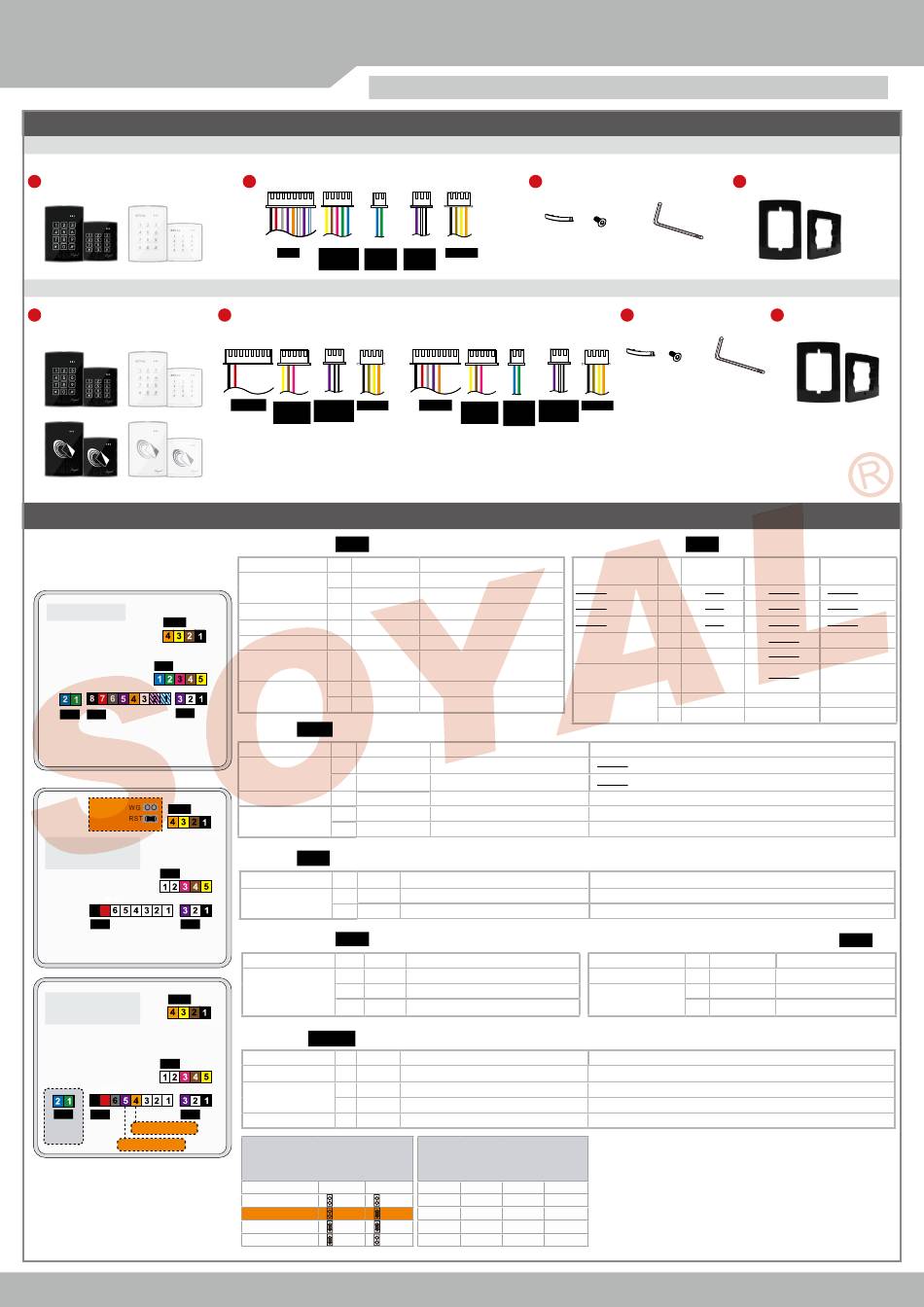

- Page 1 SOYAL ® AR-888(H/K/U) V221012 ACCESS & INDUSTRIAL CONTROL (Note: AR-888-U in this manual is intended only for AR-888-UB and AR-888-UD) Contents AR-888-H: Flush-Mount Backlight Multi-Function Controller - LED Ring (Green/Red Only) Easy Install Kit Product (US/EU) Terminal Cables Tools (By Order)
-
Page 2: Installation
/ Screw hole pitch : 84mm Suitable for 70X118 1-module flush- mounting box.( Australian, Italy, USA(501E) Standard) EU Mounting Hole: 57x53x40mm(HxWxD) / Screw hole pitch: 60mm Suitable for 86X86 flush-mounting box. (UK, Continental Europe, Germany Standard) www.soyal.com - 2 -... -
Page 3: Wiring Diagram
Flush-Mounted Series Flush-Mount Backlight Multi-Function Controller / Flush Mount Illuminated Access Reader V221012 Wiring Diagram Connect to Electric Bolt AR-321H Connect to Magnetic Lock N.O. Electric Bolt POWER AR-1207 12VDC N.C. POWER Magnet Lock P.T.Exit 12VDC N.O. N.C. N.O. N.O. Controller Controller EXIT... - Page 4 Flush-Mounted Series Flush-Mount Backlight Multi-Function Controller / Flush Mount Illuminated Access Reader V221012 AR-321H Alarm Output - Lift Control Wiring Alarm Output - WG Dual Door Control Wiring AR-401-IO-0016R POWER Node ID 001 12VDC Electric Bolt Exit Switch AR-1207 POWER Host 12VDC Lock...
- Page 5 Flush-Mounted Series Flush-Mount Backlight Multi-Function Controller / Flush Mount Illuminated Access Reader V221012 Master Code modification / Change the Node ID of Controller A. Enter / Exit Program Mode Enter the program mode Input 123456 PPPPPP [e.g.] The Default Value= 123456, if the Master Code is already changed= 876112, input 876112 →...
- Page 6 Flush-Mounted Series Flush-Mount Backlight Multi-Function Controller / Flush Mount Illuminated Access Reader V221012 Suspend Tags Suspend Single Tag or a Batch of Tags (by User Address in Sequence) Input 123456 (or Master Code) → 10 SSSSS EEEEE [e.g.] Suspend User Address: 00058 Enter program mode →...
-
Page 7: Operation Process
Flush-Mounted Series Flush-Mount Backlight Multi-Function Controller / Flush Mount Illuminated Access Reader V221012 Operation process D. Set up the password M4/M8: Private PIN Card or PIN: Enter program mode → 12 UUUUU PPPP [e.g. User Address: 00001 and pass code: 1234, input 12 00001 1234 Card and PIN: Enter program mode →... -
Page 8: Arming Mode
SOYAL ® AR-888(H/K/U) V221012 ACCESS & INDUSTRIAL CONTROL H. Lift control Connect with AR-401-RO16 to control access floors of users. Enable Enter program mode → 24 [002= enable lift control] Single floor Enter program mode → 27 UUUUU UUUU=User Address FF=Floor number (01~32 floor) [e.g.] User Address NO. -
Page 9: Function Default Value
※ [The normal procedure to open door] can refer to [Access Mode]. ※ Read the [Command List-Arming /Duress Function Setting] below to modify arming PWD. ※ M6 is Standalone Mode, the mode is without Arming /Duress Function. More Details: SOYAL Security Related Function Function Default Value AR-888-H ※Default Value... -
Page 10: Command List
Flush-Mounted Series Flush-Mount Backlight Multi-Function Controller / Flush Mount Illuminated Access Reader V221012 Command List Function Description Command Master PPPPPP=Master Code, default value=123456 Enter program mode PPPPPP Code PPPPPP=6-digit new master code PPPPPPRRRRRR Master code setting Setting RRRRRR=Reconfirm the new master code Suspend tag SSSSS EEEEE... - Page 11 SOYAL ® AR-888(H/K/U) V221012 ACCESS & INDUSTRIAL CONTROL Function Command Description Reader additional setting Please refer to function default value for details. Controller parameter setting Double Door Control / Force Open Alarm N= 0 (1st time zone) / 1 (2nd time zone) HHMM= Starting time;...
