Quadratec iVault Assembly Instructions

Radio locker

Advertisement

Quick Links

Included:

Front door
Body front
Body rear
Sliding Tray
Please read all instructions before beginning assembly
Body rear sect.

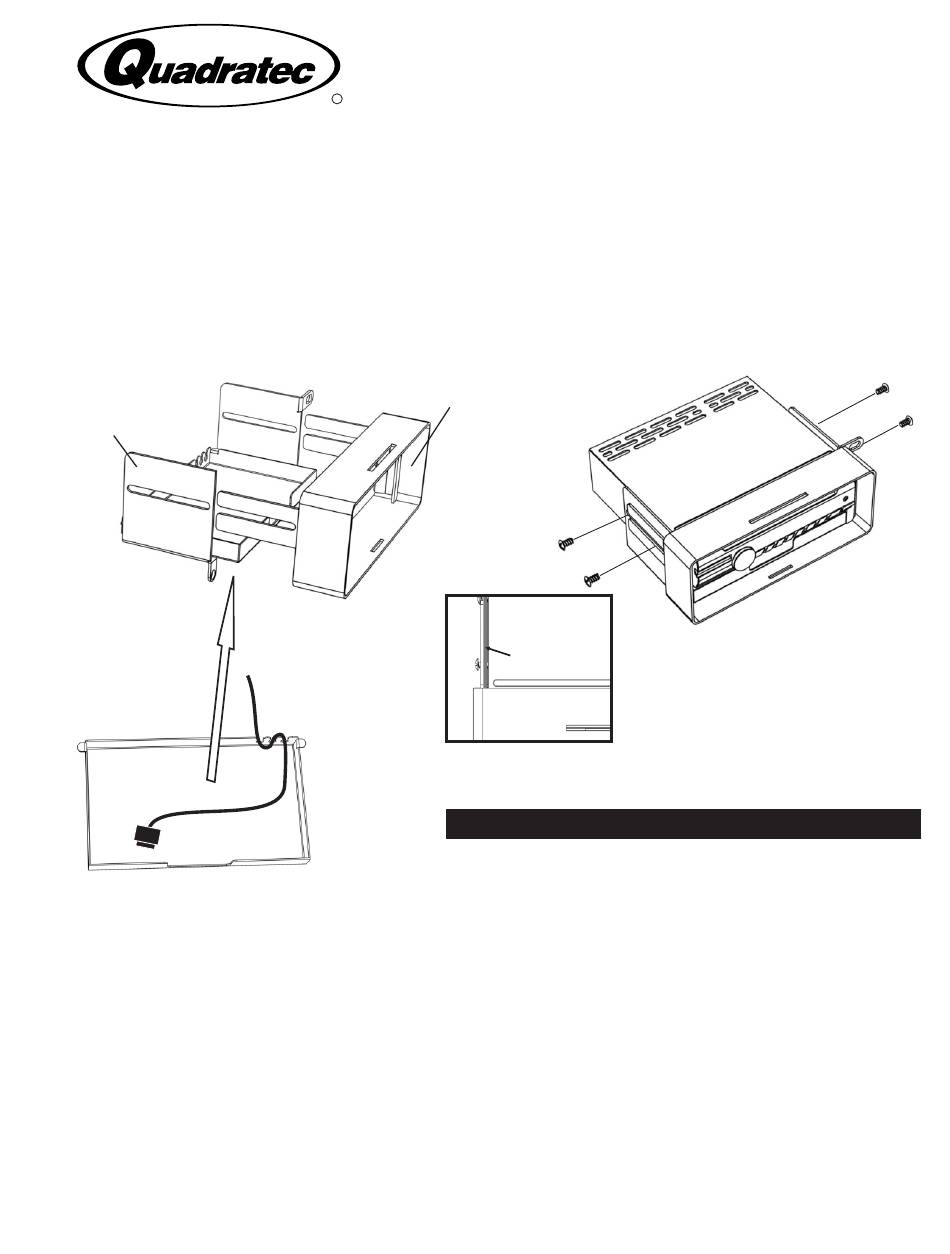

Fig. 1
Sliding Tray

Cord Management

NOTE: Insert the desired cord as
shown to keep it from falling out of
t h e d r a w e r a n d b e c o m i n g
unreachable inside the vehicle
dash.
R
Qty.
1
1
1
1
Body front sect.
Front sect. body

STEP 1

A) Begin by instalingl the two strips of felt on the
underside of the head unit as protection for the items
carried in the tray when on rough terrain.
B) Install any cords as desired into the sliding tray and insert
it into the assembly. (Fig 1) See "Cord Management" for
details.
C) Install the front body section onto the rear body section
then insert the head unit and use the 4 sheet metal screws to
hold the assembly together loosely. NOTE: Be sure the
bottoms of the front and rear sections are flush.
D) Now adjust the final position of the radio into the
assembly and tighten the screws on the sides. Position so it
is far enough forward to be easily accessible but not
interfere with the face when installed.
Assembly instructions
iVault Radio Locker
Part# 14026.2311 I-VAULT 97-02 TJ
Sheet metal screws
Felt pads
Head unit
Head unit
Rear sect. body
Fig.3
4
2
Fig. 2
Page 1 rev 1 8/11
