4 - prODUCT INsTAllATION

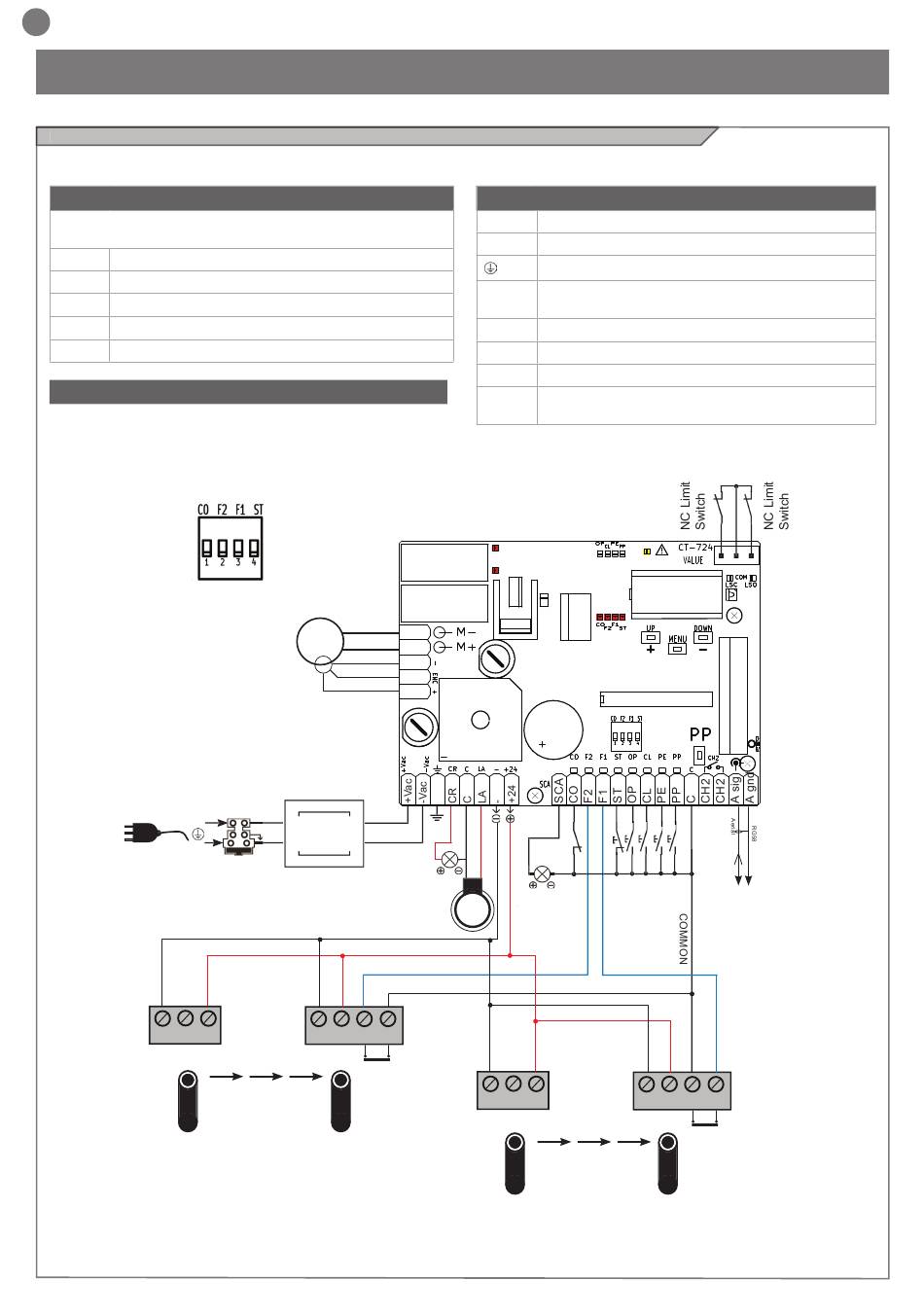

4.1 - Electrical connections 4.1 - Electrical connections
WARNING - Before making connections, verify that the installation is not powered
MOTOR CONNECTOR
Terminal Block for power connections, for 24Vdc motor and
encoder
M- Motor power (red or brown)
M+ Motor power (green or white)
GnD Encoder (white)
EnC Encoder signal output (green or blue)
+5V Encoder power; (brown or red)
SW5 SWITCH
Set at "ON" disables CO, F2, F1, ST inputs.
Eliminates the need to jump the inputs on terminal block.
WArNING - connected safeties are excluded with
dip switch ON
n
L
1 2
24Vac/dc
- +
18
On
M
Motor
encoder
T2A 230V
230Vac
50/60Hz
3
1 2 3 4
24Vac/dc
- +
nC
TX
RX
F2
POWER CONNECTOR
+Vac Transformer Power 24÷26 Vac (12 A peak)
-Vac Transformer Power 24÷26 Vac (12 A peak)
Grounding
CR Courtesy light, +24 V to be connected to "C", 25 W
max
C Common for outputs "CR" and "LA"
LA Flashing, +24 V to be connected to "C", 25 W max
- Common for outputs "+24" and "sCA"
+24 stabilized output, 24 V, 300 mA max, tolerant to short-
circuit
