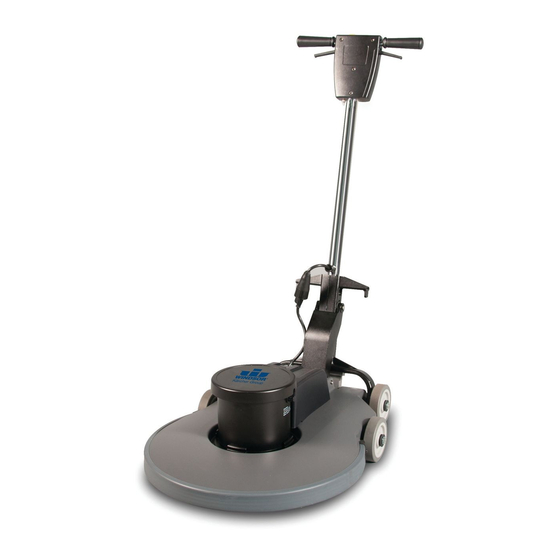

Windsor High Speed Burnisher LB2000 Operating Instructions Manual
High speed burnisher
Hide thumbs
Also See for High Speed Burnisher LB2000:
- Operating instructions manual (32 pages) ,
- Operating instructions manual (26 pages)
Related Manuals for Windsor High Speed Burnisher LB2000
Summary of Contents for Windsor High Speed Burnisher LB2000

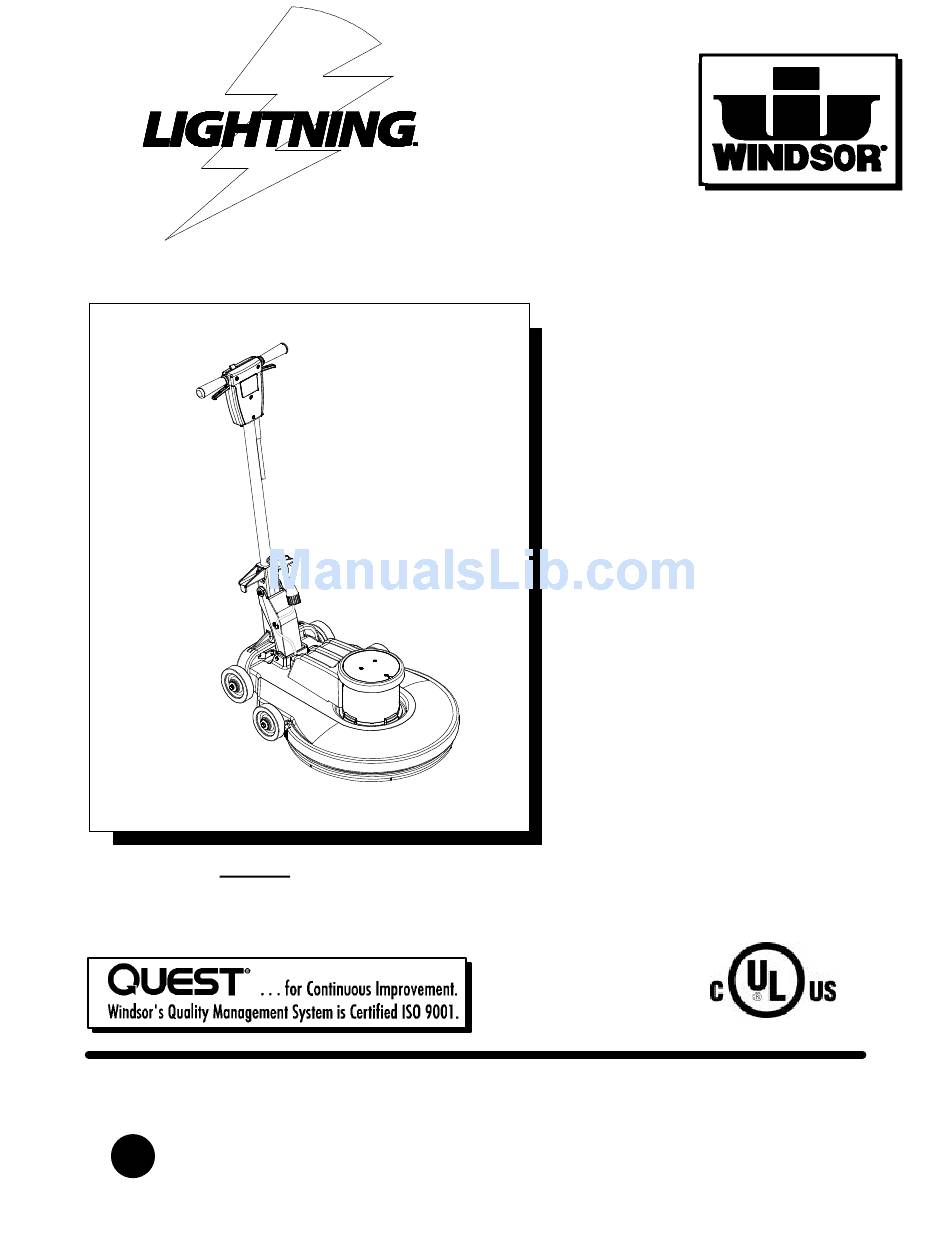

- Page 1 HIGH SPEED BURNISHER Operating Instructions (ENG) MODELS: LB2000 Read these instructions before using the machine 980088 11/15/03...
-
Page 2: Machine Data Log/Overview
MACHINE DATA LOG/OVERVIEW MODEL______________________________ DATE OF PURCHASE ________________ SERIAL NUMBER____________________ Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ For the name and address of your dealer contact: Windsor Industries Phone Number: _________________________________________________________________________________________ YOUR DEALER LB2000 980088 03/08/03... -
Page 3: Table Of Contents
TABLE OF CONTENTS Machine Data Log/Overview..2 Table of Contents ...3 HOW TO USE THIS MANUAL How to use this Manual..1-1 SAFETY Important Safety Instructions...2-1 Hazard Intensity Level..2-2 Grounding Instructions...2-3 OPERATION Technical Specifications ...3-1 Handle Installation ...3-2 Operation...3-3 Pad Driver Installation...3-3 MAINTENANCE Machine Troubleshooting ...4-1... -
Page 4: How To Use This Manual
The HOW TO USE THIS MANUAL section will tell you how to find important information for ordering correct repair parts. Parts may be ordered from authorized Windsor dealers. When placing an order for parts, the machine model and machine serial number are important. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. -
Page 6: Hazard Intensity Level
Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. LB2000 980088 03/08/03... -
Page 7: Grounding Instructions
THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: In the USA this machine operates on a 15 amp nominal 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS ITEM Construction Motor Transmission Pad speed Electrical system Cable Switches Pad Holder Wheels Handle Dimensions (L x W x H) NOTE: Always use a pad which has been designed for electric ultra high speed burnishing of at least 2000 rpm. -
Page 9: Handle Installation
HANDLE ASSEMBLY The machine is shipped with handle unassembled. Follow these steps for installation: 1. Remove handle and deck assembly from carton. 2. Remove bolt (item 3), washers (item 2), and nut (item 1) from deck assembly. 3. Install Handle Assembly as shown. HANDLE MOUNT BRACKET DECK... -
Page 10: Operation
OPERATION CONTROLS 1. Safety Lock – Prevents unintended operation of the machine. 2. Switch Levers – Turns machine on/off. OPERATION For indoor use only. CAUTION WARNING When using the pad, always keep the machine moving when in contact with the floor. WARNING High starting torque. -
Page 11: Machine Troubleshooting
PROBLEM Machine will not run Electrical shock Repeated circuit breaker tripping Excessive vibration MACHINE TROUBLESHOOTING CAUSE Tripped circuit breaker Circuit breaker tripped in building. Fuse in motor is blown Power switch failure Faulty power cord Equipment not grounded Receptacle not grounded Internal wiring problem Mechanical problem Faulty circuit breaker... -
Page 12: Wiring Diagram/Service Schedule
WIRING DIAGRAM / SERVICE SCHEDULE SERVICE SCHEDULE Check pad wear to prevent buildup of chemicals Check pad driver system for damage Check handles, switches, and knobs for damage Store with pad off the floor Check all bearings for noise Check skirt/bumpers for damage and replace as necessary Check overall performance of machine MAINTENANCE LB2000 980088 11/15/03... - Page 13 THIS PAGE LEFT BLANK INTENTIONALLY LB2000 980088 03/08/03...
-
Page 14: Deck Group
DECK GROUP LB2000 980088 03/08/03... - Page 15 PART NO. DESCRIPTION 140449 BUMPER, RUBBER 27918 COVER, FILTER BAG 140441 BAG, DUST (PACKAGE OF 10 BAGS) 67463 RETAINER, CORD 70738 SCR, M5 X .8MM X 10 MM PPHMS BLK 29244BLU DECK, 20 IN BURNISHER, BLUE 500767 LABEL, LIGHTNING 2000 MAIN 140423 BUMPER, EXTRUSION 87211...
-
Page 16: Handle Group
HANDLE GROUP LB2000 980088 03/08/03... - Page 17 PART NO. DESCRIPTION 70686 SCR, M6 X 45 SHCS BLK 51326 LOCK, SAFETY HANDLE 73990 SPRING, EXT. .5OD X 3.5L 140428 BAR, HANDLE 36196 GRIP, POLISHER HANDLE 51327 LEVER, SWITCH 57274 NUT, M6 X 1 500194 LABEL, WARNING 41363 HOUSING, POLISHER HANDLE FRONT 70689 SCR, M4.8 X 10 HHTF TYPE B 78473...
-
Page 18: Lower Handle Group
LOWER HANDLE GROUP LB2000 980088 03/08/03... - Page 19 PART NO. DESCRIPTION 70738 SCR, M5 X .8MM X 10 MM PPHMS BLK 20005 CLAMP, 5/16 NYLON 67468 RING, 10MM EXTERNAL SNAP 66340 PIN, DOWEL 10MM DIA X 124 MM LG 140421 BRACKET, HANDLE LINK 67469 RING, 13MM EXTERNAL SNAP 87234 WASHER, 14MM ID X 36MM OD X 2MM 87203...
-
Page 20: Motor Group
MOTOR GROUP LB2000 980088 03/08/03... - Page 21 PART NO. DESCRIPTION 70702 SCR, M5 X .8 X15MM BLK 27884 COVER, MOTOR 53256 MOTOR, 115VOLT 1.5HP 2000RPM MOTOR COMPONENTS (NOT SHOWN) PART NO. DESCRIPTION 140401 CIRCUIT BREAKER, 30 AMP MPX 67488 RECTIFIER, 50A 600V BRIDGE 14404 BRUSH SET MOTOR (PKG OF 4) 34378 FUSE 34379...
-
Page 22: Pad Driver Group
PAD/DRIVER GROUP LB2000 980088 03/08/03... - Page 23 PART NO. DESCRIPTION 87163 WASHER, 3/8 SPLIT LOCK PLTD 70507 SCR, 3/8-16 X 3/4 HHCS PLT 87086 WASHER, M10 X 30 PLTD 64108 PAD DRIVER, 20 INCH BURNISHER 87102 WASHER, 5/46 ID X 1 1/4 OD 70244 SCR, 5/16-24 X 1/2 HHMS SS 70720 SCR, #10 X 3/8 PPHST TYPE B 51353...
-
Page 24: Wiring Group
WIRING GROUP PRIOR TO SN* 5-11 LB2000 980088 11/15/03... - Page 25 PART NO. DESCRIPTION 70801 SCR, M3.5 X 40 PHTF TYPE B 87057 WASHER, M4 SHAKEPROOF 73993 SPRING, COMP, .48OD X .875L 72123 SWITCH, 25A SPST 125-250V SNAP 73989 SPACER, SWITCH POLISHER 23154 CORD SET, 14/3 STO X 75' YLW 57069 NUT, ORG WIRE (2-5 18G/2-14G) 87208 WASHER, M5 SHAKEPROOF PLTD...
-
Page 26: Suggested Spare Parts
SUGGESTED SPARE PARTS PART NO. 73990 SPRING, EXT .5 OD X 3.5 L 73993 SPRING, COMP .48 OD X .91 L 72123 SWITCH, 25A SPST 125-250V SNAP 140401 CIRCUIT BREAKER, 30 AMP 67488 RECTIFIER, 50A 600V BRIDGE 14404 BRUSH SET MOTOR (PKG OF 4) 34378 FUSE 34379... -
Page 27: Warranty
The Machine Registration Card must be completed and returned immediately at the time of purchase. If proof of purchase cannot be identified, the warranty start date is 90 days after the date of sale to an authorized Windsor distributor. Parts replaced or repaired under warranty are guaranteed for the remainder of the original warranty period. - Page 28 If difficulty develops during the warranty period, contact the authorized Windsor agent from whom the product was purchased. Windsor Industries, Inc. may elect to require the return of components to validate a claim. Any defective part to be returned must be shipped freight prepaid to an authorized Windsor Distributor/Service Center or to the Windsor factory.
