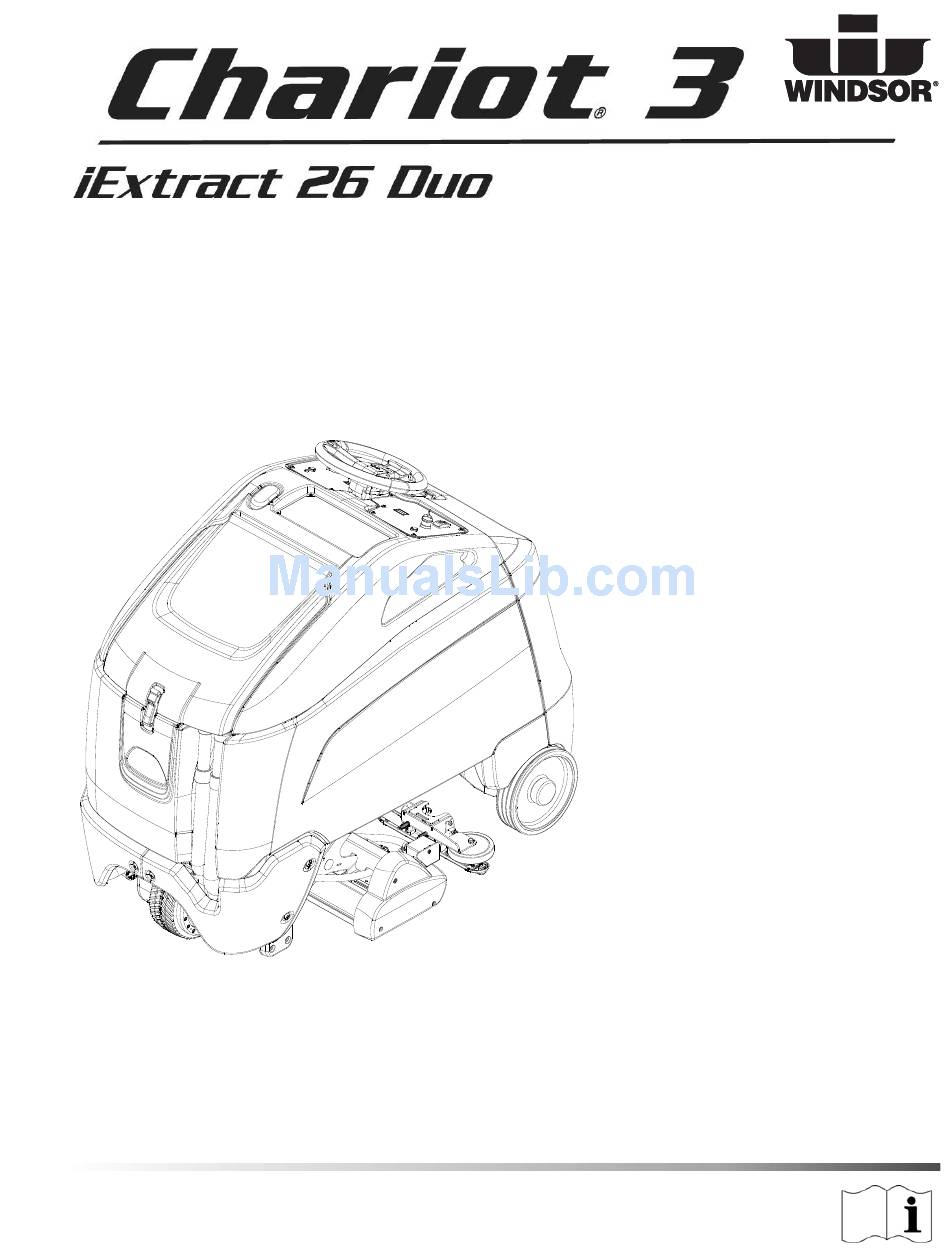

Operating instructions (ENG)
MODELS:
Read these instructions before using the machine.
CE26
10061670
CEC26
10061680
CEO26
10061780
CECO26
10061790

Advertisement

Table of Contents
loading

Related Manuals for Windsor iExtract 26 Duo

Summary of Contents for Windsor iExtract 26 Duo

  • Page 1 Operating instructions (ENG) MODELS: CE26 10061670 CEC26 10061680 CEO26 10061780 CECO26 10061790 Read these instructions before using the machine. 86372820-V 07/02/14...

  • Page 2: Machine Data Log/Overview

    Warranty Registration Thank you for purchasing a Windsor product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product.

  • Page 3: Table Of Contents

    Drive Motor Carbon Brush Replacement ..45 Transporting ......46 86372820 Chariot 3 iExtract 26 Duo...

  • Page 4: How To Use This Manual

    KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts. NOTE: The manual part number is located on the lower left corner of the front cover. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 5: Safety

    This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other brushes may affect its safety. Do not use on surfaces having a gradient of over 10% (6 degrees). READ AND SAVE THESE INSTRUCTIONS 86372820 Chariot 3 iExtract 26 Duo...
  • Page 6 Cette machine a été conçue pour être utilisée avec des brosses spécifiées par le fabricant. L'utilisation d'autres brosses peut affecter sa sûreté. N'employez pas sur des surfaces ayant un gradient de plus de 10% (6 degrés). CONSERVER CES INSTRUCTIONS 86372820 Chariot 3 iExtract 26 Duo...

  • Page 7: Hazard Intensity Level

    Disconnect batteries before working on machine. Only qualified personnel should work inside machine. Always wear eye protection and protective clothing when working on or near batteries. Avoid skin contact with the acid contained in the batteries. Never allow metal to lie across battery tops. 86372820 Chariot 3 iExtract 26 Duo...
  • Page 8 Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées Windsor homologuées. Les batteries émettent le gaz d'hydrogène. L'explosion ou le feu peut résulter. Étincelles de subsistance et flamme nue loin.

  • Page 9: Safety Label Locations

    REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapid 86244300 WARNING LABEL 86244310 CAUTION 86371690 OBC CAUTION 86252520 BATTERY CAUTION SEE VIEW A VIEW A 86335010 86335010 86372820 Chariot 3 iExtract 26 Duo...

  • Page 10: Operations

    Electrical parking brake,sets automatically whenever operator Brake steps off platform or engages emergency stop. Minimum aisle u-turn width 64 in. (1630 mm) Maximum rated climb and descent angle 10% (6 degrees) Sound Pressure Level 69.0 dBA 86372820 Chariot 3 iExtract 26 Duo...
  • Page 11 à moins qu'ils aient été donnés la surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 12: How This Machine Works

    The brushes scrub the carpet as the motor drives the brushes. The counter- rotating action of the brushes applies and agitates the solution into the carpet. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 13: Components

    1. Control Panel - Drive 8. Solution Drain Hose 2. Control Panel - Scrub 9. Brush Deck 3. Console 10. Solution Supply 4. Pedal Platform 11. Recovery Lid 5. Rear Cover 12. Recovery Drain Hose 6. Tank 86372820 Chariot 3 iExtract 26 Duo...
  • Page 14 Operations 86372820 Chariot 3 iExtract 26 Duo...

  • Page 15: Drive Controls

    Controls the direction of travel of the vehicle. The lit arrow on the switch indicates direction of travel. To travel forward, press the top of the switch. To travel in reverse, press the bottom of the switch. 86372820 Chariot 3 iExtract 26 Duo...
  • Page 16 To change speed, rotate the dial to either slow or fast position. The speed for fast and slow are as indicated on the control panel by the symbols shown below.The throttle pedal will always regulate the speed between 0 and maximum. SLOW FAST 86372820 Chariot 3 iExtract 26 Duo...
  • Page 17 9. HOUR METER Records the number of hours the machine has been in scrubbing operation. This information is useful in deter- mining when to service the machine. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 18: Scrub Controls

    The water will flow at a high rate. Water will automatically shut off in neutral and resume as machine propels forward. The vacuum shoes will lift off the floor in reverse with the vacuum motors having a delayed shut off to clear the hoses. 86372820 Chariot 3 iExtract 26 Duo...
  • Page 19 2. Solution Button and Indicator The button enables and disables solution flow. When the green indicator is illuminated, solution flow is enabled. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 20: Pre-Run Machine Inspection

    Do not use flammable materials in the tanks. to stop immediately. Les matières inflammables peuvent provoquer une explosion ou un incendie. Ne pas utiliser de matériaux inflammables dans les réservoirs. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 21: Normal Scrubbing

    In order to achieve the best possible results, the area which is to be cleaned should be swept before scrub- bing. Large debris, strings and wire must be removed to prevent being caught in brushes or vacuum shoe. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 22: To Begin Scrubbing

    NOTE: Shut machine off immediately if water or foam is expelled from the machine. NOTE: Solution flow is automatically shut off when brush motor stops. When brush motor is activated, flow automatically resumes. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 23: Emptying And Cleaning Tanks

    4. Clean off the float shut-off system and inspect for free movement of float. 5. Replace the drain hose cap and secure drain hose. 6. If machine is to be stored, leave the recovery tank lid propped open. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 24: Vacuum Shoes

    The clear plastic cover allows the operator to verify the vacuum shoe is operating without clogging. The quick release latch allows for tool free removal for easy cleaning. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 25: To Operate Off-Aisle Cleaning Option

    From right side of machine: a. Remove hose from left side vacuum shoe and connect to connection port nearest to you b. Remove hose from right side vacuum shoe and connect to connection port towards center of machine. 86372820 Chariot 3 iExtract 26 Duo...
  • Page 26 Notes 86372820 Chariot 3 iExtract 26 Duo...

  • Page 27: Maintenance

    Inspect and clean interior of solution manifold. Clean battery cases and battery compartment. Check parking brake. Clean pivot points on vacuum shoes and scrub deck lift. Check all motors for carbon brush wear. Check motor commutators. Check steering chain tension. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 28: Batteries

    Maintenance Batteries 1. Rear Cover Latch 2. Rear Cover 3. Battery Connector-Machine 4. Battery Connector-Battery 5. Batteries 6. Battery Tray Liner 7. Battery Tray 86372820 Chariot 3 iExtract 26 Duo...

  • Page 29: Battery Maintenance

    Les batteries émettent du gaz hydrogène. Une explosion ou un incendie peut en résulter. Maintenez les étincelles et les flammes nues à l’écart. Gardez les carters ouverts lors du charge- ment. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 30: Charging Batteries

    80°F (27°C): Add (+) to the specific gravity reading 0.004 (4 points), for each 10°F (6°C) above 80° (27°C). Subtract (-) from the specific reading 0.004 (4 points), for each 10°F (6°C) below 80°F (27°C). Éteindre le disjoncteur principal avant de charger. 86372820 Chariot 3 iExtract 26 Duo...
  • Page 31 5. Replace the battery caps, and leave them in place while charging. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 32: Changing Batteries

    Fixez le dispositif de levage de batterie approprié et levez les batteries de la machine. Les batteries constituent un danger potentiel pour l'environne- ment. Consultez le fournisseur de votre batterie pour connaître les méthodes d'élimination sûres. REAR OF MACHINE 86372820 Chariot 3 iExtract 26 Duo...

  • Page 33: Battery Charger Programming

    1. Remove four screws from charger mounting bracket. Lift charger out of console. 2. Peel back label on charger to access dip switches. 3. Change switches to correct battery type. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 34: Vacuum Shoes

    Maintenance WITH PUMP OFF-AISLE OPTION WITHOUT PUMP OFF-AISLE OPTION Vacuum Shoes 1. Vacuum Shoes 2. Vacuum Shoe Release 3. Vacuum Shoe Lift Actuator 86372820 Chariot 3 iExtract 26 Duo...

  • Page 35: Vacuum Shoes

    Turn the function mode dial to the slow transport position and verify the vacuum shoes 1. Vacuum Shoe Cover move to the raised position. 2. Vacuum Shoe Wiper Base 3. Vacuum Shoe Latch 86372820 Chariot 3 iExtract 26 Duo...

  • Page 36: Brush Deck

    Maintenance Brush Deck 1. Brush Deck 2. Brush Release Clips 3. Brush Motor 4. Brush Deck Lift Actuator 86372820 Chariot 3 iExtract 26 Duo...

  • Page 37: Scrub Brush Removal

    4. Pull brush out with a rocking motion to free brush from drive hub. Bearing Cleaning 1. Remove bearing cap from end of brush. 2. Clean cap and bearings. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 38: Remove Brush Deck

    11. Cable tie wires to pump & plate. FOR SAFETY: FOR SAFETY: Before leaving or 12. Install assembly to underside of machine frame. servicing machine, stop on a level surface. Turn off machine. 13. Plug in pump to harness. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 39: Brush Motor Carbon Brush Replacement

    8. Reset end cap and realign with scribe marks on motor barrel. Reinstall the two attach bolts from cap into base. 9. Maintain alignment between motor barrel base and cap. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 40: Solution

    Maintenance VIEW A SEE VIEW A Solution 1. Strainer 2. Solution Cap 3. Solenoid Valve 4. Manifold Quick Release 5. Manifold 6. Ball Valve 86372820 Chariot 3 iExtract 26 Duo...
  • Page 41 The solution manifold supplies solution equally along the length of the brush. The manifold can be removed by releasing the quick disconnect at the right side of the brush deck. The manifold should be cleaned daily for best results. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 42: Vacuum

    Maintenance Vacuum 1. Recovery Tank Float Shut-off 2. Vacuum Motors 3. Debris Bin 86372820 Chariot 3 iExtract 26 Duo...

  • Page 43: Recovery Tank Float Shut-Off

    6. Lower vacuum motor assembly down into battery compartment. 7. Remove 3 screws mounting the vacuum motor to the plemum. 8. Disconnect the vacuum hose from the vacuum motor exhaust. 9. Reverse the process to install. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 44: Drive Motor

    Maintenance Drive Motor 1. Drive Motor 2. Parking Brake 86372820 Chariot 3 iExtract 26 Duo...

  • Page 45: Electric Parking Brake Engagement

    2. Disconnect the electrical connection to the traction motor. 1. Pull lever away from brake housing. 2. Insert material to hold brake lever in place. Do not operate machine with brake disengaged. N'actionnez pas la machine avec le frein désen- gagé. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 46: Transporting

    There are four tie down points, two on the front wheel guards, and two on the rear axle located on either side of the foot box. Tie down point Tie down point Rear Axle Wheel Guards (Both sides) (Both sides) 86372820 Chariot 3 iExtract 26 Duo...

  • Page 47: Circuit Protection

    Interrupts the flow of power from batteries in the event of an electrical overload. When the circuit breaker is tripped, it can be reset by pressing the toggle switch. If the circuit breaker continues to trip, the cause of the electrical overload must be corrected. 86372820 Chariot 3 iExtract 26 Duo...

  • Page 48: Troubleshooting

    Check vacuum shoe latch engagement correctly Vacuum shoe clogged Take vacuum shoe apart and clean Verify gasket between cover and glide of Vacuum shoe not recovering efficiently vacuum shoe is installed correctly and not damaged. 86372820 Chariot 3 iExtract 26 Duo...
  • Page 49 (relieves suction pressure buildup) stop switch. Optional Off-Aisle pump will not Pump harness in-line fuse blown Replace fuse Fuse cap or fuse making bad connec- Remove fuse cap and fuse, reinstall tion 86372820 Chariot 3 iExtract 26 Duo...

  • Page 50: Controller Fault Codes

    THE CONTROL SYSTEM IS IN ERROR, CHECK ALL CONTROL SYSTEM TRIP CONNECTIONS TO CONTROLLER THE SOLENOID HAS A BAD CONNECTION, CHECK SOLENOID BRAKE CONNECTION TO BRAKE EXCESSIVE BATTERY VOLTAGE, CHECK FOR POOR HIGH BATTERY VOLTAGE BATTERY CONDITION 86372820 Chariot 3 iExtract 26 Duo...

  • Page 51: Parts

    Parts PARTS 86372820 Chariot 3 iExtract 26 Duo...

  • Page 52: Brush Deck 1

    Brush Deck 1 86372820 Chariot 3 iExtract 26 Duo...
  • Page 53 86010670 WASHER, 5/16 FLAT SS 86173350 WASHER, M5, FLAT, ISO7089, SS 86224630 SPRING, BRUSH CLIP 86196300 SCREW, M5-.8 X 12 HHCS SS 86374190 GASKET, .125 X .31 X 2.5 * SEE SERIAL NUMBER PAGE 86372820 Chariot 3 iExtract 26 Duo...

  • Page 54: Brush Deck 2

    Brush Deck 2 86372820 Chariot 3 iExtract 26 Duo...

  • Page 55: Brush Deck 2

    BRACKET, DECK BALANCE 86173340 WASHER, SPLIT LOCK, 1/4, SS 86173330 WASHER, M5, FLAT, ISO7093, SS 86276220 SCREW, 8-32 X .375 HHMS SS 86278990 WASHER, 8 X .375 X .032 FLT SS 86134850 WASHER,SPRNG LK,M4,DIN127B,SST 86372820 Chariot 3 iExtract 26 Duo...

  • Page 56: Brush Deck Lift

    Brush Deck Lift 86372820 Chariot 3 iExtract 26 Duo...
  • Page 57 WASHER, SPLIT LOCK, 1/4, SS 86010670 WASHER, 5/16 FLAT SS 86008650 PIN, COTTER RING 1/4 X .041 X .844 86006250 PIN, CLEVIS 1/4 X 1.75 STL ZNPLT 86264920 CABLE TIE, 7" UL/CSA * SEE SERIAL NUMBER PAGE 86372820 Chariot 3 iExtract 26 Duo...

  • Page 58: Brush Deck Mounting

    Brush Deck Mounting 86372820 Chariot 3 iExtract 26 Duo...
  • Page 59 NUT, 5/16-18 HEX NYLOCK THIN SS 86010670 WASHER, 5/16 FLAT SS 86277130 SCREW, 5/16-18X1.00 CARRIAGE SS 86259410 WASHER, THRUST.51 ID X1ODX.063 86228990 BEARING,FLNGD,.314ID X.502OD 86270830 NUT, 5/16-18 HEX NYLOCK SS 86373190 BRKT, SPRING HANGER 86372820 Chariot 3 iExtract 26 Duo...

  • Page 60: Brush Deck Drive

    Brush Deck Drive 86372820 Chariot 3 iExtract 26 Duo...
  • Page 61 RING, 10MM EXT SNAP, DIN 471 86215870 BRKT, TENSIONER ARM 86173350 WASHER, M5, FLAT, ISO7089, SS 86172950 SCREW, M5X12, SHCS, ISO4762, SS 86014990 SCREW, M5X20, SHCS, ISO4762, SS 86012830 SHAFT ASM, DRIVE 24" 86012790 SHAFT ASM, BRUSH DRIVE 86372820 Chariot 3 iExtract 26 Duo...

  • Page 62: Bumper

    Bumper 86372820 Chariot 3 iExtract 26 Duo...
  • Page 63 SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86361960 SCR, 5/16-18 X 3.0 PTHMS SS 86361950 SCR, 5/16-18 X 2.0 PTHMS SS 86359000 BUMPER, LEFT, GRAY 86358960 BUMPER, RIGHT, GRAY 86276890 SCREW 5/16-18X3/4 PTHMS SS 86372820 Chariot 3 iExtract 26 Duo...

  • Page 64: Console

    Console 86372820 Chariot 3 iExtract 26 Duo...
  • Page 65 SCR, 10-32 X 1.0 TORX SS BLK PLTD 86371490 PAD, CONSOLE IEXTRACT 26 USED WITH 9A 86374830 COVER, STEERING ACCESS 86371500 GASKET, .125 X .31 X 36.0 86371410 SCREW, 10-32 X .75 TMS SS BLK 86372820 Chariot 3 iExtract 26 Duo...

  • Page 66: Console Mounting

    Console Mounting 86372820 Chariot 3 iExtract 26 Duo...
  • Page 67 BRKT, CONSOLE MT LT 86276490 SCREW 5/16-18 X 5/8 HHCS SS 86010670 WASHER 5/16 FLAT SS 86360290 BRKT, CONSOLE MT RT 86367960 SCR, 5/16-18 X 1.38 HHCS SS 86367250 WASHER, .344ID X 1.13OD X .09T SS 86372820 Chariot 3 iExtract 26 Duo...

  • Page 68: Control Panel - Upper

    Control Panel - Upper 86372820 Chariot 3 iExtract 26 Duo...
  • Page 69 SWITCH, E-STOP AKW CHARIOT 86255900 STANDOFF, 6-32 X 5/8 HEX NYL 86198460 CLAMP, 5/8 NYLON 86012670 METER, 36V BATTERY 86007190 SWITCH, KEY DPST 86005640 NUT, 10-32 HEX NYLOCK 63130140 SPRING ELEMENT 86367100 LED, WATER INDICATOR 86372820 Chariot 3 iExtract 26 Duo...

  • Page 70: Control Panel - Lower

    Control Panel - Lower 86372820 Chariot 3 iExtract 26 Duo...
  • Page 71 NUT, 1/4-20 HEX W/STAR 86005640 NUT, 10-32 HEX NYLOCK 86006760 SCREW, 5/16-18 X .75 HHCS GR5 ZNPLT NP 86369480 BRKT, CABLE ATTACHMENT 86271910 NUT, 5/16-18 FLEX LK STL GRA COPLT 86250190 PLUG, DD .625 - .550 86372820 Chariot 3 iExtract 26 Duo...

  • Page 72: Control Panel - Lower With Off-Aisle - For Models 10061780 & 10061790

    Control Panel - Lower with Off-Aisle - For Models 10061780 & 10061790 86372820 Chariot 3 iExtract 26 Duo...
  • Page 73 NUT, 5/16-18 FLEX LK STL GRA COPLT 86295200 ASM, BUTTON, BLACK, W/BEZEL 86292780 SWITCH, MICRO 86251410 RELAY 15A 36V MINI 86279020 WASHER #6 LOCK EXT STAR SS 86255900 STANDOFF, 6-32 X 5/8 HEX NYL 86005700 NUT 10-32 W/STAR WASHER PLTD 86372820 Chariot 3 iExtract 26 Duo...

  • Page 74: Controls Panel Mounting

    Controls Panel Mounting 86372820 Chariot 3 iExtract 26 Duo...
  • Page 75 Control Panel Mounting SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86371410 SCR, 10-32 X .75 TMS SS BLK 86172980 SCR, KA50X10,PT OHS,WN1412,PLTD 86372820 Chariot 3 iExtract 26 Duo...

  • Page 76: Decals

    Decals 86372820 Chariot 3 iExtract 26 Duo...
  • Page 77 LABEL, IEXTRACT 26, SIDE, RIGHT 86362940 LABEL, BATTERY CABLING 86004970 LABEL, WINDSOR LOGO DOMED 86361790 LABEL, CS26, CONTROL, LEFT 86371440 LABEL, CONTROL RIGHT IEXTRACT 26 OFF-AISLE 86391490 LABEL, OFF-AISLE, iEXTRACT 26 (4*) ONLY * SEE SERIAL NUMBER PAGE 86372820 Chariot 3 iExtract 26 Duo...

  • Page 78: Drive Mounting

    Drive Mounting 86372820 Chariot 3 iExtract 26 Duo...
  • Page 79 ASM, BEARING BLOCK, FRT DRIVE 86357120 HUB, DRIVE WHEEL MOTOR, 36V COMPLETE 86270990 NUT, 10-32 HEX NYLOCK SS 86264940 CABLE TIE, 11.38" UL/CSA 86357130 BRAKE 64358540 WHEEL DRIVE WHEEL MOTOR 66132310 CARBON BRUSH SET 86372820 Chariot 3 iExtract 26 Duo...

  • Page 80: Frame

    Frame 86372820 Chariot 3 iExtract 26 Duo...
  • Page 81 SCREW 1/4-20 X 3/4 FHCS DL 86368240 NUT,5/16-18, FLGNYLOCK,SS 86361210 SCR, 3/8-16 X 0.625 SHCS 86005770 NUT 3/8-16 HEX NYLOCK 86006640 SCREW 5/16-18 X 1/2 SHCS 86270830 NUT 5/16-18 HEX NYLOCK SS 86368730 FOAM, ADH BACKED 1-SIDE, 6X1.5 X1.5 86372820 Chariot 3 iExtract 26 Duo...

  • Page 82: Platform

    Platform 86372820 Chariot 3 iExtract 26 Duo...
  • Page 83 NUT 1/4-20 HEX NYLOCK SS 86007010 SCREW 1/4-20 X 3 1/4 HHCS PLT 86327910 SCR, KA50X25, PT OHS, WN1412, PLTD 86007110 SWITCH, 25A SPST 125-250V SNAP 86361160 PLATE, SWITCH COVER 86264940 CABLE TIE, 11.38" UL/CSA 86372820 Chariot 3 iExtract 26 Duo...

  • Page 84: Platform Footbox & Rear Wheels

    Platform Footbox & Rear Wheels 86372820 Chariot 3 iExtract 26 Duo...
  • Page 85 CAP 2.75 ID X 1.0 L BLK VINYL 86335520 WHEEL, 10 X 2.5, PLSTC HUB, W/BEARINGS 86326490 SCR, 5/16+18 X 3.0 CARRIAGE, SS 86361150 PLATE, TANK SUPPORT 86224320 SPACER, .63 OD X .385ID X .64L 86008710 RING 3/4" EXT SNAP H-D 86372820 Chariot 3 iExtract 26 Duo...

  • Page 86: Solution System

    Solution System FOR WIRING HARNESS FOR WIRING HARNESS 86372820 Chariot 3 iExtract 26 Duo...
  • Page 87 86276220 SCREW, 8-32 X .375 HHMS SS 86264930 CABLE TIE, 3.5" UL/CSA 86271930 NUT HEX NYL LOC 3/8-16 86233410 CLAMP, 3/4 DIA CUSHION .406DIA 86233150 CLAMP, 3/8 HOSE (D-SLOT) 86189050 NUT WELL 1/4-20 HD 86372820 Chariot 3 iExtract 26 Duo...

  • Page 88: Solution System - Pump - Off-Aisle - For Models 10061780 & 10061790

    Solution System - Pump - Off-Aisle - For Models 10061780 & 10061790 86372820 Chariot 3 iExtract 26 Duo...
  • Page 89 BUSHING, 3/8 MPT X 1/4 FPT HEX OPEN 86010650 WASHER, #10 X 9/16 OD 86010630 WASHER 1/4 ID X 5/8 OD SS 86005810 NUT 1/4-20 HEX NYLOCK SS 86005590 NIPPLE 1/4 CLOSE 86005580 NIPPLE 1/4 FPT QD 86372820 Chariot 3 iExtract 26 Duo...

  • Page 90: Steering

    Steering 86372820 Chariot 3 iExtract 26 Duo...
  • Page 91 FLANGED BEARING, PRESS STEEL 86005630 NUT HEX NYL LOC-THIN SS 3/8-16 86001030 BEARING BALL 3/4 BORE SPHERED 66403520 CAP STEERING WHEEL, WINDSOR 64357990 STEERING WHEEL 86279130 WASHER, 5/16 X .583 X .078 SPL STL ZNPLT 86372820 Chariot 3 iExtract 26 Duo...

  • Page 92: Tank

    Tank 86372820 Chariot 3 iExtract 26 Duo...
  • Page 93 NUT, 1/4-20 ACORN SS 86010670 WASHER, 5/16 X 3/4 SS 86007970 STRAINER, 3/8 IN. NPT 60 MESH 86005620 NUT, 1/4-20 X .962 WELL 86002390 CLAMP, 1.75 WORM GEAR X .312 86002380 CLAMP, 2.25 WORM GEAR 86372820 Chariot 3 iExtract 26 Duo...

  • Page 94: Vacuum Shoe Lift

    Vacuum Shoe Lift 86372820 Chariot 3 iExtract 26 Duo...
  • Page 95 SPACER NYLON 1/4ID X 1/2 OD 86010670 WASHER, 5/16 FLAT SS 86010630 WASHER, 1/4 ID X 5/8 OD SS 86008650 PIN, COTTER RING 1/4 X .041 X .844 86006250 PIN, CLEVIS 1/4 X 1.75 STL ZNPLT 86372820 Chariot 3 iExtract 26 Duo...

  • Page 96: Vacuum Shoe Mounting

    Vacuum Shoe Mounting 86372820 Chariot 3 iExtract 26 Duo...
  • Page 97 WHEEL, 5"D X 1~ X .5~ID GRY 86228910 BUSHING, .377 X .502 X 1.25 FLG BRZ 86201510 SPACER NYLON 1/4ID X 1/2 OD 86007690 SPRING, EXT .50D X2.25L X.063W 86005630 NUT HEX NYL LOC-THIN SS 3/8-16 86372820 Chariot 3 iExtract 26 Duo...

  • Page 98: Vacuum Shoe

    Vacuum Shoe 86372820 Chariot 3 iExtract 26 Duo...
  • Page 99 SCREW, 10-32 X .75 SCHCS SS 86270990 NUT, 10-32 HEX NYLOCK SS 86270830 NUT, 5/16-18 HEX NYLOCK SS 86173330 WASHER, M5, FLAT, ISO7093, SS 86010670 WASHER, 5/16 FLAT SS 86374590 WASHER, .20 X .45 X .04, NYL, BLK 86372820 Chariot 3 iExtract 26 Duo...

  • Page 100: Vacuum

    Vacuum 86372820 Chariot 3 iExtract 26 Duo...
  • Page 101 WASHER, SPLIT LOCK, 1/4, SS 86271900 NUT, 10-24 HEXTHIN NYLOCK SS 86010650 WASHER, #10 X 9/16 OD 86378530 GASKET, VAC MOTOR COVER (3*) 86378690 RETAINING RING, VAC MOTOR (3*) * SEE SERIAL NUMBER PAGE 86372820 Chariot 3 iExtract 26 Duo...

  • Page 102: Recovery

    Recovery 86372820 Chariot 3 iExtract 26 Duo...
  • Page 103 HOSE ASM, 1.5" BLK VAC 86273830 SCREW, 1/4-20 X .5 HHCS SS NP 86264940 CABLE TIE, 11.38" UL/CSA 86010630 WASHER, 1/4 ID X 5/8 OD SS 86002380 CLAMP, 2.25" WORM GEAR 86365530 CLAMP, RACHET, 2.13D 86372820 Chariot 3 iExtract 26 Duo...

  • Page 104: Wiring - Batteries

    Wiring - Batteries 86372820 Chariot 3 iExtract 26 Duo...
  • Page 105 BLACK 86008760 CONNECTOR 175 DCA GRY W/O TERMS 86359250 TRAY, BATTERY LINER, TRIMMED 86359500 ASM, BATTERY TRAY 86272810 RING 1/2 EXT.SNAP H-D 86254990 SPRING,COMP, 63ODX3.5LX.047W 86092910 LATCH ROD, BATTERY TRAY 86360020 PLATE, BATTERY STOP 86372820 Chariot 3 iExtract 26 Duo...

  • Page 106: Wiring - Components

    Wiring - Components 86372820 Chariot 3 iExtract 26 Duo...
  • Page 107 SCREW 10-32 X 1/2 PPHMS SS NP 86372260 BRACKET, CABLE TIE 86273780 SCREW, 1/4-20 X 3/4 HHCS SS NP 86173340 WASHER, SPLIT LOCK, 1/4, SS 86010630 WASHER, 1/4 ID X 5/8 OD SS 86264920 CABLE TIE, 7” UL/CSA 86372820 Chariot 3 iExtract 26 Duo...

  • Page 108: Wiring 1

    Wiring 1 86372820 Chariot 3 iExtract 26 Duo...

  • Page 109: Wiring 2

    Wiring 1 SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86356760 HARNESS, PANEL, CS26 86366540 HARNESS, ROTARY, MAIN, CS26 86367100 LED, WATER INDICATOR 86372820 Chariot 3 iExtract 26 Duo...
  • Page 110 Wiring 2 86372820 Chariot 3 iExtract 26 Duo...
  • Page 111 86010850 WIRE, 4X20 RD CTERM X 5/16 RING 86010860 WIRE, 4X20 BK CTERM X5/16 RING HARNESS, PUMP, OFF-AISLE, 86391740 (4*) OPTION iEXTRACT26 HARNESS, RELAY/SWITCH, O-A, 86391730 (4*) OPTION iEXTRACT26 * SEE SERIAL NUMBER PAGE 86372820 Chariot 3 iExtract 26 Duo...

  • Page 112: Wiring 3

    Wiring 3 86372820 Chariot 3 iExtract 26 Duo...

  • Page 113: Wiring 4

    WATER SWITCH HORN SWITCH OFF/AISLE TOOL SWITCH MAIN ROTARY OFF/AISLE TOOL RELAY BRAKE WATER SOLENOID HOUR METER TRUECHARGE WATER LED HORN PCB 60A - U2 IDRIVE 60A - U2 X12/X13/X14/X15 DEUTSCH CONNECTOR X9/X10/X11 PACKARD CONNECTOR 86372820 Chariot 3 iExtract 26 Duo...

  • Page 114: Wiring 5

    Wiring 4 86372820 Chariot 3 iExtract 26 Duo...

  • Page 115: Wiring 6

    WATER SWITCH HORN SWITCH OFF/AISLE TOOL SWITCH MAIN ROTARY OFF/AISLE TOOL RELAY BRAKE WATER SOLENOID HOUR METER TRUECHARGE WATER LED HORN PCB 60A - U2 IDRIVE 60A - U2 X12/X13/X14/X15 DEUTSCH CONNECTOR X9/X10/X11 PACKARD CONNECTOR 86372820 Chariot 3 iExtract 26 Duo...
  • Page 116 Wiring 5 86372820 Chariot 3 iExtract 26 Duo...
  • Page 117 WATER SWITCH HORN SWITCH OFF/AISLE TOOL SWITCH MAIN ROTARY OFF/AISLE TOOL RELAY BRAKE WATER SOLENOID HOUR METER TRUECHARGE WATER LED HORN PCB 60A - U2 IDRIVE 60A - U2 X12/X13/X14/X15 DEUTSCH CONNECTOR X9/X10/X11 PACKARD CONNECTOR 86372820 Chariot 3 iExtract 26 Duo...
  • Page 118 Wiring 6 86372820 Chariot 3 iExtract 26 Duo...
  • Page 119 WATER SWITCH HORN SWITCH OFF/AISLE TOOL SWITCH MAIN ROTARY OFF/AISLE TOOL RELAY BRAKE WATER SOLENOID HOUR METER TRUECHARGE WATER LED HORN PCB 60A - U2 IDRIVE 60A - U2 X12/X13/X14/X15 DEUTSCH CONNECTOR X9/X10/X11 PACKARD CONNECTOR 86372820 Chariot 3 iExtract 26 Duo...
  • Page 120 Notes: 86372820 Chariot 3 iExtract 26 Duo...

  • Page 121: Options

    Options OPTIONS...

  • Page 122: Onboard Charger

    Onboard Charger VIEW A SCALE 2X SEE VIEW A 86372820 Chariot 3 iExtract 26 Duo...
  • Page 123 NUT, 10-32 HEX NYLOCK STL GR2 ZNPLT 86278470 STUD, #10-32 X 3/4 CLINCH 86267510 WIRE, 25" GRN/14 76010 X 76010 86371520 WIRE, 20", BLK/8, TERMINAL 86371530 WIRE, 20", RED/8, TERMINAL 86371540 WIRE, ASM, OBC INTERUPT 86372820 Chariot 3 iExtract 26 Duo...

  • Page 124: Battery Exchange - 1

    Battery Exchange - 1 DETAIL A SEE DETAIL A 86372820 Chariot 3 iExtract 26 Duo...
  • Page 125 86010670 WASHER, 5/16 X 3/4 SS 86007020 SCR, 5/16-18 X 1.25 HHCS SS 86006670 SCR, 1/4-20 X 3/4 FHCS 86004070 GRIP, POLISHER HANDLE 86001350 BUSHING, SPANNER .435 X 1.10 86244280 LABEL, BATTERY CART OPERATION 86372820 Chariot 3 iExtract 26 Duo...

  • Page 126: Battery Exchange - 2

    Battery Exchange - 2 86372820 Chariot 3 iExtract 26 Duo...
  • Page 127 BEARING FLANGED .314IDX.502OD 86228840 BEARING, FLANGED .313IDX.502OD 86226830 SPRING, EXT. 1.00 OD X 4.O L 86010670 WASHER, 5/16 X 3/4 SS 86007020 SCR, 5/16-18 X 1.25 HHCS SS 86006560 SCR, 5/16-18 X 1.00 HHCS SS 86372820 Chariot 3 iExtract 26 Duo...

  • Page 128: Battery Exchange - 3

    Battery Exchange - 3 2X EXISTING NUTS 10 (LEFT) 11 (RIGHT) 1 (LEFT) 2 (RIGHT) 86372820 Chariot 3 iExtract 26 Duo...
  • Page 129 BRKT, SPING MOUNT, LT 86360070 BRKT, SPRING MOUNT, RT 86254890 SPRING EXT, .50 D X 4.0 L 86010670 WASHER 5/16 FLAT SS 86270830 NUT, 5/16-18 HEX NYLOCK S 86273780 SCREW, 1/4-20 X .75 HHCS SS NP 86372820 Chariot 3 iExtract 26 Duo...

  • Page 130: Pump - Off-Aisle - For Models 10061670 & 10061680 (4*)

    Pump - Off-Aisle - For Models 10061670 & 10061680 (4*) 86372820 Chariot 3 iExtract 26 Duo...
  • Page 131 NOT SHOWN 86391490 LABEL, OFF-AISLE, iEXTRACT 26 NOT SHOWN HARNESS, RELAY/SWITCH, O-A, 86391730 NOT SHOWN iEXTRACT26 86391740 HARNESS, PUMP, OFF-AISLE, iEXTRACT26 NOT SHOWN 86392110 KIT, PUMP, OFF-AISLE (4*) COMPLETE * SEE SERIAL NUMBER PAGE 86372820 Chariot 3 iExtract 26 Duo...

  • Page 132: Suggested Spare Parts

    86312920 GASKET, VAC MOTOR 86353950 HOSE, SOLUTION DRAIN 86354270 HOSE, RECOVERY DRAIN 86370500 BRUSH 26” 86343860 BELT, TWIN 5MM GT2, 15W, 130T 86371770 O-RING, 3/16 DIA X 9.5 DIA FO 86370670 BASE, VACUUM SHOE 86372820 Chariot 3 iExtract 26 Duo...

  • Page 133: Serial Numbers

    Serial Numbers REF. MODEL: SERIAL # 10061670000045, 10061680000039 10061670000065, 10061680000062 10061670000096, 10061680000092 10061670000170, 10061680000149 86372820 Chariot 3 iExtract 26 Duo...

This manual is also suitable for:

Chariot 3 iextract 26 duoChariot 3 iextract 26 duo ce26Chariot 3 iextract 26 duo cec26Chariot 3 iextract 26 duo ceo26Chariot 3 iextract 26 duo ceco26

Table of Contents
