VLT® Micro Drive FC 51
Operating Guide
See the back of the terminal cover for outlines of control terminals and switches.
Do not operate switches with power on the drive.
Set parameter 6-19 Terminal 53 Mode according to Switch 4 position.
Table 5: Settings for S200 Switches 1–4
Switch 1
Switch 2
Switch 3
Switch 4
This is the default setting.
1
ON
OFF
1 2

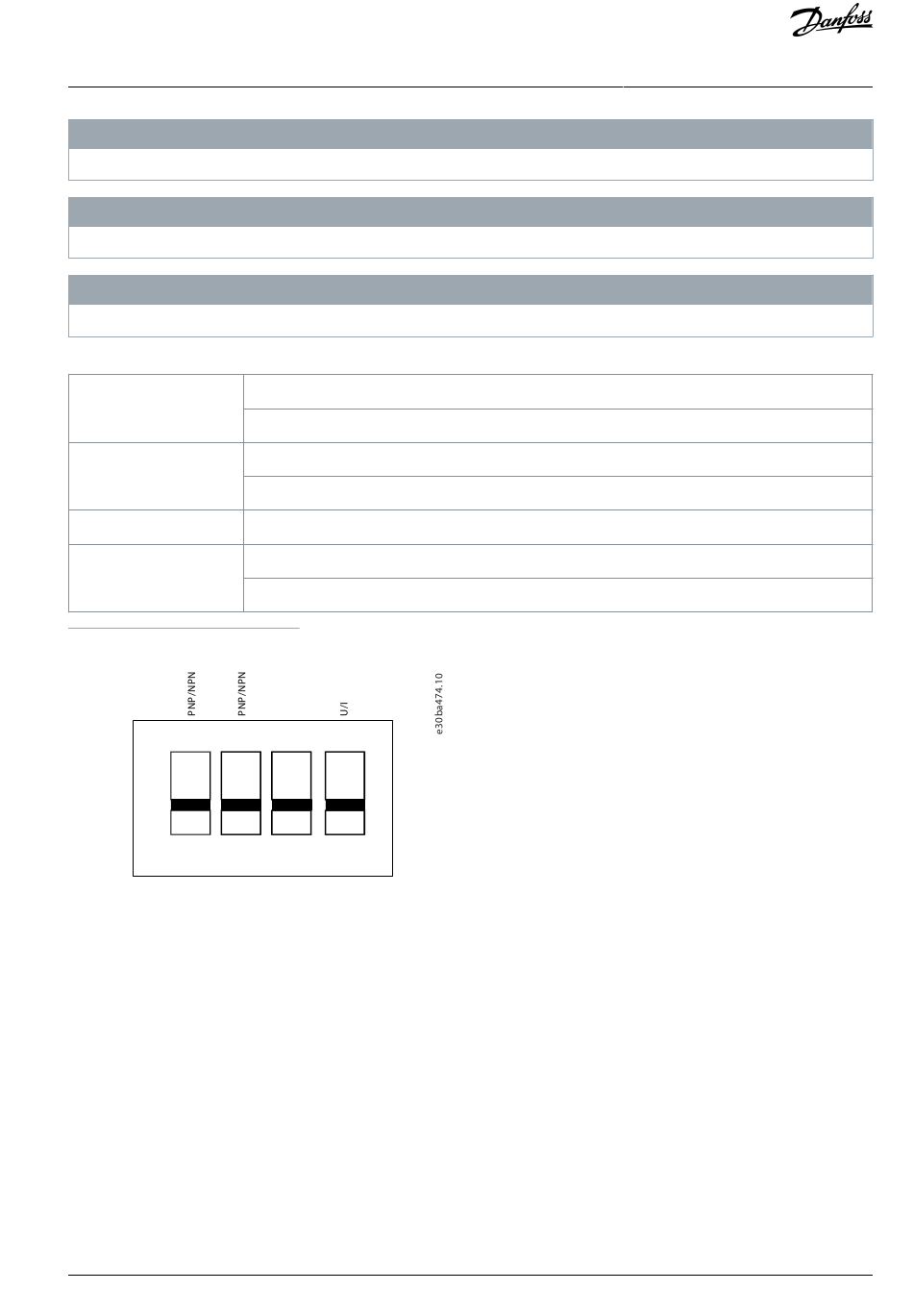

Illustration 4: S200 Switches 1–4
The following illustration shows all control terminals of the drive. Applying start (terminal 18) and an analog reference (terminal 53
or 60) make the drive run.
Danfoss A/S © 2020.09
N O T I C E
N O T I C E
N O T I C E
Off=PNP terminals 29
(1)
On=NPN terminals 29
Off=PNP terminal 18, 19, 27, and 33
On=NPN terminal 18, 19, 27, and 33
No function
Off=Terminal 53 0–10 V
(1)
On=Terminal 53 0/4-20 mA
3 4
(1)
AQ348848915086en-000101 / 130R0943 | 13
Installation
