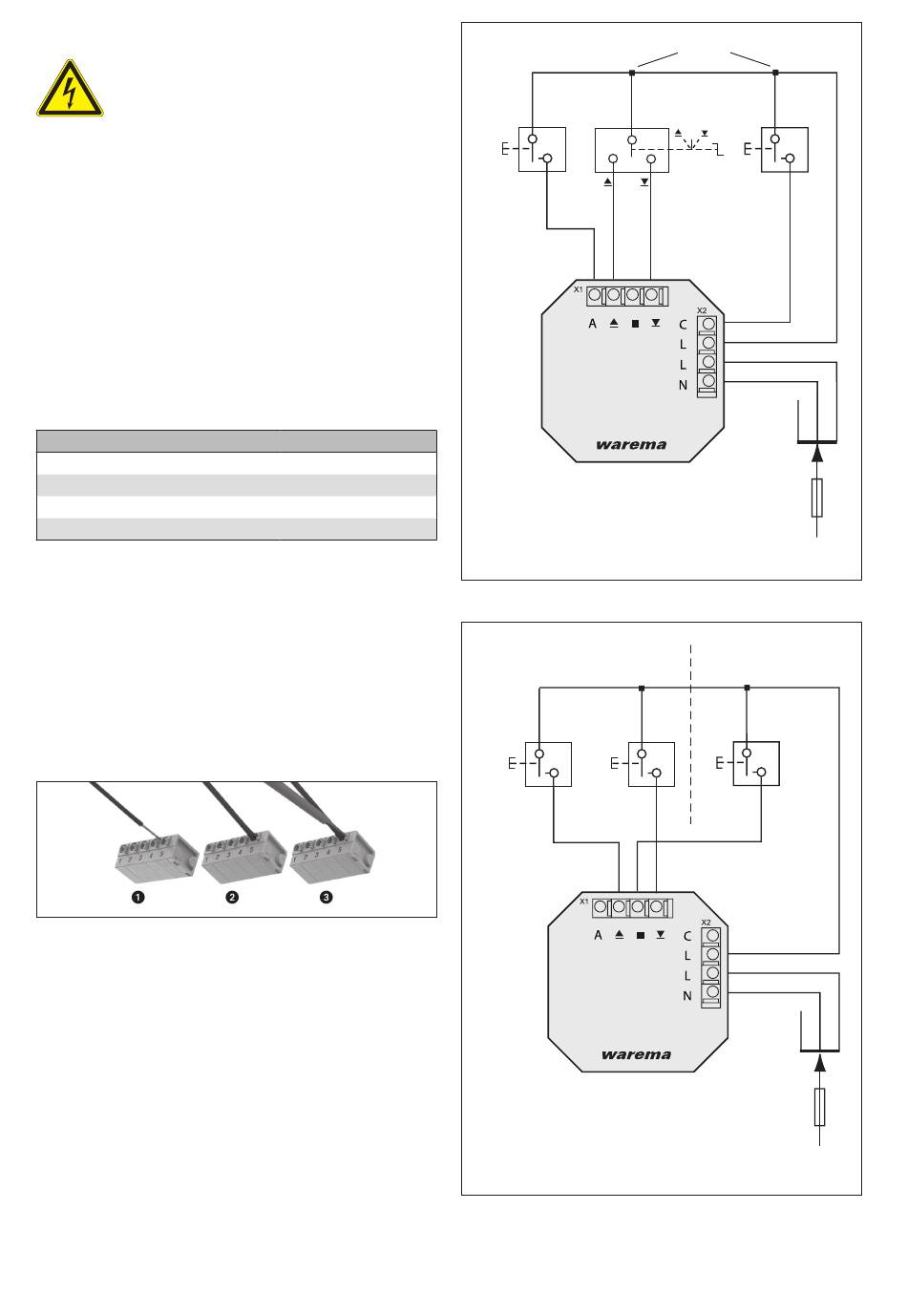

Connection
W
WARNRN
Inly connect standard push buttons and
lines designed for 230 V operation.
The line cross-section must be sized ac-
cording to the on-site fuse protection.
Sun shading drives or other power con-
sumers may not be connected in parallel to
the WMS Transmitter on the push buttons.
Do not connect switches as they block any
further operation when they are switched.
R
ITE
The control mode can be switched on and off
by pressing the UP and DOWN push buttons si-
multaneously instead of using a separate push
button. This is only possible if you use a sun-
blind push button in which the UP and DOWN
buttons are not mutually exclusive. Alternatively,
two separate push buttons can be connected.
Terminals blocks X1 and X2
Permissible line cross-section
Stripping length
Maximum line length for push button
Recommended line type
Nnformation on the electrical connection
An on-site overload current protection device (fuse) and a
disconnecting and isolating switch to switch off the entire
system must be provided.
The device meets the EMC guidelines for use in residential
and commercial areas.

Spring terminals

The WMS Transmitter is equipped with spring terminals
designed for quick and secure connection.
Fig. 2
Spring terminals
After the wire is stripped, it is pressed into the terminal 
until the insulation on the wire enters the terminal and the
conductor is securely held in the terminal  . To release
the connection, the release key is pushed in all the way
with a screw driver and the conductor is pulled out of the
terminal  .
2
We reserve the right to carry out improvements
Push button for
control mode
on/off
(optional)
0.5 to 1.5 mm
2
5 to 6 mm
25 m
NYM-J 1.5
Fig. 3
Push button for
power consumer
ON
Fig. 4
Terminal
P
0
P
P
1
2
1
Sunblind
push button
UP/DOWN
WMS Sender
Connection for control of sun shading drives
Model 1
One push button for ON and
one push button for OFF
P
P
1
1
Push button for
power consumer
OFF
WMS Sender
Connection for control of other power consumers (such
as light)
P
1
push button
for
comfort
position
(optional)
PE N L
Supply line
F
230 V AC
Model 2
One push button for switching
(ON - OFF - ON - ...)
P
1
Push button
for
power
consumer
ON / OFF
PE N L
Supply line
F
230 V AC
890621_b•en•01.09.2014
