EWFS Wall-mounted
transmitter plus
Operating and installation instructions
General information
EWFS EWFS

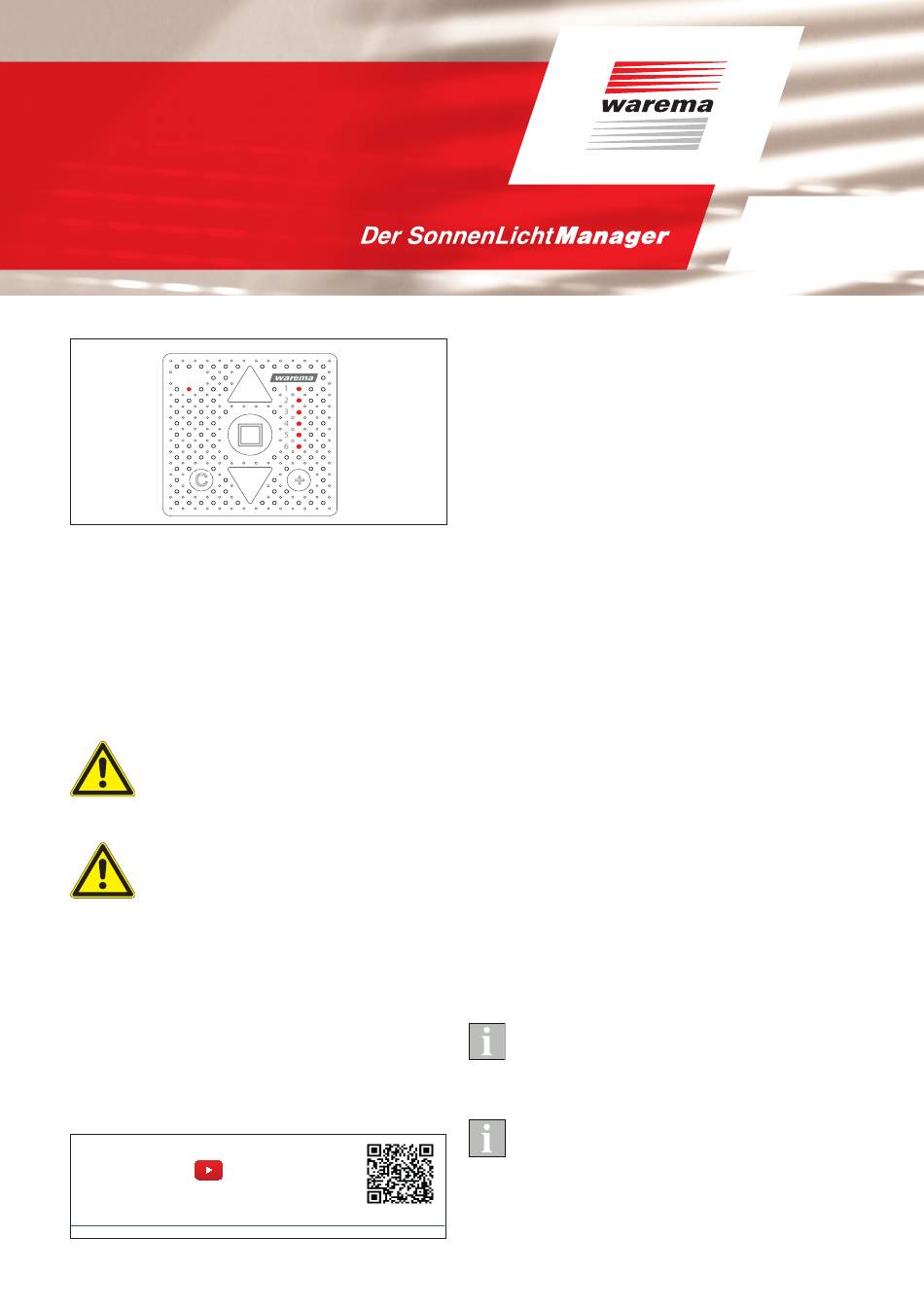

Fig. 1 EWFS Wall-mounted transmitter plus
The EWFS Wall-mounted transmitter plus allows wireless
operation of an EWFS-compatible receiver.
Intended use
The EWFS Wall-mounted transmitter plus is an electronic
device for controlling WAREMA EWFS Receivers. Manufac-
turer approval must be obtained for any form of use other
than the purpose indicated in these instructions.
Safety instructions
C AUTION
The EWFS Wall-mounted transmitter plus is
for indoor use only. It is not water-proof. Do
not leave the EWFS Wall-mounted transmitter
plus outdoors.
C AUTION
Never operate the buttons on your wall-
mounted transmitter indiscriminately if you
do not have a clear line of sight to the sun
shading system. Children must not play with
this product – Keep remote controls and
transmitters out of reach of children!
Follow the steps below in the order shown to ensure prob-
lem-free operation:
Read these instructions carefully
Learn the wall-mounted transmitter into the receivers
Check that the system is functioning correctly
Do not install the device until you have completed
these steps
Commissioning
You can find instruction videos on our
YouTube channel at:
http://www.youtube.com/user/SonnenLichtManager/videos
warema_2031265_alhb_en_v4•2022-03-01
A battery has already been placed in the battery compart-
ment at the factory. Your device comes ready for operation.
Installation
Do not install the device until you have first performed
the learning-in procedure and carefully checked all of the
functions. Due to both legal regulations for radio systems
and structural factors, the operating range of radio remote
controls is limited. Therefore, adequate radio reception
must be kept in mind during planning. This is especially
important where the radio signal must pass through walls
and ceilings. The device should not be installed in the
immediate vicinity of metallic surfaces (steel beams, fire
door). Strong local transmitter systems (e.g. baby monitors
or neighbouring transmitters) may interfere with reception.
Therefore, check to ensure that the control unit func-
tions properly before the final installation:
Temporarily hold the wall-mounted transmitter in the
desired mounting position and check whether the
desired move commands can be performed without
any problems. If this is not the case, select a different
installation location and test the commands again.
If the device still cannot be operated without any prob-
lems, switch off any potential sources of interference,
such as a baby monitor.
Once the system functions flawlessly, you can install the
mounting plate:
The EWFS Wall-mounted transmitter plus consists of a
mounting frame and an operating element (wall-mounted
transmitter).
Attach the mounting frame to the wall using the coun-
tersunk screws and dowels included.
Position the central frame/plate of the switch program
you require.
Clip on the wall-mounted transmitter.
Clipping the wall-mounted transmitter and central

frame/plate into the available snap-in latches will hold
them in place on the mounting frame.
Only use countersunk head screws so that the
screws are flush with the mounting frame and the
EWFS Wall-mounted transmitter plus can be secu-
rely clipped on.
When planning the installation location, be sure
to allow enough space for the central frame/plate
that you require for your particular installation.
The central frame/plate can be ordered as an op-
tional accessory if needed.
We reserve the right to make technical modifications
Valid from
1 march 2022
Keep for future use.
