Operating and installation instructions
WAREMA Mobile System
WMS Wall-mounted transmitter plus
Keep for future use!
Valid from 01 October 2019
General information

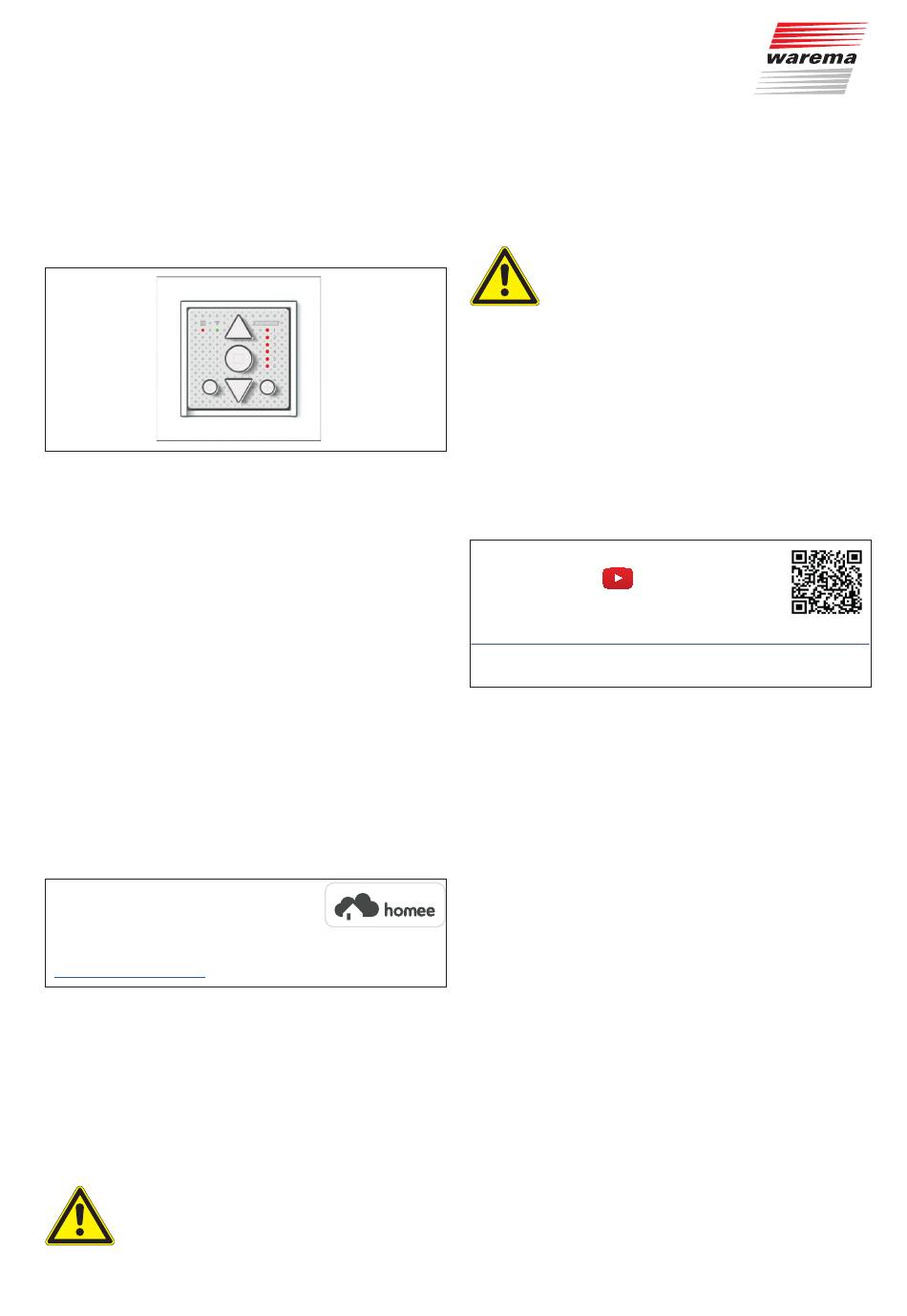

Fig. 1 WMS Wall-mounted transmitter plus
The WMS Wall-mounted transmitter plus is used for the
remote control of WMS receivers. The receivers send a
confirmation of the received commands, and the WMS
Wall-mounted transmitter plus indicates that it received the
confirmation.
The WMS Wall-mounted transmitter plus supports five
different product types (awning, roller shutter, external
venetian blind, window, light).
Only one receiver or one group with multiple receivers of
the same product type can be actuated at any one time
per channel (6 channels).
The comfort control functions can be switched on and
off via the WMS Wall-mounted transmitter plus. A WMS
Hand-held transmitter, a WMS Central transmitter or the
WMS studio pro software is needed for commissioning a
weather station.
If a control function is preventing operation of the product
(e.g. a wind alarm), this is also displayed on the WMS
Wall-mounted transmitter plus.
The transmitter is compatible with:
Additional information can be found at:
http://www.warema.de
Tntended use
The WMS Wall-mounted transmitter plus is an electronic
device developed to control WMS receivers. Any use other
than the purpose described in these instructions requires
approval from the manufacturer.
Safety instructions
C CAUTIO
The WMS Wall-mounted transmitter plus is
for indoor use only. It is not water-proof. Do
not leave the WMS Wall-mounted transmitter
plus outdoors.
2018151_d•en•2019-10-01
Follow the steps below in the order shown to ensure
problem-free operation:
Please read these instructions carefully.
Learn the WMS Wall-mounted transmitter plus into the
receivers.
Check that the unit is functioning correctly.
Commissioning
You can find instruction videos on our
YouTube channel
http://www.youtube.com/user/SonnenLichtManager/videos
We recommend commissioning using the
WMS studio pro PC software.
The supplied battery is already inserted and the device
is ready to operate.
To spare the button cell of the WMS Wall-
O IUTCCE
mounted transmitter basic during learning, the
waking time of the WMS Wall-mounted trans-
mitter basic was reduced to 1 minute. If your
device stops responding, simply wake it up by
pressing the Stop button, for example.
Tnstallation
works with
The WMS Wall-mounted transmitter plus consists of a
mounting frame and control.
Attach the mounting frame to the wall using the coun-
tersunk head screws and screw anchors included.
Position the central frame/plate of the switch program
you require.
Clip on the WMS Wall-mounted transmitter plus.
Clipping the WMS Wall-mounted transmitter plus and

central frame/plate into the available snap-in latches
will hold them in place on the mounting frame.
O IUTCCE Only use countersunk head screws so that the
screws are flush with the mounting frame and
the WMS Wall-mounted transmitter plus can be
securely clipped on.
O IUTCCE When planning the installation location, be sure
to allow enough space for the central frame/
plate that you require for your particular instal-
lation.
C CAUTIO
Never activate buttons on your WMS Wall-
mounted transmitter plus arbitrarily without a
line of sight to the sun shading system. Chil-
dren must not play with this product – keep
remote controls and transmitters out of the
reach of children!
at:
We reserve the right to make technical changes
1
