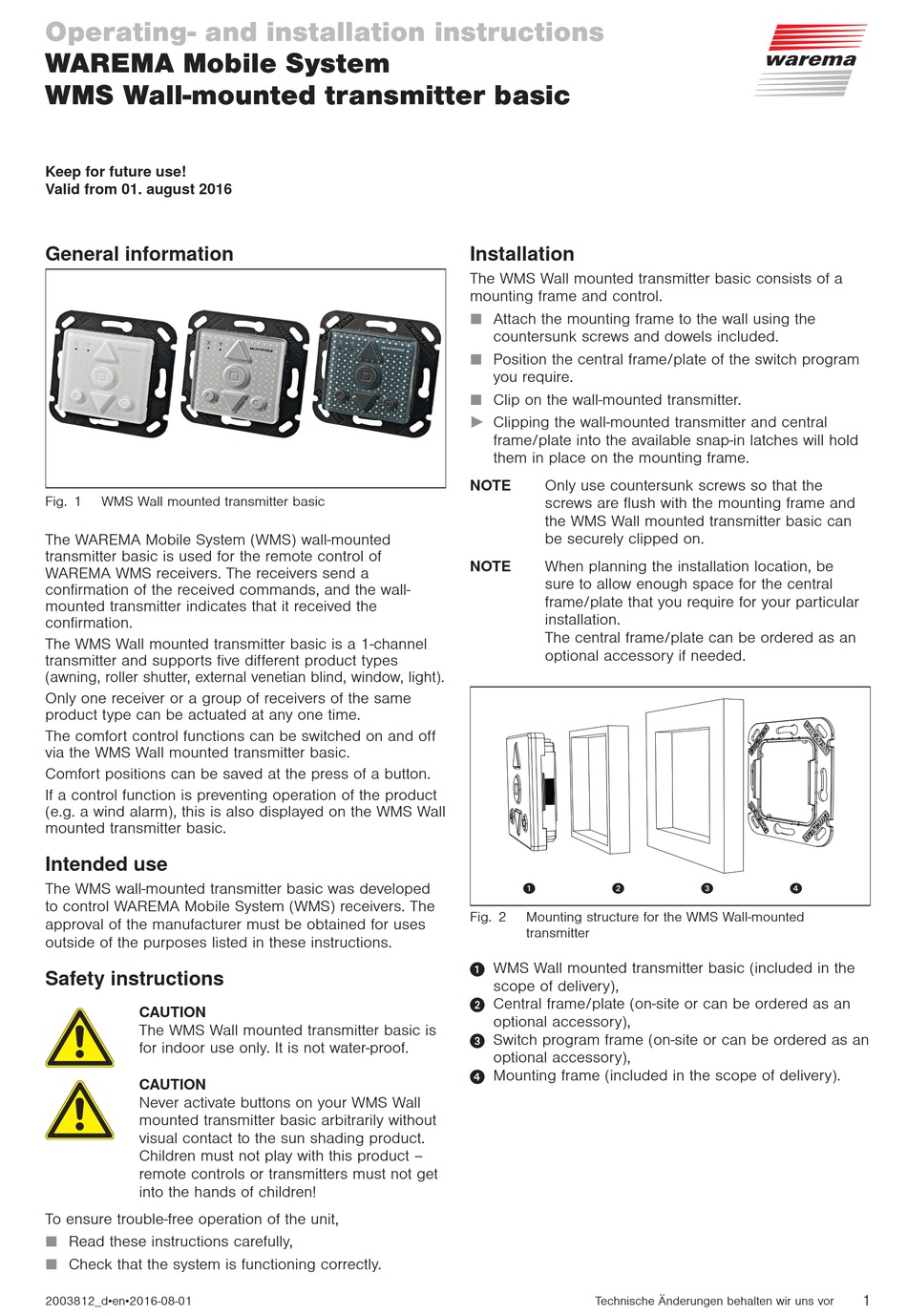

Operating- and installation instructions
WAREMA Mobile System
WMS Wall-mounted transmitter basic
Keep for future use!
Valid from 01. august 2016
General information
Fig. 1
WMS Wall mounted transmitter basic
The WAREMA Mobile System (WMS) wall-mounted
transmitter basic is used for the remote control of
WAREMA WMS receivers. The receivers send a
confirmation of the received commands, and the wall-
mounted transmitter indicates that it received the
confirmation.
The WMS Wall mounted transmitter basic is a 1-channel
transmitter and supports five different product types
(awning, roller shutter, external venetian blind, window, light).
Only one receiver or a group of receivers of the same
product type can be actuated at any one time.
The comfort control functions can be switched on and off
via the WMS Wall mounted transmitter basic.
Comfort positions can be saved at the press of a button.
If a control function is preventing operation of the product
(e.g. a wind alarm), this is also displayed on the WMS Wall
mounted transmitter basic.
Intended use
The WMS wall-mounted transmitter basic was developed
to control WAREMA Mobile System (WMS) receivers. The
approval of the manufacturer must be obtained for uses
outside of the purposes listed in these instructions.
Safety instructions
C
CAOINN
The WMS Wall mounted transmitter basic is
for indoor use only. It is not water-proof.
C
CAOINN
Never activate buttons on your WMS Wall
mounted transmitter basic arbitrarily without
visual contact to the sun shading product.
Children must not play with this product –
remote controls or transmitters must not get
into the hands of children!
To ensure trouble-free operation of the unit,
Read these instructions carefully,
Check that the system is functioning correctly.
2003812_d•en•2016-08-01
Installation
The WMS Wall mounted transmitter basic consists of a
mounting frame and control.
Attach the mounting frame to the wall using the
countersunk screws and dowels included.
Position the central frame/plate of the switch program
you require.
Clip on the wall-mounted transmitter.
Clipping the wall-mounted transmitter and central

frame/plate into the available snap-in latches will hold
them in place on the mounting frame.
N
NOTE
Only use countersunk screws so that the
screws are flush with the mounting frame and
the WMS Wall mounted transmitter basic can
be securely clipped on.
When planning the installation location, be
N
NOTE
sure to allow enough space for the central
frame/plate that you require for your particular
installation.
The central frame/plate can be ordered as an
optional accessory if needed.
Fig. 2
Mounting structure for the WMS Wall-mounted
transmitter
 W MS Wall mounted transmitter basic (included in the
scope of delivery),
 C entral frame/plate (on-site or can be ordered as an
optional accessory),
 S witch program frame (on-site or can be ordered as an
optional accessory),
 Mounting frame (included in the scope of delivery).
Technische Änderungen behalten wir uns vor
1
