- Page 1 READ AND SAVE THESE INSTRUCTIONS Installation Manual Condair HumiLife – The economic solution for forced air heating Condair RE Humidification and Evaporative Cooling...
- Page 2 Liability Notice Condair Ltd. does not accept any liability due to incorrect installation, maintenance or operation of the equipment, or due to the use of parts/components/equipment that are not authorized by Condair Ltd. Copyright Notice Copyright 2020, Condair Ltd., All rights reserved.
-
Page 3: Table Of Contents
Tapping into an Existing Water Line 5.5.6 Connecting the Drain Line 5.5.7 Installing the Electrical Connections 5.5.7.1 Installing External Electrical Connections Connecting to the Condair HumiLife App Downloading the Condair HumiLife App Connecting to the Condair HumiLife App Condair RE Contents | 3... - Page 4 Page intentionally left blank...
-
Page 5: Introduction
Thank you for purchasing the Condair HumiLife RE. The Condair HumiLife RE incorporates the latest technical advances and meets recognized safety standards. Improper use of the Condair HumiLife RE may result in danger to the user or third parties, and/or damage to property. -
Page 6: Receiving And Storage
Storage, Packaging, and Transportation Storage Store the Condair HumiLife RE in its original packaging inside a protected area that meets the following requirements until it is installed, or if it needs to be stored for an extended period of time: Room temperature: 41 to 104 °F (5 to 40 °C) -
Page 7: For Your Safety
Requirements" on page 14 for details. Any other type of application, without the express written consent of Condair, is considered to be NOT conforming to its intended purpose, and may lead to dangerous operation and will void the warranty. In order to operate the equipment in the intended manner all information contained in this manual, in particular the safety instructions, must be observed closely. - Page 8 Preventing Unsafe Operation All personnel working with the Condair HumiLife RE must immediately report to the customer any alterations or changes to the unit that may affect safety, and secure the unit against accidental power-up. If it is suspected that the unit cannot be operated safely for any of the reasons listed below, shut it down immediately.
-
Page 9: Product Description

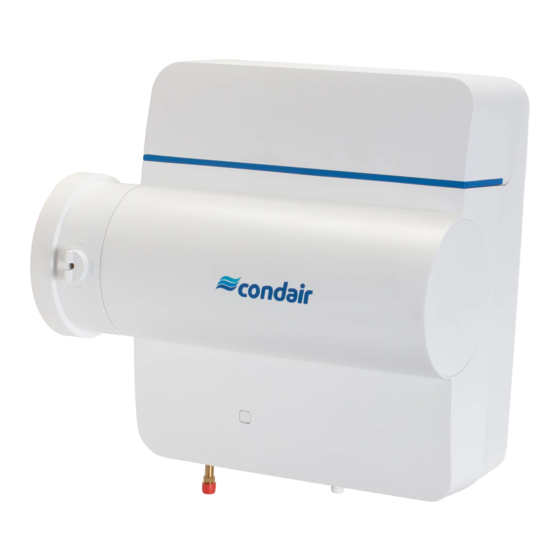

Product Description General Description The Condair HumiLife RE bypass humidifier uses the pressure difference between the supply air from your furnace and the return air into your home. This pressure difference forces air through the humidifier thereby increasing the humidity of the air leaving the unit. This allows the humidifier to consume very little energy to improve the comfort of your home. -
Page 10: Functional Description
Functional Description The Condair HumiLife RE is a bypass humidifier that attaches to the duct of the furnace ventilation system. It may be installed on either the supply duct or on the return duct. A small opening is created in the duct where some of the furnace air is directed through the Condair HumiLife RE. - Page 11 When humidity reaches the setpoint, the solenoid valve turns off, shutting off the water supply. This process repeats as needed to maintain the humidity around the setpoint. Figure 3 - Working principle of the humidifier Condair RE Product Description | 11...
-
Page 12: Product Specifications
252 mm 9.45 in 240 mm Ø 5.98 in 152 mm 11.91 in 15.35 in 303 mm 390 mm 7.68 in 195 mm 1.61 in 9.41 in 41 mm 239 mm Figure 4 - Dimensions Product Specifications | 12 Condair RE... -
Page 13: Installation And Planning
Observe and comply with all local and national codes dealing with water and electrical installations. Condair does not accept any liability for installation of humidification or dehumidification equipment by unqualified personnel, or the use of equipment and parts that are not authorized by Condair. -
Page 14: Site Requirements
Prepare the Condair HumiLife RE for installation by ensuring the following site requirements are satisfied. Report any discrepancies to your Condair representative. Ensure that the installation of the Condair HumiLife RE is compliant with all applicable local regulations and codes. -
Page 15: Power Supply Requirements
Observe all safety precautions and comply with local installation codes. Refer to "For Your Safety" on page 7. 5.5.2 Mounting the Condair HumiLife RE Figure 6 - Mounting location. The humidifier may also be placed on the return air duct. 9.45 in 240 mm ENSURE ARROW UP Ø... - Page 16 Secure the support hooks on the humidifier to the bottom lip of the rectangular hole. c. Push the top of the humidifier back against the duct and fasten the humidifier to the duct by using two self-drilling sheet metal screws (provided). d. Reinstall the top cover. 16 | Installation and Planning Condair RE...
-
Page 17: Installing The Bypass Duct
3. Depending on the season, switch the damper pad on the humidifier. This must be done manually every season. SUMMER - damper closes and air does not pass through the humidifier. WINTER - damper opens and air passes through the humidifier. Condair RE Installation and Planning | 17... -
Page 18: Connecting The Water Supply
5. Tighten the brass compression nut on the hose. 6. Turn the saddle valve counter-clockwise to allow water to enter the new line. 7. Check for leaks. Figure 10 - Water Supply Connection 18 | Installation and Planning Condair RE... -
Page 19: Tapping Into An Existing Water Line
Place the plastic sleeve over one end of the plastic water line. c. Place the brass tubing reinforcement into the plastic water line. Condair RE Installation and Planning | 19... -
Page 20: Connecting The Drain Line
2. Route the drain hose to a suitable drain. The hose must have a continuous downward slope (to prevent standing water) and have no kinks. Suitable drains include: Floor drain Sink Sewer 3. Secure the hose along its length to prevent sagging. Figure 12 - Drain Connection 20 | Installation and Planning Condair RE... -
Page 21: Installing The Electrical Connections
Make sure the cables are secured, and do not rub on any components or become a tripping hazard. Observe national and local codes for maximum cable length and required wire sizes for cables. Condair RE Installation and Planning | 21... -
Page 22: 5.5.7.1 Installing External Electrical Connections
3. After connecting sensors and power wires, close the humidifier and plug in the 24 VDC power supply. Power Supply Connection The power connection inside the humidifier goes to the power terminal of the driver board (24 VDC). The power supply is plugged into a 110-120 V wall socket. 22 | Installation and Planning Condair RE... - Page 23 0-10 VDC modulating (external control signal, or external RH signal) 2-10 VDC modulating (external control signal, or external RH signal) 0-20 mA modulating (external control signal, or external RH signal) 4-20 mA modulating (external control signal, or external RH signal) Condair RE Installation and Planning | 23...
-
Page 24: Connecting To The Condair Humilife App
Connecting to the Condair HumiLife App Once the humidifier is mounted, and water, drain, and wiring connections have been established, you can turn on the unit and control it with the Condair HumiLife app on your mobile device. Downloading the Condair HumiLife App Use your phone's camera or QR scanner to go to Google Play (Android) or the App Store (iOS). - Page 25 Consult the dealer or an experienced radio/TV technician for help. Warranty Condair Inc. and/or Condair Ltd.(hereinafter collectively referred to as THE COMPANY), warrant for a period of five years from the date of purchase by the customer, that THE COMPANY’s manufactured and assembled products, not otherwise expressly warranted, are free from defects in material and workmanship.
- Page 26 CANADA 2740 Fenton Road Ottawa, ON, K1T 3T7 Tel: 1.866.667.8321 Fax: 613.822.7964 na.humilife@condair.com www.condair.com www.condairhumilife.com...
