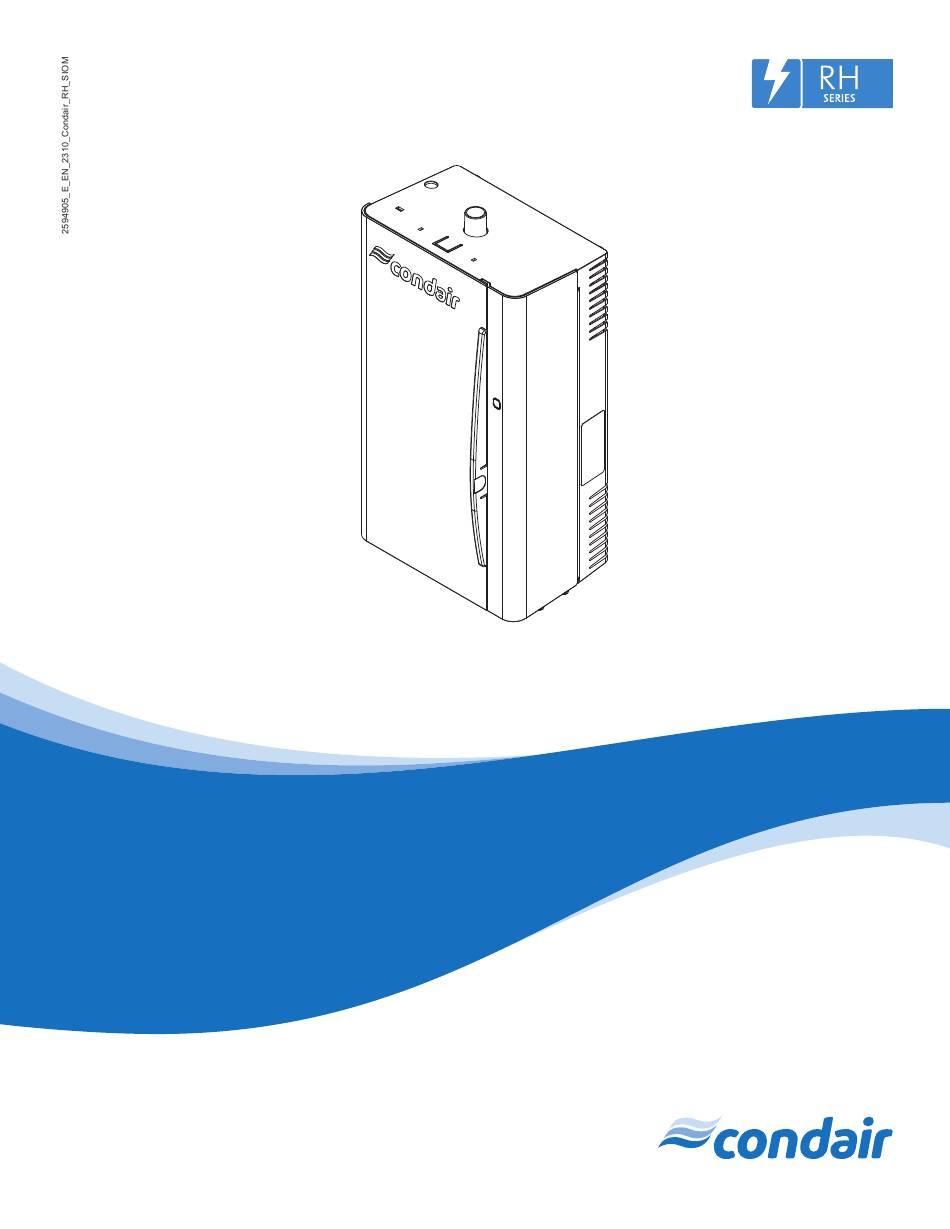

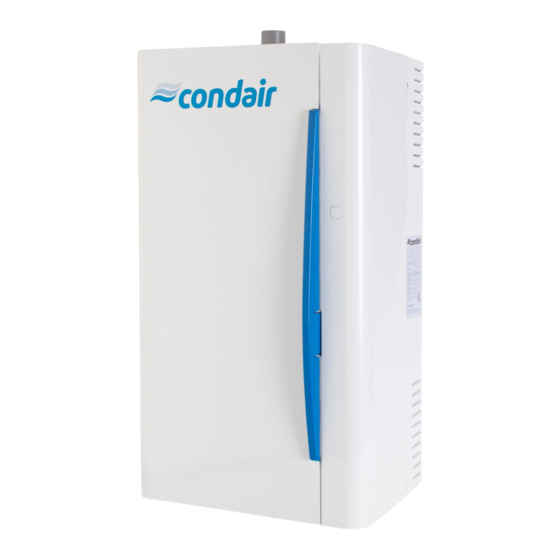

- Page 1 QUICK INSTALL GUIDE FOR PROFESSIONALS Condair HumiLife Whole-home Steam Humidifier Condair RH Humidification and Evaporative Cooling...
-
Page 2: Cautions And Warnings
Condair does not accept any liability for installations of humidity equipment installed by unqualified personnel, Condair HumiLife app. Find the app in the App Store® (iPhone) or the use of parts, components, or equipment that are or Google Play Store (Android). -
Page 3: Product Overview
Product Overview Steam distributor Steam hose Drain valve Power button & LED Steam cylinder Control board Drain outlet Water inlet 2594905_E_EN_2310_Condair_RH_SIOM... - Page 4 Installation Overview (Furnace) 1 Steam distributor 4 Relative humidity (RH) duct sensor * 7 High limit sensor (recommended) 2 Water shut off valve (not supplied) 5 Electrical disconnect switch (not supplied) 8 Fan enable/activation 3 On/Off wall humidistat * 6 Drain (not supplied) * only an on/off humidistat (not supplied) OR RH sensor (supplied) should be installed.
- Page 5 Installation Overview (HRV) 1 Steam distributor 3 Relative humidity (RH) duct sensor * 5 Electrical disconnect switch (not supplied) 2 Water shut off valve (not supplied) 4 On/Off wall humidistat * 6 Drain (not supplied) * only an on/off humidistat (not supplied) OR RH sensor (supplied) should be installed. 2594905_E_EN_2310_Condair_RH_SIOM...
-
Page 6: Location And Clearances
Note: install condensate traps at low points if the steam line has any down-slope. • Steam line material: Condair steam hose (supplied), or properly insulated stainless steel or copper, with max. surface temperature at 140 ° F (60 °C). •... - Page 7 Installing the Steam Distributor Horizontal Duct 1 / 2 2 / 3 Ø 1 ( Ø ≥ 8 Ø 1 ( Ø ( 2 0 Create a 1.18 in (30 mm) hole in the duct. Install distributor on the supply Place a gasket over the steam distributor and duct, after the cooling coil, and before any bends or obstructions.
- Page 8 Mounting Your Humidifier Open the door to the humidifier. Remove the steam cylinder On the wall stud (2x4 or equivalent) or duct, mark the location if it is installed. for the key hole A (on the back of the humidifier). Insert a Tip: For installations directly on the duct, place the mounting screw at A.
- Page 9 Installing the Steam Line 1 in θ>15˚ (2.5 cm) θ>2˚ 6 in (15 cm) 6 in (15 cm) 12 in (30 cm) Remote Mounted Installation with Steam Distributor (horizontal duct shown) 1 Insulation (recommended) 2 Brackets, support (supplied by others) 3 T-connector, condensate trap (supplied by others) Ø...
-
Page 10: Water Supply And Drain Connections
Installed according to national and local plumbing code. Drain Requirements The Condair HumiLife RH produces hot water during operation. Upon normal drainage, the drain water is automa- tically cooled to 140 °F (60 °C). IMPORTANT! Drain water may reach high temperatures 212 °F (100 °C) in cases where the supply water is not cold, or obstructed. - Page 11 Installing the Electrical Connection and Controls Model Voltage Power Current Phase Max Ext Fuse A (MCA) Frequency A (MOCP) 110-120 Condair Phase 1 12.0 RH-NAP, 22 50-60 Hz 220-240 Power supply ** Controls/Sensors ** Humidity sensor * activation Electrical disconnect switch for other control devices, refer to installation manual.
-
Page 12: Electrical Wiring Diagram
Electrical – Wiring Diagram POWER Black/Noir SUPPLY / Red/Rouge Green-Yellow/Vert-Jaune Source Blue/Bleu d'alimentation Brown/Brun principale WIFI Switch MODULE Black/Noir Red/Rouge Wifi LEDs Cyl Spent Fault P1P2 Black/Noir DRAIN/Vidange Blue/Bleu GND/Terre Fill Valve / Red/Rouge 24VDC INLET/Remplissage Vanne de Gray/Gris remplissage GND/Terre Orange/Orange MAX LVL... - Page 13 Commissioning with App in Professional Mode (wthout WIFI) The app can be downloaded from either the "Google Play Store" or the "Apple App Store". The app can be found by searching "Condair HumiLife" or by using the following QR codes: 2594905_E_EN_2310_Condair_RH_SIOM...
- Page 14 WIFI status LED Steam cylinder status LED Warning/Fault LED Call up the WLAN settings in the smartphone's device settings Search for the WLAN Condair _"serial number". "serial number" corresponds to a 7-digit number. On/Off switch Operating status LED WIFI status LED...
- Page 15 On/Off switch Operating status LED WIFI status LED Steam cylinder status LED Warning/Fault LED On/Off switch Operating status LED WIFI status LED Steam cylinder status LED Warning/Fault LED 2594905_E_EN_2310_Condair_RH_SIOM...
- Page 16 Reset cylinder hours Commissioning with App in Professional Mode (With WIFI) • Download the Condair HumiLife app from the App Store (iPhone) or Google Play Store (Android). • Open the app and allow it to load. Press <Add Device>. •...
- Page 17 Check/replace inlet valve. External safety loop open. The Condair RH is stopped. The Condair RH automatically returns to normal operation as soon as the external safety loop is closed, there is no system error and the unit is switched on again via blinks the HumiLife app.
-
Page 18: Errors And Remedies
Fuse of the heating circuit on the driver board Check/replace fuse. is defective Driver board defective. Replace driver board. End of life of the steam cylinder reached. The steam cylinder must be replaced. The Condair RH is stopped. lights red lights red Invalid cylinder installed. - Page 19 All water supply and drain line connections must be installed in accordance with local plumbing codes by a licensed plumber. Condair does not accept any liability for installations of humidity equipment installed by unqualified personnel or the use of parts/components/equipment that are not authorized or approved by Condair.
-
Page 20: Warranty
Warranty Condair Inc. and/or Condair Ltd.(hereinafter collectively referred to as THE COMPANY), warrant for a period of five years from the date of purchase by the customer, that THE COMPANY’s manufactured and assembled products, not otherwise expressly warranted, are free from defects in material and workmanship. No warranty is made against corrosion, deterioration, or suitability of substituted materials used as a result of compliance with government regulations.
