Condair HumiLife RH Series Quick Start Manual
Humidification and evaporative cooling
Hide thumbs
Also See for HumiLife RH Series:
- Operation manual (32 pages) ,
- Installation manual (22 pages) ,
- Quick install manual (21 pages)
Subscribe to Our Youtube Channel
Related Manuals for Condair HumiLife RH Series
Summary of Contents for Condair HumiLife RH Series

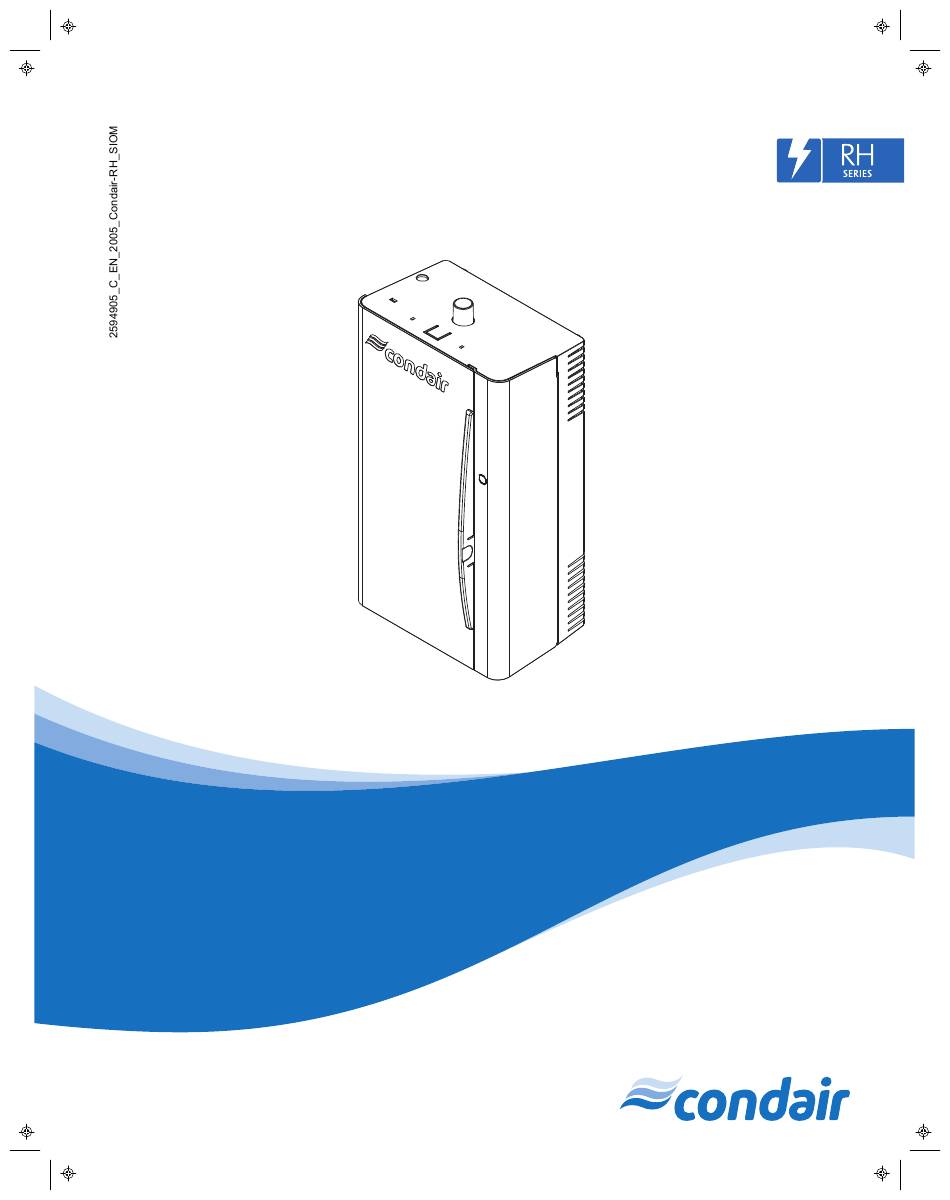

- Page 1 READ AND SAVE THESE INSTRUCTIONS Quick Start Guide Condair HumiLife – The proven steam solution Condair RH Humidification and Evaporative Cooling...
-
Page 2: Cautions And Warnings
Condair does not accept any liability for installations of humidity What you'll need equipment installed by unqualified personnel, or the use of parts, components, or equipment that are not authorized or approved by Condair HumiLife app. -
Page 3: Product Overview
Product Overview Steam distributor Steam hose Drain valve Power button & LEDs Steam cylinder Control board Drain outlet Water inlet 2594905_C_EN_2005_Condair-RH_SIOM... -
Page 4: Installation Overview
Installation Overview Steam distributor Water shut-off valve Humidity sensor* Fan enable/ activation Electrical disconnect switch or breaker Drain Use a humidity sensor OR an On/Off humidistat. Installing a high-limit sensor or controller is optional (but recommended). See installation manual for more information. 2594905_C_EN_2005_Condair-RH_SIOM... -
Page 5: Location And Clearances
Slope: 15° min. (up-slope), 2° max. (down-slope). Note: install condensate traps at low points if the steam line has any down-slope. Steam line material: Condair steam hose (supplied), or properly insulated stainless steel or copper, with max. surface temperature at 140 ° F (60 °C). - Page 6 Installing the Steam Distributor Horizontal Duct 1 / 2 2 / 3 Ø 1 . 2 ≥ 8 Ø 1 . 2 Place a gasket over the steam distributor and Create a 1.18 in (30 mm) hole in the duct. Install distributor on insert the distributor into the duct.
- Page 7 Mounting Your Humidifier Open the door to the humidifier. Remove the steam cylinder On the wall stud (2x4 or equivalent) or duct, mark the if it is installed. location for the key hole A (on the back of the humidifier). Insert a screw at A.
- Page 8 Installing the Steam Line Ø Ø Ø Ø Connect the steam hose to the humidifier and route it to the steam distributor, outer diameter 1 in (25 mm). Secure with clamps. *Do NOT exceed max recommended steam line length of 15 ft (4.5 m). *Do NOT over tighten hose clamps 12 in-lb (1.36 Nm) at steam outlet.
- Page 9 Installing the Electrical Connection and Controls Max Ext Voltage Power Current Phase Model Fuse Freq. A (MCA) A (MOCP) Condair Phase 110-120 RH - 12.0 NAP, 50/60 Power Supply** 220-240 Controls/Sensors** Humidity sensor* activation Electrical Disconnect Switch 208 VAC 120 VAC...
- Page 10 Use your phone's camera or QR scanner to go to Google Play (Android) or the App Store (iOS). Google Play (Android) App Store (iOS) Connecting to the Condair HumiLife App Download the Condair HumiLife app from Turn on the humidifier by pressing the power button for 2 seconds.
- Page 11 Disclaimer This Quick Start Guide (the “QSG”) provides basic product and installation overview of the Condair Humilife Humidifier (the “Humilife Humidifier”) and is for general information purposes only. The general installation guidelines contained herein do not purport to cover all details of the Humilife Humidifier nor do they provide for every contingency met in connection with installation.
-
Page 12: Warranty
Warranty Condair Inc. and/or Condair Ltd.(hereinafter collectively referred to as THE COMPANY), warrant for a period of five years from the date of purchase by the customer, that THE COMPANY’s manufactured and assembled products, not otherwise expressly warranted, are free from defects in material and workmanship.
