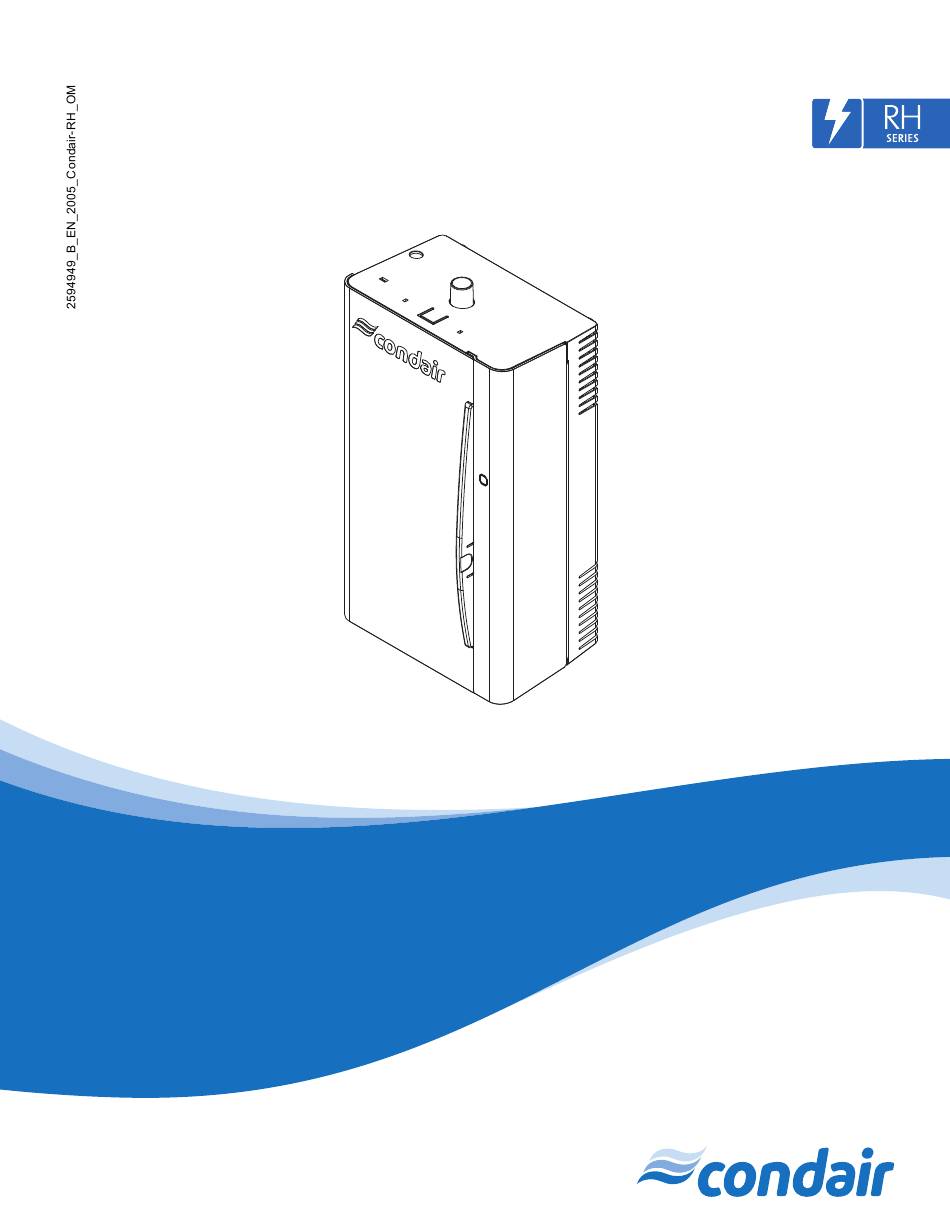

- Page 1 READ AND SAVE THESE INSTRUCTIONS Operation Manual Condair HumiLife – The proven steam solution Condair RH Humidification and Evaporative Cooling...
-
Page 2: Cautions And Warnings
Condair does not accept any liability for installations of humidity equipment installed by unqualified personnel, or the use of parts, components, or equipment that are not authorized or approved by Condair. -
Page 3: Table Of Contents
Sequence of Operation Operation Starting Up Shutting Down Draining the Humidifier Connecting to Wireless Network Connecting to Condair HumiLife User Interface Maintenance Replacing the Cylinder Removing the Plumbing Cover Cleaning the Drain Valve and GFCI Plate Cleaning the Fill Valve... -
Page 4: Receiving And Storage
Storage, Packaging, and Transportation Storage Store the Condair HumiLife RH in its original packaging inside a protected area that meets the following requirements until it is installed, or if it needs to be stored for an extended period of time: Room temperature: 41 to 104 °F (5 to 40 °C) -
Page 5: Product Overview
Product Overview Figure 1 - Condair RH Humidifier Components 1. Plumbing door 8. Steam receptacle 15. Water supply hose 2. Gasket, steam distributor 9. Gasket, steam cylinder 16. Overflow hose 3. Steam distributor 10. Driver board 17. Drain hose 4. Electrical door 11. -
Page 6: Description
Description The Condair HumiLife RH is a residential steam humidifier designed by Condair. It is designed to provide steady, clean humidification for the home, and is designed to connect to a supply air duct. The humidifier may be mounted directly onto the duct, or remotely with connected steam hoses and distributor. -
Page 7: Specifications
Model Fuse Freq. A (MCA) A (MOCP) gpd / kg/h / lb/h 11 / 1.8 / 3.9 110-120 Condair RH - Phase 1, 19 / 3.0 / 6.7 12.0 NAP, 22 50/60 Hz 22 / 3.6 / 7.8 220-240 Dimensions Ø... -
Page 8: Sequence Of Operation
Over time minerals in the water will form scale on the cylinder electrodes. The humidifier will automatically fill to a higher water level to maintain full capacity during the life of the cylinder. Eventually Sequence of Operation | 8 Condair RH 2594949_B_EN_2005_Condair-RH_OM... - Page 9 Controls After setting the desired relative humidity (RH) setpoint through the Condair HumiLife app, the RH sensor (supplied) determines if the space requires more humidity. The humidifier receives a humidity signal from the sensor, and if the sensed humidity is lower than the desired setpoint (desired relative humidity), the humidifier will start producing steam.
-
Page 10: Operation
When the external humidistat generates a demand for humidity and the security loop is closed, the power relay on the control board will engage, and the water fill valve will activate (after a delay). The cylinder will fill with water. Operation | 10 Condair RH 2594949_B_EN_2005_Condair-RH_OM... -
Page 11: Shutting Down
Connecting to Condair HumiLife Once the humidifier is mounted, and steam, water, drain, and wiring connections have been established, you can turn on the unit and control it with the Condair HumiLife app on your mobile device. Downloading Condair HumiLife Use your phone's camera or QR scanner to go to Google Play (Android) or the App Store (iOS). - Page 12 2. Turn on your humidifier (press and hold the power button for 2 seconds). 3. Open the Condair HumiLife app. You enter a screen allowing you to choose a humidifier to connect. On the app, press Add Device. Your mobile device will begin to scan the area for the Condair HumiLife RH.
-
Page 13: User Interface
(Blue) The unit is on standby. The humidifier will product steam when the humidity is lower than the setpoint (defined in the Condair HumiLife app). (Red) The unit is on standby. The humidifier is disabled through the Condair HumiLife app. The humidifier will not humidify unless it is re-enabled through the Condair HumiLife app. - Page 14 Description Yellow Warning: The humidifier will still operate, but requires maintenance. Error: The humidifier stops operation to protect system components. 14 | User Interface Condair RH 2594949_B_EN_2005_Condair-RH_OM...
-
Page 15: Maintenance
Pliers, needle-nose Small plastic brush or damp cloth (for cleaning). Do NOT use abrasive materials (ex. metallic bristles) or harsh cleaning agents. Note: The cylinder may contain residual water and scale that may spill. Condair RH Maintenance | 15 2594949_B_EN_2005_Condair-RH_OM... - Page 16 Shut down the humidifier and wait for the components to cool down before working on the steam system. Wear appropriate personal protective equipment when working near hot vapors. Refer to"Shutting Down" on page 11 before fixing any leaks in the steam system. 16 | Maintenance Condair RH 2594949_B_EN_2005_Condair-RH_OM...
-
Page 17: Replacing The Cylinder
Figure 7 - Removing the Cylinder (front panel removed for clarity) Replacing the Cylinder: Warning/Fault When the cylinder needs to be replaced, you will receive a notification on the Condair HumiLife and on the humidifier ( ). If the cylinder is not replaced within roughly 3 weeks, the warning notification upgrades to a fault notification and the humidifier stops steam production. -
Page 18: Removing The Plumbing Cover
3. Pull out the top of the plumbing cover, and then lift it out of the humidifier. 18 | Maintenance Condair RH 2594949_B_EN_2005_Condair-RH_OM... -
Page 19: Cleaning The Drain Valve And Gfci Plate
3. Disengage the tab securing the left-side of the drain valve then lift the drain valve out of the humidifier. The drain valve and GFCI plate can now be cleaned or replaced. Condair RH Maintenance | 19 2594949_B_EN_2005_Condair-RH_OM... - Page 20 Once fully threaded, tighten the core an additional 1/4 turn with a wrench. The hose(s) connecting the fill cup to the drain valve is tucked back in the cabinet to create space for the cylinder. 20 | Maintenance Condair RH 2594949_B_EN_2005_Condair-RH_OM...
-
Page 21: Cleaning The Fill Valve
Do NOT use soap or harsh chemicals. 3. Return and secure the filter to the fill valve. 4. Re-attach the quick connect fitting by hand, and wrench-tighten 1/4-turn at the end. 5. Return the fill valve (if removed). Condair RH Maintenance | 21 2594949_B_EN_2005_Condair-RH_OM... -
Page 22: Cleaning The Fill Cup
3. Open the fill cup by pushing in the tabs on its side and lifting the cover. 4. Remove any scale build-up or debris, and rinse the fill cup with clean water. 22 | Maintenance Condair RH 2594949_B_EN_2005_Condair-RH_OM... -
Page 23: Troubleshooting
Humidifier will not humidify or is not reaching the relative humidity setpoint. Humidity sensor is not working Check the voltage on the humidity sensor. If the Condair sensor (supplied) is being used, 10 V indicates no demand, and 0 V indicates full demand. -
Page 24: Resetting Faults And Warnings
Air supply temperature too low or Indicates the design conditions have changed. Contact your humidity too high Condair representative. Steam line not installed correctly Ensure that the distributor is oriented correctly, and the steam lines (if used) are sloped correctly: - minimum 15°... -
Page 25: Error And Warning Codes
Invalid cylinder installed (E6). Yellow Control sensor broken (W3). Yellow Limiter sensor broken (W4). Yellow WiFi signal timeout reached (W6). Over current detected (E1). Inlet/Drain problem (E2). No current detected (E3). PCB error (E4). Condair RH Troubleshooting | 25 2594949_B_EN_2005_Condair-RH_OM... - Page 26 High system back pressure. Ensure that the steam line does not have any kinks or low points (where condensate will collect) that may cause back pressure to form. 26 | Troubleshooting Condair RH 2594949_B_EN_2005_Condair-RH_OM...
- Page 27 "open" within this time period, this error is created. This fault will cause the humidifier to shut down. To override this, ensure that the installed cylinder has been approved by Condair. Next, reset the fault (press and hold the power button for 3 seconds).
- Page 28 Check the connections between the humidifier and its sensors. This warning may indicate improper wiring, or a blocked wireless signal. Reduce the length of wire between the humidifier and the sensor(s), or extend the range of your wireless device, or remove obstructions between the humidifier and wireless access point. 28 | Troubleshooting Condair RH 2594949_B_EN_2005_Condair-RH_OM...
- Page 29 Reconnect the humidifier to your device. You may need to remove the device first, and then add it again. Press and hold the power button for 5 seconds. On the HumiLife app, press Add device. Condair RH Troubleshooting | 29 2594949_B_EN_2005_Condair-RH_OM...
-
Page 30: Decommissioning
Decommissioning If the Condair HumiLife RH needs to be replaced or removed from service for disposal, strictly follow the instructions in this section. Safety Refer to "Cautions and Warnings" on page 2. Remove the unit from service for disposal, or long-term storage, as follows. Use a qualified service technician. - Page 31 Page intentionally left blank...
- Page 32 Consult the dealer or an experienced radio/TV technician for help. Warranty Condair Inc. and/or Condair Ltd.(hereinafter collectively referred to as THE COMPANY), warrant for a period of five years from the date of purchase by the customer, that THE COMPANY’s manufactured and assembled products, not otherwise expressly warranted, are free from defects in material and workmanship.
