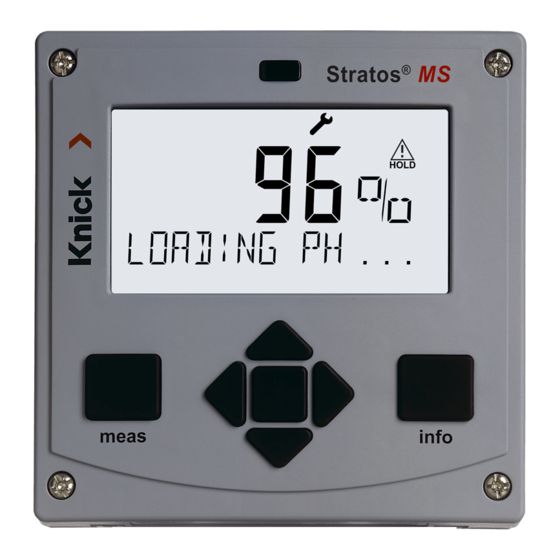

Knick Stratos MS A405 User Manual

O2 measurement
Hide thumbs Also See for Stratos MS A405:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Betriebsanleitung
Stratos®Pro
Latest Product Information: www.knick.de
Aktuelle Produktinformation: www.knick.de
Stratos MS A405
O
Stratos Pro A2... pH
English
deutsch
Betriebsanleitung
Aktuelle Produktinformation:
www.knick.de
The Art of Measuring.
Measurement
A2... PH
2
II 1G Ex ia IIC T3/T4/T6
14163 Berlin
14163 Berlin
SE 706X/1-NMSN
SE 706X/2-NMS
14163 Berlin
BVS 10 ATEX E0
BVS 10 ATEX E089 X
II 1G Ex ia IIC T
SE 706X/1-NM
II 1G Ex ia IIC T3/T4/T6
BVS 10 ATEX E
14163 Berlin
II 1G Ex ia IIC
SE 706X/2-NMSN
14163 Berlin
SE 706X/2-NM
BVS 10 ATEX E089 X
II 1G Ex ia IIC T3/T4/T6
BVS 10 ATEX E
II 1G Ex ia IIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stratos MS A405 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Knick Stratos MS A405

Summary of Contents for Knick Stratos MS A405

  • Page 1 SE 706X/2-NMSN 14163 Berlin SE 706X/2-NM BVS 10 ATEX E089 X II 1G Ex ia IIC T3/T4/T6 BVS 10 ATEX E II 1G Ex ia IIC Stratos MS A405 User Manual Betriebsanleitung Stratos Pro A2... pH Measurement Stratos®Pro English deutsch A2...

  • Page 3: Table Of Contents

    Table of Contents About This Manual .....................5 Documents Supplied ....................6 Introduction ..................7 Overview of the Stratos MS ............... 8 Package Contents .......................8 Mounting Accessories ....................9 Pipe Mounting, Protective Hood ............... 10 Panel Mounting ....................... 11 Terminal Assignments, Rating Plates..........12 Power Supply ......................
  • Page 4 Table of Contents Relay Contacts: Function Assignment, Limit Values ........44 Relay Contacts: Limit Function, Hysteresis ............. 46 Relay Contacts: Alarm .................... 48 Relay Contacts: Controlling a Rinsing Probe ..........50 Protective Wiring of Relay Contacts..............52 Time and Date, Measuring Point (TAG/GROUP) ........... 54 Calibration ..................

  • Page 5: About This Manual

    About This Manual Subject to change without notice Return of Products Under Warranty Please contact our Service Team before returning a defective device. Ship the cleaned device to the address you have been given. If the device has been in contact with process fluids, it must be decontaminated/ disinfected before shipment.

  • Page 6: Documents Supplied

    Installation and first steps: • Operation • Menu structure • Calibration • Error messages and recommended actions Specific Test Report Electronic Documentation Manuals + Software Ex Devices: Control Drawings EU Declarations of Conformity Up-to date documentation available on our website: www.knick.de...

  • Page 7: Introduction

    For connecting the cables, the enclosure provides • 3 knockouts for cable glands M20x1.5 • 2 knockouts for NPT 1/2” or rigid metallic conduit Memosens sensors and connecting cables Please visit our website for more information on our product range: www.knick.de.

  • Page 8: Overview Of The Stratos Ms

    Overview of the Stratos MS Package Contents Check the shipment for transport damage and completeness. The package should contain: Front unit, rear unit, bag containing small parts Specific test report Documentation Fig.: Assembling the enclosure 1) Jumper (3 x) 6) Sealing insert (1 x) 2) Washer (1 x), for conduit mounting: 7) Rubber reducer (1 x) Place washer between enclosure and...

  • Page 9: Mounting Accessories

    Overview of the Stratos MS Mounting Plan, Dimensions 1) Cable gland (3 x) 2) Knockouts for cable gland or ½“ conduit, dia. 21.5 mm (2 x) Conduit couplings not included! 3) Knockout for pipe mounting (4 x) 4) Knockout for wall mounting (2 x) All dimensions in mm Mounting Accessories...

  • Page 10: Pipe Mounting, Protective Hood

    Overview of the Stratos MS Pipe Mounting, Protective Hood ø40...ø60 1) Hose clamp with worm gear drive to DIN 3017 (2 x) 2) Pipe-mount plate (1 x) 3) For vertical or horizontal posts or pipes 4) Self-tapping screw (4 x) Fig.: Pipe-mount kit, accessory ZU 0274 Fig.: Protective hood for wall and pipe mounting, accessory ZU 0737...

  • Page 11: Panel Mounting

    Overview of the Stratos MS Panel Mounting 1) Circumferential sealing (1 x) 2) Screw (4 x) 3) Position of control panel 4) Span piece (4 x) 5) Threaded sleeve (4 x) Cutout 138 x 138 mm (DIN 43700) Fig.: Panel-mount kit, accessory ZU 0738 All dimensions in mm...

  • Page 12: Terminal Assignments, Rating Plates

    Overview of the Stratos MS Overview of the Stratos MS Memosens Output 1 RS-485 Output 2 HOLD Power input Terminal Assignments, Rating Plates The terminals are suitable for single or stranded wires up to 2.5 mm (AWG 14). Application in Hazardous Locations When using the device in a hazardous location, observe the specifications of the Control Drawing.

  • Page 13: Power Supply

    Overview of the Stratos MS Power Supply Connect the power supply for Stratos MS to terminals 21 and 22 (80 ... 230 V AC, 45 ... 65 Hz / 24 ... 60 V DC) Terminal assignments Memosens connection Brown Green Yellow White / Transp.

  • Page 14: Start-Up

    Documenting and archiving meet the demands of FDA CFR 21 Part 11. Detailed reports can be output as csv export for Excel. MemoSuite is available as accessory and comes in the versions “Basic” and “Advanced”: www.knick.de. Settings and Currently connected sensor:...

  • Page 15: Memosens Cable

    Memosens Cable CA/MS-... Memosens Cable Brown Green Yellow White Transparent Specifications Material Cable diameter 6.3 mm Length up to 100 m Process temperature –20 °C … +135 °C / –4 … +275 °F Ingress protection IP 68 Order Codes Cable type Cable length Order number Ferrules 10 m 20 m M12 plug, 8-pin...

  • Page 17: Measuring Mode

    Operation Measuring Mode After the operating voltage has been connected, the analyzer automatically goes to “Measuring“ mode. To call the measuring mode from another operating mode (e.g., Diagnostics, Service): Hold meas key depressed (> 2 s). Sensoface indicator (sensor status) Time Display indicates OUT1:...

  • Page 18: The Keys And Their Functions

    The Keys and Their Functions Up / Down Left / Right arrows arrows • Menu: • Menu: Increase/decrease a Previous/next menu numeral group • Menu: Selection • Number entry: Move between digits info meas • Retrieve • Return to last information menu level •...

  • Page 19: Signal Colors (Display Backlighting)

    The Display MEMO SENS 1 Temperature 13 Info available 2 Sensocheck 14 HOLD mode active 3 Interval/response time 15 Primary process value 4 Sensor data 16 Secondary display 5 Wear 17 Proceed using enter 6 Limit message: 18 Not used Limit 1 or Limit 2 19 Diagnostics...

  • Page 20: Display In Measuring Mode

    Display in Measuring Mode The MAIN DISPLAY is the display which is shown in measuring mode. To call the mea- suring mode from any other mode, hold the meas key depressed for at least 2 sec. meas key enter key By pressing meas briefly you can step through further displays such as primary value or tag number (TAG).

  • Page 21: Selecting The Mode / Entering Values

    Selecting the Mode / Entering Values To select the operating mode: 1) Hold meas key depressed (> 2 s) (measuring mode) 2) Press menu key: the selection menu appears 3) Select operating mode using left / right arrow key 4) Press enter to confirm the selected mode Selection menu Selected mode (blinks)

  • Page 22: Operating Modes

    Operating Modes Diagnostics Display of calibration data, display of sensor data, sensor monitor, performing a device self-test, viewing the logbook entries, display of hardware/software versions of the individual components. The logbook can store 100 events (00...99). They can be displayed directly on the device. HOLD Manual activation of HOLD mode, e.g., for replacing a sensor.

  • Page 23: Hold Mode

    HOLD Mode The HOLD mode is a safety state during configuration and calibration. Output current is frozen (LAST) or set to a fixed value (FIX). Alarm and limit contacts are disabled. HOLD mode, display icon: Output signal response • LAST: The output current is frozen at its last value. Recommended for short configuration procedures.

  • Page 24: Operating Modes / Functions

    Operating Modes / Functions Measuring TAG display CLK display mode (main display after 60 s after 60 s selectable) Pressing the menu key (down arrow) opens the selection menu. Select the menu group using the left/right arrow keys. Pressing enter opens a menu item. Press meas to return. ...
  • Page 25 Overview of Configuration The configuration steps are assigned to different menu groups. Using the left/right arrow keys, you can jump between the individual menu groups. Each menu group contains menu items for setting the parameters. Pressing enter opens a menu item. Use the arrow keys to edit a value. Press enter to confirm/save the settings.

  • Page 26: Connecting A Memosens Sensor

    Connecting a Memosens Sensor Step Action/Display Remark When no Memosens sensor is connected, the error message “NO SENSOR” is displayed. Connect sensor Wait until the sensor data The hourglass in the display SENS MEMO blinks. are displayed. Check sensor data Sensoface is friendly when the MEMO SENS...

  • Page 27: Replacing A Sensor

    Replacing a Sensor Step Action/Display Remark Press menu key to call the Select HOLD mode Now the device is in HOLD mode. The HOLD mode can also A sensor should only be selection menu, be activated externally via the replaced during HOLD select HOLD using the HOLD input.

  • Page 28: Configuration: Overview

    Configuration: Overview Configuration (default in bold print) Sensor dO % / dO mg/l / dO ppm / GAS % MEAS MODE °C / °F TEMP UNIT CAL MODE CAL AIR / CAL WTR CALTIMER ON / OFF 0 ... 9999 h (168 h) CAL-CYCLE ON / OFF CHECK TAG...
  • Page 29 Configuration: Overview Configuration (default in bold print) Correction 00.00 ... 45.00 ppt (00.00 ppt) SALINITY BAR / KPA / PSI PRESSURE UNIT 0.000 ... 9.999 BAR (1.013 BAR) PRESSURE PRESSURE 000.0 ... 999.9 KPA (100 KPA) 000.0 ... 145.0 PSI (14.5 PSI) PRESSURE Alarm DELAYTIME...

  • Page 30: Configuration

    Configuration Device Type: Oxy The device type is automatically selected upon first start-up. In the SERVICE menu you can change the device type. Afterwards, you must select the corresponding calibration mode in the CONF menu. Press menu. Select CONF using , press enter.
  • Page 31 Configuration Menu item Action Choices Select measuring mode dO % Select measuring mode using dO mg/l keys. dO ppm Measurement in liquids GAS % GAS: Measurement in gases Press enter to confirm. Temperature unit °C Select °C or °F using  keys. °F Press enter to confirm.

  • Page 32: Sensor Verification (Tag, Group)

    Configuration Sensor Verification (TAG, GROUP) Press menu key. Select CONF using , press enter. Select SENSOR menu using  keys, press enter. All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.
  • Page 33 Configuration Menu item Action Choices Select ON or OFF using  keys. Press enter to confirm. When switched on, the entry for “TAG” in the Memosens sensor is compared to the entry in the analyzer. If the entries differ, a message will be generated.

  • Page 34: Output Current: Range, Current Start/End

    Configuring the Current Output Output Current: Range, Current Start/End (Example: current output 1) Press menu key. Select CONF using , press enter. Select OUT1 menu using  keys, press enter. All items of this menu group are indicated by the “OT1:“ code.
  • Page 35 Configuring the Current Output Menu item Action Choices Current range 4-20 mA / 0-20 mA Select 4-20 mA or 0-20 mA range using  keys. Press enter to confirm. Process variable Example: current output 1, OXY/TMP device type OXY Select using  keys: OXY: oxygen value TMP: Temperature Press enter to confirm.

  • Page 36: Output Current: Time Averaging Filter

    Configuring the Current Output Output Current: Time Averaging Filter (Example: current output 1) Press menu key. Select CONF using , press enter. Select OUT1 menu using  keys, press enter. All items of this menu group are indicated by the “OT1:“ code.
  • Page 37 Configuring the Current Output Menu item Action Choices Time averaging filter 0...120 SEC Enter value using   (0000 SEC) keys. Press enter to confirm. Time averaging filter To smoothen the current output, a low-pass filter with adjustable filter time constant can be switched on.

  • Page 38: Output Current: Error And Hold

    Configuring the Current Output Output Current: Error and HOLD (Example: current output 1) Press menu key. Select CONF using , press enter. Select OUT1 menu using  keys, press enter. All items of this menu group are indicated by the “OT1:“ code.
  • Page 39 Configuring the Current Output Menu item Action Choices Output current during The output current can be set to 22 mA in the case of error mes- error message sages or error messages. Select ON or OFF using  keys. Confirm by pressing enter Output current during The output current can be set to 22 mA in the case of Sensoface...

  • Page 40: Output Current: Alarm Delay, Sensocheck

    Configuring the Current Output Output Current: Alarm Delay, Sensocheck Press menu key. Select CONF using , press enter. Select ALARM menu using  keys, press enter. All items of this menu group are indicated by the “ALA:” code. Press enter to select menu, edit using arrow keys (see next page).
  • Page 41 Configuring the Current Output Menu item Action Choices Alarm delay 0...600 SEC Enter value using   (10 SEC) keys. Press enter to confirm. Sensocheck Select Sensocheck (continuous ON/OFF monitoring of sensor membrane and lines). Select ON or OFF using keys.

  • Page 42: Salinity Correction, Pressure Correction

    Oxy: Correction Salinity Correction, Pressure Correction Press menu key. Select CONF using , press enter. Select CORRECTION menu using  keys, press enter. All items of this menu group are indicated by the “COR:“ code. Confirm (and proceed) by pressing enter. Exit: Press meas key until the [meas] mode indicator is displayed.
  • Page 43 Oxy: Correction Menu item Action Choices Enter salinity Enter the salinity of the process 00.00...45.00 ppt medium. Enter value using   keys. Press enter to confirm. Enter pressure unit Bar/kPa/PSI Select desired pressure unit using  keys. Press enter to confirm. Enter pressure correction MAN / EXT Select using ...

  • Page 44: Relay Contacts: Function Assignment, Limit Values

    Configuring the Relay Contacts Relay Contacts: Function Assignment, Limit Values Press menu key. Select CONF using , press enter. Select RELAY1 menu using  keys, press enter. Specify relay contact function: LIMIT. All items of this menu group are indicated by the “LM1:“ code.
  • Page 45 Configuring the Relay Contacts Menu item Action Choices Use of relays LIMIT / ALARM / WASH Select in the text line using  keys: • Limit function (LIMITS) Note: The following submenu • Error message (ALARM) depends on the selected setting. •...

  • Page 46: Relay Contacts: Limit Function, Hysteresis

    Configuring the Relay Contacts Relay Contacts: Limit Function, Hysteresis (Example: relay 1) Press menu key. Select CONF using , press enter. Select RELAY1 menu using  keys, press enter. Specify relay contact function: LIMIT. All items of this menu group are indicated by the “LM1:“ code.
  • Page 47 Configuring the Relay Contacts Menu item Action Choices Limit 1 hysteresis 0...50 % full scale Select hysteresis using   keys. Press enter to confirm. Limit 1 delay The contact is activated with 0 ... 9999 SEC (0010 SEC) delay (deactivated without delay) Adjust delay using ...

  • Page 48: Relay Contacts: Alarm

    Configuring the Relay Contacts Relay Contacts: Alarm (Example: relay 1) Press menu key. Select CONF using , press enter. Select RELAY1 menu using  keys, press enter. Specify relay contact function: ALARM. All items of this menu group are indicated by the “AL1:“ code.
  • Page 49 Configuring the Relay Contacts Menu item Action Choices Alarm FAIL / FACE Select error messages (FAIL) or Sensoface messages (FACE) as trigger signal using   keys. Press enter to confirm. Contact response N/O / N/C N/O: normally open contact N/C: normally closed contact Select using ...

  • Page 50: Relay Contacts: Controlling A Rinsing Probe

    Configuring the Relay Contacts Relay Contacts: Controlling a Rinsing Probe (Example: relay 1) Press menu key. Select CONF using , press enter. Select RELAY1 menu using  keys, press enter. Specify relay contact function: WASH. All items of this menu group are indicated by the “WS1:“ code.
  • Page 51 Configuring the Relay Contacts Menu item Action Choices Use of relays Select in the text line using  keys: • Limit function (LIMITS) Note: The following submenu • Error message (ALARM) depends on the selected • Rinse contact (WASH) setting. Press enter to confirm.

  • Page 52: Protective Wiring Of Relay Contacts

    Protective Wiring of Relay Contacts Protective Wiring of Relay Contacts Relay contacts are subject to electrical erosion. Especially with inductive and capac- itive loads, the service life of the contacts will be reduced. For suppression of sparks and arcing, components such as RC combinations, nonlinear resistors, series resistors and diodes should be used.
  • Page 53 Protective Wiring of Relay Contacts Typical Protective Wiring Measures DC application with inductive load AC/DC applications with capacitive load Connection of incandescent lamps Inductive load Free-wheeling diode, e.g.,1N4007 (Observe polarity) Contact Capacitive load Resistor, e.g., 8 Ω / 1 W at 24 V / 0.3 A Contact Incandescent lamp, max 60 W / 230 V, 30 W / 115 V Contact...

  • Page 54: Time And Date, Measuring Point (Tag/Group)

    Configuring the Time/Date Time and Date, Measuring Point (TAG/GROUP) Press menu key. Select CONF using , press enter. Select CLOCK or TAG using  keys, press enter. All items of this menu group are indicated by the “CLK:” or “TAG” code. Press enter to select menu, edit using arrow keys (see next page).
  • Page 55 Configuring the Time/Date Time and Date Control of the calibration and cleaning cycles is based on the time and date of the integrated real-time clock. In measuring mode the time is shown in the lower display. When using digital sensors, the calibration data is written in the sensor head.

  • Page 56: Calibration

    Calibration Calibration adapts the device to the individual sensor characteristics. For best performance, you should always calibrate in air. Compared to water, air is a calibration medium which is easy to handle, stable, and thus safe. In the most cases, however, the sensor must be removed for a calibration in air.

  • Page 57: Common Combination: Process Variable / Calibration Mode

    Oxy: Calibration Common Combination: Process Variable / Calibration Mode Measurement Calibration Application Saturation Water Biotechnology; sensor cannot be removed for calibration (sterility) Concentration Waters, open basins On the following pages, the calibration procedure for a slope calibration in air is described.

  • Page 58: Slope Calibration In Air

    Slope Calibration in Air Display Action Remark Select calibration. “CAL WATER“ or Place sensor in air, “CAL AIR“ is selected in press enter to start. the configuration. Device goes to HOLD mode. Enter relative humidity using Default for relative arrow keys humidity in air: rH = 50% Press enter to proceed.

  • Page 59: Slope Calibration In Water

    Slope Calibration in Water Display Action Remark Select calibration (SLOPE). “CAL WATER“ or Immerse sensor in cal “CAL AIR“ is selected in medium, press enter to start. the configuration. Default: 1.013 bar Enter cal pressure Unit: bar/kpa/PSI Press enter to proceed. Drift check: Display of: Device goes to HOLD Sensor current (nA)

  • Page 60: Zero Calibration

    Zero Calibration Flawless, amperometric oxygen sensors have a low zero current. Therefore, a zero calibration is only recommended for measurement of oxygen traces. When a zero calibration is performed, the sensor should remain for at least 10 to 30 minutes in the calibration medium (sulfite solution or nitrogen) in order to obtain stable, non-drifting values.
  • Page 61 Zero Calibration Display Action Remark Select calibration, proceed by pressing enter Ready for calibration. Display (3 sec) Hourglass blinks. Now the device is in Place sensor in oxygen-free HOLD mode. medium Primary display: Wait for the value to zero current. stabilize, can take 10 ...

  • Page 62: Product Calibration

    Product Calibration Calibration by Sampling (One-Point Calibration). During product calibration the sensor remains in the process. The measurement process is only interrupted briefly. Procedure: During sampling the currently measured value is stored in the device. The device immediately returns to measuring mode. The cal mode indicator blinks and reminds you that calibration has not been terminated.
  • Page 63 Product Calibration Display Action Remark The device returns to From the blinking measuring mode. CAL mode indicator, you see that product calibration has not been terminated. Product calibration step 2: Display (3 sec) When the sample value has Now the device is in been determined, open the HOLD mode.

  • Page 64: Temp Probe Adjustment

    Temp Probe Adjustment Display Action Remark Select CAL_RTD calibration Wrong settings change method. the measurement Press enter to proceed. properties! Measure the temperature of Display (3 sec) the process medium using Now the device is in an external thermometer. HOLD mode. Enter the measured tem- Display of actual perature value.

  • Page 65: Measurement

    Measurement Display Remark From the configuration or calibration menus, you can switch the device to measuring mode by pressing the meas key. In the measuring mode the upper display line shows the configured process variable (%, mg/l, ppm or tem- or AM/PM and °F: perature), the lower display line shows the time and the second configured process variable (%, mg/l, ppm...

  • Page 66: Diagnostics

    Diagnostics In the Diagnostics mode you can access the following menus without interrupting the measurement: CALDATA Viewing the calibration data SENSOR Viewing the sensor data SELFTEST Starting a device self-test LOGBOOK Viewing the logbook entries MONITOR Displaying currently measured values VERSION Displaying device type, software version, serial number Access to diagnostics can be protected with a passcode (SERVICE menu).
  • Page 67 Diagnostics Display Menu item Displaying the calibration data Select CALDATA using, confirm by pressing enter. Use thekeys to select from the bottom line of the display (LAST_CAL ZERO SLOPE NEXT_CAL). The selected parameter is shown in the upper display line. Press meas to return to measurement.
  • Page 68 Diagnostics Display Menu item Device self-test (To abort, you can press meas.) 1 Display test: Display of all segments with changing background colors (white/green/red). Proceed by pressing enter 2 RAM test: Hourglass blinks, then display of --PASS-- or --FAIL-- Proceed by pressing enter 3 EEPROM test: Hourglass blinks, then display of --PASS-- or --FAIL-- Proceed by pressing enter...
  • Page 69 Diagnostics Display Menu item Displaying the logbook entries Select LOGBOOK using, press enter to confirm. With the keys, you can scroll backwards and forwards through the logbook (entries -00-...-99-), -00- being the last entry. If the display is set to date/time, you can search for a particular date using the keys.
  • Page 70 Diagnostics Display Menu item Displaying the currently measured values (sensor monitor) Select MONITOR using, press enter to confirm. Use the keys to select the desired parameter from the bottom line of the display. The selected parameter is shown in the upper display line.

  • Page 71: Service

    Service In the Service mode you can access the following menus: MONITOR Displaying currently measured values OUT1 Testing current output 1 OUT2 Testing current output 2 RELAY Testing the relay function CODES Assigning and editing passcodes DEVICE TYPE Selecting the device type (pH, Oxy, Cond) DEFAULT Resetting the device to factory settings Note:...
  • Page 72 Service Menu item Remark Displaying currently measured values (sensor monitor) with HOLD mode activated: Select MONITOR using, press enter to confirm. Select the process variable in the bottom text line using. The selected parameter is shown in the upper display line. As the device is in HOLD mode, you can perform validations using simulators without influencing the signal outputs.
  • Page 73 Service Menu item Remark Setting the passcodes: In the “SERVICE - CODES“ menu you can assign passcodes to DIAG, HOLD, CAL, CONF and SERVICE modes (Service preset to 5555). When you have lost the Service passcode, you have to request an “Ambulance TAN“...

  • Page 74: Error Messages

    Error Messages Info text Problem Error (is displayed in case of fault when Possible causes the Info key is pressed) ERR 99 DEVICE FAILURE Error in factory settings EEPROM or RAM defective This error message only occurs in the case of a total defect. The device must be repaired and recalibrated at the factory.
  • Page 75 Error Messages Info text Problem Error (is displayed in case of fault when Possible causes the Info key is pressed) ERR 60 OUTPUT LOAD Load error ERR 61 OUTPUT 1 TOO LOW Output current 1 < 0 (3.8) mA ERR 62 OUTPUT 1 TOO HIGH Output current 1 >...

  • Page 76: Sensocheck And Sensoface

    Sensocheck and Sensoface Sensocheck, Sensoface Sensor Monitoring Sensocheck continuously monitors the sensor and its wiring. The three Sensoface indicators provide information on required maintenance of the sensor. Additional icons refer to the error cause. Pressing the info key shows an information text. Note: The worsening of a Sensoface criterion leads to the devaluation of the Sensoface indicator (Smiley gets “sad”).

  • Page 77: Operating States

    Operating States Operating status Measure DIAG 60 s CONF SERVICE SERVICE OUT 1 SERVICE OUT 2 SERVICE RELAY Cleaning function HOLD Explanation: as configured (Last/Fix or Last/Off ) active manual...

  • Page 78: Product Range

    Mounting accessories Pipe-mount kit ZU 0274 Panel-mount kit ZU 0738 Protective hood ZU 0737 M12 socket for sensor connection ZU 0860 with Memosens cable / M12 connector Up-to-date information: www.knick.de Phone: +49 30 80191-0 Fax: +49 30 80191-200 Email: info@knick.de...

  • Page 79: Specifications

    Specifications Oxy input Memosens (terminals 1 … 4) Data In/Out Asynchronous interface, RS-485, 9600/19200 Bd Power supply Terminal 1: +3.08 V/10 mA, Ri < 1 ohm, short-circuit-proof Operating modes Measurement in gases Measurement in liquids Temperature measurement -20 ... 150 °C (depending on sensor) Display ranges Saturation (–10 ...
  • Page 80 Specifications HOLD input Galvanically separated (optocoupler) Function Switches device to HOLD mode Switching voltage 0 ... 2 V AC/DC HOLD inactive 10 ... 30 V AC/DC HOLD active Output 1 0/4 ... 20 mA, max. 10 V, floating (terminals 8 / 9, galvanically connected to output 2) Overrange * 22 mA in the case of error messages Characteristic...
  • Page 81 Specifications Relays 1 / 2 Two relay contacts, floating (terminals 14 / 15 / 16) Contact ratings AC < 250 V / < 3 A / < 750 VA DC < 30 V / < 3 A / < 90 W Usage Limit value Alarm...
  • Page 82 Parameters, calibration data, logbook > 10 years (EEPROM) Electrical safety Protection against electric shock by protective separation of all extra- low-voltage circuits against mains according to EN 61010-1 Explosion protection see Control Drawing or www.knick.de (A405B) EN 61326 Emitted interference Class B (residential environment)

  • Page 83: Index

    Index Accessories 78 Adjusting the temp probe 64 Alarm delay 40 Alarm, relay contacts 48 Ambulance TAN 73 Assembly 8 Backlighting 19 Buttons and functions 18 Cable glands 7 Cables for Memosens 15 CALDATA 67 Calibration 56 Calibration data, display 67 Calibration medium, selecting 31 Calibration timer 31 Calibration with sampling 62...
  • Page 84 Index Current calibration data, display 67 Currently measured values (sensor monitor) 70 Currently measured values (sensor monitor), display with HOLD activated 72 Current output, configuration 34 Current source 72 Date and time, usage 55 Date, display 65 Date, setting 54 Device self-test 68 Device type, display 70 Device type Oxy, configuration 30...
  • Page 85 Index Factory setting 73 FLASH test 68 GROUP of measuring points 55 Hardware version, display 70 HOLD, configure output current 38 HOLD, exit 23 HOLD, external activation 23 HOLD mode 23 HOLD, output signal 23 HOLD, output signal response 23 Hose clamps 10 Hysteresis of relay contacts 46 Icons 19...
  • Page 86 Index MAIN DISPLAY 20 Manual pressure input 42 Measured values, display 70 Measuring function (device type) 71 Measuring mode 65 Measuring point (TAG/GROUP) 54 Measuring range and output current 35 Memosens cable (specifications, order code) 15 Memosens sensor (connection, menu) 26 Memosens sensor (connection, terminal assignments) 13 MemoSuite software for calibrating Memosens sensors 14 Menu structure 24...
  • Page 87 Index Package contents, complete 8 Package contents, documentation 6 Panel mounting 11 Passcode lost 73 Passcodes, setting 73 Post/pipe mounting 10 Power supply, connection 13 Power supply, specifications 82 Pressure correction 42 Process variable selection 35 Product calibration 62 Product line 78 Protective hood 10 Protective wiring of relay contacts 52 Quickstart guides 6...
  • Page 88 Index Safety information 6 Salinity correction 42 Selecting the device type 71 Sensocheck, configuration 41 Sensocheck, description 76 Sensoface, configure output current 39 Sensoface, description 76 Sensoface messages, overview 75 Sensor data, display 67 Sensor monitor, diagnostics 70 Sensor monitor, Service 72 Sensor replacement 27 Sensor verification (TAG, GROUP) 32 Serial number, display 70...
  • Page 89 Index Tag number, display 65 TAG of measuring point 55 Technical data 79 Temperature probe adjustment 64 Temperature unit 30 Terminal assignments 13 Terminals 12 Time and date, usage 55 Time averaging filter 37 Time, display 65 Time format, setting 54 Time, setting 54 Use of relays 44 Viewing parameters 65...
  • Page 92 Knick Elektronische Messgeräte GmbH & Co. KG Beuckestraße 22 14163 Berlin Germany Phone: +49 30 80191-0 Fax: +49 30 80191-200 Web: www.knick.de Email: info@knick.de Stratos MS A405: Oxygen Measurement 092753 TA-212.100-oxy-KNE03 20170831 Software version: 1.x...
