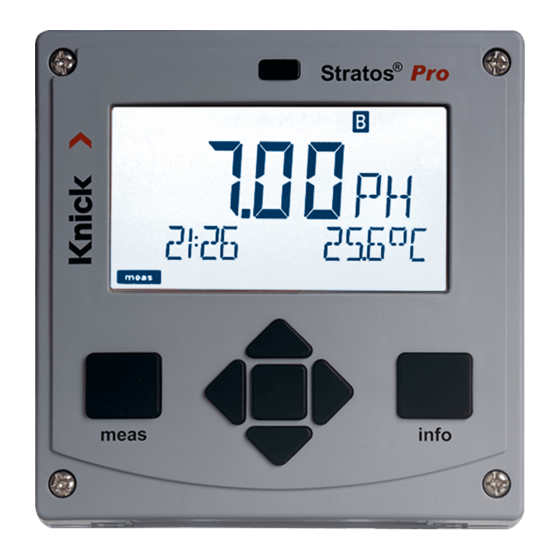

Knick Stratos Pro A*** COND Series Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Stratos®Pro
A2... COND
Instruction Manual
Latest Product Information:
www.knick.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stratos Pro A*** COND Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Knick Stratos Pro A*** COND Series

Summary of Contents for Knick Stratos Pro A*** COND Series

  • Page 1 Stratos®Pro A2... COND Instruction Manual Latest Product Information: www.knick.de...
  • Page 2 Warranty Warranty Defects occurring within 3 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender). Sensors, fi ttings, and accessories: 1 year. Subject to change without notice. Return of Products Under Warranty Please contact our Service Team before returning a defective device.

  • Page 3: Documents Supplied

    Spanish, Portuguese, Swedish, and Dutch. QuickStart ........27 Быстрый старт ......39 More languages on CD-ROM and Inicio rápido ........ 51 on our website: www.knick.de Início rápido ........ 63 Guida rapida ........ 75 • Installation and commissioning Snabbstart........87 QuickStart ........99 •...

  • Page 4: Table Of Contents

    Contents Documents Supplied ..............3 Introduction ..................7 Intended Use ..................7 Safety Information ................. 8 Overview of Stratos Pro A2... COND .........10 Assembly ..................11 Package Contents ................11 Mounting Plan, Dimensions ............12 Pipe Mounting, Protective Hood ..........13 Panel Mounting ..................14 Installation ..................15 Installation Instructions ..............15 Rating Plates / Terminal Assignments ........16...
  • Page 5 Contents Configuration (Original for Copy) ..........41 Sensor .....................44 Current Output 1 ................50 Current Output 2 ................56 Temperature Compensation ............58 Alarm Settings ..................62 Time and Date ..................64 Tag Number ....................64 Digital Sensors ................66 Operation ....................66 Connecting a Digital Sensor ............67 Sensor Replacement .................68 Calibration ..................71 Selecting a Calibration Mode ............71 Calibration with Calibration Solution .........72...
  • Page 6 Contents Concentration Curves ..............100 Error Handling ................105 Error Messages ................106 Sensoface ..................108 EC Declaration of Conformity ..........110 Stratos Pro A2... X COND: Control Drawings ......112 FM Control Drawing ..............114 CSA Control Drawing ..............115 FDA 21 CFR Part 11 ..............116 Electronic Signature – Passcodes ..........116 Audit Trail ....................116 Index .....................117 Trademarks ..................123...

  • Page 7: Introduction

    Introduction Intended Use Stratos Pro A2... COND is used for measurement of electrical conductivity and temperature in liquids. Fields of application are: biotechnology, chemical industry, environment, food processing, water/waste-water treatment. The sturdy molded enclosure can be fi xed into a control panel or mounted on a wall or at a post.

  • Page 8: Safety Information

    Safety Information Safety information – Be sure to read and observe the following instructions! The device has been manufactured using state of the art technology and it complies with applicable safety regulations. When operating the device, certain conditions may nevertheless lead to danger for the operator or damage to the device.
  • Page 9 Safety Information Information for Installation in Hazardous Locations (Stratos Pro A201/A211X COND) • Be sure to observe the stipulations of EN 60079-10 / EN 60079-14 or the corresponding local regulations during installation and commissioning. See also separate “Safety Instructions“ document. Approvals for application in hazardous locations (Stratos Pro A201/A211X COND) •...

  • Page 10: Overview Of Stratos Pro A2

    Overview Overview of Stratos Pro A2... COND COND + Output 1, 2 / HART Output 1 I hi input – Output 1 / HART V hi V lo Output 2 I lo RTD (GND) – Output 2 RTD (Sense) Shield RS 485 Power supply RS 485 A...

  • Page 11: Assembly

    Assembly Package Contents Check the shipment for transport damage and completeness! The package should contain: • Front unit, rear unit, bag containing small parts • Specific test report • Documentation (cf Pg 3) • CD-ROM Fig.: Assembling the enclosure Jumper (3 x) Sealing insert (1 x) Washer (1 x), for conduit Rubber reducer (1 x)

  • Page 12: Mounting Plan, Dimensions

    Assembly Mounting Plan, Dimensions Cable gland (3 x) Knockouts for cable gland or ½" conduit, 21.5 mm dia. (2 knockouts) Conduits not included! Knockout for pipe mounting (4 x) Knockout for wall mounting (2 x) Fig.: Mounting plan (All dimensions in mm!)

  • Page 13: Pipe Mounting, Protective Hood

    Assembly Pipe Mounting, Protective Hood ø40...ø60 Hose clamp with worm gear drive to DIN 3017 (2 x) Pipe-mount plate (1 x) For vertical or horizontal posts or pipes Self-tapping screw (4 x) Fig.: ZU 0274 pipe-mount kit (All dimensions in mm!) Fig.: ZU 0737 protective hood for wall and pipe mounting (All dimensions in mm!)

  • Page 14: Panel Mounting

    Assembly Panel Mounting <30 Circumferential sealing (1 x) Screw (4 x) Position of control panel Span piece (4 x) Threaded sleeve (4 x) Cutout 138 x 138 mm (DIN 43700) 1...22 1...22 Fig.: ZU 0738 panel-mount kit (All dimensions in mm!)

  • Page 15: Installation

    Installation Installation Instructions • Installation of the device must be carried out by trained experts in accordance with this instruction manual and as per applicable local and national codes. • Be sure to observe the technical specifi cations and input ratings during installation! •...

  • Page 16: Rating Plates / Terminal Assignments

    Installation Rating Plates / Terminal Assignments Fig.: Terminal assignments of Stratos Pro A2... Fig.: Stratos Pro A2...N rating plate at outside bottom of front Fig.: Stratos Pro A2...X rating plate at outside bottom of front Important Notice: The operator must indicate the type of protection! When the device provides diff erent types of protection, the operator must specify the applied type of protection during installation.

  • Page 17: Wiring Of Stratos Pro A201/A211 Cond

    Installation Wiring of Stratos Pro A201/A211 COND Sensor connection MK-COND module I hi V hi V lo I lo RTD (GND) Areas for placing the screwdriver to pull out the terminals RTD (Sense) Shield HART Terminal row 1 Terminal row 2 supply hold RS 485 A...

  • Page 18: Wiring Examples

    Wiring Examples Example 1: Measuring task: Conductivity, temperature Sensors (principle): 4 electrodes Place jumper across F and G when a 2-wire temperature probe is used!
  • Page 19 Wiring Examples Example 2: Measuring task: Conductivity, temperature Sensors (principle): 2 electrodes, coaxial Jumper! Jumper! Jumper!
  • Page 20 Wiring Examples Example 3: Measuring task: Conductivity, temperature Sensors (example): SE 604 (Knick) Cable: Schaltbau cable Schaltbau connector...
  • Page 21 Wiring Examples Example 4: Measuring task: Conductivity, temperature Sensors (example): SE 630 (Knick) Connection via GDM connector connection...
  • Page 22 Wiring Examples Example 5: Measuring task: Conductivity, temperature Sensors (example): SE 600 / SE 603 4-EL fringe-fi eld sensor (Knick)
  • Page 23 Wiring Examples Example 6: Measuring task: Conductivity, temperature Sensor: Memosens The Memosens sensor is connected to the RS-485 interface of the device – for an A2... Series (2-wire) device, the measuring module slot must be empty. Therefore, fi rst remove the measuring module from the slot (see next page).

  • Page 25: Connection Of Memosens Sensor

    Connection of Memosens Sensor Caution! The slot for the MK-COND module must be empty – be sure to remove the module! Areas for placing the screwdriver to pull out the terminals HART Connection of Memosens: Wire color Power supply Brown RS 485 A Green RS 485 B...

  • Page 26: User Interface, Keypad

    User Interface, Keypad 1 IrDA transmitter/receiver 2 Display 3 Keypad 4 Rating plate (bottom) Function meas • Return to last menu level • Directly to measuring mode (press > 2 s) info • Retrieve information • Show error messages enter •...

  • Page 27: Display

    Display 1 Temperature 13 Info available 2 Sensocheck 14 HOLD mode active 3 Interval/response time 15 Main display 4 Sensor data 16 Secondary display 5 Not used 17 Proceed with enter 6 Limit values 18 Not used 7 Alarm 19 Diagnostics 8 Service 20 Confi guration mode 9 Parameter sets A/B...

  • Page 28: Measuring Mode

    Measuring Mode After the operating voltage has been connected and the sensor identi- fi ed, the device automatically goes to “Measuring“ mode. To call the measuring mode from another operating mode (e.g. Diagnostics, Service): Hold meas key depressed (> 2 s). Sensoface indicator Active (sensor status)

  • Page 29: Selecting The Mode / Entering Values

    Selecting the Mode / Entering Values To select the operating mode: Hold meas key depressed (> 2 s) (directly to measuring mode) Press any arrow key: the selection menu appears Select operating mode using left / right arrow key Press enter to confi rm the selected mode Selection menu Selected mode...

  • Page 30: Operating Modes

    Operating Modes Diagnostics Display of calibration data, display of sensor data, performing a device self-test, viewing the logbook entries, display of hardware/software versions of the individual components. The logbook can store 100 events (00...99). They can be displayed directly on the device. The logbook can be extended to 200 entries using a TAN (Option).

  • Page 31: Menu Structure Of Modes And Functions

    Menu Structure of Modes and Functions meas meas meas TAG display CLK display Measuring after 60 s after 60 s mode Pressing any arrow key opens the selection menu. Select the menu group using the left/right arrow keys. Press enter to open a menu. Press meas to return. Display of calibration data Display of sensor data Self test: RAM, ROM, EEPROM, module...

  • Page 32: Hold Mode

    HOLD Mode The HOLD mode is a safety state during confi guration and calibration. Output current is frozen (Last) or set to a fi xed value (Fix). The HOLD mode is indicated by orange display backlighting. HOLD mode, display icon: Output Signal Response •...

  • Page 33: Alarm

    Alarm External Activation of HOLD The HOLD mode can be activated from outside by sending a signal to the Hold input (e.g. from the process control system). Power supply 12...24 V AC/DC HOLD input Stratos Pro A2... Process control system (PCS) HOLD inactive 0...2 V AC/DC...

  • Page 34: Configuration

    Configuration Menu Structure of Confi guration The device provides 2 parameter sets “A“ and “B“. By switching between the parameter sets you can adapt the device to diff erent measurement situations, for example. Parameter set “B“ only permits setting of process-related parameters. The confi guration steps are assigned to diff erent menu groups.
  • Page 35 Confi guration Parameter Set A/B: Confi gurable Menu Groups (Some parameters are identical in A and B. They are confi gured in parameter set A only.) Menu group Parameter set A Parameter set B SENSOR Sensor selection OUT1 Current output 1 Current output 1 OUT2 Current output 2...

  • Page 36: Parameter Set A/B

    Confi guration Parameter Set A/B Manual selection Display Action Remark To switch between Manual selection of parameter sets must have parameter sets: been preset in CONFIG Press meas mode. Default setting is a fixed parameter set A. Wrong settings change the measurement proper- ties! PARSET blinks in the...
  • Page 37 Confi guration Confi guration Choices Default SENSOR SNS: 2-ELECTRODE 2-ELECTRODE 4-ELECTRODE MEMOSENS 2-EL / 4-EL CELLFACTOR 00.0000 - 01.0000 c 19.9999 c MEAS MODE Cond COND Conc % Sal ‰ USP μS/cm Cond MEAS RANGE x.xxx μS/cm xxx.x mS/cm xx.xx μS/cm xxx.x μS/cm xxxx μS/cm x.xxx mS/cm...
  • Page 38 Confi guration Confi guration Choices Default SENSOR SNS: CIP COUNT ON/OFF SIP COUNT ON/OFF Output 1 (OUT1) OT1: CHANNEL COND/TMP COND OUTPUT (with Cond only) LIN / LOG BEGIN 4mA xxxx 000.0 mS/cm END 20 mA xxxx 100.0 mS/cm BEGIN 4mA Decades END 20 mA Decades...
  • Page 39 Confi guration Confi guration Choices Default Output 2 (OUT2) OT2: CHANNEL COND/TMP Begin: 0 °C End: 100 °C ... other steps like output 1 Temperature compensation (CORRECTION) COR: TC SELECT NaCl TC LIQUID 00.00...19.99%/K 00.00%/K I-INPUT 0...20 mA/4...20 mA 4...20 mA °C BEGIN 4 mA –50...200 °C...
  • Page 40 Confi guration Confi guration Choices Default Parameter set (PARSET) Select fixed parameter set PARSET FIX / PARSET FIX (A) or switch between A/B CNTR INPUT / (fixed parameter via control input or manu- MANUAL set A) ally in measuring mode Real-time clock (CLOCK) CLK: FORMAT...

  • Page 41: Configuration (Original For Copy)

    Configuration (Original for Copy) Default Settings of Parameter Sets Two complete parameter sets are stored in the EEPROM. As delivered, the two sets are identical but can be edited. Please note: Fill in your confi guration data on the following pages or use them as original for copy.
  • Page 42 Confi guration (Original for Copy) Parameter Parameter set A Parameter set B SNS: Sensor type SNS: Cell constant SNS: Measuring mode SNS: Measuring range SNS: Concentration determination SNS: Temperature unit SNS: Temp detection SNS: Manual temp SNS: RTD type SNS: CIP counter SNS: SIP counter OT1: Process variable OT1: LIN/LOG output...
  • Page 43 (Original for Copy) Confi guration Parameter Parameter set A Parameter set B OT2: Process variable OT2: LIN/LOG output OT2: Current start OT2: Current end OT2: Filter time OT2: 22 mA error current OT2: HOLD mode OT2: HOLD-FIX current COR: TC SELECT COR: Temp coefficient COR: Current range COR: Current start...

  • Page 44: Sensor

    Confi guration Sensor Selecting the parameters Press any arrow key. Select CONF using keys, press enter. Select parameter set using keys, press enter. Select SENSOR menu using keys, press enter. All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, enter edit with arrow keys (see next page).
  • Page 45 Confi guration Menu item Action Choices Select sensor type Select sensor type using 2-ELECTRODE keys. 4-ELECTRODE MEMOSENS Press enter to confirm. Enter cell constant 00.0000...19.9999 c Modify digit using (01.0000 c) keys, select next digit using keys. Press enter to confirm. Select meas.
  • Page 46 Confi guration Sensor Select: Temperature unit, temperature detection, type of temp probe Press any arrow key. Select CONF using keys, press enter. Select parameter set using keys, press enter. Select SENSOR menu using keys, press enter. All items of this menu group are indicated by the “SNS:”...
  • Page 47 Confi guration Menu item Action Choices Temperature unit °C / °F Select °C or °F using keys. Press enter to confirm. Temp detection AUTO Select mode using AUTO: Measured by sensor MAN: Direct input of temperature, no measure- ment (see next step) EXT: Temperature speci- fied via current input (only if TAN E enabled)
  • Page 48 Confi guration Sensor Adjust: Cleaning cycles, sterilization cycles Press any arrow key. Select CONF using keys, press enter. Select parameter set using keys, press enter. Select SENSOR menu using keys, press enter. All items of this menu group are indicated by the “SNS:”...
  • Page 49 Confi guration Menu item Action Choices CIP / SIP Cleaning cycles Select ON or OFF using ON/OFF keys. On / Off Activates/deactivates log- ging in extended logbook Press enter to confirm. Sterilization cycles Select ON or OFF using ON/OFF keys. On / Off Activates/deactivates log- ging in extended logbook...

  • Page 50: Current Output 1

    Confi guration Current Output 1 Process variable, current start, current end Press any arrow key. Select CONF using keys, press enter. Select parameter set using press enter. Select OUT1 menu using keys, press enter. All items of this menu group are indicated by the “OT1:”...
  • Page 51 Confi guration Menu item Action Choices Process variable Cond/TMP Select using keys: Cond: Conductivity TMP: Temperature Press enter to confirm. Select LIN/LOG Selectable decades with Select using keys: logarithmic setting (LOG): LIN: Linear characteristic S/cm: 1.0 µS/cm, 10.0 µS/cm, LOG: Logarithmic – 100.0 µS/cm, 1.0 mS/cm, See right column for 10.0 mS/cm, 100.0 mS/cm,...
  • Page 52 Confi guration Current Output 1 Adjust time interval of output fi lter Press any arrow key. Select CONF using keys, press enter. Select parameter set using keys, press enter. Select OUT1 menu using keys, press enter. All items of this menu group are indicated by the “OT1:”...
  • Page 53 Confi guration Menu item Action Choices Time averaging 0...120 SEC Enter value using (0000 SEC) keys. fi lter Press enter to confirm. Time Averaging Filter (Attenuation) To smoothen the current output, a low-pass fi lter with adjustable fi lter time constant can be switched on. When there is a jump at the input (100 %), the output level is at 63 % after the time interval has been reached.
  • Page 54 Confi guration Current Output 1 Output current during Error and HOLD Press any arrow key. Select CONF using keys, press enter. Select parameter set using keys, press enter. Select OUT1 menu using keys, press enter. All items of this menu group are indicated by the “OT1:”...
  • Page 55 Confi guration Menu item Action Choices Output current dur- Select ON or OFF using ON/OFF keys. ing error message Press enter to confirm. Output current LAST: During HOLD the LAST/FIX last measured value is during HOLD maintained at the output. FIX: During HOLD a value (to be entered) is main- tained at the output.

  • Page 56: Current Output 2

    Confi guration Current Output 2 Output current range, process variable Press any arrow key. Select CONF using keys, press enter. Select parameter set using keys, press enter. Select OUT2 menu using keys, press enter. All items of this menu group are indicated by the “OT2:”...
  • Page 57 Confi guration Menu item Action Choices Process variable Cond/TMP Select using keys: Begin: 0 °C Cond: Conductivity End: 100°C TMP: Temperature Press enter to confirm. All the following adjustments are made as for current output 1 (see there)!

  • Page 58: Temperature Compensation

    Confi guration Temperature Compensation Selecting the compensation method Press any arrow key. Select CONF using keys, press enter. Select parameter set using keys, press enter. Select CORRECTION menu using keys, press enter. All items of this menu group are indicated by the “COR:”...
  • Page 59 Confi guration Menu item Action Choices Temperature Select desired compensa- tion using keys: compensation OFF: Temperature com- pensation switched off LIN: Linear temperature compensation with entry of temperature coef- ficient nLF: Temperature compensation for natural waters to EN 27888 NaCl: Temperature compensation for ultrapure water with NaCl traces...
  • Page 60 Confi guration Temperature Compensation TC process medium, current input for temp measurement Press any arrow key. Select CONF using keys, press enter. Select parameter set using keys, press enter. Select CORRECTION menu using keys, press enter. All items of this menu group are indicated by the “COR:”...
  • Page 61 Confi guration Menu item Action Choices Temp compensation, With linear compensation 0...19.99 %/K only: Enter temperature process medium compensation of the process medium. Enter value using keys. Press enter to confirm. Current range Select desired range 4-20 mA / 0-20 mA using keys.

  • Page 62: Alarm Settings

    Confi guration Alarm Settings Delay, Sensocheck Press any arrow key. Select CONF using keys, press enter. Select parameter set using keys, press enter. Select ALARM menu using keys, press enter. All items of this menu group are indicated by the “ALA:” code. Press enter to select menu, enter edit with arrow keys (see next page).
  • Page 63 Confi guration Menu item Action Choices Delay 0...600 SEC Enter value using (010 SEC) keys. Press enter to confirm. Sensocheck Select Sensocheck ON/OFF (continuous monitoring of sensor). Select ON or OFF using keys. Press enter to confirm. Error messages can be signaled by a 22 mA output current (see Error Messages and Confi guration of Output 1/Output 2).

  • Page 64: Time And Date

    Confi guration Time and Date Tag Number Press any arrow key. Select CONF using keys, press enter. Select parameter set A using keys, press enter. 4 Press enter. Select CLOCK or TAG using keys, press enter. All items of this menu group are indicated by the “CLK:”...
  • Page 65 Confi guration Time and Date Control of the calibration and cleaning cycles is based on the time and date of the integrated real-time clock. In measuring mode the time is shown in the lower display. When using digital sensors, the calibration data is written in the sensor head.

  • Page 66: Digital Sensors

    Digital Sensors Operation Stratos Pro can be operated with digital Memosens sensors. The following display examples refer to a transmitter and a digital sensor (slight variations for other combinations). The sensor type is selected during Confi guration. The device only switches to measuring mode when the connected sensor corresponds to the type confi gured (Sensoface is friendly): Otherwise, an error message is released.

  • Page 67: Connecting A Digital Sensor

    Digital Sensors Connecting a Digital Sensor Step Action/Display Remark Before a digital sensor is connected, the error message „No sensor“ is displayed. Connect sensor Wait until the sensor The hourglass in the display blinks. data are displayed. Check sensor data Display color changes to green.

  • Page 68: Sensor Replacement

    Digital Sensors Sensor Replacement A digital sensor should only be replaced during HOLD mode to pre- vent unintended reactions of the outputs or contacts. When you fi rst want to calibrate the new sensor, it can also be replaced in calibration mode.
  • Page 69 Digital Sensors Step Action/Display Remark You can view the sensor Check sensor data type, serial number, and last calibration date. View sensor infor- mation using keys, press enter to confi rm. Check measured values Exit HOLD Hit meas key: Return The sensor replacement is entered in the extended to selection menu.

  • Page 71: Calibration

    Calibration Please note: • All calibration procedures must be performed by trained person- nel. Incorrectly set parameters may go unnoticed, but change the measuring properties. Calibration can be performed by: • Determining the cell constant with a known calibration solution •...

  • Page 72: Calibration With Calibration Solution

    Calibration with Calibration Solution Input of temperature-corrected value of calibration solution with simultaneous display of cell constant Display Action Remark Select Calibration. Press enter to proceed. Select CAL_SOL calibration method. Press enter to proceed. Ready for calibration. Display (3 sec) Hourglass blinks.
  • Page 73 Calibration with Calibration Solution Display Action Remark Display of selected process variable (here: mS/cm). Now the device is in HOLD mode: Reinstall the sensor and check whether the message is OK. MEAS ends calibration, REPEAT permits repetition. With MEAS selected: Display of conductiv- End calibration by ity and temperature,...

  • Page 74: Calibration By Entry Of Cell Constant

    Calibration by Entry of Cell Constant You can directly enter the value for the cell constant of a sensor. This value must be known, e.g. determined beforehand in the laboratory. The selected process variable and the temperature are displayed. Display Action Remark Select Calibration.

  • Page 75: Product Calibration

    Product Calibration Calibration by sampling – for product calibration, the uncompensated conductivity (μS/cm, mS/cm, S/m) is used. During product calibration the sensor remains in the process. The measurement process is only interrupted briefl y. Procedure: The sample is measured in the lab or directly on the site using a por- table meter.
  • Page 76 Product Calibration Display Action Remark The device returns to From the blinking measuring mode. CAL mode indicator you see that product calibration has not been terminated. Product calibration Display (3 sec) step 2: Now the device is in When the sample value HOLD mode.

  • Page 77: Temp Probe Adjustment

    Temp probe adjustment Temp Probe Adjustment Display Action Remark Select Calibration. Wrong settings Press enter to proceed. change the Select CAL_RTD measurement calibration method. properties! Press enter to proceed. Measure the tempera- Display (3 sec) ture of the process Now the device is in medium using an HOLD mode.

  • Page 78: Measurement

    Measurement Display Remark From the confi guration or calibration menus, you can switch the device to measuring mode by pressing the meas key. In the measuring mode the main display shows the confi gured process variable (Cond or AM/PM and °F: or temperature), the secondary display shows the time and the second confi gured process variable (Cond or temperature).

  • Page 79: Diagnostics

    Diagnostics (DIAG) Diagnostics In the Diagnostics mode you can access the following menus without interrupting the measurement: CALDATA Viewing the calibration data SENSOR Viewing the sensor data SELFTEST Starting a device self-test LOGBOOK Viewing the logbook entries MONITOR Displaying currently measured values VERSION Displaying device type, software version, serial number Access to diagnostics can be protected with a passcode...
  • Page 80 Diagnostics Menu item Remark Display of calibration data Select CALDATA using , press enter to confirm. Use the keys to select the desired parameter from the bottom line of the display (LAST_CAL CELLFACTOR ZERO). The selected parameter is shown in the main display. Press meas to return to measurement.
  • Page 81 Diagnostics Display Menu item Device self-test (To abort, you can press meas.) 1 Display test: Display of all segments with changing background colors white/green/red. Press enter to proceed. 2 RAM test: Hourglass blinks, then display of --PASS-- or --FAIL-- Press enter to proceed. 3 EEPROM test: Hourglass blinks, then display of --PASS-- or --FAIL-- Press enter to proceed.
  • Page 82 Diagnostics Menu item Remark Display of logbook entries. Select LOGBOOK using , press enter to confirm. By using the keys, you can scroll backwards and forwards through the logbook (entries -00-...-99-), -00- being the last entry. By using the keys, you can view a logbook entry. Press meas to return to measurement.
  • Page 83 Diagnostics Display Remark Version Here, you find the data you require for requesting a device-specific Option. Display of device type, software/hardware version, and serial number for all device components. Use the keys to switch between software and hardware version. Press enter to proceed to next device component.

  • Page 84: Service

    Service (SERVICE) A Service In the Service mode you can access the following menus: MONITOR displaying currently measured values OUT1 testing current output 1 OUT2 testing current output 2 IRDA activating and communicating via the IrDA interface CODES assigning and editing passcodes DEFAULT resetting the device to factory settings OPTION...
  • Page 85 Service Menu item Remark Display of currently measured values ( sensor monitor) with HOLD mode activated: Select MONITOR using , press enter to confirm. Select variable in the bottom text line using The selected parameter is shown in the main display. Display example: As the device is in HOLD mode, you can perform validations using simulators without influencing the...
  • Page 86 Service Menu item Remark Assigning passcodes: In the “SERVICE - CODES“ menu you can assign pass- codes to DIAG, HOLD, CAL, CONF, and SERVICE modes (Service preset to 5555). When you have lost the Service passcode, you have to request an “ Ambulance TAN“ from the manufac- turer specifying the serial number of your device.

  • Page 87: Usp Function

    USP Function According to the "USP" directive (U.S.Pharmacopeia), Section 645 "Water Conductivity" the conductivity of pharmaceutical waters can be monitored online. To do so, the conductivity is measured without temperature compensation and is compared with limit values (see table on next page). The water is usable when the conductivity is below the USP limit.

  • Page 89: Operating States

    Operating states Operating States Operating status Measuring Diag 60 s CAL_SOL Cal solution CAL_CELL Cell constant P_CAL Product cal S1 P_CAL Product cal S2 CAL_RTD Temp adjustment CONF ParSet A CONF ParSet B HOLD input Explanation: as configured (Last/Fix) active...

  • Page 90: Product Line And Accessories

    Product Line and Accessories Order Code Stratos Pro A 2... Example 2-wire / 4-20 mA B,C,E Communication Without (HART retrofittable via TAN) 0 HART PROFIBUS PA Foundation Fieldbus FF Version number Version Approvals General Safety ATEX / IECEX Zone 2 ATEX / IECEX / FM / CSA Zone 1 / Cl 1 Div 1 Other approvals Measuring channel...

  • Page 91: A201/A211X: Supply Units And Connection

    A201/A211X: Supply Units and Connection Recommended Power Supply Units: Order No.: Repeater power supply, IS, 24 V AC/DC, WG 20 A2 output 0/4...20 mA Repeater power supply, IS, 90...253 V AC, WG 21 A7 output 4...20 mA Repeater power supply, IS, 90...253 V AC, WG 21 A7 Opt.

  • Page 92: Specifications

    Specifications COND input Input for 2-/4-electrode sensors and Memosens sensors Eff ective ranges 2-EL sensors 0.2 µS · c … 200 mS · c 4-EL sensors 0.2 µS · c … 1000 mS · c (Conductance limited to 3500 mS) Ranges Conductivity 0.000 ...
  • Page 93 Specifi cations Sensor standardization Input of cell constant with simultaneous display of selected process variable and temperature Input of conductivity of calibration solution with simultaneous display of cell constant and temperature Product calibration for conductivity Temperature probe adjustment –1 Permitted cell constant 00.0050 ...
  • Page 94 Specifi cations HOLD input Galvanically separated (OPTO coupler) Function Switches device to HOLD mode Switching voltage 0 ... 2 V (AC/DC) HOLD inactive 10 ... 30 V (AC/DC) HOLD active CONTROL input Galvanically separated (OPTO coupler) Function Selecting parameter set A/B Switching voltage 0 ...
  • Page 95 Specifi cations Start/end of scale Confi gurable within selected range Minimum span 5% of selected range 1 decade Real-time clock Diff erent time and date formats selectable Power reserve > 5 days Display LC display, 7-segment with icons Main display Character height approx.
  • Page 96 Specifi cations Diagnostics functions Calibration data Calibration date, cell constant Device self-test Displaytest, automatic memory test (RAM, FLASH, EEPROM), module test Logbook 100 events with date and time Extended logbook (TAN) Audit Trail: 200 events with date and time Service functions Sensor monitor Display of direct sensor signals Current source...
  • Page 97 Specifi cations Nominal operating conditions Ambient temperature –20 ... +65 °C Transport/Storage temperature –20 ... +70 °C Relative humidity 10 ... 95% not condensing Supply voltage 14 ... 30 V Enclosure Molded enclosure made of PBT/PC, glass reinforced Fastening Wall, pipe/post, or panel mounting Color Gray, RAL 7001 Ingress protection...

  • Page 98: Calibration Solutions

    Calibration Solutions Potassium Chloride Solutions (Conductivity in mS/cm) Temperature Concentration [˚C] 0.01 mol/l 0.1 mol/l 1 mol/l 0.776 7.15 65.41 0.896 8.22 74.14 1.020 9.33 83.19 1.147 10.48 92.52 1.173 10.72 94.41 1.199 10.95 96.31 1.225 11.19 98.22 1.251 11.43 100.14 1.278 11.67...
  • Page 99 Calibration Solutions Sodium Chloride Solutions (Conductivity in mS/cm) Temperature Concentration [˚C] 0.01 mol/l 0,1 mol/l Saturated 0.631 5.786 134.5 0.651 5.965 138.6 0.671 6.145 142.7 0.692 6.327 146.9 0.712 6.510 151.2 0.733 6.695 155.5 0.754 6.881 159.9 0.775 7.068 164.3 0.796 7.257 168.8...

  • Page 100: Concentration Curves

    Concentration Curves -01- Sodium chloride solution NaCl χ [mS/cm] [°C] c [Gew%] c [% by wt] Conductivity versus substance concentration and process temperature for sodium chloride solution (NaCl)
  • Page 101 Concentration Curves -02- Hydrochloric acid HCl χ [mS/cm] [°C] 1000 c [Gew%] c [% by wt] Conductivity versus substance concentration and process temperature for hydrochloric acid (HCl) Source: Haase/Sauermann/Dücker; Z. phys. Chem. New Edition, Vol. 47 (1965)
  • Page 102 Concentration Curves -03- Sodium hydroxide solution NaOH χ [mS/cm] [°C] 1000 c [Gew%] c [% by wt] Conductivity versus substance concentration and process temperature for sodium hydroxide solution (NaOH)
  • Page 103 Concentration Curves -04- Sulfuric acid H χ [mS/cm] [°C] 93,3 82,2 71,1 60,0 48,9 37,8 26,7 15,6 c [Gew%] c [% by wt] Conductivity versus substance concentration and process temperature for sulfuric acid (H Source: Darling; Journal of Chemical and Engineering Data; Vol.9 No.3, July 1964...
  • Page 104 Concentration Curves -05- Nitric acid HNO χ [mS/cm] [°C] c [Gew%] c [% by wt] Conductivity versus substance concentration and process temperature for nitric acid (HN0 Source: Haase/Sauermann/Dücker; Z. phys. Chem. New Edition, Vol. 47 (1965)

  • Page 105: Error Handling

    Error Handling Alarm condition: • The display backlighting turns • The alarm icon is displayed • The complete measured-value display blinks • ERR xxx“ is displayed in the lower menu line “ Press the [info] key to view a short error text: •...

  • Page 106: Error Messages

    Error codes Error Messages Info text Problem (is displayed in case of Error fault when the Info key is Possible causes pressed) ERR 99 DEVICE FAILURE Error in factory settings EEPROM or RAM defective This error message only occurs in the case of a total defect. The device must be repaired and recalibrated at the factory.
  • Page 107 Error Messages Info text Problem (is displayed in case of Error fault when the Info key is Possible causes pressed) ERR 10 CONDUCTANCE TOO HIGH Measuring range of conductance exceeded > 3500 mS/cm ERR 11 Display range violation CONDUCTIVITY RANGE Cond >...

  • Page 108: Sensoface

    Sensoface (Sensocheck must have been activated during confi guration.) The smiley in the display (Sensoface) alerts to sensor problems (defective sensor, sensor wear, defective cable, maintenance request). The permitted calibration ranges and the conditions for a friendly, neutral, or sad Sensoface are summarized in the following table.
  • Page 109 Sensoface Display Problem Status Sensor defect – Not for Memosens – Wrong or defective sensor, sig- nifi cant polarization of sensor, or excessive cable capacitance (see also error message Err 15). Temperature Temperature outside range for TC, conc, sal...

  • Page 110: Ec Declaration Of Conformity

    EC Declaration of Conformity...
  • Page 111 EC Declaration of Conformity...

  • Page 112: Stratos Pro A2

    Stratos Pro A2... X COND: Control Drawings...
  • Page 113 Stratos Pro A2... X COND: Control Drawings...

  • Page 114: Fm Control Drawing

    FM Control Drawing...

  • Page 115: Csa Control Drawing

    CSA Control Drawing...

  • Page 116: Fda 21 Cfr Part 11

    FDA 21 CFR Part 11 Conformity with FDA 21 CFR Part 11 In their directive “Title 21 Code of Federal Regulations, 21 CFR Part 11, Electronic Records; Electronic Signatures“ the US American health agency FDA (Food and Drug Administration) regulates the production and processing of electronic documents for pharmaceutical devel- opment and production.

  • Page 117: Index

    Index Access codes 116, 124 Accessories 90 Alarm 33 Alarm settings 62 Ambulance TAN 86 Application in hazardous locations 15 Approvals for application in hazardous locations 9, 96 Assembly 11 Audit Trail 116 Autorange 51 Backlighting 27 Calibration 30, 71 Calibration by entry of cell constant 74 Calibration error 105 Calibration with calibration solution 72...
  • Page 118 Index Configuration 30 Alarm 62 Current output 1 50 Current output 2 56 Individual configuration data 41 Menu groups 35 Menu structure 34 Sensor 44 Tag number 64 Temperature compensation 58 Time and date 64 Connection to supply units 91 Control Drawings 112 CSA Control Drawings 115 Current start/end 51...
  • Page 119 Index Disposal 2 Documentation 3 EC Declaration of Conformity 110 EEPROM test 81 Electronic Signature 116 Enclosure 12 Enclosure components 11 Entering values 29 Error handling 105 Error messages 106 Explosion protection 96 Extended logbook 116 FDA 21 CFR Part 11 116 FLASH test 81 FM Control Drawings 114 HOLD 30, 32...
  • Page 120 Index Logbook 82 Measurement 78 Measuring 28 Memosens sensor Connection via RS-485 23, 25 Menu structure 31 Configuration 34 Module test 81 Mounting plan 12 Operating modes 30 Operating mode, selection 29 Operating states 89 Option request: Conditions 83 Options 86, 90 Order code 90 Output current, fixed value 85 Output filter 52...
  • Page 121 Index Product calibration 75 Product line 90 Protective hood 13 RAM test 81 Rating plates 16 Registered trademarks 123 Release of options 86 Reset to factory settings 86 Return of products under warranty 2 Safety information 7, 8 Safety instructions 3 Selection menu 29 Sensocheck 62, 108 Configuration 63...
  • Page 122 Index Tag number (TAG) 65 TAN options 86, 90 Temperature compensation 59, 61 Temperature detection 46 Temperature probe 77 Terminal assignments 16 Terminals 9, 15, 16 Time 65 Display 78 Time averaging filter 53 Trademarks 123 User interface 26 USP function 87 Warranty 2 Wiring 17 Power supply units 91...

  • Page 123: Trademarks

    Stratos® Sensocheck® Sensoface® Calimatic® GainCheck® InPro® is a registered trademark of Mettler-Toledo. Memosens® is a registered trademark of Endress+Hauser Conducta GmbH and Knick Elektronische Messgeräte GmbH & Co. KG. HART® is a registered trademark of the HART Communication Foundation.

  • Page 124: Passcodes

    Confi guration (CONF) Knick Elektronische Messgeräte GmbH & Co. KG P.O. Box 37 04 15 D-14134 Berlin Tel: +49 (0)30 - 801 91 - 0 Fax: +49 (0)30 - 801 91 - 200 Internet: http://www.knick.de knick@knick.de TA-212.125-KNE01 20090406 Software version: 1.x...

This manual is also suitable for:

Stratos pro a211n condStratos pro a201n condStratos pro a211x cond
