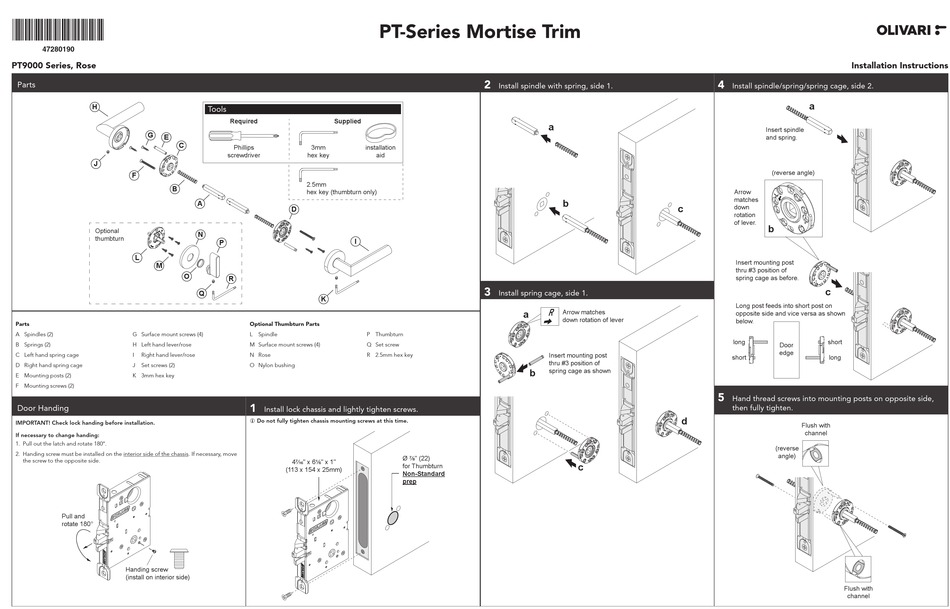

Allegion Olivari PT Series Installation Instructions

*47280190*
47280190
PT9000 Series, Rose
Parts
H
G
E
C
J
F
B
Optional
thumbturn
L
M
O
Parts
A Spindles (2) G Surface mount screws (4)
B Springs (2) H Left hand lever/rose
C Left hand spring cage I Right hand lever/rose
D Right hand spring cage J Set screws (2)
E Mounting posts (2) K 3mm hex key
F Mounting screws (2)
Door Handing
IMPORTANT! Check lock handing before installation.
If necessary to change handing:
1. Pull out the latch and rotate 180°.
2. Handing screw must be installed on the interior side of the chassis. If necessary, move
the screw to the opposite side.
Pull and
rotate 180°
Handing screw
(install on interior side)
Tools
Required Supplied
Phillips 3mm installation
screwdriver hex key aid
2.5mm
hex key (thumbturn only)
A
D
N
I
P
R
Q
K
Optional Thumbturn Parts
L Spindle P Thumbturn
M Surface mount screws (4) Q Set screw
N Rose R 2.5mm hex key
O Nylon bushing
1
Install lock chassis and lightly tighten screws.
L Do not fully tighten chassis mounting screws at this time.
4⁷⁄₁₆" x 6¹⁄₆" x 1"
(113 x 154 x 25mm)
PT-Series Mortise Trim
2
Install spindle with spring, side 1.
a
3
Install spring cage, side 1.
a
Insert mounting post
thru #3 position of
b spring cage as shown
Ø ⁷⁄₈" (22)
for Thumbturn
Non-Standard
prep
4
Install spindle/spring/spring cage, side 2.
Arrow
matches
b
c down
rotation
of lever.
Insert mounting post
thru #3 position of
spring cage as before.
Long post feeds into short post on
Arrow matches
opposite side and vice versa as shown
down rotation of lever
below.
long
short
5
Hand thread screws into mounting posts on opposite side,
then fully tighten.
d
c
Installation Instructions
a
Insert spindle
and spring.
(reverse angle)
b
c
short
Door
edge
long
Flush with
channel
(reverse
angle)
Flush with
channel
