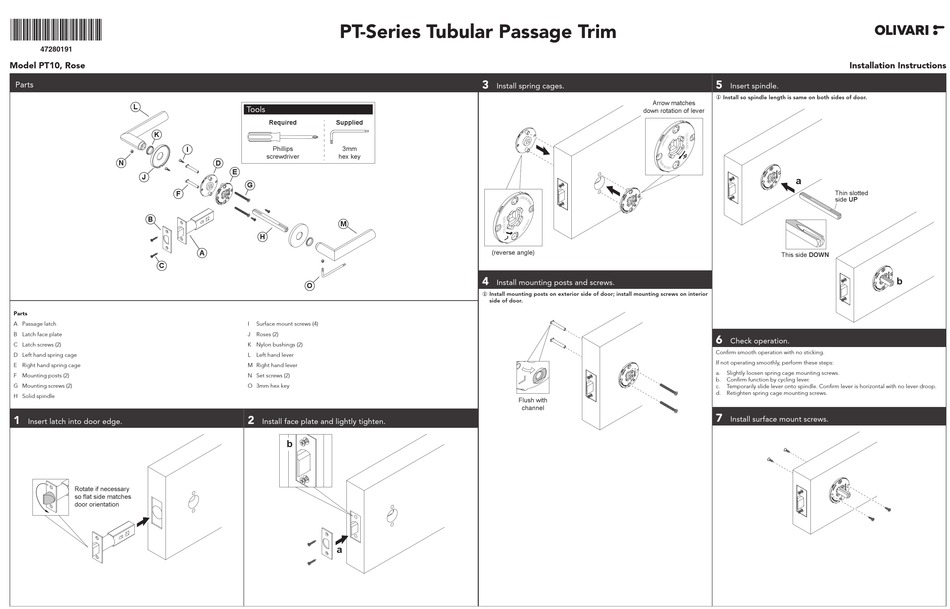

Allegion Olivari PT Series Installation Instructions Manual

*47280191*
47280191
Model PT10, Rose
Parts
L
K
I
N
J
F
B
C
Parts
A Passage latch
B Latch face plate
C Latch screws (2)
D Left hand spring cage
E Right hand spring cage
F Mounting posts (2)
G Mounting screws (2)
H Solid spindle
1
Insert latch into door edge.
Rotate if necessary
so flat side matches
door orientation
PT-Series Tubular Passage Trim
Tools
Required Supplied
Phillips 3mm
screwdriver hex key
D
E
G
M
H
A
O
I Surface mount screws (4)
J Roses (2)
K Nylon bushings (2)
L Left hand lever
M Right hand lever
N Set screws (2)
O 3mm hex key
2
Install face plate and lightly tighten.
b
a
3
Install spring cages.
Arrow matches
down rotation of lever
(reverse angle)
4
Install mounting posts and screws.
L Install mounting posts on exterior side of door; install mounting screws on interior
side of door.
Flush with
channel
Installation Instructions
5
Insert spindle.
L Install so spindle length is same on both sides of door.
a
Thin slotted
side UP
This side DOWN
b
6
Check operation.
Confirm smooth operation with no sticking.
If not operating smoothly, perform these steps:
a. Slightly loosen spring cage mounting screws.
b. Confirm function by cycling lever.
c. Temporarily slide lever onto spindle. Confirm lever is horizontal with no lever droop.
d. Retighten spring cage mounting screws.
7
Install surface mount screws.
