  • Page 1 NetworkOnCard IF‑191 Server Cabinet Lock FA-191-xxx...
  • Page 2: Table Of Contents

    1 General information.......................... 1.1 Short description ......................... 1.2 Range of functions ........................1.3 Scope of delivery ........................1.4 Intended use ..........................1.5 Target group ..........................1.6 Safety and security instructions ....................2 Initial operation ..........................2.1 Programming ..........................2.2 Mounting to cabinet........................3 Operation ............................
  • Page 3: General Information

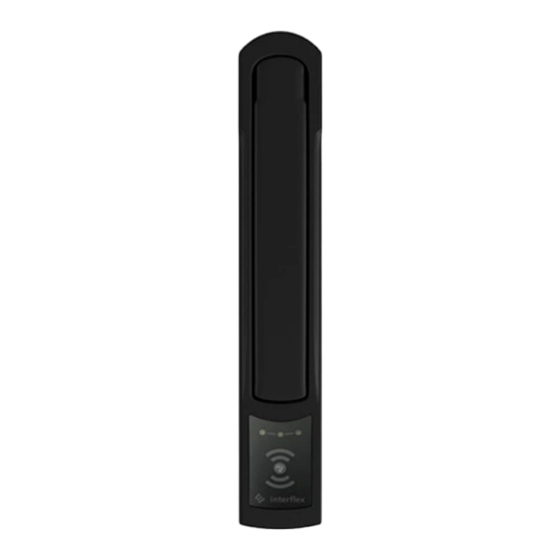

    General information 1 General information 1.1 Short description Server cabinets generally contain high-value equipment and sensitive data that must be protected. The ISO 27001 standard for information security requires that only authorized people have access to server cabinets and that every access is logged. The electronic IF-191 Server Cabinet Lock is the ideal solution to meet the highest levels of security for a wide variety of applications in a simple and cost-effective way.
  • Page 4: Range Of Functions

    General information If the backset does not correspond to the standard dimensions, use the order tool before placing an order or get in touch with your contact person at Interflex. Order tool 1.2 Range of functions Main functions of the IF-191 Server Cabinet Lock: Time-controlled access checks Automatic switchover to daylight-saving/standard time Control via time profiles from IF-6040 and IF-6020 access control systems...
  • Page 5: Target Group

    General information 1.5 Target group This document is solely intended for experts and people trained in electrical engineering. Only perform the actions described in this document if you belong to this target group. Interflex Datensysteme GmbH is not liable for any damages caused by improper installation or initial operation.
  • Page 6: Initial Operation

    Initial operation 2 Initial operation 2.1 Programming The programming of NoC components is described in the Interflex offline components document. 2.2 Mounting to cabinet The Server Cabinet Lock can be mounted to all standard server cabinets. In addition, Interflex offers adapters for other server cabinets that are not compatible with the rotary locking mechanism.
  • Page 7 Initial operation Standard Server Cabinet Lock Fastening screws Lock housing Grooves/tapped holes Server Cabinet Lock LAN socket for PoE Retaining clip with screw Cover cap, long Cover cap, short Fastening screw for locking spindle To mount the Server Cabinet Lock on a standard cabinet, proceed as follows: 1.
  • Page 8 Initial operation 2. Hang the Server Cabinet Lock in the cutout on the door and press the spindle into the locking mechanism 3. Screw the locking mechanism to the Server Cabinet Lock from the inside of the door using screws ©...
  • Page 9 Initial operation 4. Fasten the retaining clip with screw 5. Place the lock housing on the spindle and fasten it to As an alternative, the locking mechanism on the cabinet can be used instead of the provided lock housing. 6. Insert the matching cover cap on the top and push it down into the retaining plate until it clicks into place.
  • Page 10 Initial operation 7. Connect the Server Cabinet Lock to the power supply via The Server Cabinet Lock can alternatively be connected to power via the USB C socket on the bottom of the device. The connection is protected by a cover. ©...
  • Page 11 Initial operation Rittal Server Cabinet Lock Changing the rotation direction of the handle The preset rotation direction can be changed: 1. Remove screws 2. Remove cover plate 3. Remove gear plate and turn it around to make the row of teeth run on the other side of the gearwheel 4.
  • Page 12 Initial operation Modulan Server Cabinet Lock Prerequisites ü Locking spindle 060TLR03 ü Mounting material Base adapter 060TLR67 4 washers with an inside diameter of 10mm Mounting material of the original lock (spindle extension) Procedure After pre-assembly, proceed as described for the standard cabinet. Vertiv Server Cabinet Lock Top linkage holder 2 mounting screws for offset drive...
  • Page 13: Operation

    Operation Procedure 1. Remove screws from top linkage holder 2. Remove top linkage and separate from bottom linkage at bottom joint 3. Remove lock 4. After pre-assembly, proceed as described for the standard cabinet When positioning the Server Cabinet Lock, insert the spigot of the offset linkage into the recess provided: 3 Operation The signaling is described in the sections...
  • Page 14: Opening Doors

    Operation 3.1 Opening doors To open a door that is secured with an NoC component, hold the credential in the read area of the NoC component. LEDs and tone indicate the status of the booking: Visual signal Audible signal Description Green Configurable with door initialization card Authorized credential...
  • Page 15: Maintenance, Cleaning, And Disinfection

    Maintenance, cleaning, and disinfection 4 Maintenance, cleaning, and disinfection NOTICE Property damage due to improper cleaning Use of inappropriate cleaning agents may damage the device. Do not use any aggressive cleaning agents or disinfectants for cleaning. If necessary, clean the surface with a soft, damp cloth. Only use disinfection agents that are specifically intended for disinfecting sensitive metallic surfaces and plastics.
  • Page 16: Disposal

    The original manual is in German. Other languages are translations of the original manual. Interflex Datensysteme GmbH +49 711 1322 - 0 Zettachring 16 interflex.info@allegion.com 70567 Stuttgart, Germany www.interflex.de...
