BEFORE ATTEMPTING TO INSTALL LOCK, READ ALL
INSTRUCTIONS AND LAY PARTS OUT AS SHOWN IN
FIGURE 7A OR 7B
FOLD ALONG EDGE OF DOOR
© Allegion 2014
Printed in U.S.A.
002103-000-70 Rev. 10/14-d
1
holes and side holes (follow
template instructions)
2
face and 1" dia. hole in
edge of door per template
instructions
3
keeping its face parallel to
face of door. Mark outline of
latch face and remove latch
4
deep or until latch face
Install with
is flush with door edge.
A on Top
5
with two (2) No. 7 x ³⁄₄" wood
screws. Tighten screws.
IMPORTANT

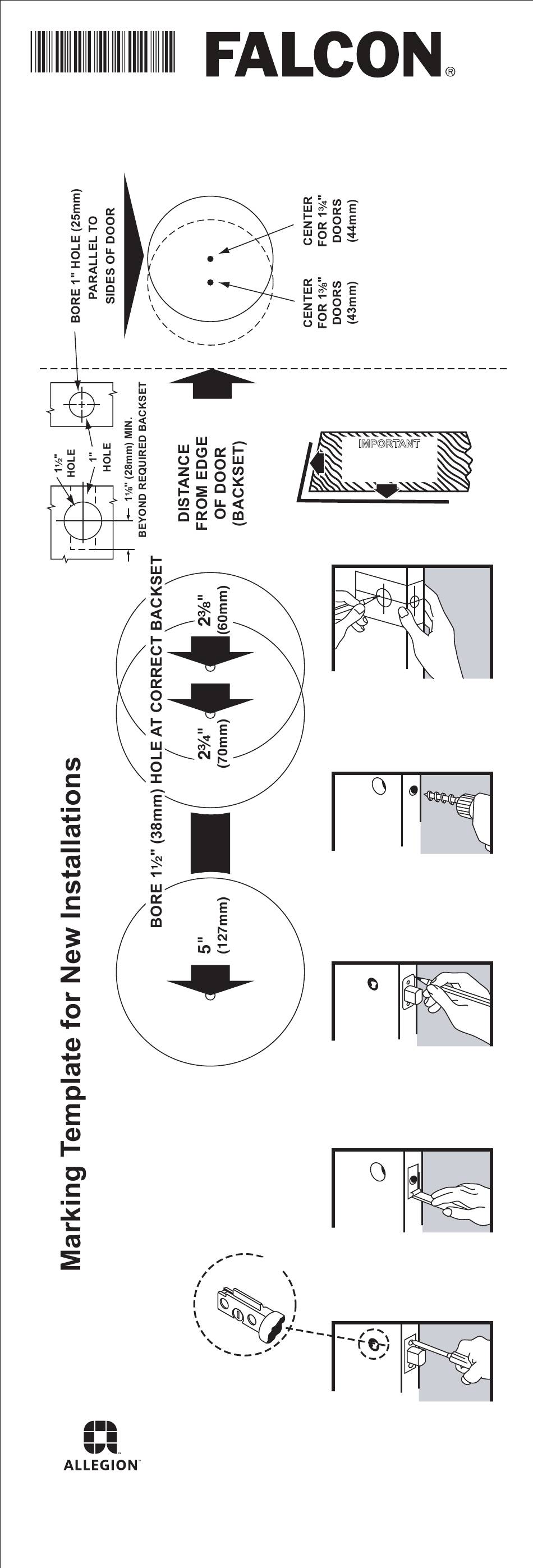

PLACE TEMPLATE
ON HIGH EDGE
OF DOOR BEVEL
Mark centers for latch
Drill 1¹⁄₂" dia. hole in
Insert latch in edge
Chisel 5\32" (3.97mm)
EXTENDED
Insert latch and secure
