Allegion FALCON X571 Special Instructions

Lock with interchangeable core

SPECIAL INSTRUCTIONS FOR

WITH INTERCHANGEABLE CORE

TO CORRECT OUT OF TIME CONDITION

THEN THE DOGGING BAR IS OUT OF "TIMING"

TO CORRECT—

1. TAKE OFF INNER KNOB AND ROSE,

AND REMOVE LOCK FROM DOOR.

2. ON OUTSIDE KNOB REMOVE CORE, BACK OFF

TAILPIECE ASS'Y UNTIL IT DISENGAGES FROM

KNOB CATCH.

3. PLACE DOGGING BAR IN POSITION AS

ILLUSTRATED BELOW. LOCK OUTER TRIM

BY PUSHING IN PUSH BUTTON.

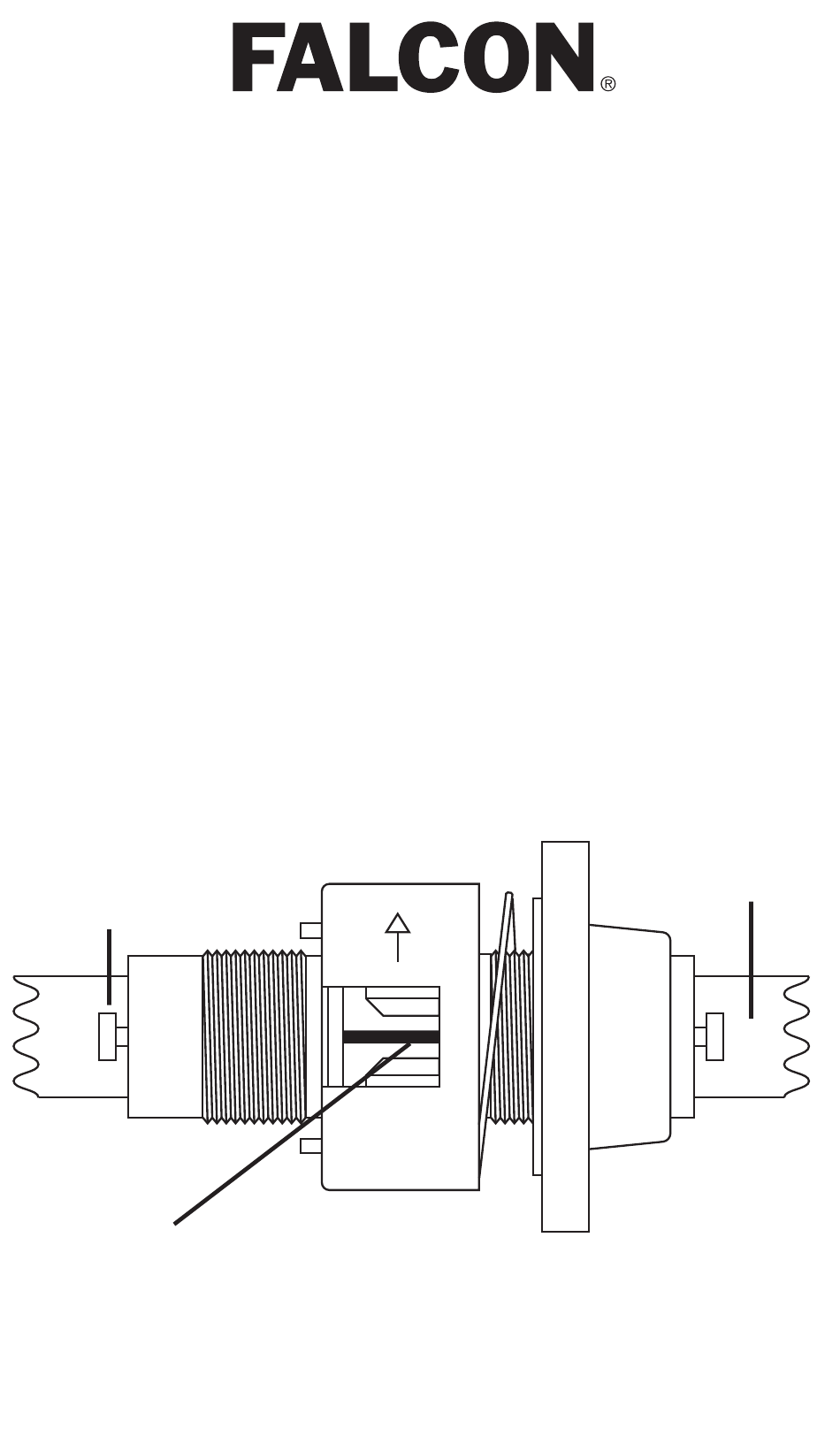

INNER SPINDLE

CORRECT POSITION OF DOGGING BAR.

NOTCH IN DOGGING BAR MUST POINT DOWN INTO LOCK.

4. ENGAGE TAILPIECE ASSEMBLY AND INSERT CORE.

5. RE-INSTALL LOCK ON DOOR.

X571 LOCK

DOOR CENTER

OUTER SPINDLE

Table of Contents

Do you have a question about the FALCON X571 and is the answer not in the manual?

Page 1 SPECIAL INSTRUCTIONS FOR X571 LOCK WITH INTERCHANGEABLE CORE TO CORRECT OUT OF TIME CONDITION BUTTON DOES NOT OPERATE... OR KEY WILL NOT ROTATE CLOCKWISE... THEN THE DOGGING BAR IS OUT OF "TIMING" TO CORRECT— 1. TAKE OFF INNER KNOB AND ROSE, AND REMOVE LOCK FROM DOOR.
Page 2 BEFORE KNOB IS INSTALLED. OUTER SPINDLE INNER SPINDLE DOOR CENTER CORRECT POSITION OF NOTCH IN DOGGING BAR 5. REPLACE OUTER KNOB AND CYLINDER ASSEMBLY PER INSTRUCTIONS PACKAGED WITH LOCK. 2015 Allegion © 6. INSTALL LOCK ON DOOR. Printed in U.S.A 002376-000-70 Rev. 05/15-d...
