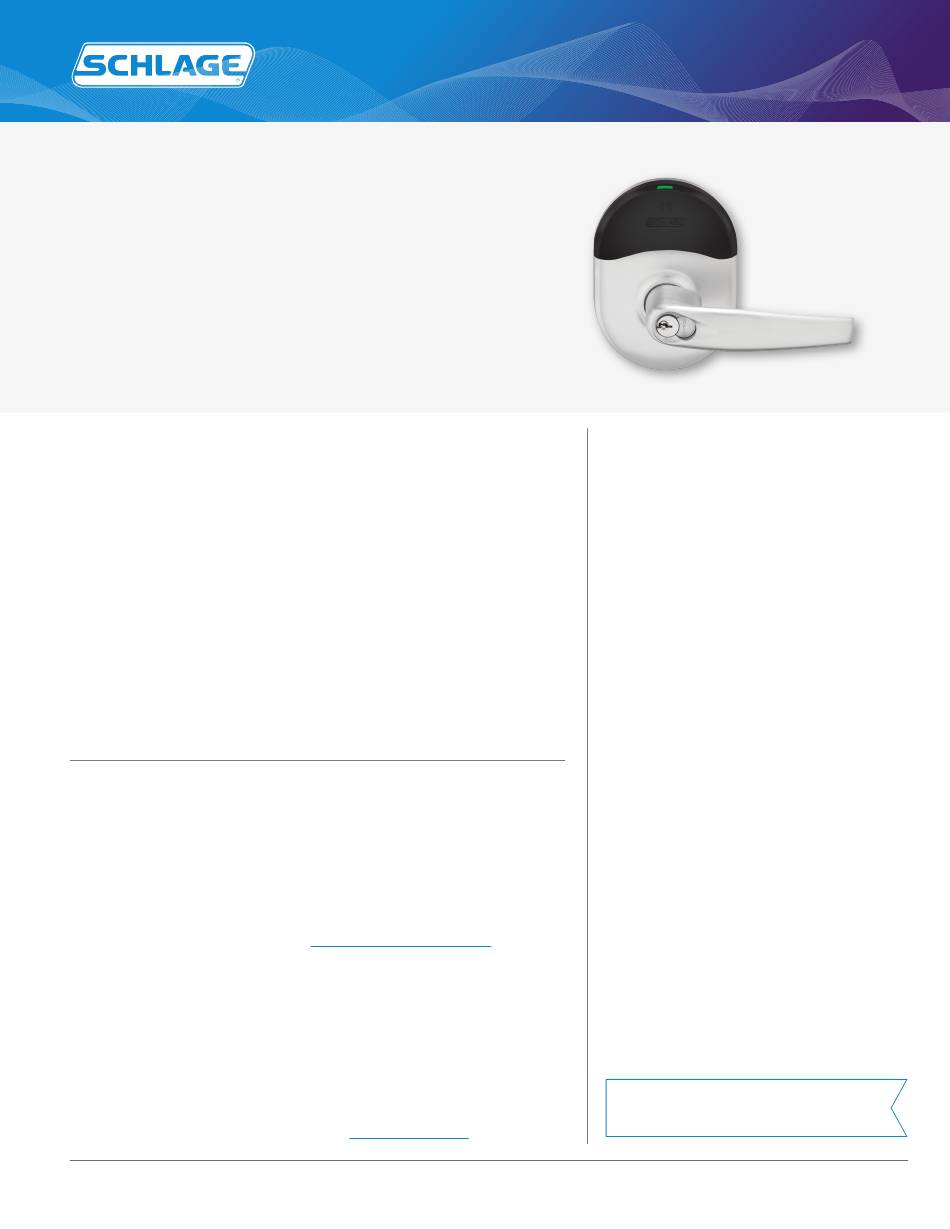

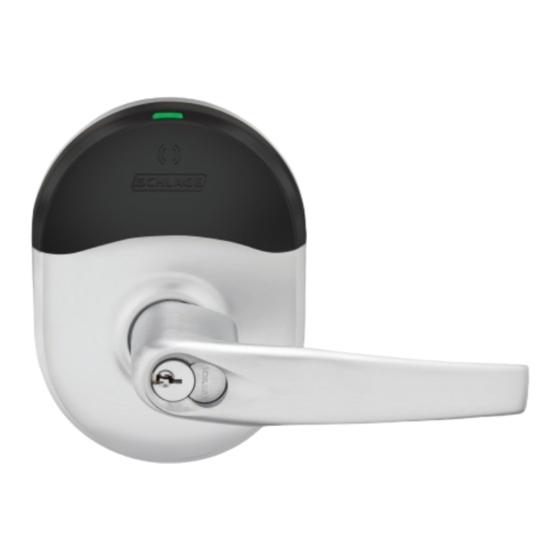

Overview
The Schlage
NDE mobile enabled wireless cylindrical lock is designed to affordably
®
extend electronic access control deeper into the building beyond traditional
perimeter and high security openings and offers users the security and convenience
of using a smart device to gain access.
NDE wireless locks simplify installation by combining the lock, credential reader, door
position sensor and request-to-exit switch all in one unit, eliminating the need to
install additional components or run wires to each opening.
The open architecture design of NDE allows it to be managed by Allegion software
or to be integrated into popular physical access control systems through our PACS
Alliance program
. This enables customers to choose the system that best fits their
2
requirements now and transition to another solution at any time.
NDE suites with all Schlage ND levers and keyways to provide attractive options to
meet the requirements of nearly any environment.
Encryption Key & Credential Interoperability
Hardware configured with our default encryption key or custom key developed
by Schlage Custom Encryption Key Service (SCEKS) including NXP, HID® and NFC
Schlage MIFARE® DESFire® and MIFARE Classic® credentials
Apple Wallet® and Google Wallet
HID iCLASS®, iCLASS SE® and SEOS® plastic and NFC mobile credentials
Other competitive credentials (see the
Schlage Credential Services
CardTrax
credential format sequencing service offering industry standard formats
Custom format development
1. Use of mobile credential is dependent on availability of compatible mobile credential.
2. Integration with NDE mobile enabled wireless locks required for operation. For
information on PACS providers and their capabilities visit us.allegion.com/alliances.
1
NFC student ID and employee badge
Credential Compatibility
Features & Benefits
NDE includes interior push button with
indication for storeroom, office, privacy,
and apartment applications
Standard multi-technology credential
compatibility includes Schlage MIFARE®,
Bluetooth® and NFC mobile
॰ Optional support for HID
Wireless configuration from connected
smartphones and tablets
Built-in Wi-Fi® enables automated daily
updates sent directly from host software
Networked real-time communication
available with the ENGAGE Gateway and
PACS provider solutions
Ideal for office and suite entries,
conference rooms, common area doors,
resident units, and sensitive storage areas
Fits mechanical ND door prep with minor
modifications
Weather resistant design
Lever handing is field reversible in
seconds; no tools required
Guide)
Up to 2 years of battery life
CYBERSECURITY
Learn about Allegion's commitment
, and proximity
1
smart and
®
NFC mobile credentials
2
Commercial.Schlage.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Schlage NDE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Allegion Schlage NDE Series

  • Page 1 ॰ Optional support for HID smart and ® NFC mobile credentials The open architecture design of NDE allows it to be managed by Allegion software • or to be integrated into popular physical access control systems through our PACS Wireless configuration from connected Alliance program .
  • Page 2 Mobile Enabled Wireless Cylindrical Lock Exterior of the Lock NDE Wireless Lock Specifications Users Up to 5,000 3.66" Audits Up to 2,000 Credential verification Smart and proximity: ≤ 1 second time Mobile: mobile device dependent Visual communications LED (red, amber, green) Audible communications Audible indicator (field configurable) •...
  • Page 3 Si option Allegion, the Allegion logo, ENGAGE, Schlage, the Schlage logo and Vandlgard are trademarks of Allegion plc, its subsidiaries and/or affiliates in the United States and other countries. The HID, iCLASS, iCLASS SE, Seos, SARGENT, Corbin, Russwin, and Yale trademarks are owned by ASSA ABLOY. All other trademarks are the property of their respective owners.
  • Page 4: Ordering Information

    Conventional cylinders shown, SFIC and FSIC also available. Athens Boardwalk Broadway Bright Brass Satin Brass Satin Bronze Satin Nickel Matte Black Latitude Longitude Omega Rhodes Sparta Tubular 626AM 643e Bright Chrome Satin Chrome Satin Chrome Aged Bronze Antimicrobial Commercial.Schlage.com © 2024 Allegion plc 010409, Rev. 01/24...
  • Page 5: Important Notes

    ENGAGE™ WEB & MOBILE APPLICATIONS • If you are updating from an NDE80 lock, remove Search for “Allegion ENGAGE” in the Apple App Store or completely, and reinstall with supplied parts. Google Play store to download the app.
  • Page 6 Door Thickness Adjustment Install latch. L For ” thick doors, NO ADJUSTMENT IS REQUIRED. The bevel must face toward the door stop. 1C\v Continue to step 1. For 1B\,” or 2” thick doors, complete the following door thickness adjustment steps. Remove chassis from outside assembly.
  • Page 7 Reinstall adjustment plate. To change handing, pull lever post until it stops, then Tighten until door thickness insert enters notch in adjustment rotate 180 degrees. plate. Align lever catch pin and slide hole to latch side. Release lever post. Assembly will click into place. CAUTION Do not route ribbon cable before rotating chassis! Lever Catch Pin...
  • Page 8 Align assembly and install on door. Install spring cage. Let the wire hang on the other side, through the hole. Align lever catch pin to door edge. Make sure the outside escutcheon is square before tightening the bolts. WARNING Do not pinch ribbon cable! WARNING Ensure that the lever catch pin is aligned with latch side before continuing!
  • Page 9 Install inside escutcheon. Connect DPS wire (1), route wire behind tabs (2), and tuck excess wire back into the hole in door (3). Connect the cable from the outside escutcheon to the connector on the inside escutcheon. Route wire from door position sensor (DPS) through hole in inside escutcheon.
  • Page 10 Cylinder and Lever Installation Lever With Interchangeable Core Cylinder Lever Removal Install cylinder tailpiece. Rotate cam in lever post until the cam stops. To remove a lever with a To remove a lever without cylinder, insert key first, a cylinder, press pin and turn it 90 degrees wrench into hole in lever, toward door edge.
  • Page 11 Install battery cover screw. Install Batteries Choose either standard Phillips screw or Torx screw. Install batteries into battery holder. Push the tab on the right of the battery securing strap, and pull out to release battery holder. Install four high-quality alkaline batteries into battery holder.
  • Page 12: Fcc Statement

    • The model NDEB has been tested to the following UL294 7th edition performance levels: Standby Power Level I, Endurance Level IV, Line Security Level I, and Destructive Attack Level I • Tested to compliance with CSA-C22.2-M1983. Customer Service 1-877-671-7011 www.allegion.com/us © Allegion 2020 Printed in U.S.A. P519-087 Rev. 01/20-b...
