Limitations

Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall
before the user strikes the ground or an obstruction. When calculating fall clearance, account for
a MINIMUM 3' safety factor, deceleration distance, user height, length of lanyard/SRL, and all
other applicable factors.
Diagram shown is an example fall clearance calculation ONLY.
Required
distance
from
anchorage
(19' total)
Swing Falls: Prior to installation or use, make considerations for eliminating or minimizing all
swing fall hazards. Swing falls occur when the anchor is not directly above the location where a
fall occurs. Always work as close to in line with the anchor point as possible. Swing falls
significantly increase the likelihood of serious injury or death in the event of a fall.

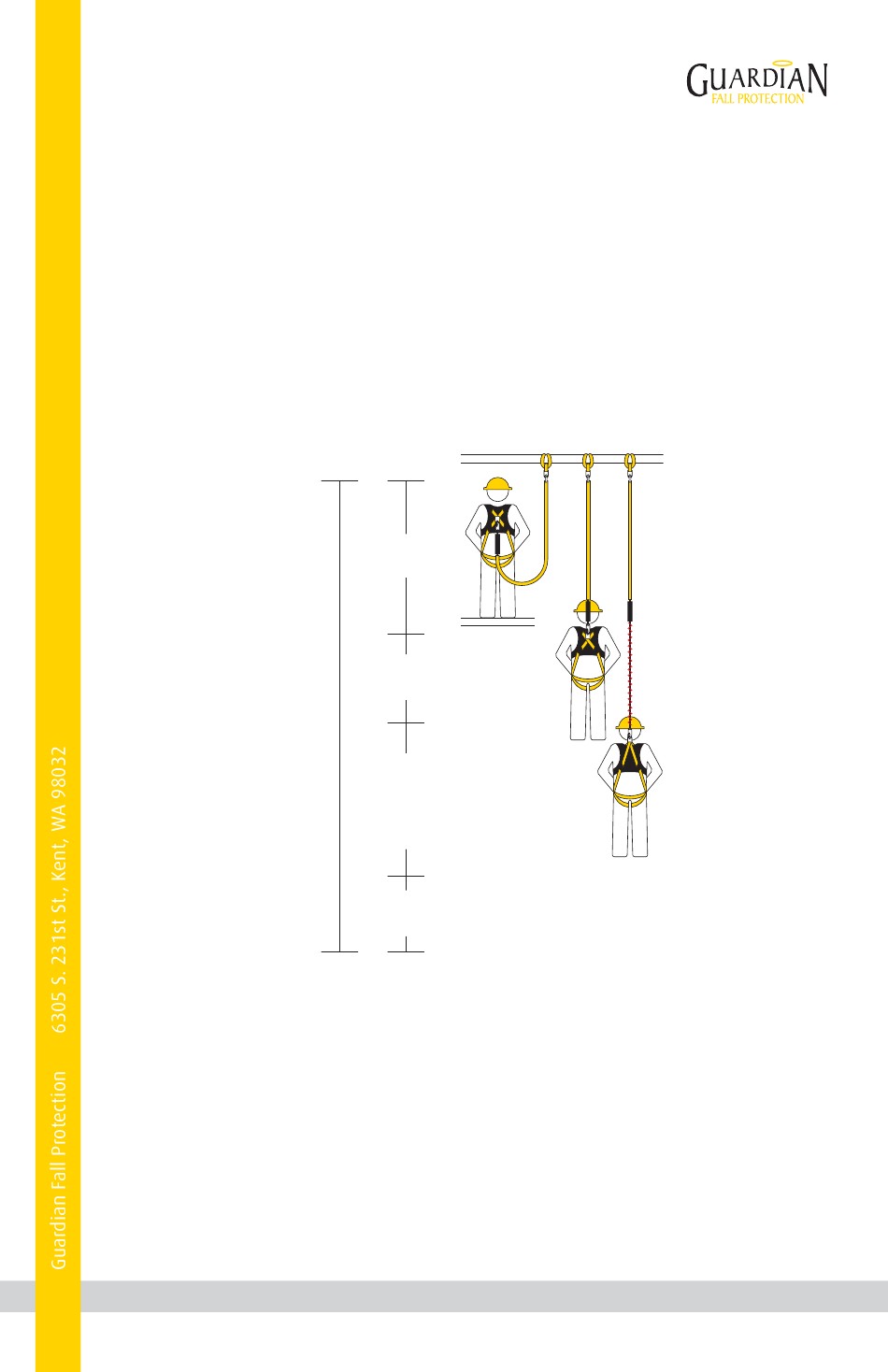

FALL CLEARANCE CALCULATION
Lanyard length
(6' total)
Deceleration
distance (4' total)
Height of harness
dorsal D-ring from
worker's feet
(6' total)
Safety factor
(3' total)
