ACTi ACM-4200 Series Quick Installation Manual

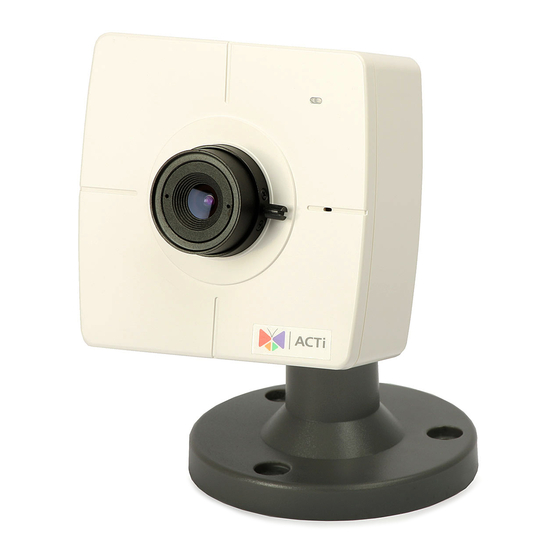

Megapixel ip cube camera
Hide thumbs
Also See for ACM-4200 Series:
- Hardware user manual (13 pages) ,
- Quick installation manual (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for ACTi ACM-4200 Series
Summary of Contents for ACTi ACM-4200 Series
- Page 1 Megapixel IP Cube Camera ACM-4200 series Ver. 071218 Quick Installation Guide...
-
Page 3: Getting Started
Getting Started PACKAGE CONTENTS ACM-4200 series Power Adaptor (Option) Product CD Camera Stand Warranty Card... -
Page 4: Physical Description
PHYSICAL DESCRIPTION Action LED Indicator The LED will light up after IP camera has successfully completed the boot process Built-in Microphone Sensitivity: -42dB ± 3dB(0dB=1V/Pa at 1KHz) S/N Ratio: More than 58dB Directivity: Omni-directional... - Page 5 Power Input Please use power supply of input DC 3.3V only. Reset Button Step 1: Switch off Megapixel IP Cube Camera by disconnecting the power cable Step 2: Press and continue to hold the Reset Button. Reconnect the power cable while continuing to hold the reset button. Step 3: Keep holding the reset button depressed around 6 seconds, then release the reset button.
-
Page 6: Basic Connections
BASIC CONNECTIONS Follow the procedures below to connect the Megapixel IP Cube Camera to the respective apparatuses. 1. Connect the power adaptor to Megapixel IP Cube Camera 2. Connect Megapixel IP Cube Camera’s ethernet port to an Ethernet (RJ45 connectors). If your Megapixel IP Cube Camera has PoE built-in, you can regard it as a PD and connect it directly to a PSE device like PoE switch. -
Page 7: Quick Tour
Quick Tour This section guides you with a quick tour on this Megapixel IP Cube Camera. 2.1 Configure this Megapixel IP Cube Camera 2.1.1 Make sure network environment Default IP of this Megapixel IP Cube Camera is 192.168.0.100. Please make sure this Megapixel IP Cube Camera and your PC are on the same network segment before running the installation. - Page 8 2.1.2 Open Internal Explorer with IP address NOTE: If your web browser is earlier than IE6, then download IE6 is recommended. NOTE: This Megapixel IP Cube Camera default IP address is set to 192.168.0.100 2.1.3 Login with default administrator’s account & password NOTE: Default administrator account is set to Admin, password is set to 123456, and click...
- Page 9 2.1.4 Preview the video...
- Page 10 2.1.5 Set the new IP address *IP Address : The default IP address is 192.168.0.100. *Subnet Mask : The default subnet mask is 255.255.255.0 *Click button NOTE: In your Client PC, please make sure the setting of Network Connections Type is set to Auto Negotation, since this Megapixel IP Cube Camera follows MII standard.
