ACTi ACM-7411 series Quick Installation Manual

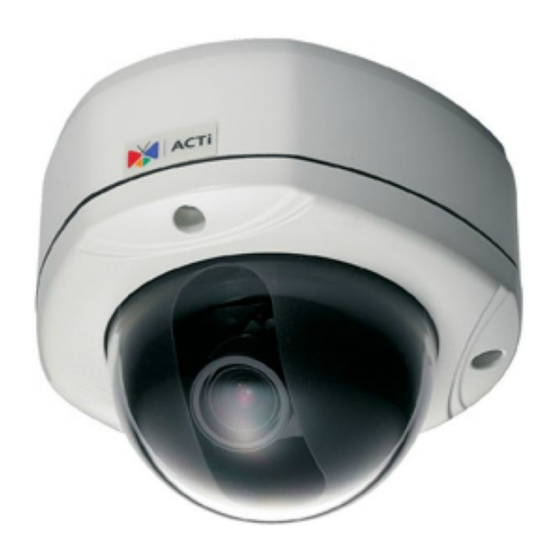

Megapixel ip outdoor rugged dome
Hide thumbs Also See for ACM-7411 series:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
MegaPixel IP Outdoor Rugged Dome
(with DC 12V / PoE)
ACM-7411 series
Ver. 080415

Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACM-7411 series and is the answer not in the manual?

Questions and answers

Related Manuals for ACTi ACM-7411 series

Summary of Contents for ACTi ACM-7411 series

  • Page 1: Quick Installation Guide

    MegaPixel IP Outdoor Rugged Dome (with DC 12V / PoE) ACM-7411 series Ver. 080415 Quick Installation Guide...

  • Page 2: Getting Started

    Getting Started PACKAGE CONTENTS ACM-7411 series Power Adaptor (Option) (DC12V / PoE ) Product CD Terminal Blocks for Power, DI/O & Audio Warranty Card Accessory...

  • Page 3: Physical Description

    PHYSICAL DESCRIPTION...
  • Page 4 Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). Power Input If your power input is DC12V. Please follow the description on the connector to connect to power.

  • Page 5: Installation Procedure

    Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button. Reconnect the power cable while continuing to hold the reset button. Step 3: Keep holding the reset button depressed around 6 seconds, release the reset button.

  • Page 6: Connect The Ip Outdoor Rugged Dome

    1.3.1 Connect the IP Outdoor Rugged Dome 1.3.1.1 Remove the cover Remove the dome cover with special hex wrench in the accessory bag. 1.3.1.2 Insert the cabl There are two conduit holes, one is at the dome bottom and the other one is at the side of rugged dome with plug.

  • Page 7: Connect Cables To Connectors

    1.3.1.3 Connect cables to connectors Please follow the instruction at Chapter 2: Physical Description, for how to connect to each connector. 1.3.1.4 LED Description There are three LEDs in the system. They are indicators for power, fan and heater respectively. According to operating temperature, the different LED will be lighted for different situation.

  • Page 8: Mount The Ip Outdoor Fixed Dome (Surface)

    1.4 Mount the IP Outdoor Fixed Dome (Surface)

  • Page 9: Mount The Ip Outdoor Fixed Dome (Flush)

    1.5 Mount the IP Outdoor Fixed Dome (Flush)

  • Page 10: Mount The Ip Indoor Fixed Dome (Wall)

    1.6 Mount the IP Indoor Fixed Dome (Wall)

  • Page 11: Adjust The Camera

    Adjust the camera 2.1 Adjust zoom and focus Please adjust the camera direction first. Then move the focus and the zoom lever at the picture 1 to adjust the zoom and the focus. Fix the zoom and focus after adjusting. 2.2 Adjust camera functions Refer to picture 1 for what can be adjusted and how to adjust.

  • Page 12: Quick Tour

    Quick Tour This section guides you with a quick tour on this IP device. 3.1 Configure this IP Device 3.1.1 Make sure network environment Default IP of this IP device is 192.168.0.100. Please make sure this IP device and your PC are on the same network segment before running the installation. Please set the settings as below.
  • Page 13 If your web browser is earlier than IE6, then download IE6 is NOTE: recommended. This IP device default IP address is set to 192.168.0.100 NOTE: 3.1.3 Login with default administrator’s account & password Default administrator account is set to Admin, password is set to NOTE: 123456, and click button.
  • Page 14 3.1.5 Set the new IP address *IP Address : The default IP address is 192.168.0.100. *Subnet Mask : The default subnet mask is 255.255.255.0 button *Click In your Client PC, please make sure the setting of Network NOTE: Connections Type is set to Auto Negotation, since this IP device follows MII standard.
  • Page 15 3.1.6 Check Default Video Setting 3.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds for system reboot. 0-14...
