Tips for 3-Inch Dome Installation
Contents
Introduction
Installation of camera plate
Installation of front cover
Future design and improvement
Introduction
Some customers have a problem with installing a 3 inches dome. After adjusting the viewing
angle, zoom or focus, the lens part will be moved again by the rubber and black plastic cover
when they closing the dome cover. The purpose of this document is to guide customer through
the procedures of installing a 3 inches dome efficiently.
Installation of camera plate

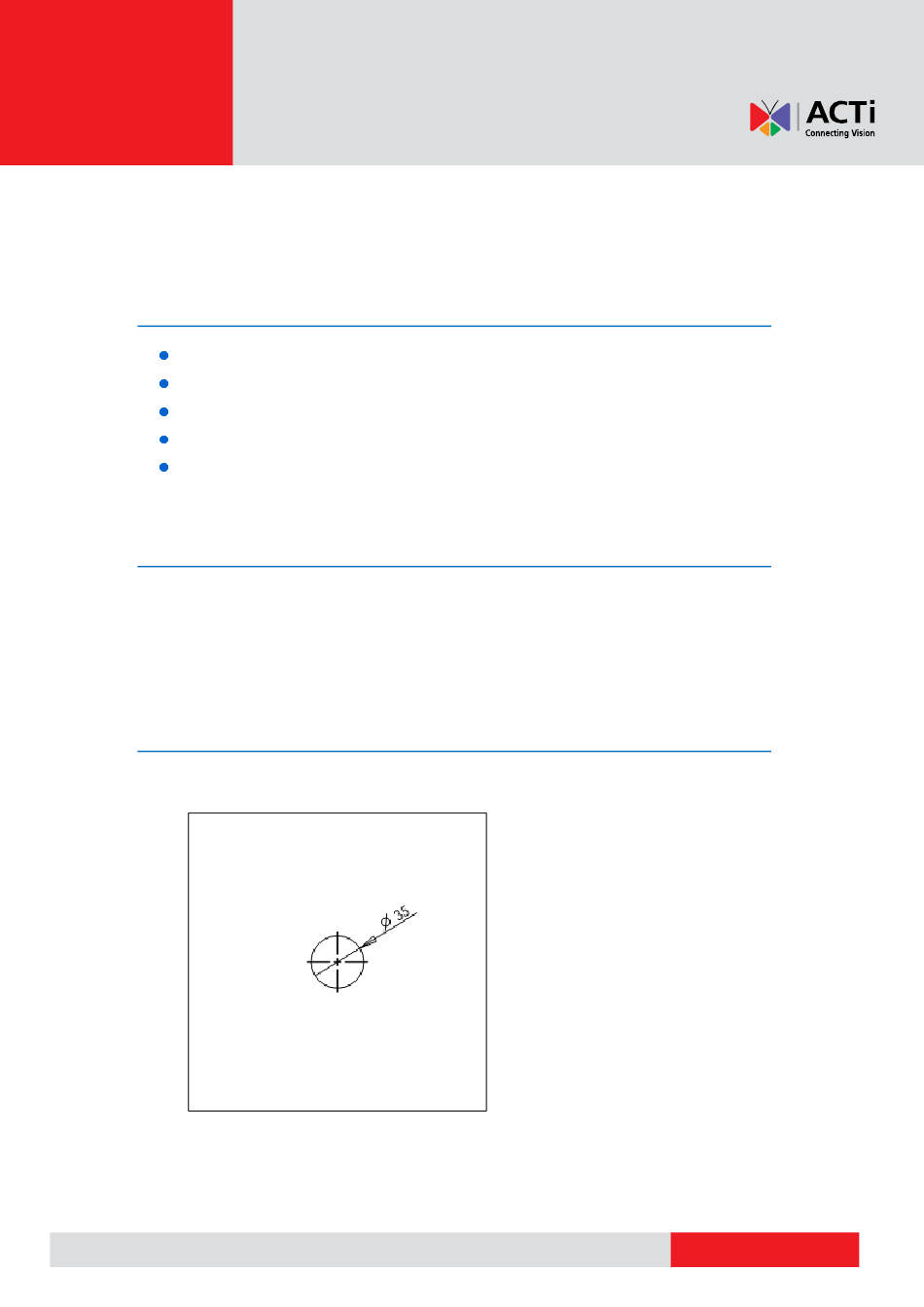

Use the drill template, and drill a hole with φ 35 on the ceiling.
1.
Category: Installation & Configuration Note
Sub-category: Application
Model: ACM-3511/ACM-3011
Firmware: N/A
Software: N/A
Published: 2009/09/02
Author: Victor.Wang
Reviewed: 2010/01/21
1
www.acti.com
Advertisement
Related Manuals for ACTi ACM-3511
Summary of Contents for ACTi ACM-3511
- Page 1 Category: Installation & Configuration Note Sub-category: Application ACTi Model: ACM-3511/ACM-3011 Knowledge Base Firmware: N/A Software: N/A Author: Victor.Wang Published: 2009/09/02 Reviewed: 2010/01/21 Tips for 3-Inch Dome Installation Contents Introduction Installation of camera plate Installation of camera Installation of front cover...
- Page 2 Fasten the plate with the camera. Mark on the plate in the direction of the ACTi logo. (the butterfly) Put the camera under ceiling. Adjust the ACTi logo on the camera (the butterfly) toward the area or object you want to shoot.
-
Page 3: Installation Of Camera
Remove the camera from the plate. Tighten the plate to ceiling with M4*20 screws. Make sure the mark on the plate aims at the mark of step 5. Installation of camera Connect cables through the hole on the ceiling and plate, or on the side of casing. www.acti.com... - Page 4 Fasten the camera to ceiling by turning clockwise direction. Insert the cable (power/Network/audio) through the mounting plate and connect to the camera. Then use the little strap in bundled accessory to fasten the network cable. www.acti.com...
- Page 5 Installation of front cover 11. Remove the front cover 12. Adjust the zoom or focus of the lens. (the lens and the ACTi logo should align and be toward the area or object you want to shoot) www.acti.com...
- Page 6 13. Once you finish the adjustment, pan the lens counterclockwise for around 90 degrees to aim to the arrow on the camera cover. 14. Fasten the front cover to the camera by turning clockwise direction as quickly as possible. The lens would be moved back to align to the ACti logo. www.acti.com...
- Page 7 15. In the next generation dome products, the front cover will be fastened to camera by screws. Since we don't need to turn the front cover, the lens won't be moved after adjustment. Future design of ACTi Indoor Dome Future design of ACTi Outdoor Dome www.acti.com...
