Page 1: Quick Installation Guide

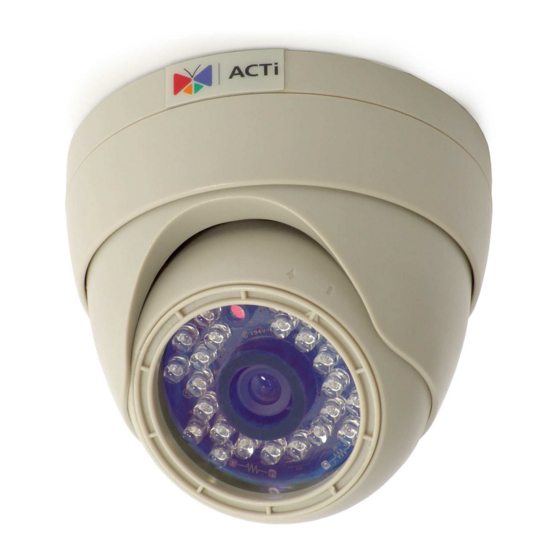

3-Axis Indoor Fixed IR Dome (with DC 12V / PoE) ACM-3211 Ver. 070412 Quick Installation Guide... -
Page 2: Getting Started
Getting Started PACKAGE CONTENTS ACM-3211 Power Adaptor (Option) (DC12V / PoE) Product CD Accessory Warranty Card Drill Template Drill template... -
Page 3: Physical Description
PHYSICAL DESCRIPTION Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). Power Input If your power input is DC12V. Please follow the description on the connector to connect to power. -
Page 4: Basic Connections
the power cable while continuing to hold the reset button. Step 3: Keep holding the reset button depressed for a while, release the reset button. The unit will start up with factory default settings. Audio Input / Output The IP device supports audio input and output with terminal block. -
Page 5: Installation Procedure
1. Connect an analog monitor to IP device video out (BNC connector). 2. Connect the power adaptor to IP device 3. Connect IP device’s ethernet port to an Ethernet (RJ45 connectors). If your IP device has PoE built-in, you can regard it as a PD and connect it directly to a PSE device like PoE switch. -
Page 6: Quick Tour
Quick Tour This section guides you with a quick tour on this IP device. 2.1 Configure this IP Device 2.1.1 Make sure network environment Default IP of this IP device is 192.168.0.100. Please make sure this IP device and your PC are on the same network segment before running the installation. Please set the settings as below. - Page 7 NOTE: If your web browser is earlier than IE6, then download IE6 is recommended. NOTE: This IP device default IP address is set to 192.168.0.100 2.1.3 Login with default administrator’s account & password NOTE: Default administrator account is set to Admin, password is set to 123456, and click button.
- Page 8 2.1.5 Set the new IP address *IP Address : The default IP address is 192.168.0.100. *Subnet Mask : The default subnet mask is 255.255.255.0 *Click button NOTE: In your Client PC, please make sure the setting of Network Connections Type is set to Auto Negotation, since this IP device follows MII standard.
- Page 9 2.1.6 Check Default Video Setting NOTE: Please make sure the TV Input (NTSC / PAL) is meet your requirement , and click button. 2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds for system reboot.
