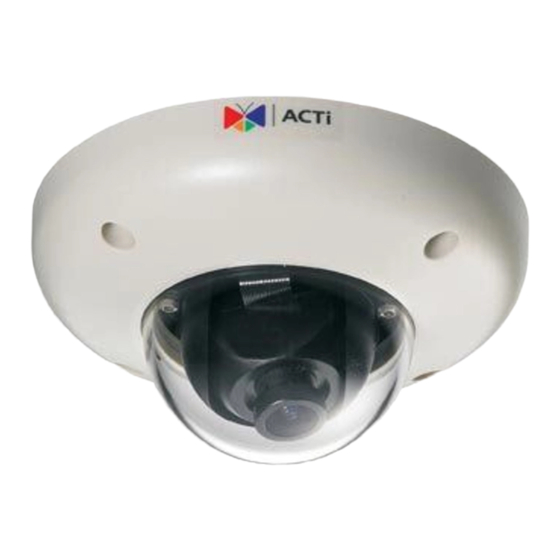

Megapixel IP Mini Dome
ACM-370x series
Ver. 090518

Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACM-3701 and is the answer not in the manual?

Questions and answers

Related Manuals for ACTi ACM-3701

Summary of Contents for ACTi ACM-3701

  • Page 1: Quick Installation Guide

    Megapixel IP Mini Dome ACM-370x series Ver. 090518 Quick Installation Guide...

  • Page 2: Getting Started

    Getting Started PACKAGE CONTENTS ACM-3701/ACM-3703 Product CD Warranty Card Drill Template Mount Screws Allen/Hex Key RJ45 Field Installable Feed M12 Field Installable Feed Through Adaptor (ACM-3701 Only) Through Adaptor (ACM-3703 Only)

  • Page 3: Physical Description

    PHYSICAL DESCRIPTION ACM-3701 ACM-3703 Ethernet Indicator LED The LED will indicate ethernet speed and active states after IP camera has connected completely. Power LED The LED will light up after IP camera has successfully completed the boot process Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button.
  • Page 4 Rugged M12 Connector Ethernet Port The IP device connects to the Ethernet via a female RJ-45 industrial connector(ACM-3701) or a male M12 D-code Ethernet connector(ACM-3703) The Ethernet port supporting Power over Ethernet. Supporting NWAY, this IP device can auto detect the speed of...

  • Page 5: Basic Connections

    BASIC CONNECTIONS Follow the procedures below to connect the IP device to the respective apparatuses. 1. Connect this IP device’s ethernet port to an Ethernet (RJ45/ M12 connector). IP device has only PoE built-in, you must regard it as a PD and connect it directly to a PSE device like PoE switch.
  • Page 6 This section guides you with a quick tour on this IP device. 2.1 Configure this IP Device 2.1.1 Make sure network environment Default IP of this IP device is 192.168.0.100. Please make sure this IP device and your PC are on the same network segment before running the installation. Please set the settings as below.
  • Page 7 NOTE: If your web browser is earlier than IE6, then download IE6 is recommended. NOTE: This IP device default IP address is set to 192.168.0.100 2.1.3 Login with default administrator’s account & password NOTE: Default administrator account is set to Admin, password is set to 123456, and click button.
  • Page 8 2.1.5 Set the new IP address *IP Address : The default IP address is 192.168.0.100.
  • Page 9 *Subnet Mask : The default subnet mask is 255.255.255.0 *Click button NOTE: In your Client PC, please make sure the setting of Network Connections Type is set to Auto Negotation, since this IP device follows MII standard. Otherwise, you might not see the live image. IMPORTANT: After the IP address is changed, please record this IP address.

This manual is also suitable for:

Acm-3703
