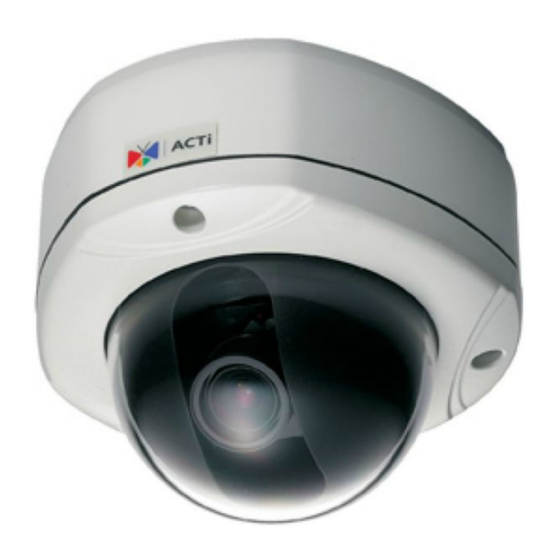

ACTi ACM-7411 Series Hardware User Manual
Megapixel ip outdoor rugged dome (with dc 12v / poe)
Hide thumbs
Also See for ACM-7411 Series:
- Quick installation manual (16 pages) ,
- Installation instructions (5 pages) ,
- Specifications (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for ACTi ACM-7411 Series
Summary of Contents for ACTi ACM-7411 Series
- Page 1 MegaPixel IP Outdoor Rugged Dome (with DC 12V / PoE) ACM-7411 series Ver. 081016 Hardware User’s Manual...
-
Page 2: Trademarks
PRECAUTIONS Read these instructions All the safety and operating instructions should be read before the product is operated. Heed all warnings All warnings on the product and in the instruction manual should be adhered to. The symbol indicates the following items, please carefully read the description next to each symbol. - Page 3 and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
-
Page 4: Table Of Contents
Table of Contents PRECAUTIONS________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-1 INTRODUCTION ______________________________________________ 1-1 Package Contents _______________________________________________ 1-1 Features and Benefits ____________________________________________ 1-2 Safety Instructions ______________________________________________ 1-4 Physical Description _____________________________________________ 1-6 Installation Procedure ___________________________________________ 2-9 Connect the IP Outdoor Rugged Dome _____________________________ 2-9 2.1.1 Remove the cover ____________________________________________________ 2-9 2.1.2... -
Page 5: Introduction
INTRODUCTION 1.1 Package Contents CAM-7411 series Power Adaptor (Option) (DC12V / PoE) Product CD Terminal Blocks for Power, DI/O & Audio Warranty Card Accessory... -
Page 6: Features And Benefits
1.2 Features and Benefits This IP device is a cutting-edge digital video transmission device. It can compress and transmit real time images with outstanding images quality (SXGA, 1280x1024) at reasonable bandwidth through a standard TCP/IP network. That is because it is Ethernet ready and has the powerful ARM9 SoC with excellent system performance to offer dual streams of MPEG4/MJPEG, and both formats offer megapixel resolution. - Page 7 delivers better sensitivity and responds faster than software motion detection. Bundle Powerful Surveillance Software To extend the capabilities of this IP device, a powerful surveillance program is included in the package and is very free to use. Users can easily utilize the existing PC to be a digital video recorder.
-
Page 8: Safety Instructions
1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 9 Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.
-
Page 10: Physical Description
1.4 Physical Description... - Page 11 Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). Power Input If your power input is DC12V. Please follow the description on the connector to connect to power.
- Page 12 Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button. Reconnect the power cable while continuing to hold the reset button. Step 3: Keep holding the reset button depressed around 6 seconds, release the reset button.
-
Page 13: Installation Procedure
Installation Procedure There are three types of installation of this IP outdoor rugged dome series. Surface mount Flush mount Wall mount Pictures ● ● Optional Bracket required The mounting procedure can be divided into two parts, 1st: Connect the IP outdoor rugged dome series : Mount the IP outdoor rugged dome series 2.1 Connect the IP Outdoor Rugged Dome... -
Page 14: Insert The Cable
2.1.2 Insert the cable There are two conduit holes, one is at the dome bottom and the other one is at the side of rugged dome with plug. Remove the plug if your cable will go through the one at the side of rugged dome 2.1.3 Connect cables to connectors Please follow the instruction at Chapter 2: Physical Description, for how to connect to each connector. -
Page 15: Led Description
2.1.4 LED Description There are three LEDs in the system. They are indicators for power, fan and heater respectively. According to operating temperature, the different LED will be lighted for different situation. 2-11... -
Page 16: Mount The Ip Outdoor Fixed Dome (Surface)
2.2 Mount the IP Outdoor Fixed Dome (Surface) 2-12... -
Page 17: Mount The Ip Outdoor Fixed Dome (Flush)
2.3 Mount the IP Outdoor Fixed Dome (Flush) 2-13... -
Page 18: Mount The Ip Indoor Fixed Dome (Wall)
2.4 Mount the IP Indoor Fixed Dome (Wall) 2-14... -
Page 19: Adjust The Camera
Adjust the camera 3.1 Adjust zoom and focus Please adjust the camera direction first. Then move the focus and the zoom lever at the picture 1 to adjust the zoom and the focus. Fix the zoom and focus after adjusting. 3.2 Adjust camera functions Refer to picture 1 for what can be adjusted and how to adjust. -
Page 20: Product Specification
Product Specification 4-16...
