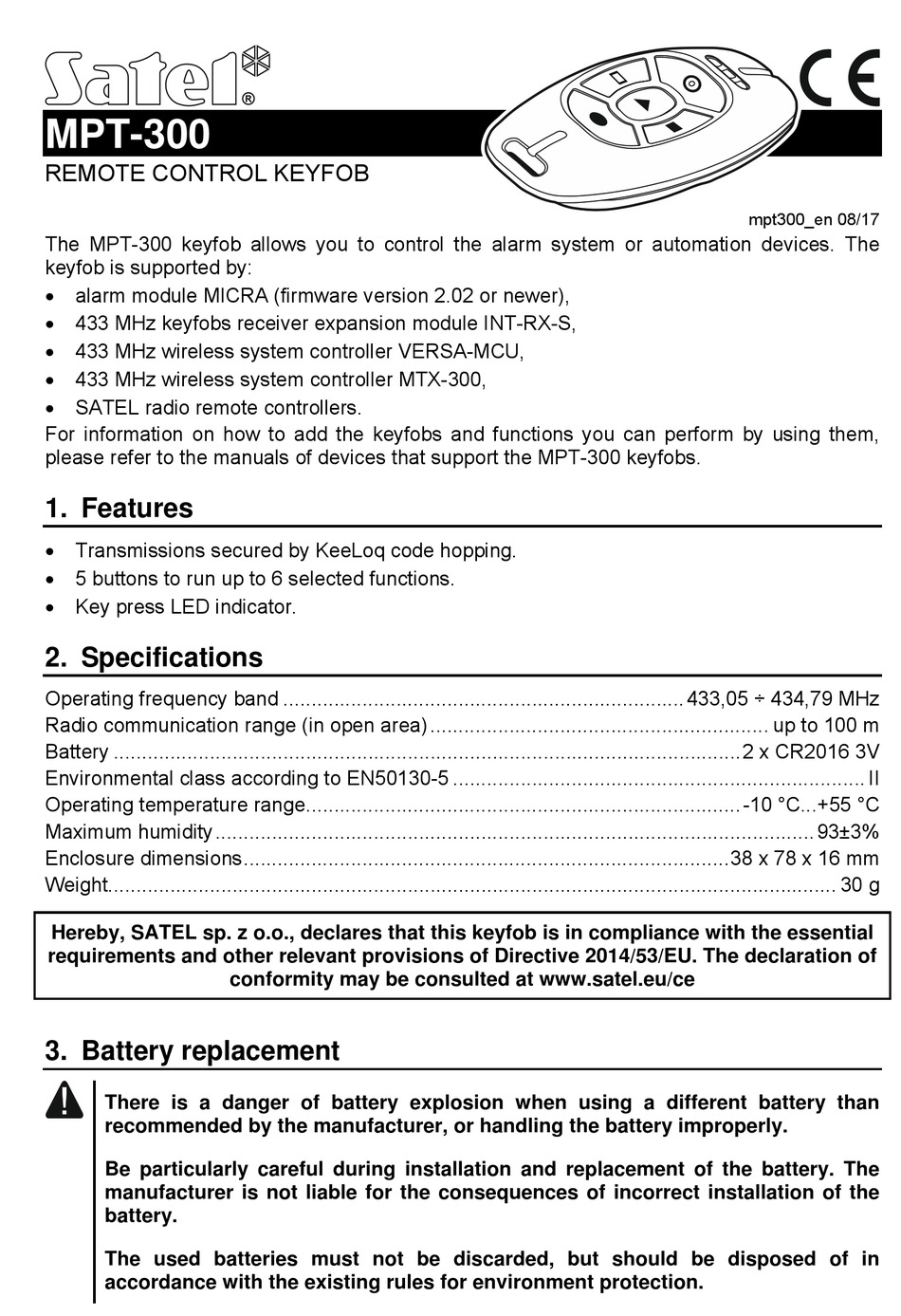

Satel MPT-300 Quick Start Manual

MPT-300
REMOTE CONTROL KEYFOB
The MPT-300 keyfob allows you to control the alarm system or automation devices. The
keyfob is supported by:
 alarm module MICRA (firmware version 2.02 or newer),
 433 MHz keyfobs receiver expansion module INT-RX-S,
 433 MHz wireless system controller VERSA-MCU,
 433 MHz wireless system controller MTX-300,
 SATEL radio remote controllers.
For information on how to add the keyfobs and functions you can perform by using them,
please refer to the manuals of devices that support the MPT-300 keyfobs.

1. Features

 Transmissions secured by KeeLoq code hopping.
 5 buttons to run up to 6 selected functions.
 Key press LED indicator.

2. Specifications

Operating frequency band ....................................................................... 433,05 ÷ 434,79 MHz
Radio communication range (in open area) ............................................................ up to 100 m
Battery ...............................................................................................................2 x CR2016 3V
Environmental class according to EN50130-5 ......................................................................... II
Operating temperature range.............................................................................-10 °C...+55 °C
Maximum humidity .......................................................................................................... 93±3%
Enclosure dimensions......................................................................................38 x 78 x 16 mm
Weight................................................................................................................................. 30 g
Hereby, SATEL sp. z o.o., declares that this keyfob is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU. The declaration of

3. Battery replacement

There is a danger of battery explosion when using a different battery than
recommended by the manufacturer, or handling the battery improperly.
Be particularly careful during installation and replacement of the battery. The
manufacturer is not liable for the consequences of incorrect installation of the
battery.
The used batteries must not be discarded, but should be disposed of in
accordance with the existing rules for environment protection.
conformity may be consulted at www.satel.eu/ce
mpt300_en 08/17
