4. From the top menu bar, click Program and then select Programmer. Within the Programmer
window, select Port > FirstTouch and Programming Mode button to Reset. Then, click the Pro-
gram button.
5. Once programming completes successfully, verify the project operation by doing as follows:
a. Temperature Sensing–the LED color varies based on changes in the ambient temperature
(the buzzer sounds at extreme temperatures).
b. Light Sensing–the LED intensity varies based on changes in the ambient light.
c. CapSense Proximity Sensing–the LED color varies based on your hand's proximity to the
board.
2.4

FTMF Expansion Card Demonstrations

The FTMF Expansion Card provided in your kit is capable of supporting a variety of demonstrations.
Each demonstration has an associated PSoC Express project and data sheet that describes the
operation and usage of each of the demonstrations in detail. Since the FTMF expansion card has its
own PSoC, you can remove it from the FTPC bridge and insert it into your target hardware or other
development platform. In order to observe each of the various FTMF demonstrations, it is necessary
to reprogram the FTMF card with the appropriate demonstration firmware. For more details refer to
the Technical Reference chapter on page
CapSense
Slider
8
17.

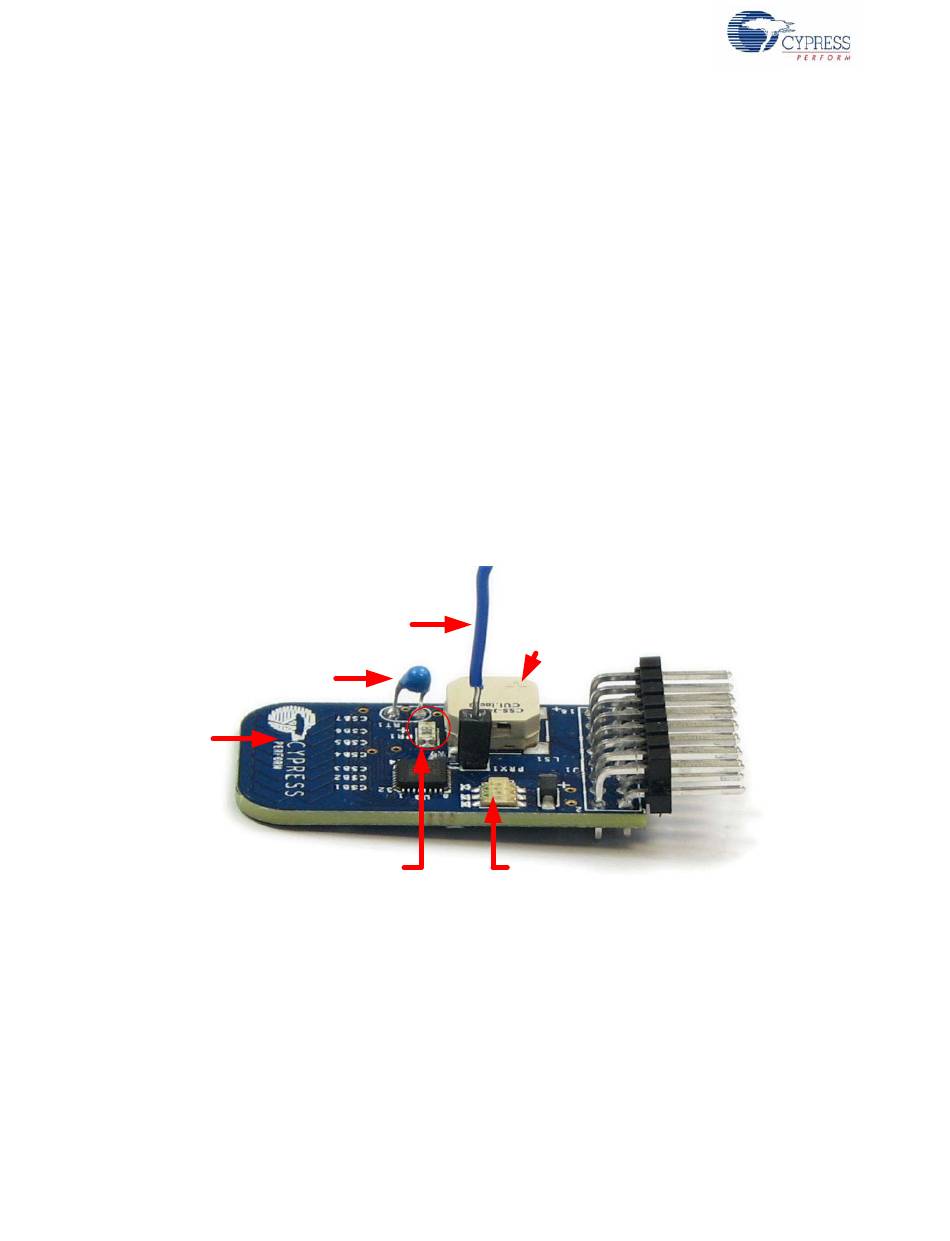

Figure 2-1. FTMF Expansion Card
Proximity
Antenna
Temperature
Sensor
Light Sensor
CY3270 PSoC® FirstTouch Guide, Document # 001-15945 Rev. **
Buzzer
LED Display
