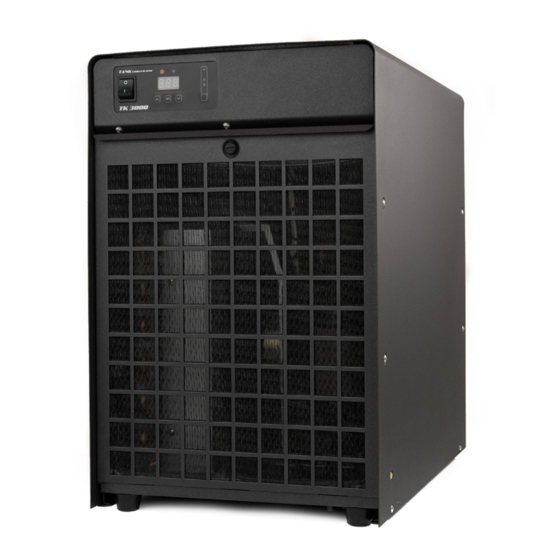

TECO TK Series Replacement Manuallines
Water probe replacement
Hide thumbs
Also See for TK Series:
- Manualline (15 pages) ,
- Replacement manualline (11 pages) ,
- Installation manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for TECO TK Series
Summary of Contents for TECO TK Series
- Page 1 GUIDELINE WATER PROBE REPLACEMENT MODELS : TK3000 – TK6000 – TK 9000 www.tecoonline.com www.tecous.com...
- Page 2 EQUIPMEMT 7 black clamps Screw-drivers Tongs Thermostat Probe with white connector (spare part) www.tecoonline.com www.tecous.com...
- Page 3 STEP n. Disconnect the chiller form power supply. Using the screw-driver, remove the screws indicated in the picture here below (n°16 screws). www.tecoonline.com www.tecous.com...
- Page 4 STEP n. Disconnect ground wire from the cover Remove the cover www.tecoonline.com www.tecous.com...
- Page 5 STEP n. Disconnect the white probe connector from main board. Cut the black clamps inside the chiller that embrace the probe’s wire. www.tecoonline.com www.tecous.com...
- Page 6 STEP n. Proceed to cut all black clamps that embrace the probe’s wire. Extract the wire from circular passage. www.tecoonline.com www.tecous.com...
- Page 7 STEP n. Remove the ring nuts and the two screws. Remove the metal black clamp. Push the blue joints through holes www.tecoonline.com www.tecous.com...
- Page 8 STEP n. Remove the rubber cap positioned in the chiller’s bottom side. Remove the black probe’s insulation. Then remove the probe from its position, pulling it off from the wire. www.tecoonline.com www.tecous.com...
- Page 9 STEP n. - Insert the new probe inside the exchanger. The probe has to touch the pipe’s end part. Take the probe’s insulation and put it on the probe’s hole. ATTENTION: there must not be any air leakage !! - Insert the cap in its place. - Place probe wire in the small passage under exchanger.
- Page 10 STEP n. - Place the exchanger in the correct position inserting blue joints in the holes. - Screw both ring nuts - Place the big clamp around the exchanger and fix it to chiller metal wall www.tecoonline.com www.tecous.com...
- Page 11 STEP n. - Insert probe cable in circular passage - Connect new probe connector to main board - Take new seven black plastic clamps and pinch the probe’s cable with the other cables as it was at the beginning - Place the chiller cover in its position and then place the sixteen screws to close the chiller.
