TECO TK Series Replacement Manualline
Thermostat replacement
Hide thumbs
Also See for TK Series:
- Manualline (15 pages) ,
- Replacement manuallines (11 pages) ,
- Installation manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for TECO TK Series
Summary of Contents for TECO TK Series

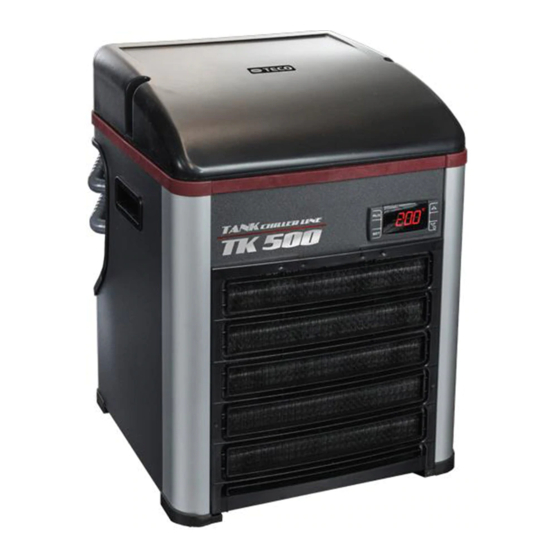

- Page 1 GUIDELINE THERMOSTAT REPLACEMENT MODELS : TK500 – TK1000 – TK 2000 www.tecoonline.com www.tecous.com...
- Page 2 EQUIPMEMT Thermostat Screw-driver (spare part) www.tecoonline.com www.tecous.com...
- Page 3 STEP n. Remove the conveyor from the top part of the chiller. You can see the metal black grid and the red fan support. www.tecoonline.com www.tecous.com...
- Page 4 STEP n. Remove the air filter grid and air filter from their position. www.tecoonline.com www.tecous.com...
- Page 5 STEP n. Using the screw-driver, remove the 4 INOX screws indicated in the picture here below. www.tecoonline.com www.tecous.com...
- Page 6 STEP n. Remove the red fan support lifting it up from the bottom edge. Leave it on the metal cover, as you can see in the picture. www.tecoonline.com www.tecous.com...
- Page 7 STEP n. Disconnect the main green connector and probe connector. www.tecoonline.com www.tecous.com...
- Page 8 STEP n. Remove the two white thermostat’s supports. You can help you using a screw driver. www.tecoonline.com www.tecous.com...
- Page 9 STEP n. Remove the thermostat from its placement and replace it with a new one. Insert the white supports and connect the two green connectors. www.tecoonline.com www.tecous.com...
- Page 10 STEP n. Take the fan support and fix it at the bottom part of chiller. Attention: the front panel side must be insert in the aluminum profile! www.tecoonline.com www.tecous.com...
- Page 11 STEP n. Rebuild the top part of the chiller following the indicated sequence: 1. 4 INOX screw (fix the fan support on the metal cover) 2. Conveyor 3. Air filter 4. Air filter grid www.tecoonline.com www.tecous.com...
