Instruction Manual

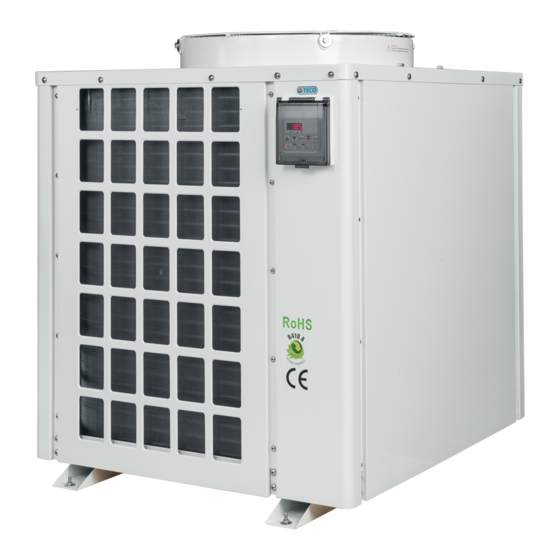

Aquarium Chiller
Applicable Models: TK 5K
TK 8K
TK 15K
TECO S.r.l.
Via A. Sansovino, 35 48124 Ravenna - ITALY
Fax
:
Tel.: +39 0544 408333 -
+39 0544 280084
www.tecoonline.com
Advertisement
Related Manuals for TECO TK 5K
Summary of Contents for TECO TK 5K
- Page 1 Aquarium Chiller Applicable Models: TK 5K TK 8K TK 15K TECO S.r.l. Via A. Sansovino, 35 48124 Ravenna - ITALY Tel.: +39 0544 408333 - +39 0544 280084 www.tecoonline.com...
- Page 2 TECO Chiller THIS MANUAL MUST BE READ AND UNDERSTOOD BY A QUALIFIED PERSON OR PERSONS BEFORE INSTALLATION CONTENT Introduction of Aquarium Chiller Install And Safety Precautions Transportation and Storage Technical Specifications Dimensions Rules for the installation Electric Circuit Drawing Controller STATEMENT Energy, let’s save it!!!
- Page 3 TECO Chiller TECO Chiller Introduction ℃ 1) Chiller in this manual are designed for heating and cooling water within 5 to 40℃. ℃ 2) It is suitable for fresh water and salt water at the ambient temperature from 5 to 35℃.
-
Page 4: Technical Specifications
MUST be transported and stored uprightly on a pallet with good package. 3) Should the Chiller be laid down, please wait at least 12 hours before switching it on. Technical Specifications Model Number TK 5K TK 8K TK 15K Cooling Capacity 5800 8700... - Page 5 TECO Chiller Model Number TK 5K TK 8K TK 15K Cooling Capacity 5700 10000 15100 Cooling Input 2080 4490 6900 Summer Condition [1] Normal Current 19.8 20.8 2.76 2.24 2.17 Heating Capacity 5900 9400 15300 Heating Input 1530 2900 4280...
- Page 6 TECO Chiller Dimensions TK 8K TK 15K TK 5K 827mm 842mm 1042mm 725mm 725mm 725mm 665mm 665mm 665mm 765mm 765mm 765mm 460mm 460mm 460mm 300mm 300mm 500mm 116mm 116mm 116mm...
- Page 7 TECO Chiller Rules for the installation ATTENTION To grant the right functioning of the unit in safe conditions, it is absolutely forbidden its exposition at atmospheric conditions and direct sources of heat. The maximum ambient temperature allowed is 35℃. ATTENTION...
- Page 8 TECO Chiller Model: TK 5K(220~240V/50Hz/1PH) WHT:white BLK:black BLU:blue BRN:brown RED:red ORG:orange YLE:yellow GRN:green Gray:gray Model: TK 8K\TK 15K(380~415V/50Hz/3PH) W H T : w hite B L K : bl ack B L U : bl ue B R N : br own...
- Page 9 TECO Chiller Model: TK 5K\TK 8K(208~230V/60Hz/1PH) W H T:whit e BLK:b l a c k BLU:b l u e BRN:b r o w n R E D : red O R G : orange Y L E :yello w GRN: g r e e n...
- Page 10 TECO Chiller Regulation (digital controller) ON / OFF starts or stops the machine. (Attention! When the machine is being turned ON Button or OFF, it may take up to a few minutes to activate or deactivate.) Working modes Button is to choose the Chiller working mode.
- Page 11 TECO Chiller Keybord lock It is possible to lock / unlock the keyboard by pressing in the same time during a few seconds, the display makes a “bip” sound when it is locked / unlocked. Clock setting To set the clock time: one time (time is blinking).
- Page 12 TECO Chiller Controller state table Solution (if no reset) Screen Explanation Check Stand-by <<Flow >>not - Check if filtration pump is working. lighting No water flow or the flow - Check by-pass setting. switch doesn’t detect the water flow - Check water flow switch settting.
- Page 13 If during warranty period, it should arise defective working or damages of the unit, which will be part of the cases indicated in the warranty, TECO S.r.l. , after the proper inspections on the unit, will provide at the reparation or replacement of the defective parts.
- Page 14 Note: Specifications in this user manual are subject to change without prior notice that we may bring the latest innovations to their customers. Whilst every effort is made to ensure that all specifications are correct, printing errors are beyond our control;...
