Installation and Commissioning

2xDS3 + 28 DS1

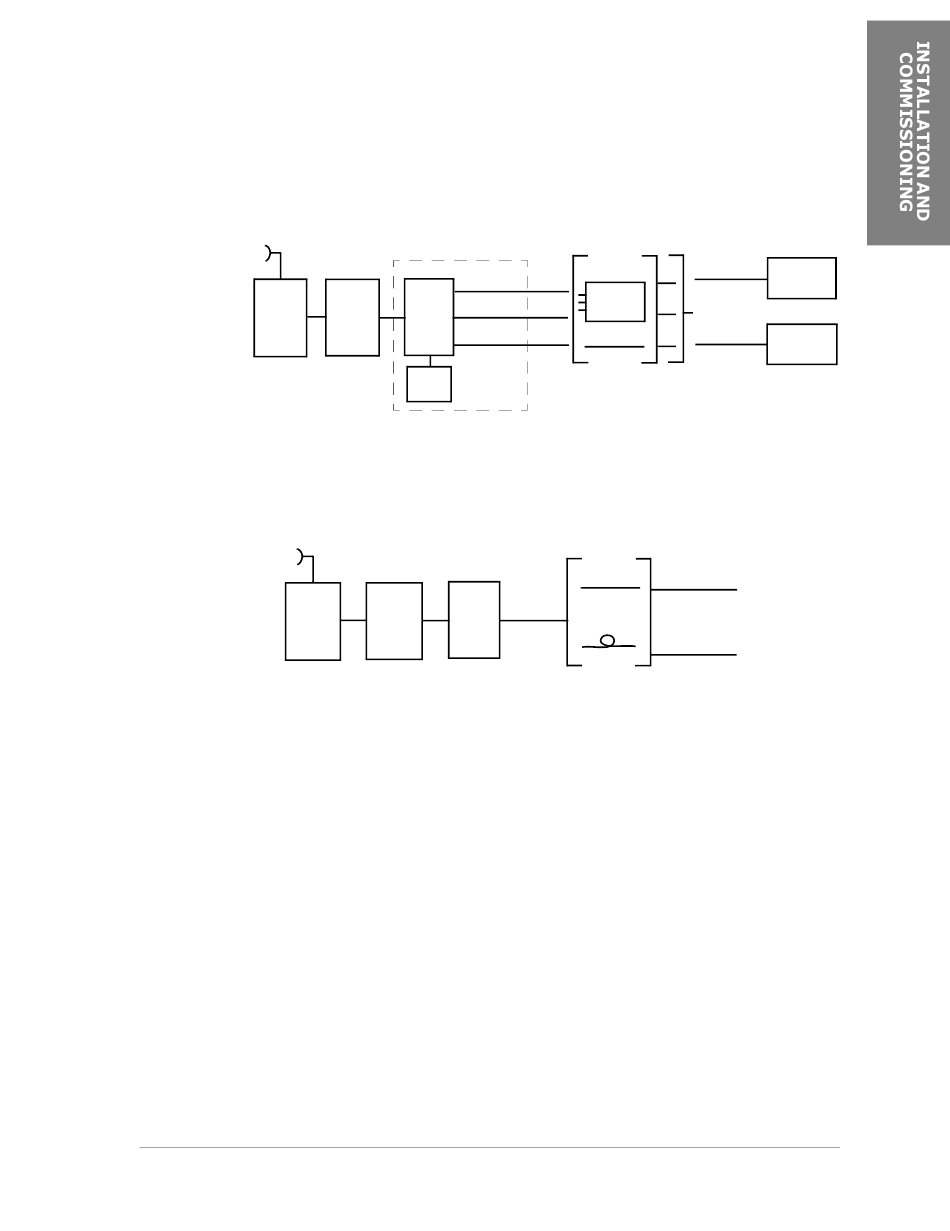

Figure 4-9: Interconnection cabling, 2xDS3 + 28 DS1
Radio

155 Electrical or Optical configuration

Figure 4-10: Interconnection cabling, 155 Electrical or Optical
Radio
For connector pinout information, refer to
1. Connect the Constellation radio to other equipment.
Refer to
2. Connect the customer-configured alarm wires.
All Constellation radios, in terminal or repeater (when applicable)
configuration, provide 8 alarm inputs and 8 relay outputs. These 8 relays can
either provide information about the radio to a non-FarScan NMS, or be used
to activate (from FarScan) external devices such as a generator, air
conditioning, and so forth (housekeeping). These 8 relays are programmable;
the first two relays are predefined at the factory as LOCAL MAJOR and LOCAL
MINOR but can be programmed for customer use.
