Routine Maintenance

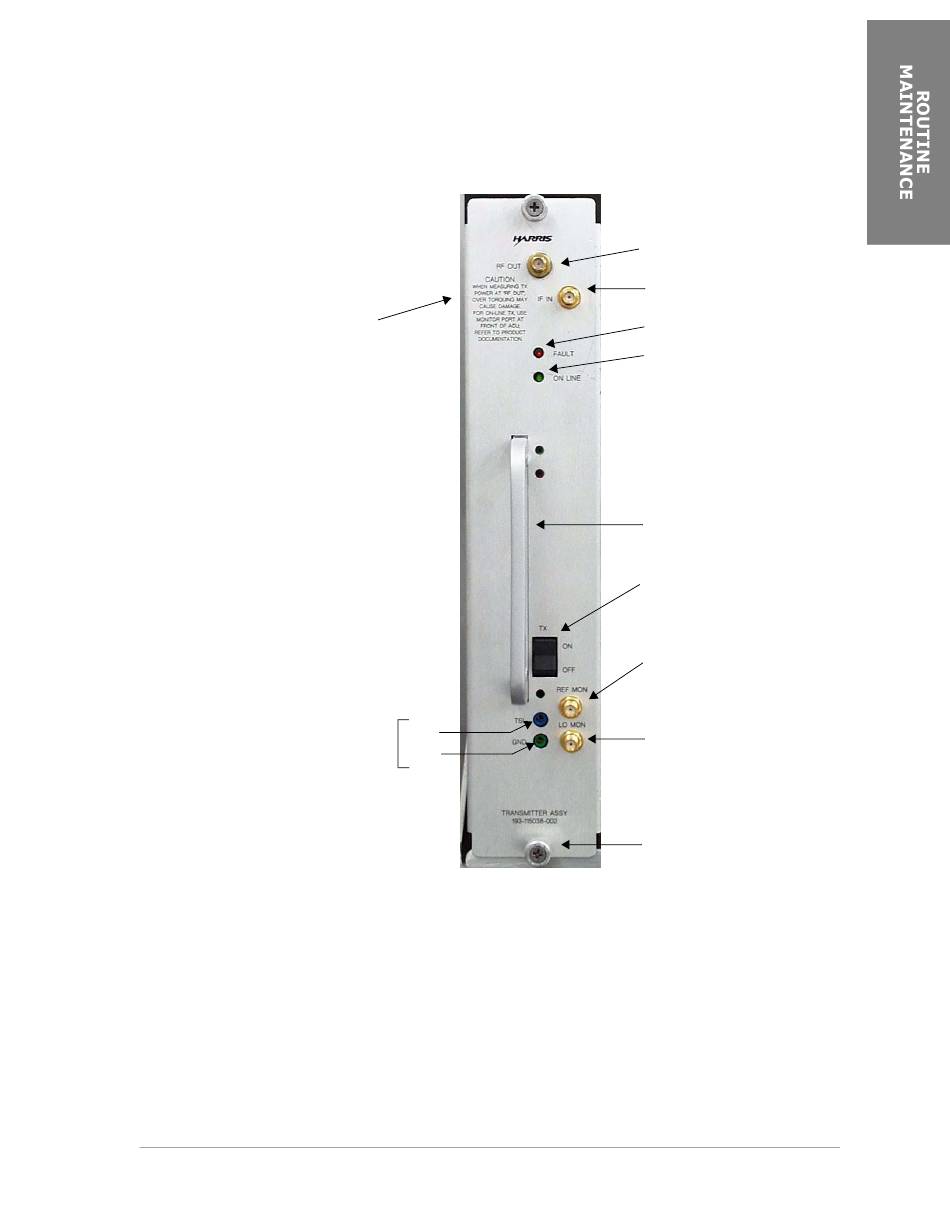

Figure 9-1: Transmitter Assembly, front view

Note: To prevent damage
to the connectors, do not
exceed 8 to 9 in-pounds of
torque.
Caution: When measuring
Tx power at RF OUT, over
torquing may cause
damage.
For on-line Tx, use monitor
port at front of ACU.
Refer to product
documentation.
Transmitter

Transmitter Power Measurement

This procedure for measuring the transmitter power should be followed for
new installations and as part of the annual maintenance requirement.
Harris Corporation
TSL
output
GND
level
9-5
RF OUT (to ACU)
IF IN (from Modem)
FAULT (red LED)
ON LINE (green LED)
Handle
ON/OFF switch, turns the
power amplifier on or off
REF MON
Reference frequency
test point
(100 MHz)
LO MON
LO synthesizer test
point
(2.060 to 2.160 G.160
GHz)
(For factory use only)
Thumb screw (2)
Constellation™
