Harris Aurora 5800 Installation Manual

Advertisement

Quick Links

November 2001
IGD-112863-E04

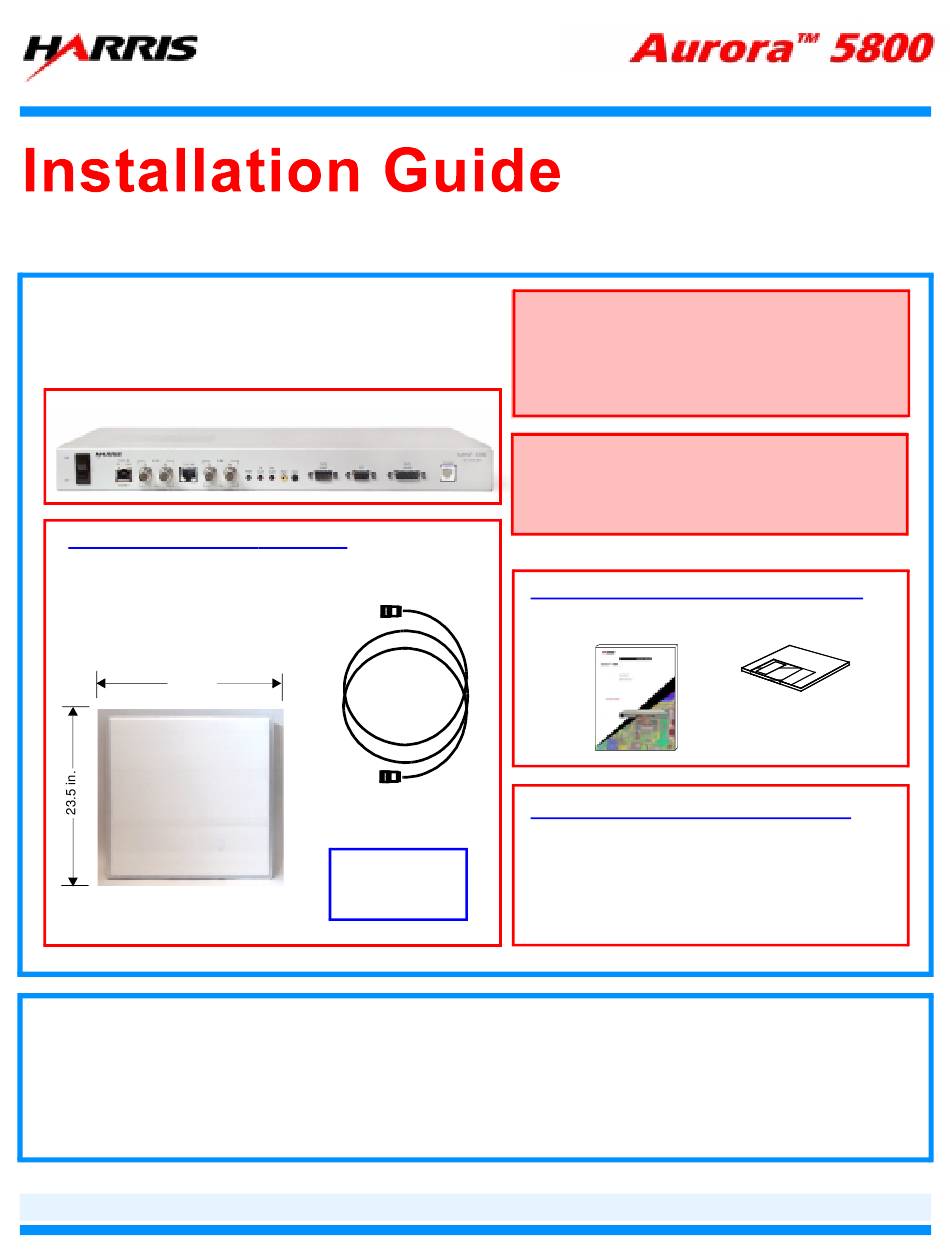

Components
Make sure you have the following components
before starting this installation procedure.
Aurora 5800 Spread Spectrum Digital Microwave Radio
Recommended antenna* and cable*
Flat-panel antenna
(with installation instructions)
23.5 in.
Pre-installation Procedures
Always check the radio pairs on a bench before field installation. This test will minimize your traveling to
another site. See bench test, next page.
N-type cable
Includes
weatherproofing kit
* optional
NOTE: Harris
does not provide
grounding kits.
Microwave Communications Division - ISO 9001 Certified
CAUTION! To prevent equipment damage and
shock hazard caused by lightning, antenna
installation and the grounding system must
comply with NEC or IEC standards, and local
regulatory requirements.
CAUTION! RF output power is set by Harris
or authorized distributor. Do not change
antennas, cable length, or type. To do so
may violate regulatory rules.
The following are supplied with the radio:
Reference Manual
Tools and test equipment you will need:
Voltmeter
T1 or E1 test set
Set of screwdrivers
Set of wrenches
Software

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aurora 5800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Harris Aurora 5800

  • Page 1 NEC or IEC standards, and local regulatory requirements. Aurora 5800 Spread Spectrum Digital Microwave Radio CAUTION! RF output power is set by Harris or authorized distributor. Do not change antennas, cable length, or type. To do so may violate regulatory rules.
  • Page 2 Bench Test Balanced interface 60 dB pad WARNING! Do not connect back to back without a 60 dB RF attenuation. Failure to observe this RF loopback caution will result in a damage to the receiver front end and will invalidate the equipment warranty.
  • Page 3 Connect the signal (data) lines to Turn on the power to the radio. the radio. RJ-48C pinout T1/E1 10Base-T Power 1(TXD+)/ - input data (that will be 1(ring)/2(tip) - (Tx) input to radio switch 2(TXD-) modulated for transmission) 4(ring)/5(tip) - (Rx) output from 3(RXD+)/ - output data radio 6(RXD-)
  • Page 4 6 5 4 3 2 1 6 5 4 3 2 1 Output Input to from radio radio www.microwave.harris.com/cservice/ USA 1-800-227-8332 Int’l (+1) 650-594-3800 Harris Corporation 350 Twin Dolphin Drive Redwood Shores, CA USA 94065 Copyright © 2000 Harris Corporation...
