Harris FlexStar Technical Manual

Fm hd radio system
Hide thumbs
Table of Contents

Advertisement

Quick Links

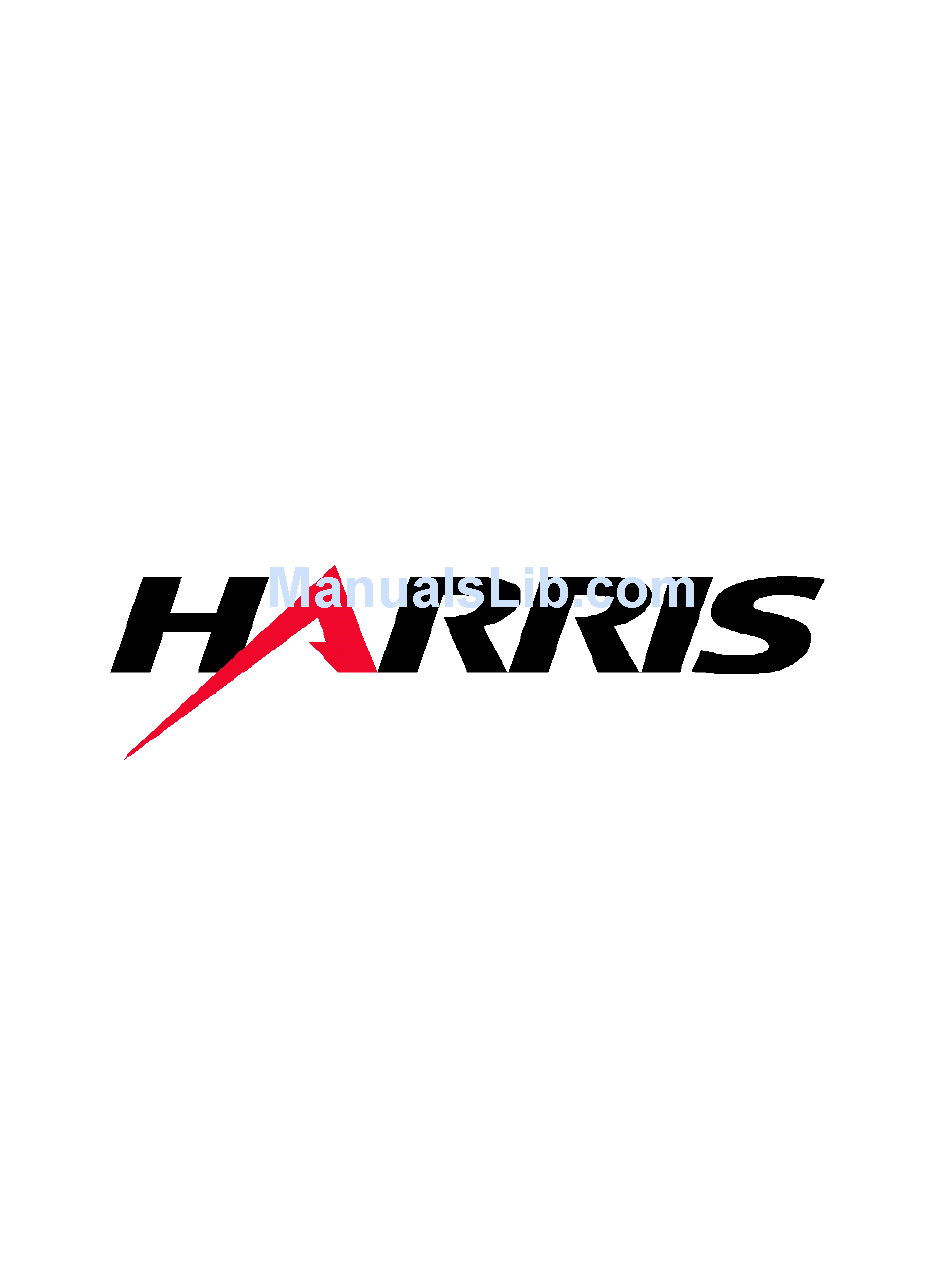

TECHNICAL MANUAL
888-2587-001
FM HD Radio System
FM HD Radio System
T.M. No. 888-2587-001
Rev. C1: 04/19/07
© Copyright Harris Corporation 2006, 2007
All rights reserved
