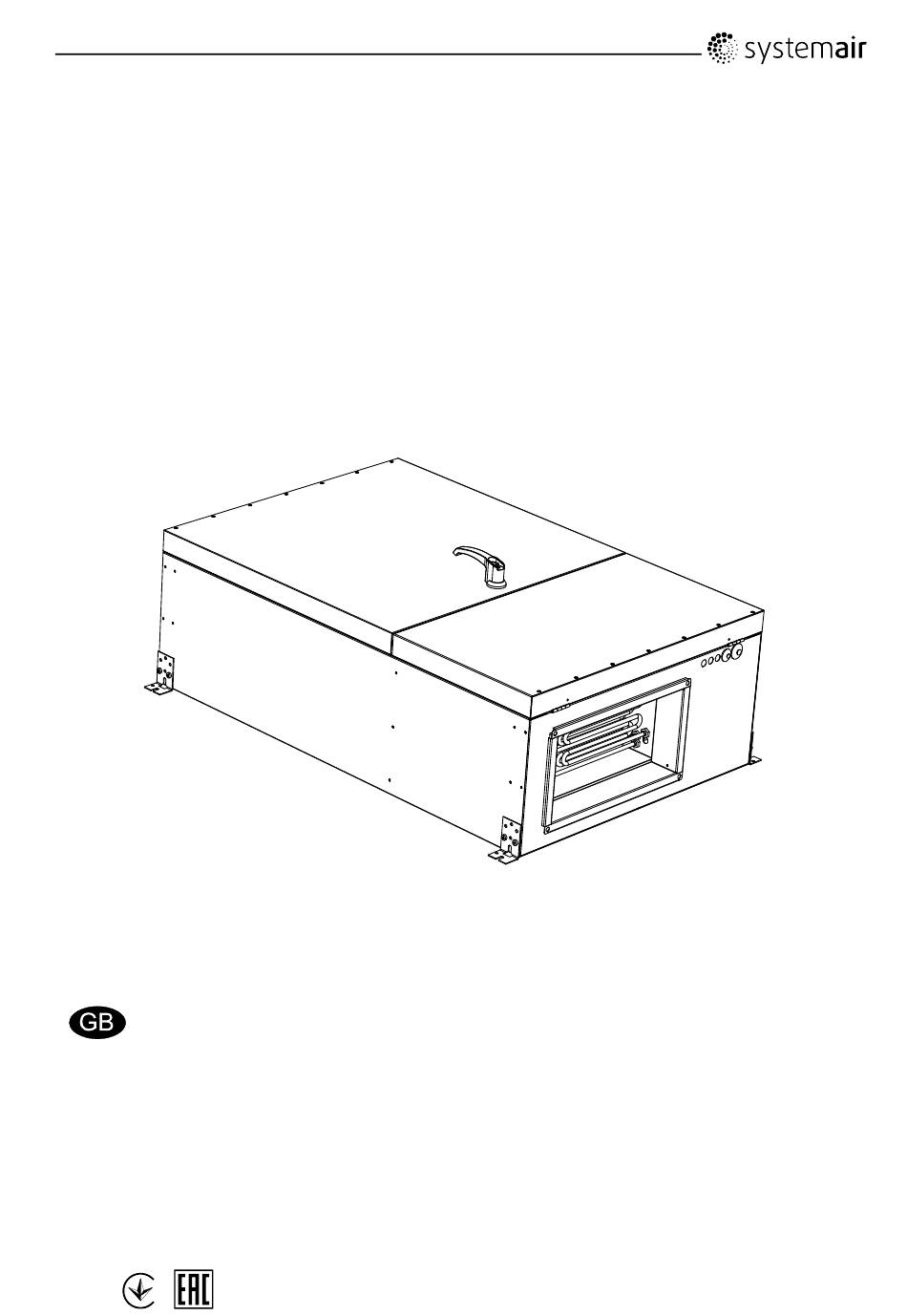

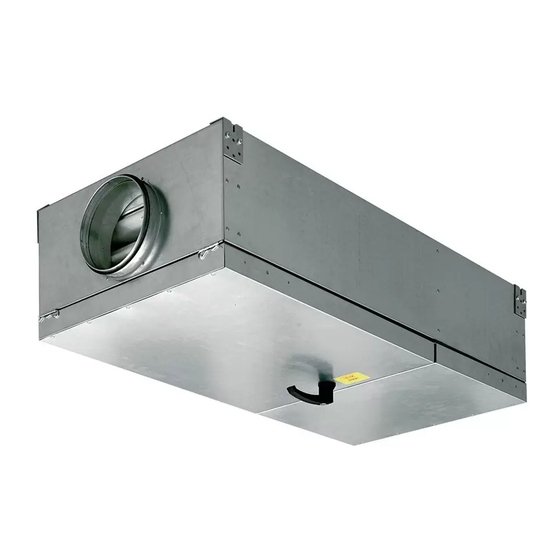

- Page 1 TA 450-4500 Air Handling Unit Operation and Maintenance Instructions 132616-EN_GB Document in original language 08-12-2015 A001...
-
Page 2: Table Of Contents
3.4 Water heating battery......................3 3.5 Electrical heater ....................... 3 3.6 Electrical connection box ....................3 3.6.1 Connection box TA 450 EL ..................4 3.6.2 Connection box TA 650-2000 EL................5 3.6.3 Connection box TA 1400-4500 HW ................6 4 Operation ..........................7 4.1 Temperature control possibilities.................. -
Page 3: Warnings
Installation, operation and maintenance manual concerns air handling unit type TA, manufactured by Systemair. It consists of basic information and recommendations concerning the design, installation, start-up and operation, which shall be obeyed to ensure the proper fail-free operation of the unit. -
Page 4: Product Description
In TA the supply air sensor is delivered with the unit and is to be installed in the supply air duct externally from the unit. See Installation instructions for more detailed information. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 5: Water Heating Battery
• All electrical connections must be carried out by an authorized installer and in accordance with local rules and regulations. TA are equipped with a built in regulator and internal wiring. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 6: Connection Box Ta 450 El
3.6.1 Connection box TA 450 EL Fig. 2 Connection box TA 450 EL Speed transformer Control unit Corrigo 24V Transformer Terminal block Terminal block for power input Reset button for overheat protection Circuit breaker Operation and Maintenance Instructions TA 450-4500... -
Page 7: Connection Box Ta 650-2000 El
3.6.2 Connection box TA 650-2000 EL Fig. 3 Connection box TA 650-2000 EL Speed transformer Control unit Corrigo 24V Transformer Terminal block Terminal block for power input Reset button for overheat protection Circuit breaker Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 8: Connection Box Ta 1400-4500 Hw
3.6.3 Connection box TA 1400-4500 HW Fig. 4 Connection box TA 1400-4500 HW Speed transformer Control unit Corrigo 24V Transformer Terminal block Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 9: Operation
Preset approximately 3m after the unit. minimum temperature is +12°C and maximum temperature is +30°C. 4.2 Heat start The heat control always starts from 100% output signal. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 10: Free Cooling
Topvex unit. The contact is connected to the Corrigo controller in the electrical connection box. The cable can be unscrewed in the back of the control panel (figure 5). Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 11: Operating The Control Panel
This is indicated by an arrow symbol at the right-hand side of the display. To enter a menu, press RIGHT again. To step back to previous menu level, use LEFT. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 12: Commissioning
Monday → Friday unit to operate at normal speed during Monday to Friday. It’s possible to set 2 periods per day. Per 1: 07:00 – 16:00 Per 2: 00:00 – 00:00 Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... - Page 13 To enter Service level use code 2222 in the “Access rights” menu. For operator level use code 1111. To enter Administrator level use code 3333 in the “Configuration menu”. Note: To perform more advanced settings please see the separate “General Commissioning Record” on www.systemair.com, online catalogue Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB...
-
Page 14: Menu Overview
Status of the support control function CO2/VOC active Status of the demand ventilation Never (CO2/VOC) function Status of the fire damper Fire damper function function Not active Operation when alarm Stopped Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... - Page 15 (Only visible for HW units) Actual: ºC Exhaust air temp Actual: ºC Actual exhaust air temperature. → Time settings → Time/Date Set correct time and date. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616...
- Page 16 3:01–05 — 01–05 The dates are in the format: MM:DD. When the current date falls within a holiday period, the scheduler will use the settings for the weekday “Holiday”. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616...
- Page 17 Set the manual output 0-100% Manual set: Note: Needs to be activated in order to be visible here P1–Heating Set the pump control for the heating coil to Auto, On or Off Auto Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616...
- Page 18 See Corrigo E ventilation manual for more info Shutdown mode Set P-band and I-time for the Shutdown function P-band: 100.0°C Note: I-time: 100.0 See Corrigo E ventilation manual for deeper explanation Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616...
- Page 19 Choose Mode: between Supply air Extract air control, control "Room control, Outdoor comp. Supply, Supply air control, Extract/supply air →(possible to switch between the two depending on outdoor temp.), Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616...
- Page 20 Fan output when Set the fan speed in percentage free cooling of the normal speed for each fan individually during the free SAF: 0 % cooling sequence EAF: 0 % Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616...
- Page 21 Set fire damper to Normally function closed/Normally open/Not active. Not active Set behaviour of the unit Operation when when fire alarm is triggered alarm Stopped/Continuous run/Normal run/Only Stopped SAF/Only EAF. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616...
- Page 22 Set the level of the cooling Start step 3: output that starts step 3 of the cooling. Stop step 3: Set the level of the cooling output that stop step 3 of the cooling. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616...
- Page 23 → Change Change password Set a new password for the password level of your choice. level:None Can only be done once logged on to the service level. New password xxxx Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616...
-
Page 24: Maintenance
The fan may be cleaned with a cloth or a soft brush. Do not use water. White spirit can be used to remove accumulations which are otherwise difficult to remove. Allow drying properly before use. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 25: Cleaning Louvers And Diffusers
The replacement battery must be of the type CR2032. Remove the cover by pressing down the locking torques at the edge of the cover using a small screwdriver, and at the same time pulling the edges outwards. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 26: Troubleshooting
If there are multiple alarms, use UP/DOWN to move between them. An alarm can be acknowledged or blocked by using OK and UP/DOWN. To abort and go back to start menu press cancel and then press LEFT. Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... -
Page 27: Service
Before calling your service representative, make a note of the specification and production number from the data plate on the unit. 1. Item number 2. Production order number 3. Consecutive number 4. Production date 5. Product code (product specification) Operation and Maintenance Instructions TA 450-4500 Systemair Sverige AB 132616... - Page 28 Systemair Sverige AB reserves the right to make changes and improvements to the contents of this manual without prior notice. Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com...
